NAVI CONTROL UNIT

NAVI CONTROL UNIT

Reference Value

INFOID:0000000001728758

VALUES ON THE DIAGNOSIS TOOL

CONSULT-III data monitor item

TERMINAL LAYOUT

PHYSICAL VALUES

Display Item

Dis-
play

Vehicle status

Remarks

VHCL SPD SIG

ON

Vehicle speed >0 km/h (0 MPH)

Changes in indication may be delayed. This is
normal.

OFF

Vehicle speed =0 km/h (0 MPH)

PKB SIG

ON

Parking brake is applied.

Changes in indication may be delayed. This is
normal.

OFF

Parking brake is released.

ILLUM SIG

ON

Lighting switch ON

—

OFF

Lighting switch OFF

IGN SIG

ON

Ignition switch ON

—

OFF

Ignition switch in ACC position

REV SIG

ON

Selector lever in R position

Changes in indication may be delayed. This is
normal.

OFF

Selector lever in any position other
than R

JPNIA0226ZZ

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

1

(B)

Ground

GND

—

Ignition

switch

ON

—

0  V

2

(LG)

Ground

Battery power supply

Input

Ignition

switch

OFF

—

Battery voltage

5

(R)

Ground

ACC power supply

Input

Ignition

switch

ACC

—

Battery voltage

6

(B)

7

Microphone VCC

Output

Ignition

switch

ON

—

5  V

7

Ground

Microphone GND

—

Ignition

switch

ON

—

0  V

AV

NAVI CONTROL UNIT

AV-101

< ECU DIAGNOSIS >

[AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

8

(W)

7

Microphone signal

Input

Ignition

switch

ON

Sounds

9

—

Shield

—

—

—

—

10

(W)

11

(O)

TEL voice signal

Output

Ignition

switch

ON

TEL voice output

12

(O)

14

(W)

Voice guidance signal

Output

Ignition

switch

ON

Voice guidance output

13

—

Shield

—

—

—

—

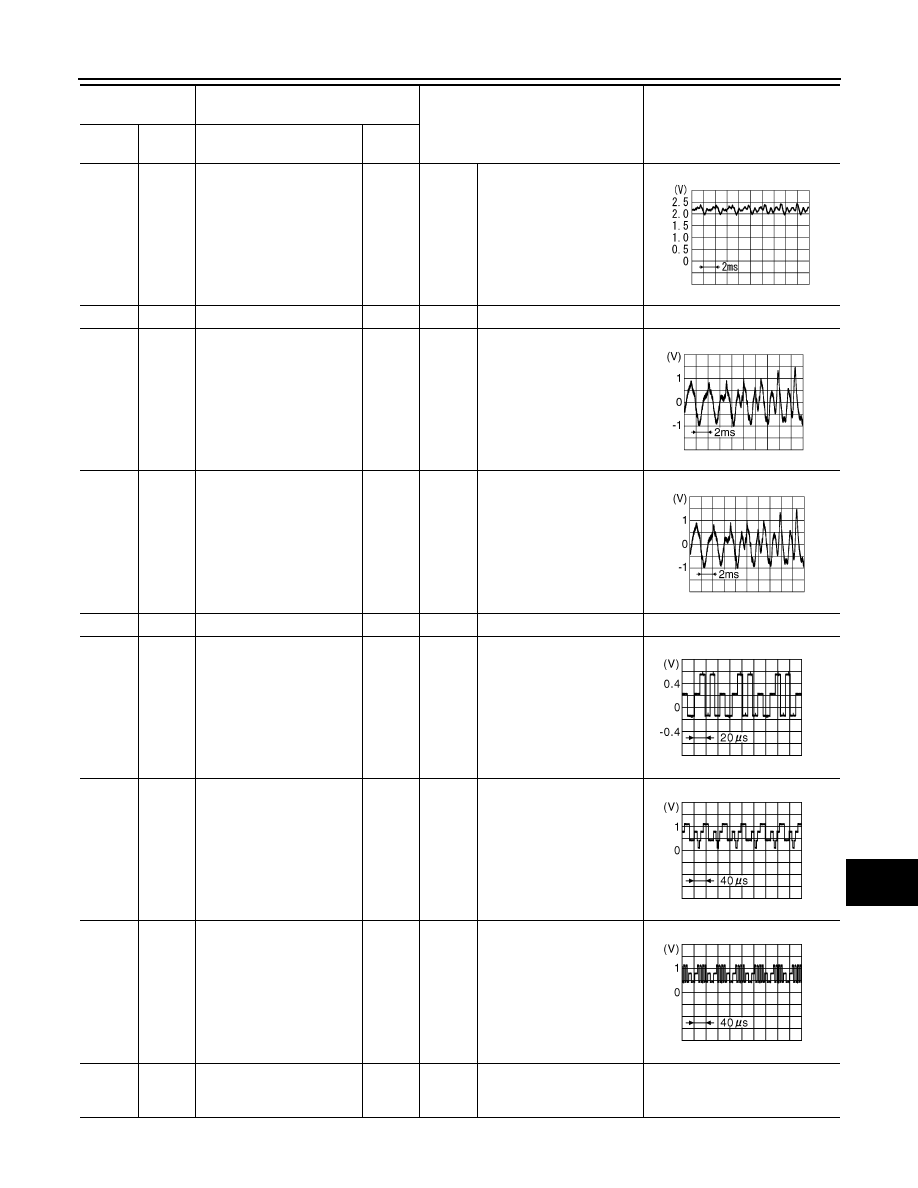

44

(G)

47

(B)

RGB signal (R: red)

Output

Ignition

switch

ON

Start “Confirmation / Adjust-
ment Mode”, and then dis-
play color bar by selecting
“Color Spectrum Bar” on
DISPLAY DIAGNOSIS
screen.

45

(R)

47

(B)

RGB signal (G: green)

Output

Ignition

switch

ON

Start “Confirmation / Adjust-
ment Mode”, and then dis-
play color bar by
selecting“Color Spectrum
Bar” on DISPLAY DIAGNO-
SIS screen.

46

(W)

47

(B)

RGB signal (B: blue)

Output

Ignition

switch

ON

Start “Confirmation / Adjust-
ment Mode”, and then dis-
play color bar by
selecting“Color Spectrum
Bar” on DISPLAY DIAGNO-
SIS screen.

47

(B)

Ground

RGB ground

—

Ignition

switch

ON

—

0  V

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

PKIB5037J

SKIB3609E

SKIB3609E

JPNIA0221ZZ

JPNIA0222ZZ

JPNIA0223ZZ
