AV-90

< COMPONENT DIAGNOSIS >

[AUDIO WITH NAVIGATION]

STEERING SWITCH

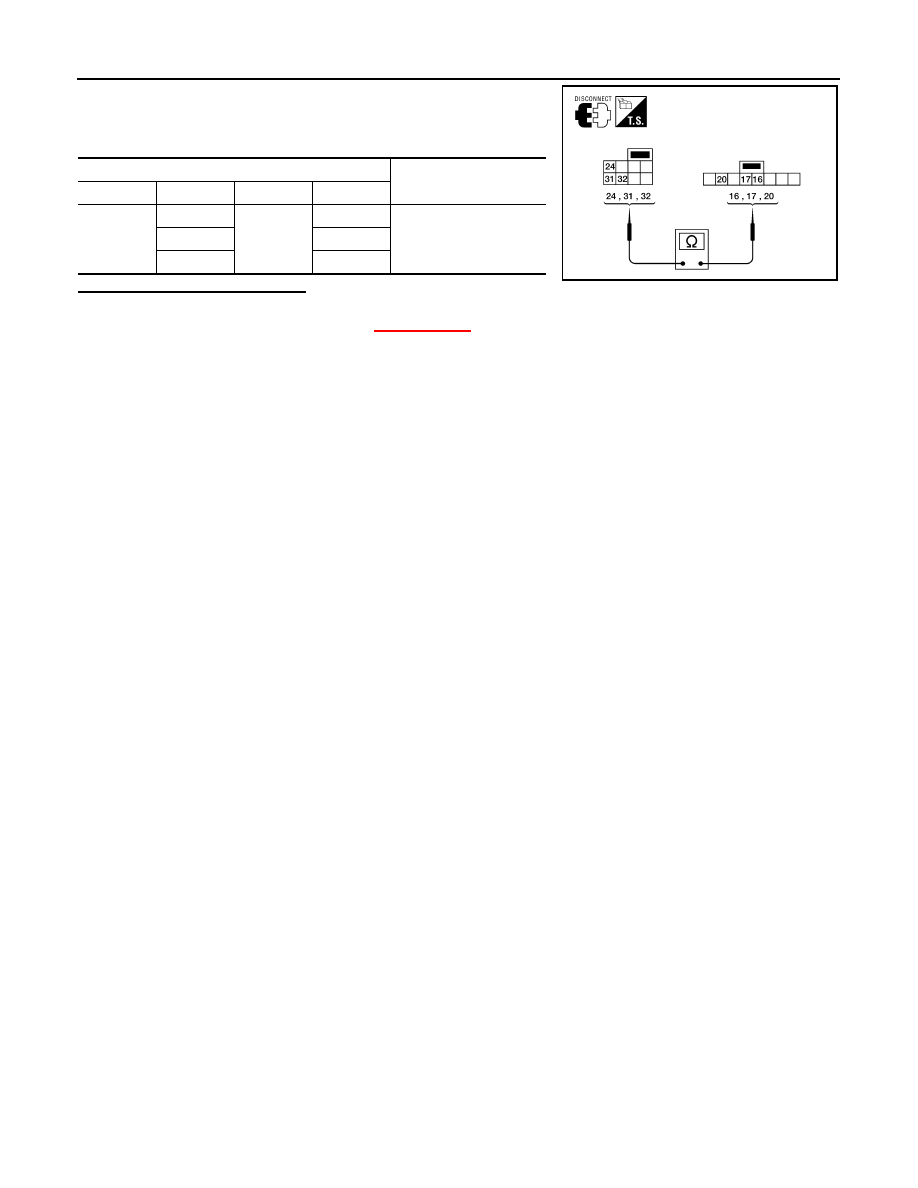

1.

Disconnect spiral cable connector M102.

2.

Check continuity between spiral cable harness connector M30
(A) and M102 (B).

Does the spiral cable check OK?

YES

>> Inspection End.

NO

>> Replace spiral cable. Refer to

XX-XX, "*****"

.

Spiral cable

Continuity

Connector

Terminal

Connector

Terminal

M30

24

M102

20

Yes

31

17

32

16

ALNIA0333GB

AV

MICROPHONE SIGNAL CIRCUIT

AV-91

< COMPONENT DIAGNOSIS >

[AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

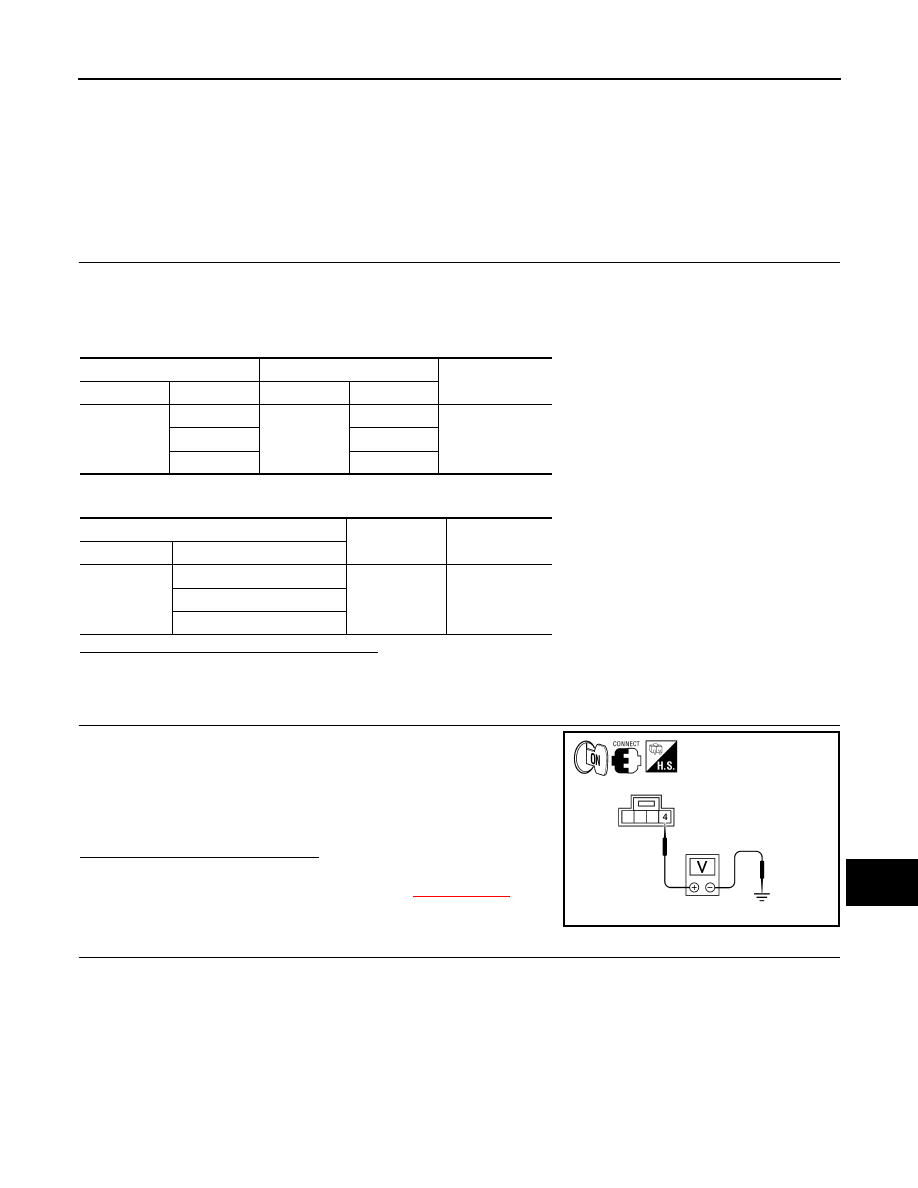

MICROPHONE SIGNAL CIRCUIT

Description

INFOID:0000000001728741

Supplies power from NAVI control unit to microphone. The microphone transmits the sound voice to the NAVI
control unit.

Diagnosis Procedure

INFOID:0000000001728742

1.

CHECK HARNESS BETWEEN NAVI CONTROL UNIT AND MICROPHONE

1.

Turn ignition switch OFF.

2.

Disconnect NAVI control unit connector and microphone connector.

3.

Check continuity between NAVI control unit harness connector B68 and microphone harness connector
R15.

4.

Check continuity between NAVI control unit harness connector B68 and ground.

Are the continuity test results as specified?

YES

>> GO TO 2

NO

>> Repair harness or connector.

2.

CHECK MICROPHONE POWER SUPPLY

1.

Connect NAVI control unit connector and microphone connector.

2.

Turn ignition switch ON.

3.

Check voltage between microphone harness connector R15 ter-
minal 4 and ground.

Is voltage reading approx. 5 volts?

YES

>> GO TO 3

NO

>> Replace NAVI control unit. Refer to

XX-XX, "*****"

.

3.

CHECK MICROPHONE SIGNAL

Check signal between NAVI control unit harness connector B68 terminals 8 and 7 with CONSULT-III or oscilli-
scope.

Terminal

Terminal

Continuity

Connector

Terminal

Connector

Terminal

B68

8

R15

1

Yes

7

2

6

4

Terminal

—

Continuity

Connector

Terminal

B68

8

Ground

No

7

6

4 - Ground

: Approx. 5V

WKIA5796E

AV-92

< COMPONENT DIAGNOSIS >

[AUDIO WITH NAVIGATION]

MICROPHONE SIGNAL CIRCUIT

Are voltage readings as specified?

YES

>> Replace NAVI control unit. Refer to

XX-XX, "*****"

.

NO

>> Replace microphone. Refer to

XX-XX, "*****"

.

Connector

(+)

(-)

Reference signal

Terminal

Terminal

B68

8

7

While speaking into MIC

PKIB5037J

AV

AV CONTROL UNIT

AV-93

< ECU DIAGNOSIS >

[AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

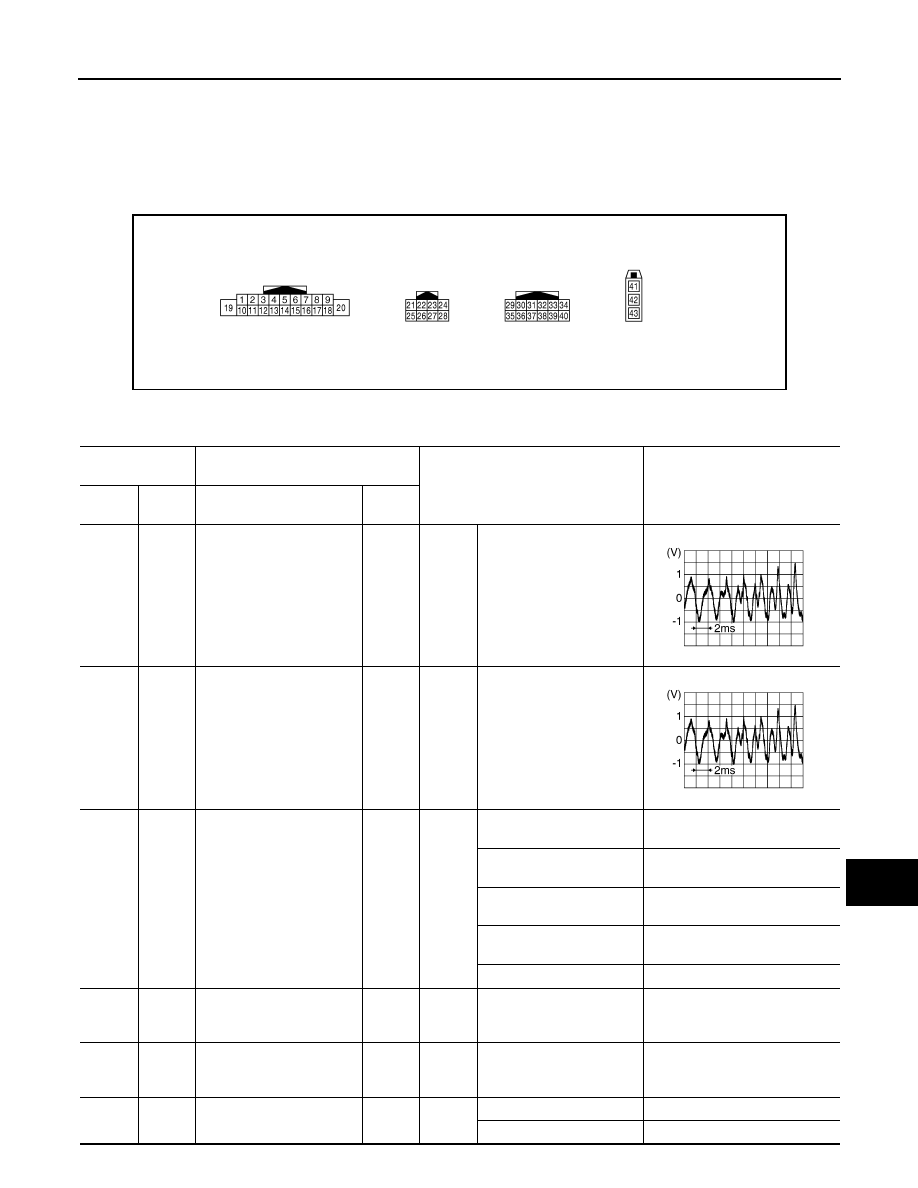

ECU DIAGNOSIS

AV CONTROL UNIT

Reference Value

INFOID:0000000001728761

TERMINAL LAYOUT

PHYSICAL VALUES

JPNIA0227ZZ

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

2

(L)

3

(G)

Sound signal front LH

Output

Ignition

switch

ON

Voice output

4

(LG)

5

(Y)

Sound signal rear LH

Output

Ignition

switch

ON

Voice output

6

(R)

15

(B)

Steering switch signal A

Input

Ignition

switch

ON

Keep pressing SOURCE
switch.

 0 V

Keep pressing MENU UP
switch.

1.2 V

Keep pressing MENU
DOWN switch.

2.5 V

Keep pressing ENTER
switch.

3.7 V

Except for above.

5 V

7

(R)

Ground

ACC power supply

Input

Ignition

switch

ACC

−

Battery voltage

8

(B)

Ground

GND

—

Ignition

switch

ON

—

0  V

9

(R)

Ground

Illumination signal

Input

OFF

Lighting switch is OFF.

0 V

Lighting switch is ON.

12 V

SKIB3609E
