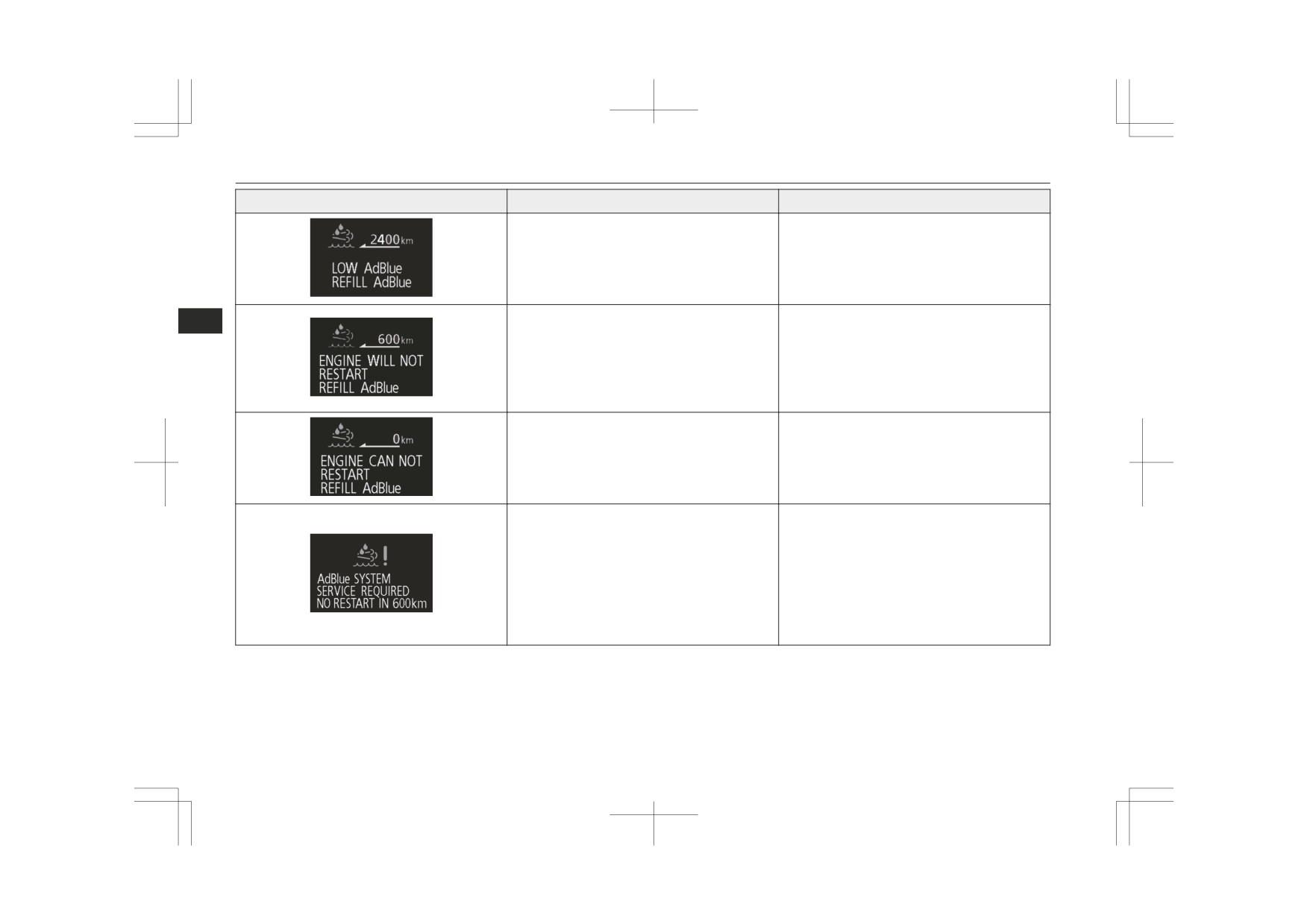

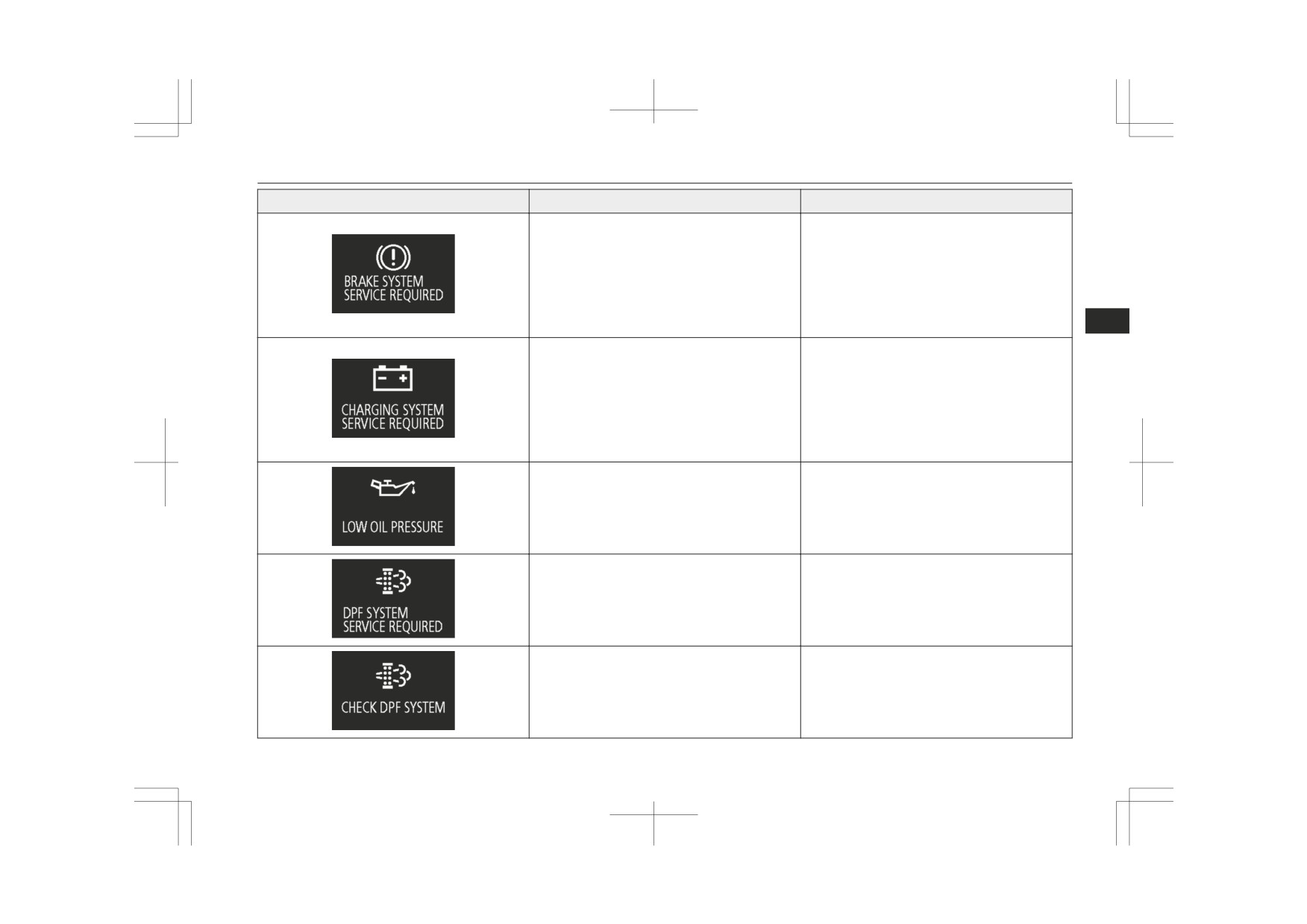

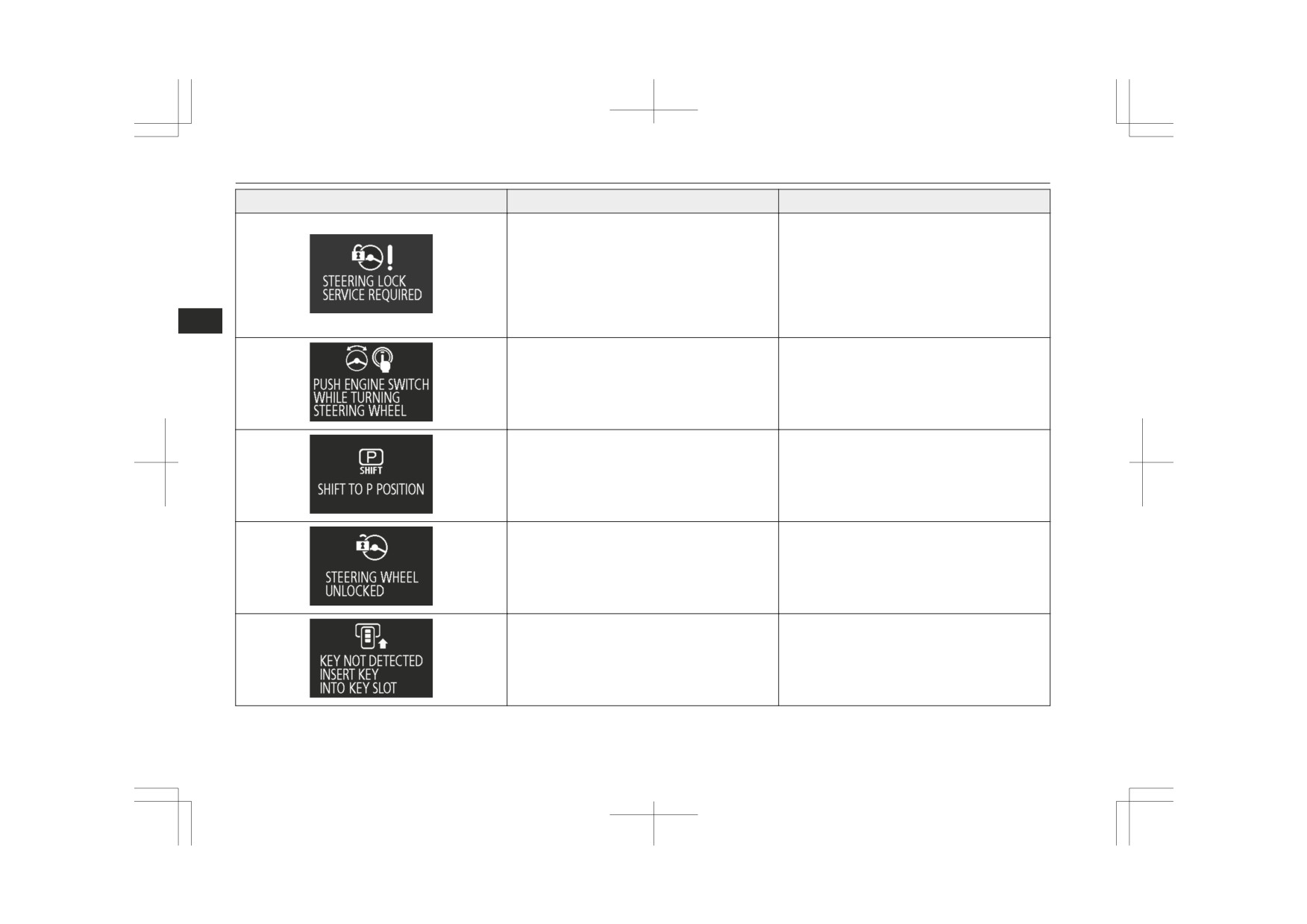

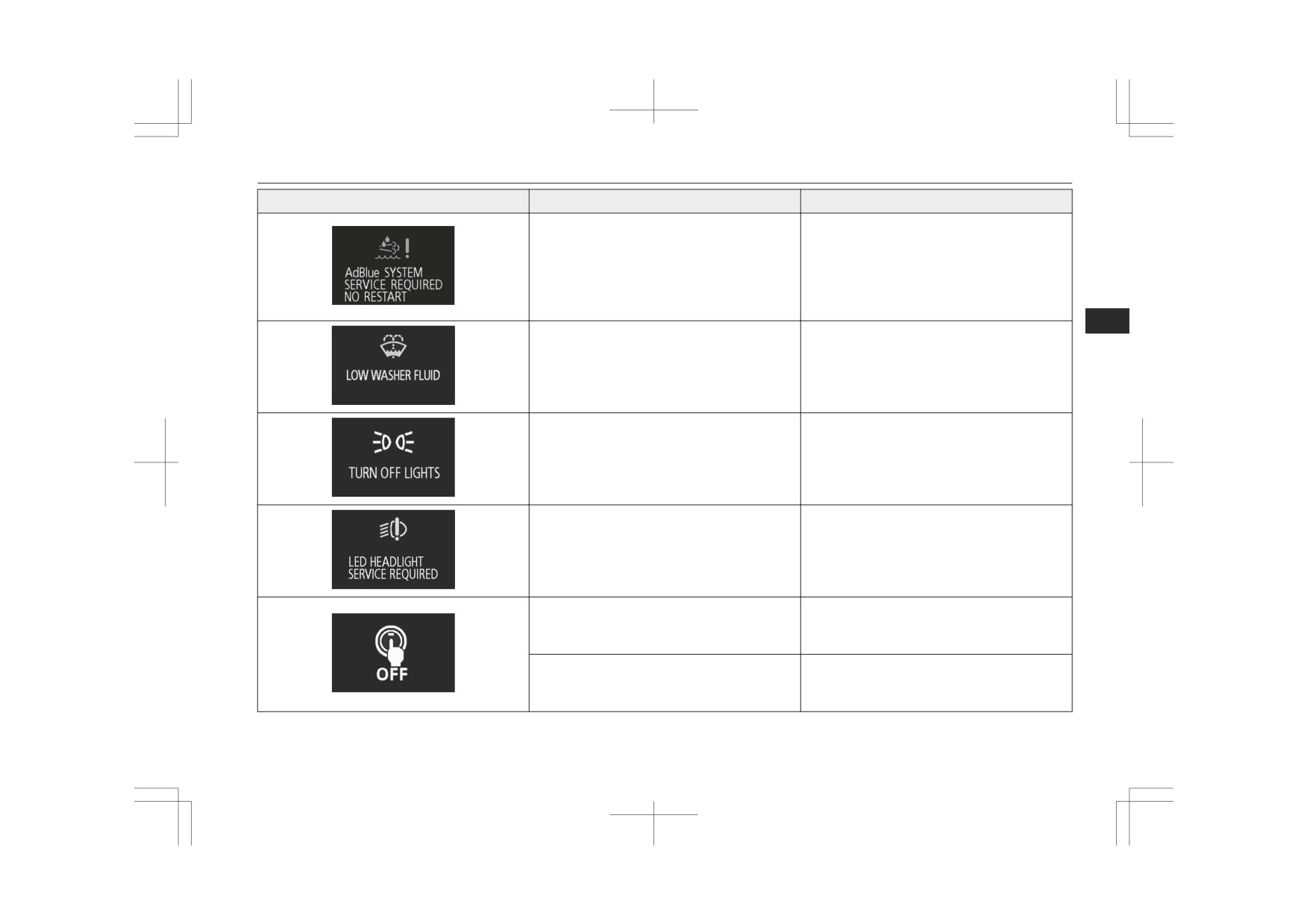

Indication lamp, warning lamp, and information screen display list (multi information display - Type 1)

Screen

Cause

Solution (Reference)

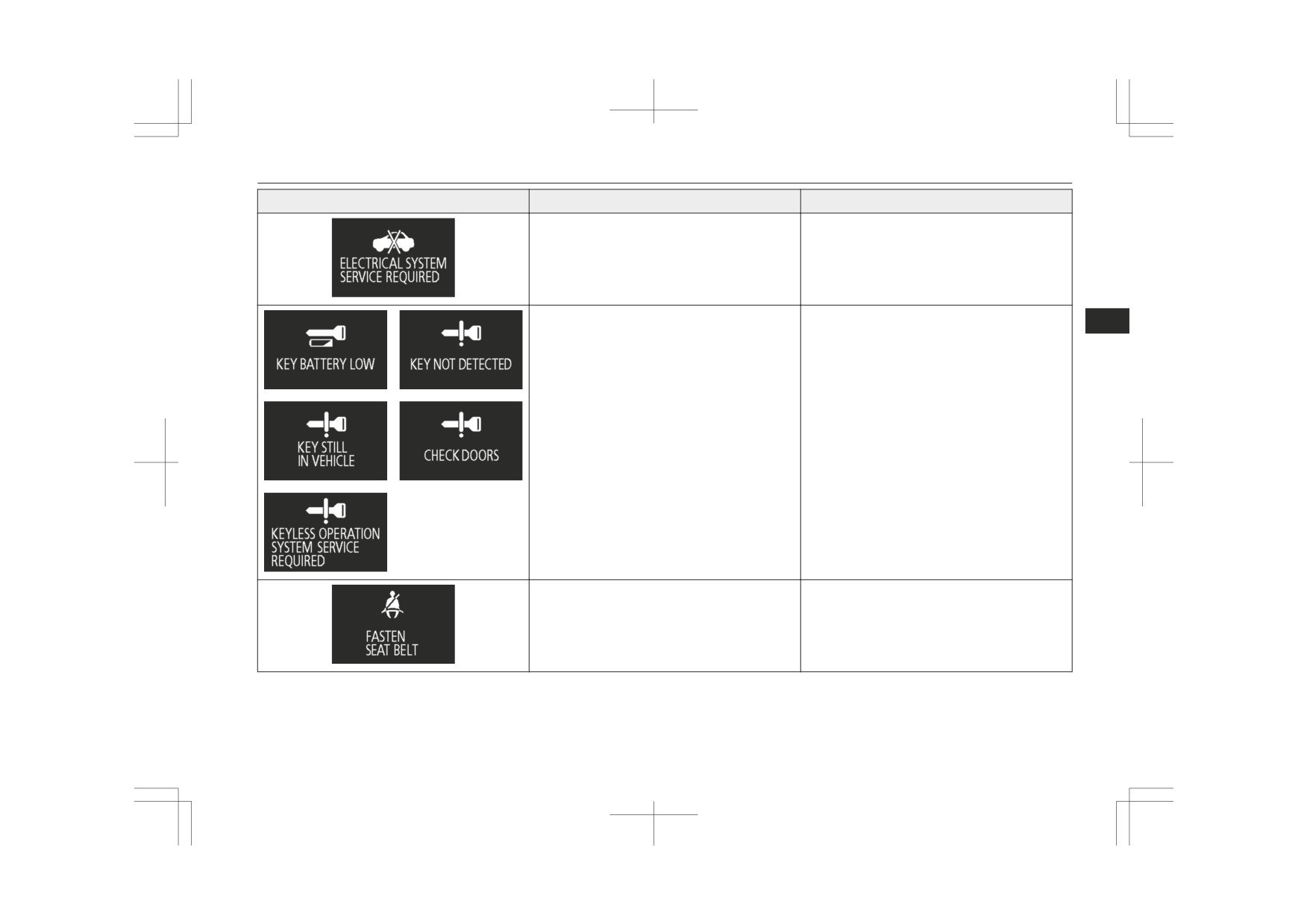

z There is a fault in the electrical system.

z Immediately stop the vehicle in a safe

place.

We recommend you to consult a

MITSUBISHI MOTORS Authorized

Service Point.

z There is a fault in the keyless operation

z Refer to

“Keyless operation system” on

5

system.

page 3-08.

z You turned the ignition switch to the

z Fasten your seat belt properly.

“ON” position or put the operation mode

Refer to

“Seat belt reminder” on page

in ON without fastening your seat belt.

4-08.

Instruments and controls

5-27

Indication lamp, warning lamp, and information screen display list (multi information display - Type 1)

Screen

Cause

Solution (Reference)

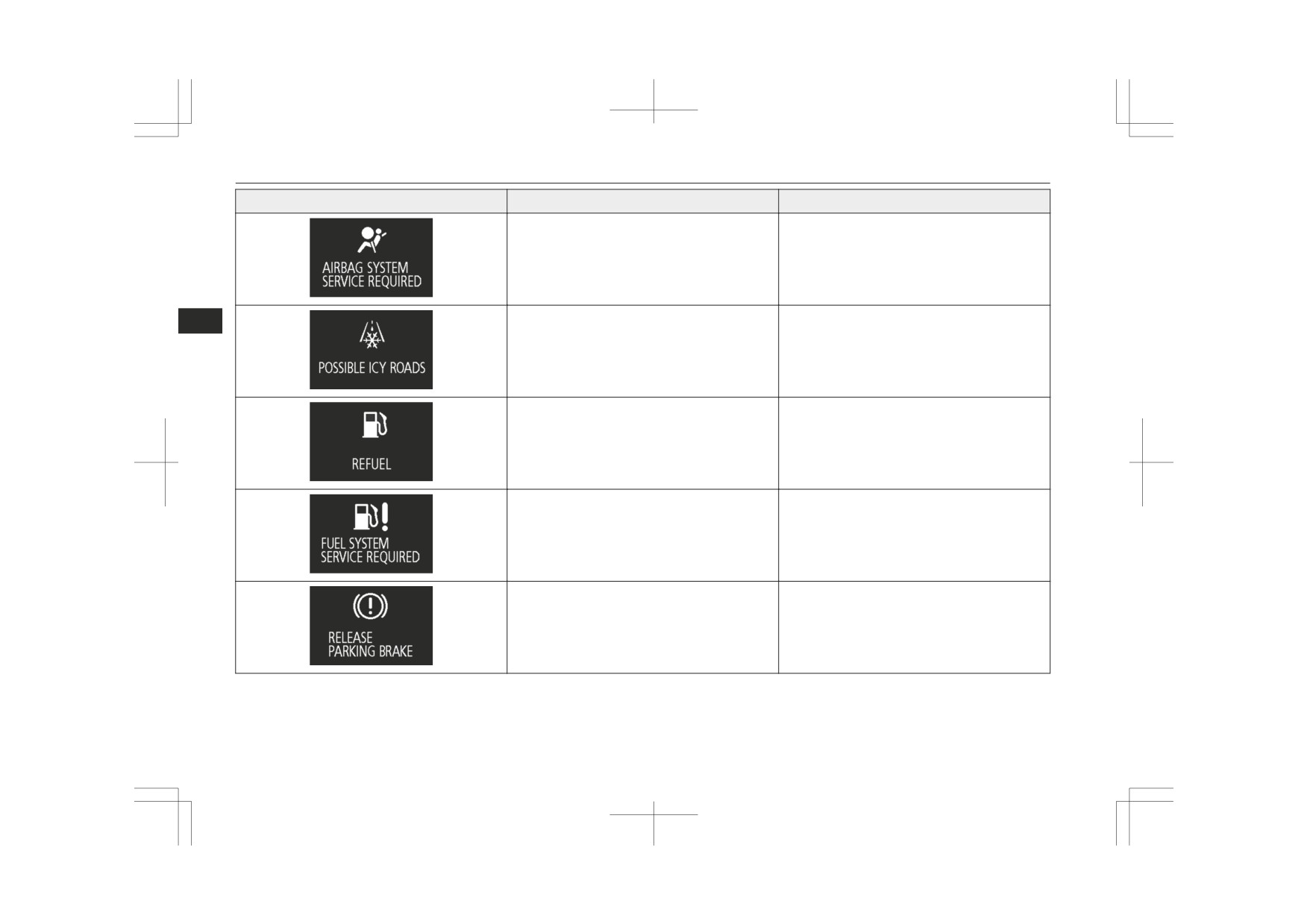

z There is a fault in the SRS airbag or the

z Contact a MITSUBISHI MOTORS Au-

pretensioner system.

thorized Service point to have the system

checked, immediately.

Refer to “SRS warning lamp/display” on

page 4-34.

z The outside temperature is 3 °C (37 °F) or

z Be careful of ice on the road.

5

less.

z The road can be icy even when this warn-

ing is not displayed, so drive carefully.

z The fuel is running low.

z Refuel as soon as possible.

Refer to

“Fuel remaining warning dis-

play” on page 5-08.

z There is a fault in the fuel system.

z We recommend you to consult a

MITSUBISHI MOTORS Authorized

Service point.

z You are driving with the parking brake

z Release the parking brake.

still applied.

Refer to “Brake warning display” on page

5-53

5-28

Instruments and controls

Indication lamp, warning lamp, and information screen display list (multi information display - Type 1)

Screen

Cause

Solution (Reference)

z

The brake fluid level in the reservoir has

z

Immediately stop the vehicle in a safe

fallen to a low level.

place.

z

There is a fault in the brake system.

We recommend you to consult a

MITSUBISHI MOTORS Authorized

Service Point.

Refer to “Brake warning display” on page

5-53.

5

z

There is a fault in the charging system.

z

Immediately stop the vehicle in a safe

place.

We recommend you to consult a

MITSUBISHI MOTORS Authorized

Service Point.

Refer to

“Charge warning display” on

page 5-54.

z

There is a fault in the engine oil circula-

z

Immediately stop the vehicle in a safe

tion system.

place.

We recommend you to have it checked.

Refer to “Oil pressure warning display”

on page 5-54.

z

It is suspected that the engine oil level has

z

Immediately have your vehicle checked

increased excessively.

by a MITSUBISHI MOTORS Authorized

Service Point.

Refer to “Engine oil level warning dis-

play” on page 5-55.

z

An excessive amount of particulate matter

z

Refer to “Diesel particulate filter (DPF)”

(PM) accumulates inside the diesel partic-

on page 6-21.

ulate filter (DPF).

Instruments and controls

5-29

Indication lamp, warning lamp, and information screen display list (multi information display - Type 1)

Screen

Cause

Solution (Reference)

z

The AdBlue™ is running low.

z

Replenish the AdBlue™ soon.

AdBlue™: trademark of the verband der

Refer to “Urea SCR system (AdBlue™-

Automobilindustrie e.V. (VDA).

related system)” on page 6-23

z

There is almost no AdBlue™ remaining.

z

Replenish the AdBlue™ immediately.

5

Once 0 km is displayed for the driving

range, the engine cannot be restarted after

it is stopped.

Refer to “Urea SCR system (AdBlue™-

related system)” on page 6-23.

z

There is no AdBlue™ remaining.

z

Replenish the AdBlue™ immediately.

The engine cannot be restarted after it is

stopped.

Refer to “Urea SCR system (AdBlue™-

related system)” on page 6-23.

z

There is a fault in the urea SCR system

z

Have the vehicle inspected by a MITSU-

(AdBlue™-related system).

BISHI MOTORS Authorized Service

Point as soon as possible. If you continue

to drive the vehicle, the engine cannot be

restarted after it is stopped.

Refer to “Urea SCR system (AdBlue™-

related system)” on page 6-23

5-30

Instruments and controls

Indication lamp, warning lamp, and information screen display list (multi information display - Type 1)

Screen

Cause

Solution (Reference)

z There is a fault in the urea SCR system

z Contact a MITSUBISHI MOTORS Au-

(AdBlue™-related system).

thorized Service Point immediately. The

engine cannot be restarted after it is stop-

ped.

Refer to “Urea SCR system (AdBlue™-

related system)” on page 6-23.

5

z The washer fluid is running low.

z Replenish the container with washer fluid.

Refer to “Washer fluid” on page 10-07.

Refer to “Capacity” on page 11-15.

z You have forgotten to turn off the lamps.

z Refer to “Lamps (headlamps, fog lamp,

etc.) auto-cutout function” on page 5-57.

z There is a fault in the LED headlamps.

z We recommend you to consult a MITSU-

BISHI MOTORS Authorized Service

Point.

Refer to “LED headlamp warning lamp”

on page 5-53.

z The driver’s door is open when the opera-

z Put the operation mode in OFF. Refer to

tion mode is in any mode other than OFF.

“Operation mode ON reminder system”

on page 6-15.

z An attempt was made to lock all the doors

z Put the operation mode in OFF. Refer to

when the operation mode is in any mode

“Operation mode OFF reminder system”

other than OFF.

on page 6-15.

Instruments and controls

5-31

Indication lamp, warning lamp, and information screen display list (multi information display - Type 1)

Screen

Cause

Solution (Reference)

z There is a fault in the steering wheel lock.

z Immediately stop the vehicle in a safe

place.

We recommend you to consult a MITSU-

BISHI MOTORS Authorized Service

Point.

Refer to “Steering wheel lock” on page

5

6-16.

z The steering wheel is locked.

z Press the engine switch while turning

steering wheel.

Refer to “Steering wheel lock” on page

6-16.

z The engine is stopped while the selector

z Place the selector lever in the “P” (Park)

lever is in a position other than the “P”

position to put the operation mode in OFF.

(PARK) position.

z The driver’s door is opened with the steer-

z Refer to “Steering wheel lock” on page

ing wheel unlocked.

6-16.

z The keyless operation key is not detected.

z Insert the keyless operation key into the

key slot.

Refer to “If the keyless operation key is

not operating properly” on page 6-21.

5-32

Instruments and controls

Indication lamp, warning lamp, and information screen display list (multi information display - Type 1)

Screen

Cause

Solution (Reference)

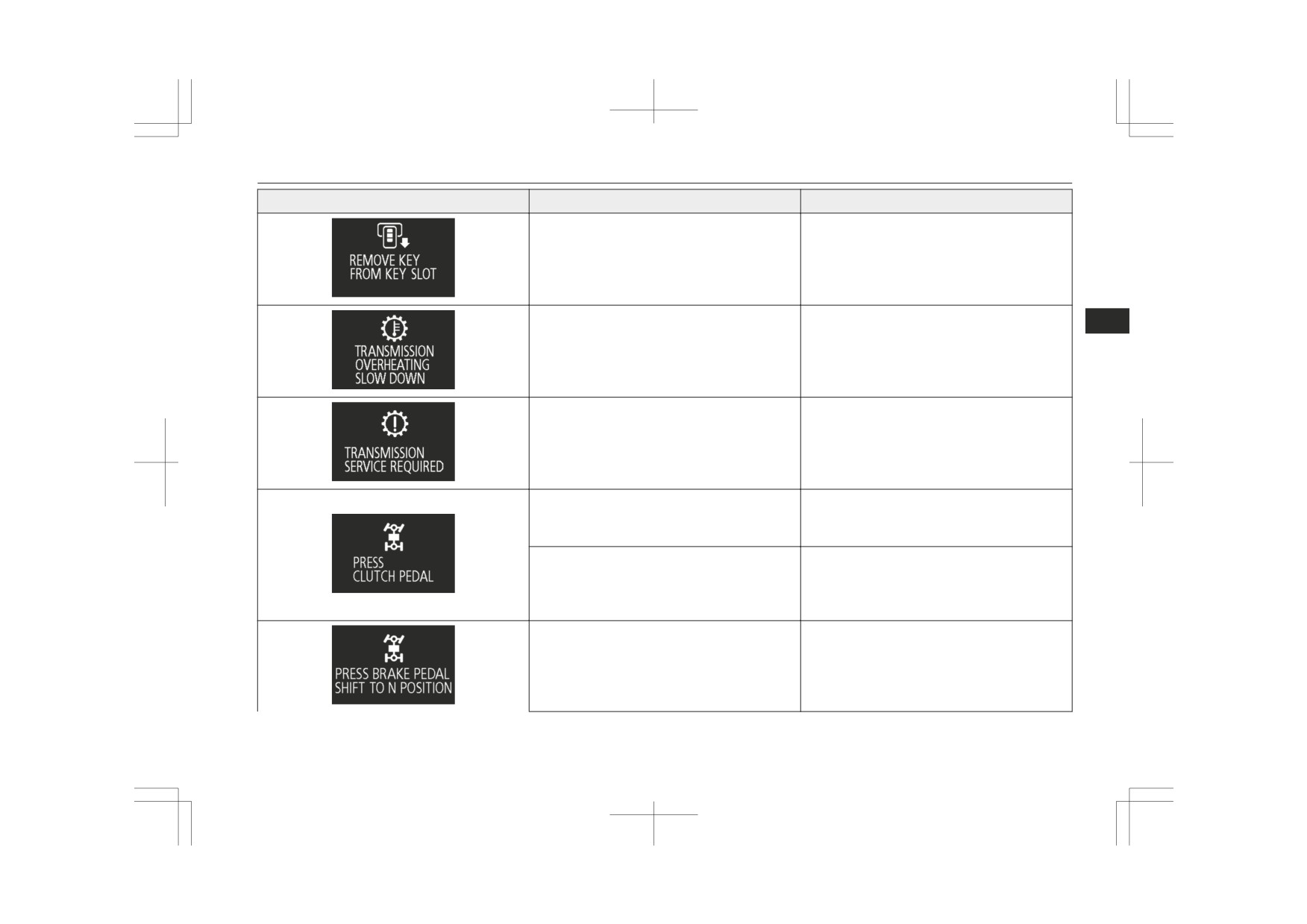

z You have forgotten to remove the keyless

z Remove the keyless operation key from

operation key from the key slot.

the key slot.

Refer to “Keyless operation key remind-

er” on page 6-21.

z The A/T fluid temperature is too high.

z Refer to “When a malfunction occurs in

5

the A/T” on page 6-35.

z There is a fault in the A/T.

z We recommend you to have it checked,

immediately.

Refer to “When a malfunction occurs in

the A/T” on page 6-35.

z

[Vehicles with Easy Select 4WD]

z Refer to “Drive mode indicator display

The clutch pedal is not depressed during

and 2WD/4WD operation indicator dis-

shifting process between “4H” ↔ “4L”.

play” on page 6-43.

z

[Vehicles with Super Select 4WD II]

z Refer to “Drive mode indicator display

The clutch pedal is not depressed during

and 2WD/4WD operation indicator dis-

shifting process between

“4HLc”

↔

play” on page 6-49.

“4LLc”.

z

[Vehicles with Easy Select 4WD]

z Refer to “Drive mode indicator display

The selector lever is shifted from the “N”

and 2WD/4WD operation indicator dis-

(NEUTRAL) position to the other posi-

play” on page 6-43.

tion or release the brake pedal during

shifting process between “4H” ↔ “4L”

Instruments and controls

5-33

Indication lamp, warning lamp, and information screen display list (multi information display - Type 1)

Screen

Cause

Solution (Reference)

z

[Vehicles with Super Select 4WD II]

z

Refer to “Drive mode indicator display

The selector lever is shifted from the “N”

and 2WD/4WD operation indicator dis-

(NEUTRAL) position to the other posi-

play” on page 6-49.

tion or release the brake pedal during

shifting process between

“4HLc”

↔

“4LLc”.

5

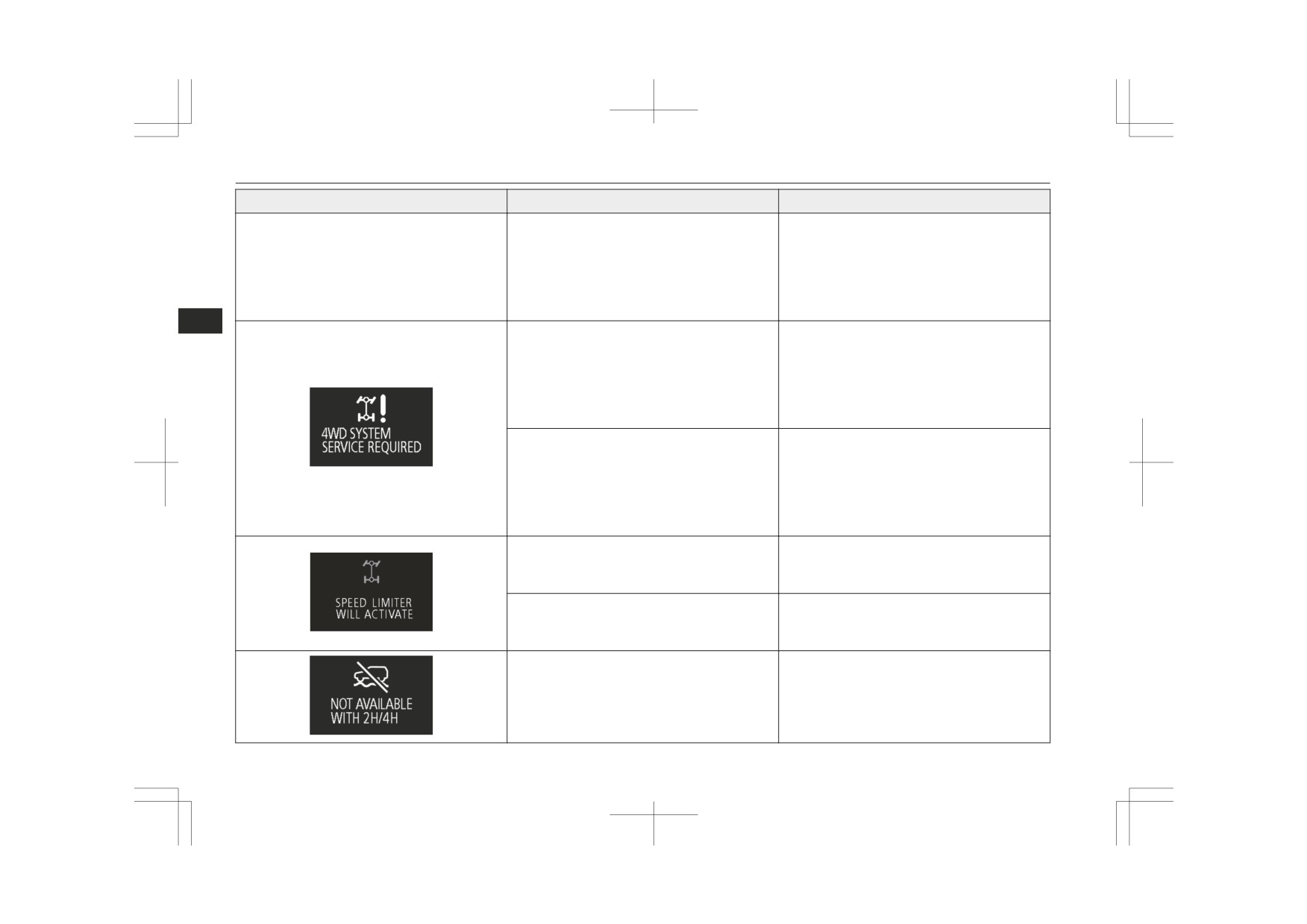

z

There is a fault in the Easy Select 4WD.

z

Have your vehicle inspected at a

MITSUBISHI MOTORS Authorized

Service Point as soon as possible.

Refer to “Drive mode indicator display

and 2WD/4WD operation indicator dis-

play” on page 6-43.

z

There is a fault in the Super Select 4WD

z

Have your vehicle inspected at a

II.

MITSUBISHI MOTORS Authorized

Service Point as soon as possible.

Refer to“Drive mode indicator display

and 2WD/4WD operation indicator dis-

play” on page 6-49.

z

[Vehicles with the Easy Select 4WD]

z

Refer to “Drive mode indicator display

Speed limiter will activate.

and 2WD/4WD operation indicator dis-

play” on page 6-43.

z

[Vehicles with the Super Select 4WD II]

z

Refer to “Drive mode indicator display

Speed limiter will activate.

and 2WD/4WD operation indicator dis-

play” on page 6-49.

z

The Off Road mode will not be available

z

Refer to “Off Road mode-selector opera-

even if the Off Road mode-selector is

tion” on page 6-53.

pressed because the drive mode-selector

of Super Select 4WD II is in “2H” or

“4H”.

5-34

Instruments and controls

Indication lamp, warning lamp, and information screen display list (multi information display - Type 1)

Screen

Cause

Solution (Reference)

z The Off Road mode will not be available

z Refer to “Off Road mode indicator dis-

even if the Off Road mode-selector is

play” on page 6-53.

pressed because the brake system is ab-

normally overheated.

z The Off Road mode will not be available

z Refer to “Off Road mode indicator dis-

5

even if the Off Road mode-selector is

play” on page 6-53.

pressed because the rear differential lock

is activating.

z There is a fault in the rear differential lock

z Have your vehicle inspected at a

system.

MITSUBISHI MOTORS Authorized

Service Point as soon as possible.

Refer to “The rear differential lock indica-

tion lamp/display” on page 6-55.

z You try to turn on the rear differential

z Refer to “Rear differential lock*” on page

lock switch during driving.

6-54.

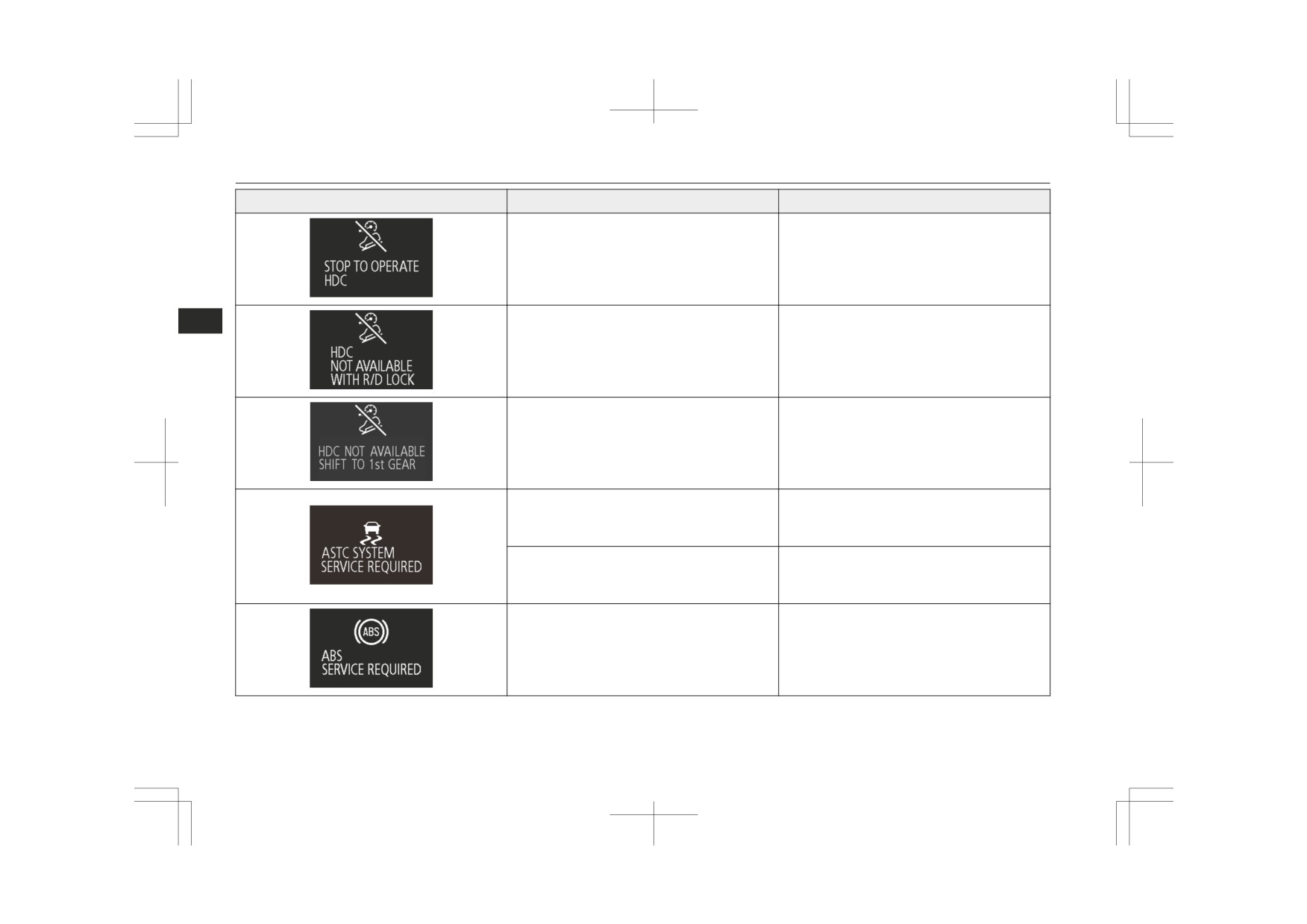

z The Hill Descent Control (HDC) brake

z Refer to “To operate” on page 6-71.

control is not available because the brake

system is abnormally overheated.

Instruments and controls

5-35

Indication lamp, warning lamp, and information screen display list (multi information display - Type 1)

Screen

Cause

Solution (Reference)

z The Hill Descent Control (HDC) cannot

z Refer to “To operate” on page 6-71.

be set to ON (stand by) because the vehi-

cle speed is 20 km/h or more.

z The Hill Descent Control (HDC) cannot

z Refer to “To operate” on page 6-71.

5

be set to ON (stand by) because the rear

differential lock is activated.

z The Hill Descent Control (HDC) is not

z Refer to “To operate” on page 6-71.

available because the gearshift lever is

placed in the forward gear except the 1st

position.

z There is a fault in the hill start assist.

z We recommend you to have it checked.

Refer to “Warning lamp/display” on page

6-70.

z There is a fault in the active stability &

z We recommend you to have it checked.

traction control (ASTC).

Refer to “ASTC warning lamp/display”

on page 6-79.

z There is a fault in the ABS.

z Avoid sudden braking and high-speed

driving, stop the vehicle in a safe place,

and take corrective measures. Refer to

“ABS warning lamp/display” on page

6-74.

5-36

Instruments and controls

Indication lamp, warning lamp, and information screen display list (multi information display - Type 1)

Screen

Cause

Solution (Reference)

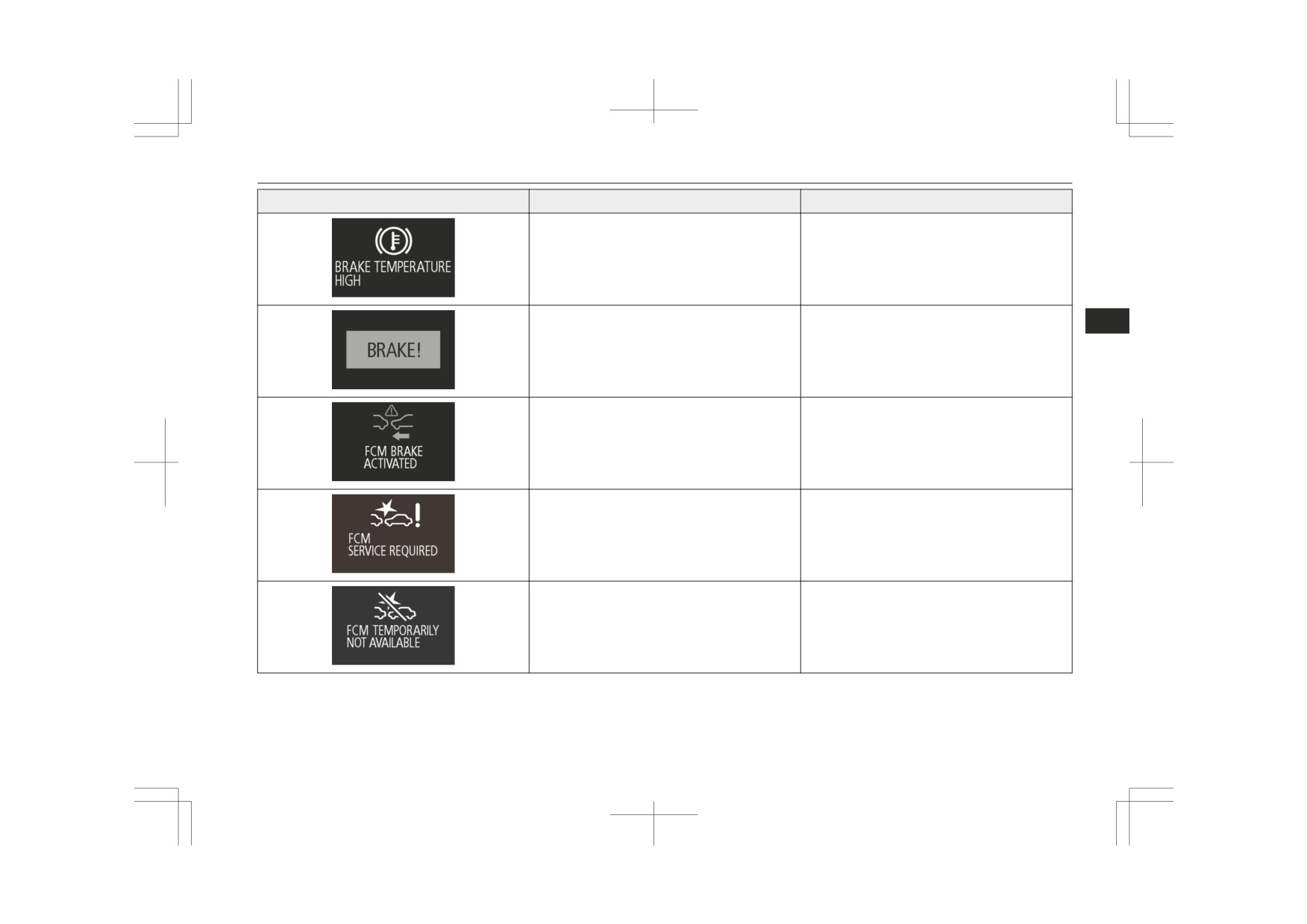

z The braking system temperature is too

z Immediately stop the vehicle in a safe

high.

place.

Refer to “ASTC indication lamp or ASTC

OFF indication lamp” on page 6-78.

z The Forward Collision Mitigation system

z Take appropriate action such as depress-

5

(FCM) has detected the danger of colli-

ing the brake to avoid collision.

sion.

Refer to

“Forward Collision warning

function” on page 6-90.

z The FCM braking function of the Forward

z Refer to “FCM braking function” on page

Collision Mitigation system

(FCM) has

6-91.

been activated.

z There is a fault in the Forward Collision

z We recommend you to have it checked.

Mitigation system (FCM).

Refer to “When a problem is detected” on

page 6-95.

z The Forward Collision Mitigation system

z Refer to “When a problem is detected” on

(FCM) is temporarily not available.

page 6-95.

Instruments and controls

5-37

Indication lamp, warning lamp, and information screen display list (multi information display - Type 1)

Screen

Cause

Solution (Reference)

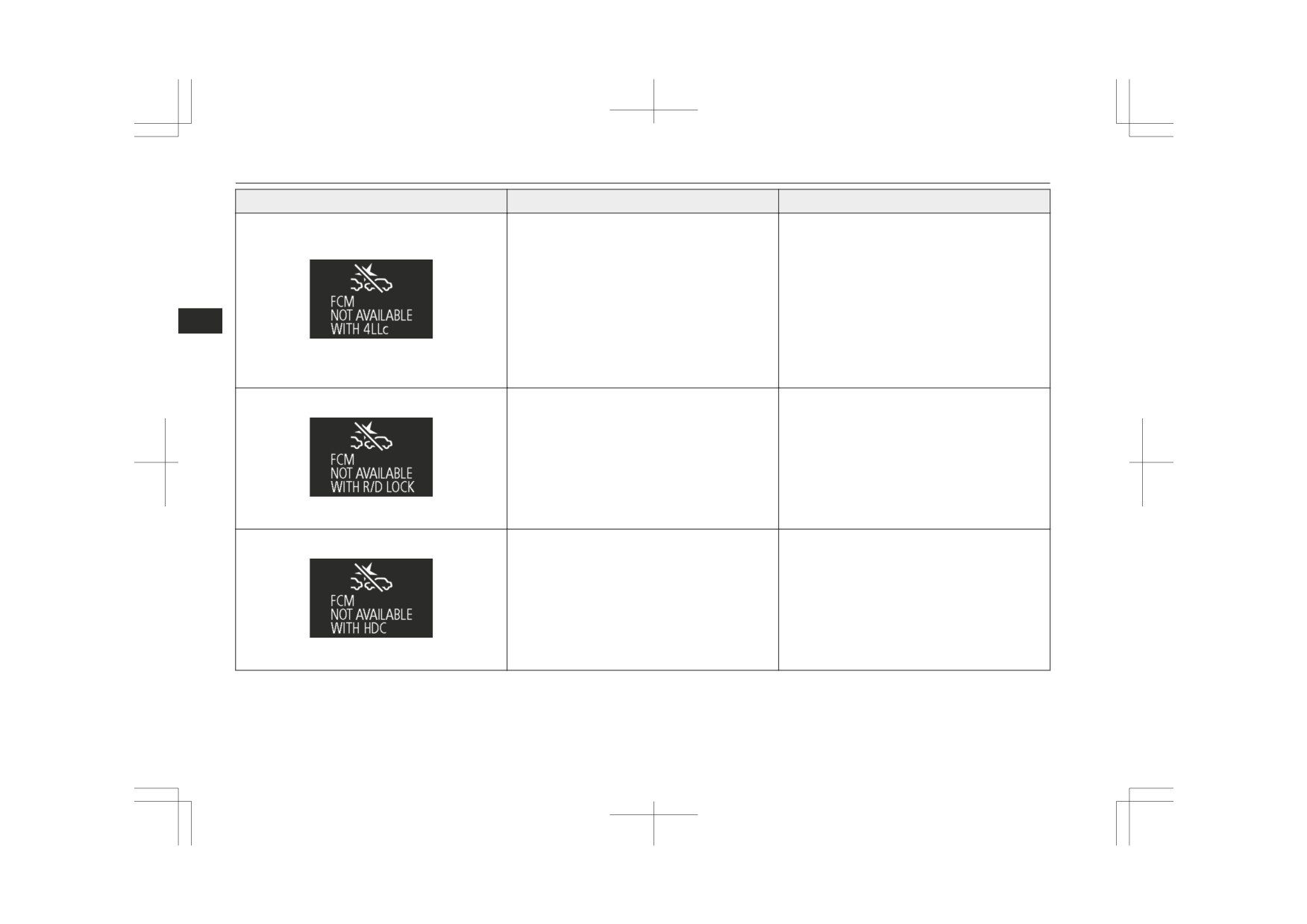

z

When the Forward Collision Mitigation

z

Refer to

“FCM and

UMS

ON/OFF

system (FCM) is ON, if the drive modese-

switch” on page 6-94.

lector of Super Select 4WD II is set to

“4LLc”, the FCM will be switched to

OFF automatically.

z

When the FCM is OFF, the FCM will not

5

be switched to ON even if the FCM and

UMS ON/OFF switch is pressed because

the drive mode-selector of Super Select

4WD II is in “4LLc”.

z

When the Forward Collision Mitigation

z

Refer to

“FCM and

UMS

ON/OFF

system (FCM) is ON, if the rear differen-

switch” on page 6-94.

tial lock switch is set to ON, the FCM will

be switched to OFF automatically.

z

When the FCM is OFF, even if the FCM

and UMS ON/OFF switch is pressed, the

FCM will not be switched to ON because

the rear differential lock switch is ON.

z

When the Forward Collision Mitigation

z

Refer to

“FCM and

UMS

ON/OFF

system (FCM) is ON, if the Hill Descent

switch” on page 6-94.

Control (HDC) is set to ON, the FCM will

be switched to OFF automatically.

z

When the FCM is OFF, even if the FCM

and UMS ON/OFF switch is pressed, the

FCM will not be switched to ON because

the Hill Descent Control (HDC) operates.

5-38

Instruments and controls

Indication lamp, warning lamp, and information screen display list (multi information display - Type 1)

Screen

Cause

Solution (Reference)

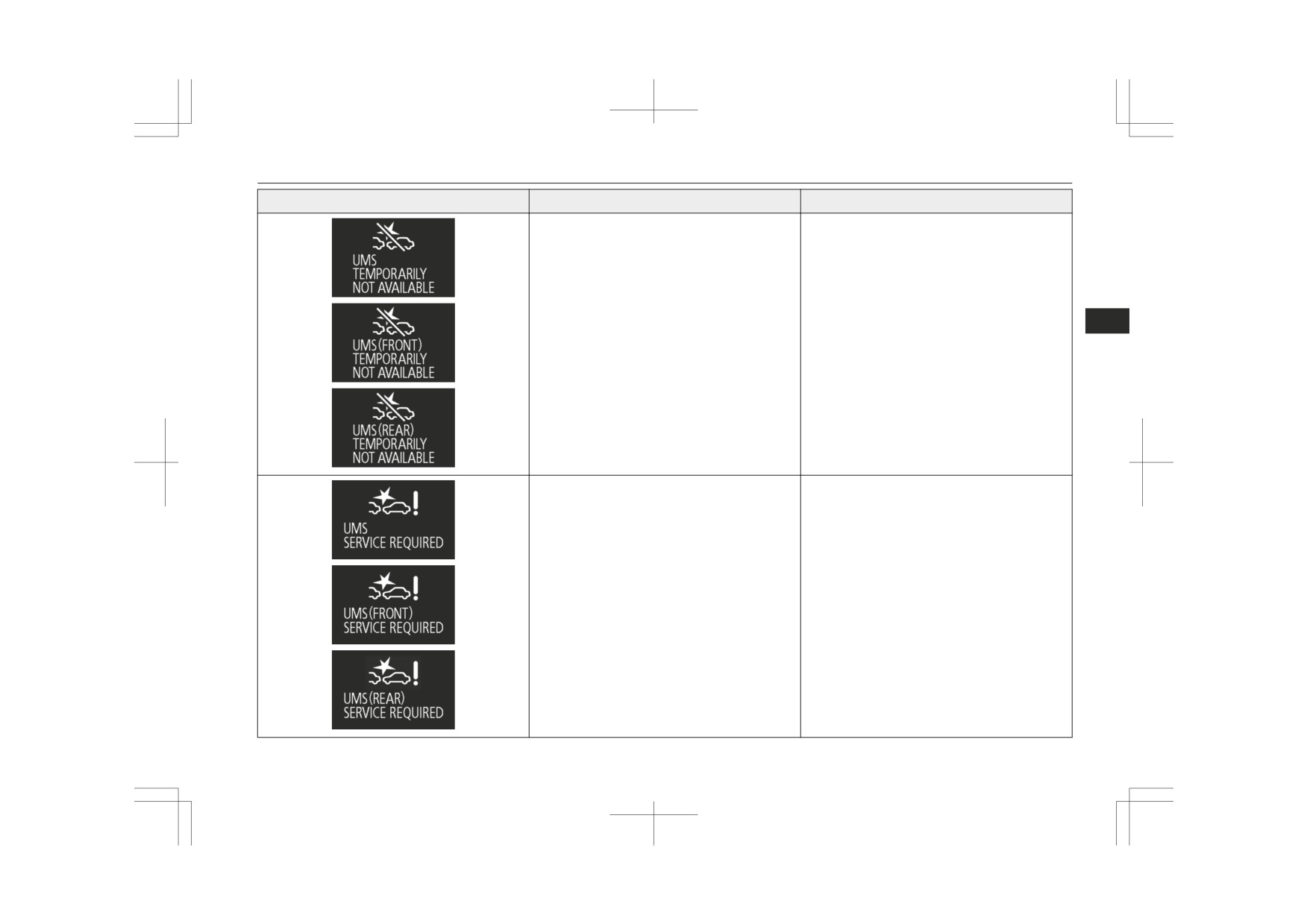

z The Ultrasonic misacceleration Mitigation

z When the warning display does not disap-

System (UMS) sensor is temporarily not

pear after waiting for a while, contact a

available for some reason such as the en-

MITSUBISHI MOTORS Authorized

vironmental condition or increase of the

Service Point.

sensor temperature.

Refer to “When the sensor is temporarily

not available” on page 6-106.

5

z The Ultrasonic misacceleration Mitigation

z We recommend you to have it checked,

System (UMS) does not operate normally

immediately.

because there are some malfunctions in

Refer to “When there is a malfunction in

the sensor or the system.

the system or the sensor” on page 6-106.

Instruments and controls

5-39

Indication lamp, warning lamp, and information screen display list (multi information display - Type 1)

Screen

Cause

Solution (Reference)

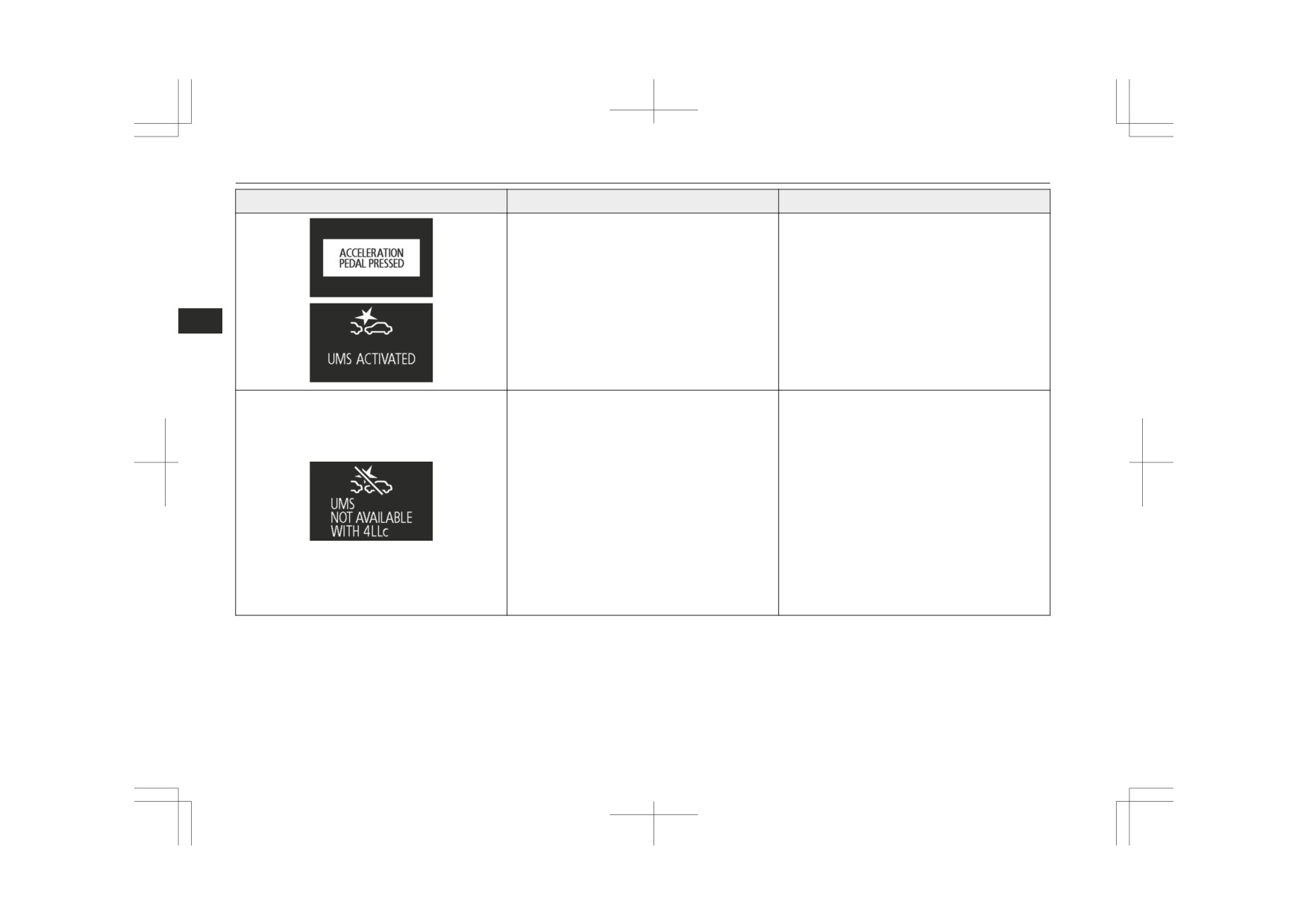

z The Ultrasonic misacceleration Mitigation

z Refer to “Ultrasonic misacceleration Miti-

System (UMS) is activated.

gation System (UMS)” on page 6-100.

5

z When the Ultrasonic misacceleration Mit-

z Refer to “When the UMS is not available”

igation System (UMS) is ON, if the drive

on page 6-106.

mode-selector of Super Select 4WD II is

set to “4LLc”, the Ultrasonic misaccelera-

tion Mitigation System

(UMS) will be

switched to OFF automatically.

z When the Ultrasonic misacceleration Mit-

igation System (UMS) is OFF, even if the

FCM and UMS ON/OFF switch is press-

ed, the Ultrasonic misacceleration Mitiga-

tion System (UMS) will not be switched

to ON because the drive mode-selector of

Super Select 4WD II is in “4LLc”.

5-40

Instruments and controls

Indication lamp, warning lamp, and information screen display list (multi information display - Type 1)

Screen

Cause

Solution (Reference)

z

The Blind Spot Warning (BSW) sensor is

z

When the warning display does not disap-

temporarily not available for some reason

pear after waiting for a while, contact a

such as the environmental condition or in-

MITSUBISHI MOTORS Authorized

crease of the sensor temperature.

Service Point.

Refer to “When the sensor is temporarily

not available” on page 6-110.

5

z

The Blind Spot Warning (BSW) does not

z

We recommend you to have it checked,

operate normally because there are some

immediately.

malfunctions in the sensor or the system.

Refer to “When there is a malfunction in

the system or the sensor” on page 6-109.

z

Foreign objects, such as dirt, snow or ice,

z

Remove a foreign object on the bumper

adhere to the bumper surface around the

surface around the sensor.

sensor.

When the warning display does not disap-

pear after having cleaned the bumper sur-

face around the sensor, contact a

MITSUBISHI MOTORS Authorized

Service Point.

Refer to

“Blind Spot Warning

(BSW):

When there is a foreign objects on the

sensor” on page 6-110.

z

The Rear Cross Traffic Alert (RCTA) has

z

Pay special attention to the rear of your

detected a vehicle that is approaching

vehicle.

your vehicle.

Refer to

“Rear Cross Traffic Alert

(RCTA)” on page 6-110.

5-42

Instruments and controls

Indication lamp, warning lamp, and information screen display list (multi information display - Type 1)

Screen

Cause

Solution (Reference)

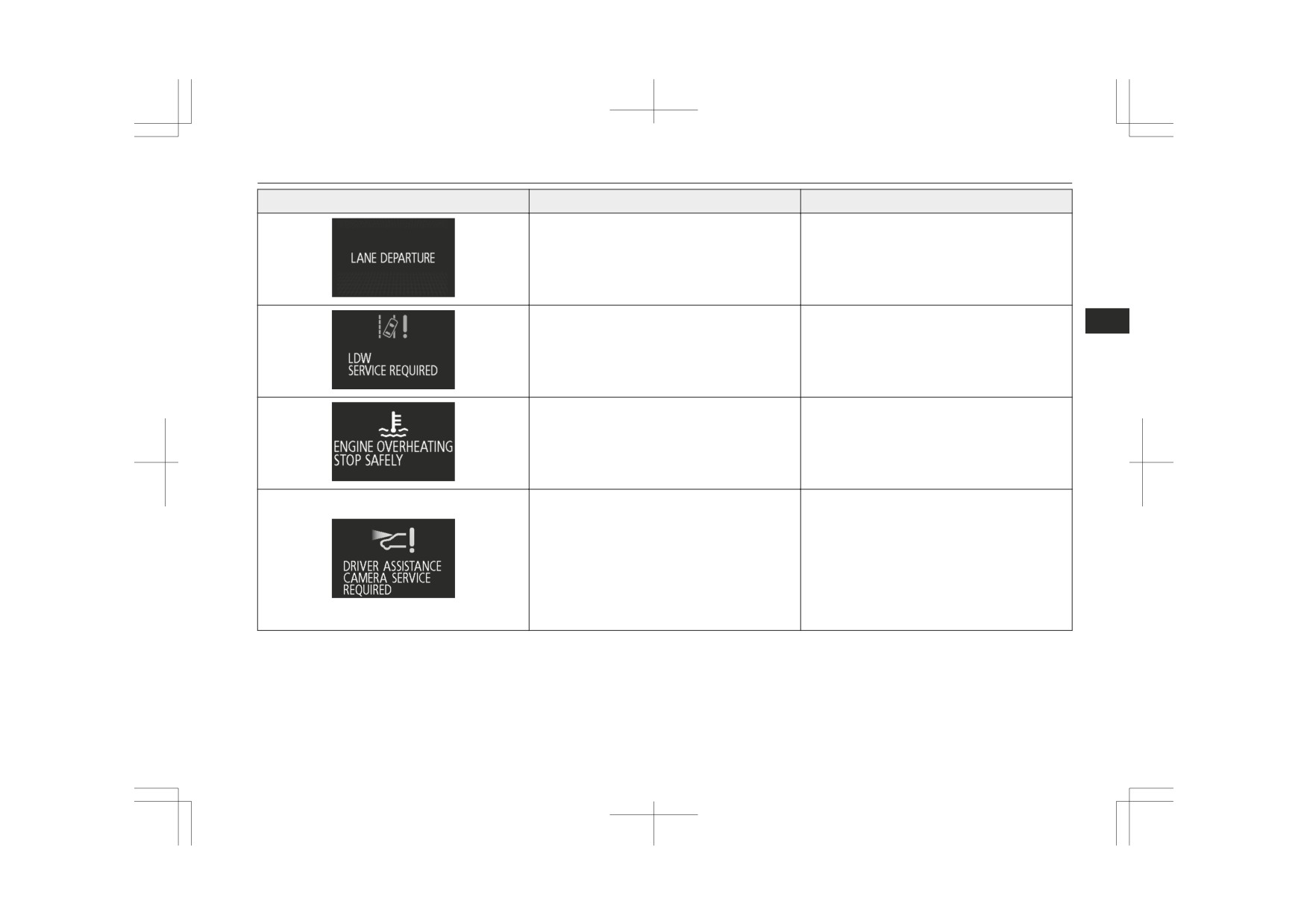

z The Lane Departure Warning (LDW) has

z Refer to

“Lane departure warning” on

detected that your vehicle is about to

page 6-114.

leave or has left the lane.

z There is a fault in the Lane Departure

z We recommend you to have it checked.

5

Warning (LDW).

Refer to “LDW deactivation due to fault”

on page 6-114.

z The engine is overheated.

z Stop the vehicle in a safe place and take

corrective measures.

Refer to

“Engine overheating” on page

8-09.

z There is a fault in the sensor.

z We recommend you to contact a

MITSUBISHI MOTORS Authorized

Service Point.

Refer to

“Forward Collision Mitigation

system (FCM): When a problem is detec-

ted” on page 6-95.

Refer to “Automatic High-Beam (AHB):

System problem warning” on page 5-60.

Instruments and controls

5-43

Indication lamp, warning lamp, and information screen display list (multi information display - Type 1)

Screen

Cause

Solution (Reference)

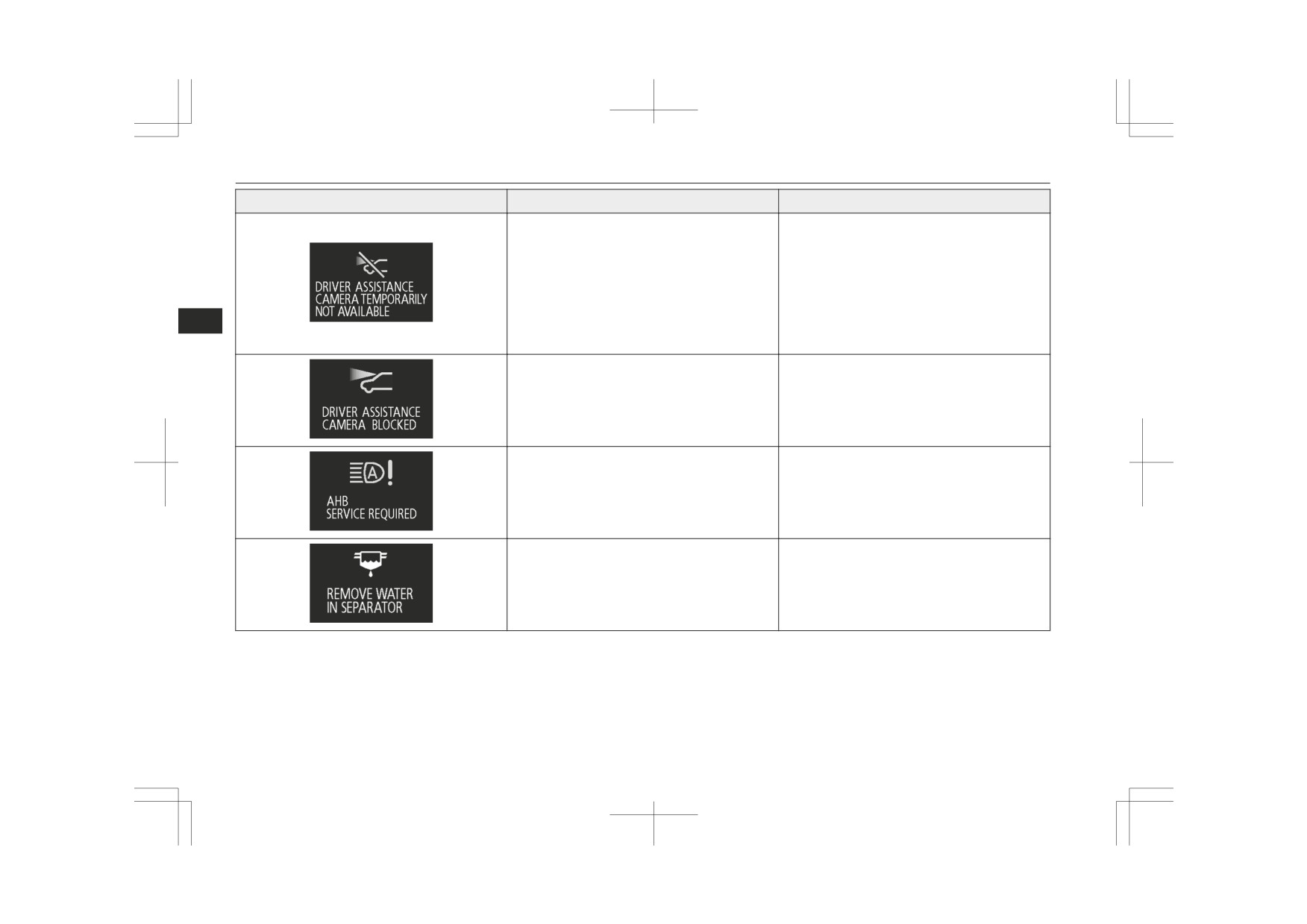

z

The Forward Collision Mitigation system

z

After the temperature of the sensor has

(FCM) and Automatic High-Beam (AHB)

been in range, the system will automati-

is temporarily unavailable due to the high

cally return to operation.

or low temperature of the sensor.

Refer to

“Forward Collision Mitigation

system (FCM): When a problem is detec-

ted” on page 6-95.

5

Refer to “Automatic High-Beam (AHB):

System problem warning” on page 5-60.

z

The sensor is temporarily unavailable due

z

Refer to

“Forward Collision Mitigation

to conditions such as the adhesion of con-

system (FCM): When a problem is detec-

taminants to the sensor or windscreen.

ted” on page 6-95.

This is not a malfunction.

Refer to “Automatic High-Beam (AHB):

System problem warning” on page 5-60.

z

There is a fault in the Automatic High

z

We recommend you to contact a

Beam (AHB).

MITSUBISHI MOTORS Authorized

Service Point.

Refer to “Automatic High-Beam (AHB):

System problem warning” on page 5-60.

z

More than specified limit water has accu-

z

Refer to “Removal of water from the fuel

mulated in the fuel filter.

filter” on page 8-11.

5-44

Instruments and controls

Indication lamp, warning lamp, and information screen display list (multi information display - Type 1)

Other interrupt displays

Screen

System operation status

Reference

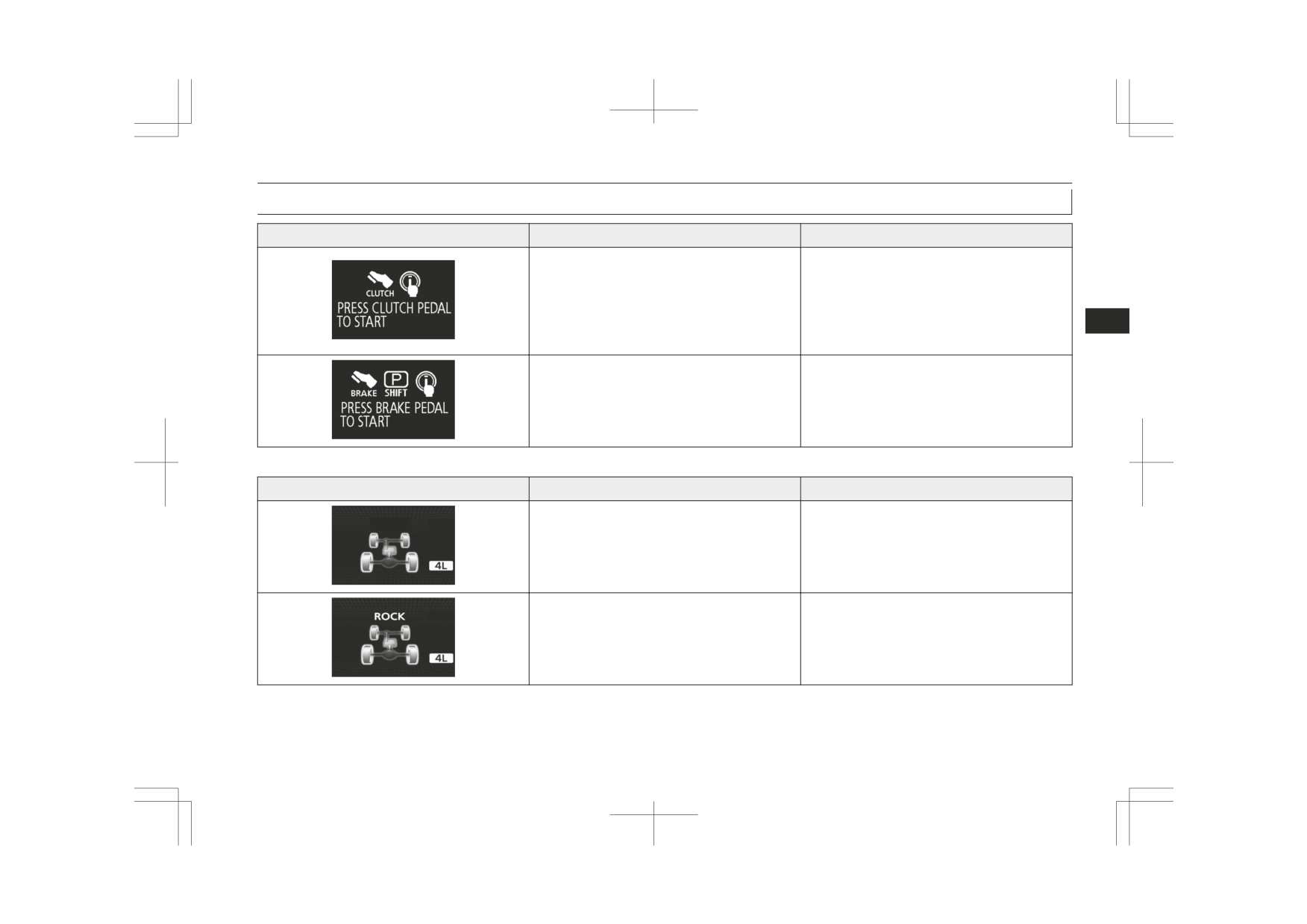

z When starting the engine, you pressed the

z Place the gearshift lever in the “N” (Neu-

engine switch without depressing the

tral) position, fully depress the clutch ped-

clutch pedal (M/T).

al, depress the brake pedal with the right

foot. Then, press the engine switch.

Refer to “Starting the engine” on page

5

6-18.

z When starting the engine, the selector lev-

z Place the selector lever in the “P” (Park)

er is in a position other than the

“P”

position, depress the brake pedal with the

(PARK) or the “N” (NEUTRAL) position,

right foot. Then, press the engine switch.

or you pressed the engine switch without

Refer to “Starting the engine” on page

depressing the brake pedal (A/T).

6-18.

The operation status of each system is displayed on the information screen. Refer to the appropriate page for the system for further details.

Screen

System operation status

Reference

z When the drive mode is shifted by operat-

z Refer to

“Easy Select

4WD” on page

ing the drive mode-selector.

6-37.

Refer to “Super Select 4WD Ⅱ” on page

6-46.

z When “ROCK” mode of Off Road mode

z Refer to “Control mode” on page 6-52.

is selected.

Instruments and controls

5-45

Indication lamp, warning lamp, and information screen display list (multi information display - Type 1)

Screen

System operation status

Reference

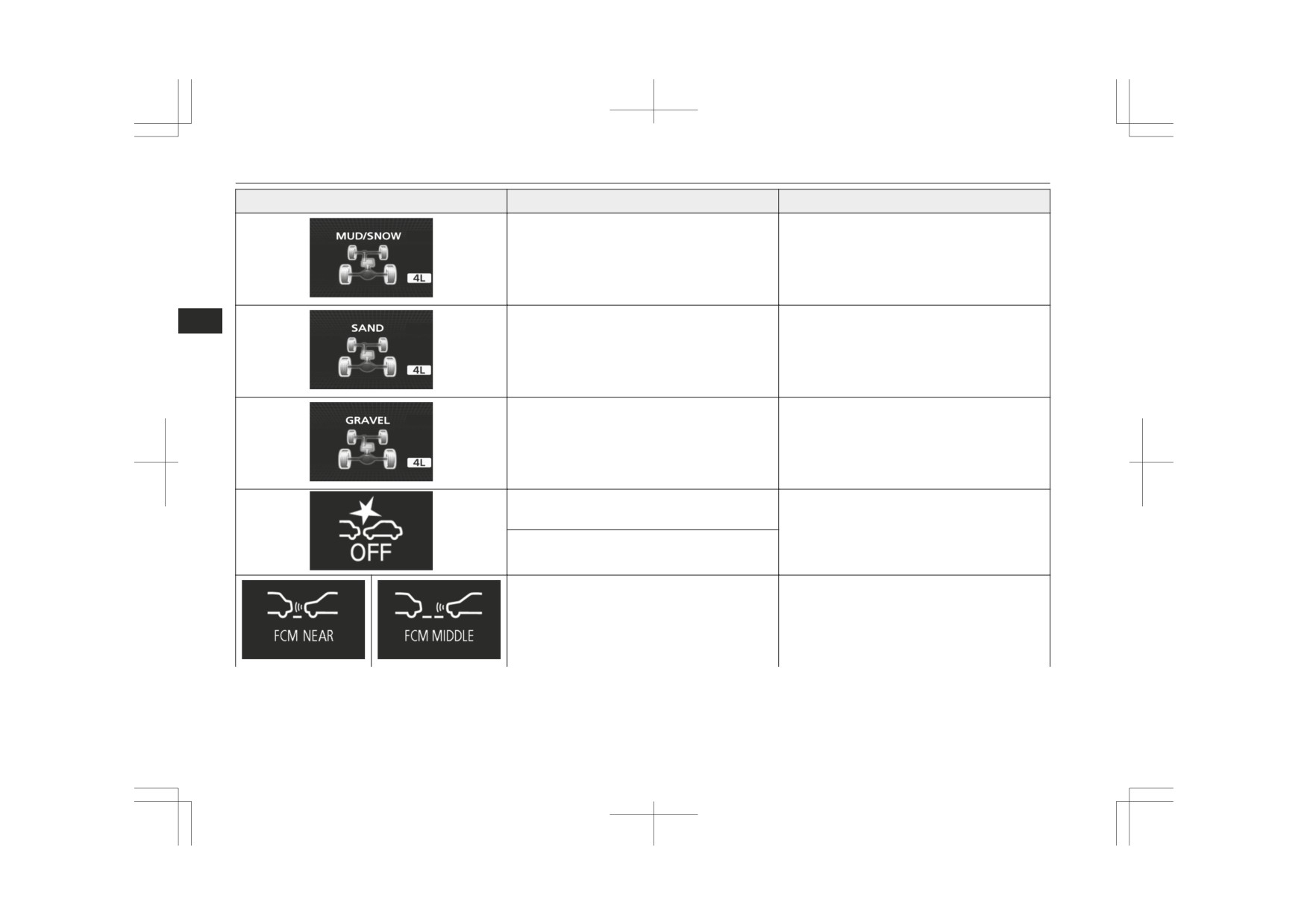

z When “MUD/SNOW” mode of Off Road

z Refer to “Control mode” on page 6-52.

mode is selected.

z When “SAND” mode of Off Road mode

z Refer to“Control mode” on page 6-52.

5

is selected.

z When “GRAVEL” mode of Off Road

z Refer to “Control mode” on page 6-52.

mode is selected.

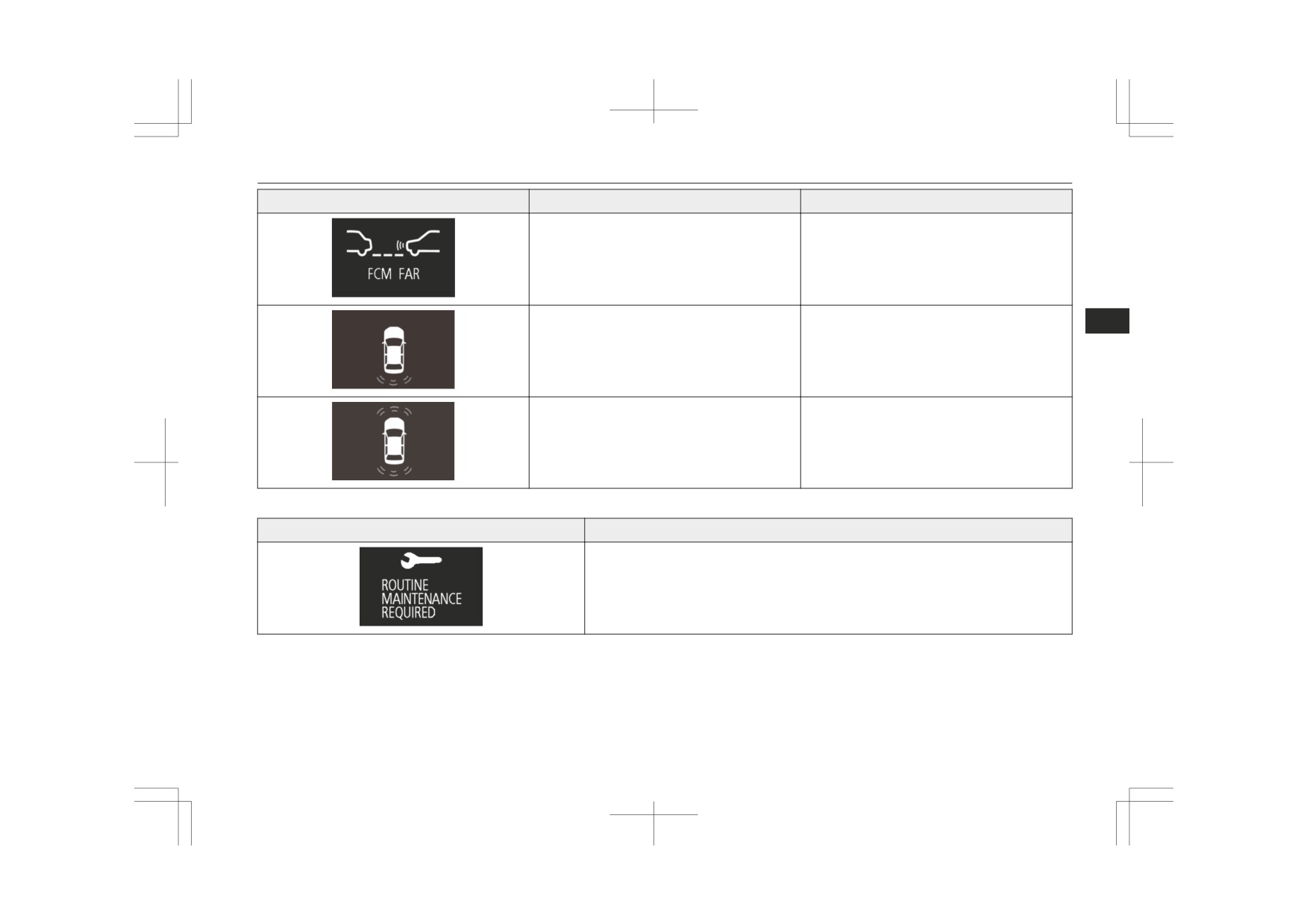

z When the Forward Collision Mitigation

z Refer to “FCM and UMS ON/OFF switch”

system (FCM) is deactivated.

on page 6-94.

z When the Ultrasonic misacceleration Mit-

igation System (UMS) is deactivated.

z When the Forward Collision Mitigation

z Refer to “FCM and UMS ON/OFF switch”

system (FCM) is activated or the timing of

on page 6-94.

an alarm is changed.

5-46

Instruments and controls

Indication lamp, warning lamp, and information screen display list (multi information display - Type 1)

Screen

System operation status

Reference

z When the reversing sensor system detects

z Refer to “To operate” on page 6-121.

5

an obstruction.

z When the sensor system detects an ob-

z Refer to “To operate” on page 6-121.

struction.

This informs you that a periodic inspection is due.

Screen

Solution

We recommend you to have it checked. Refer to “Service reminder” on page 5-09.

Instruments and controls

5-47

Indication lamp, warning lamp, and information screen display list (multi information display - Type 1)

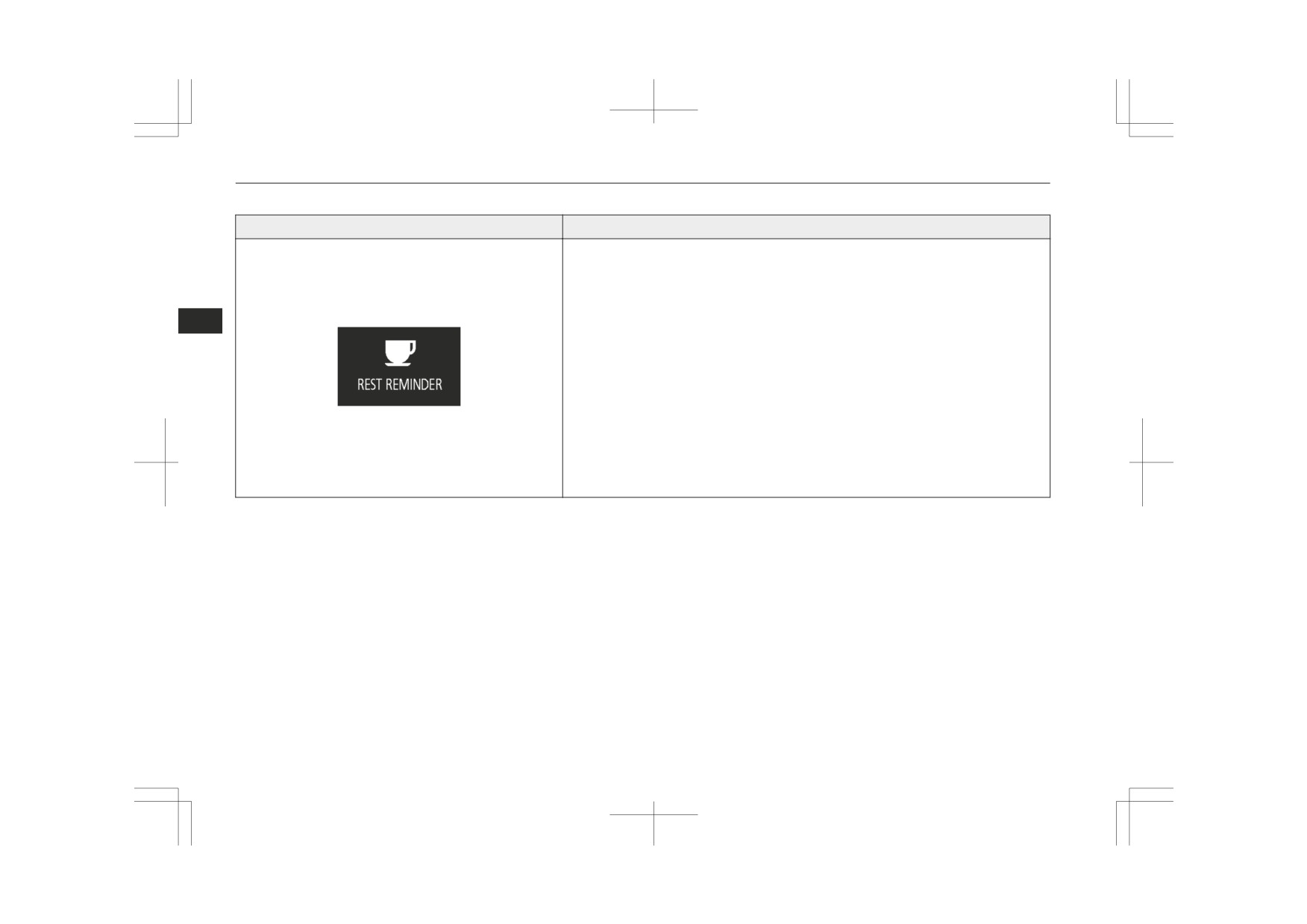

The setting for rest interval can be changed.

Screen

Solution

Stop the vehicle in a safe place, turn off the engine, and take a rest.

Use this display as rough guide for taking rests during a long drive.

The interval from the start of your trip until this message is displayed can be set.

Refer to “Changing the time until “REST REMINDER” is displayed” on page 5-16.

The display and buzzer alert the driver when the set time is reached. If you continue

5

to drive without having a rest, the buzzer sounds approximately every 5 minutes to

encourage you to take a rest.

z In the following cases, the time driven is reset and the display returns to the pre-

vious display screen. After this, when the set time is reached again, the buzzer

and display encourage you to take a rest.

• The buzzer sounds 3 times.

• Turn the ignition switch to the “LOCK” position or put the operation mode in

OFF.

• The multi information display switch is held for approximately 2 seconds or

more.

5-48

Instruments and controls

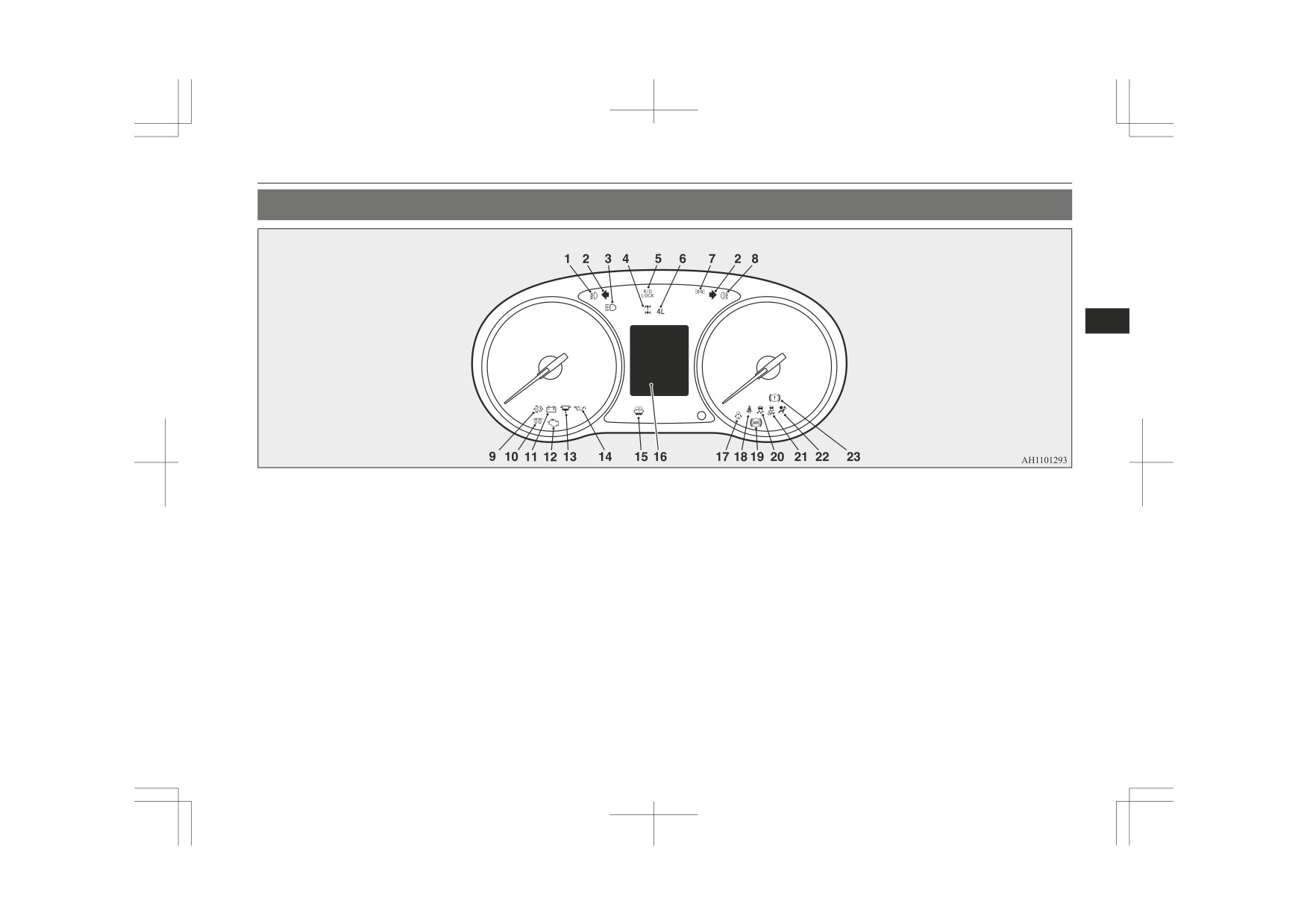

Indication and warning lamps (multi information display - Type 2)

Indication and warning lamps (multi information display - Type 2)

5

1- Front fog lamp indication lamp*

9- Engine oil level warning lamp/Diesel

16- Multi information display ® p. 5-17

® p. 5-50

particulate filter (DPF) warning lamp

17- Door ajar warning lamp ® p. 5-53

2- Turn-signal indication lamps/Hazard

If this lamp blinks, refer to “Engine oil

18- Seat belt reminder/warning lamp

warning indication lamps ® p. 5-50

level warning lamp” ® p. 5-53

® p. 4-08

3- High-beam indication lamp ® p. 5-50

If this lamp illuminates, refer to “Diesel

19- Anti-lock brake system (ABS) warning

4- 2WD/4WD operation indication lamp

particulate filter (DPF)” ® p. 6-21

lamp ® p. 6-74

® p. 6-41

10- Diesel preheat indication lamp

20- Active Stability & Traction Control

5- Rear differential lock indication lamp

® p. 5-50

(ASTC) indication lamp ® p. 6-78

® p. 6-55

11- Charge warning lamp ® p. 5-52

21- Active Stability & Traction Control

6- Low-range indication lamp* ® p. 6-41

12- Check engine warning lamp ® p. 5-52

(ASTC) OFF indication lamp

7- Position lamp indication lamp*

13- Fuel filter indication lamp ® p. 5-51

® p. 6-78

® p. 5-50

14- Oil pressure warning lamp ® p. 5-52

22- Supplement Restraint System (SRS)

8- Rear fog lamp indication lamp

15- Washer fluid level warning lamp

warning lamp ® p. 4-34

® p. 5-50

® p. 5-53

23- Brake warning lamp ® p. 5-51

Instruments and controls

5-49

Content      ..     3      4      5      6     ..
