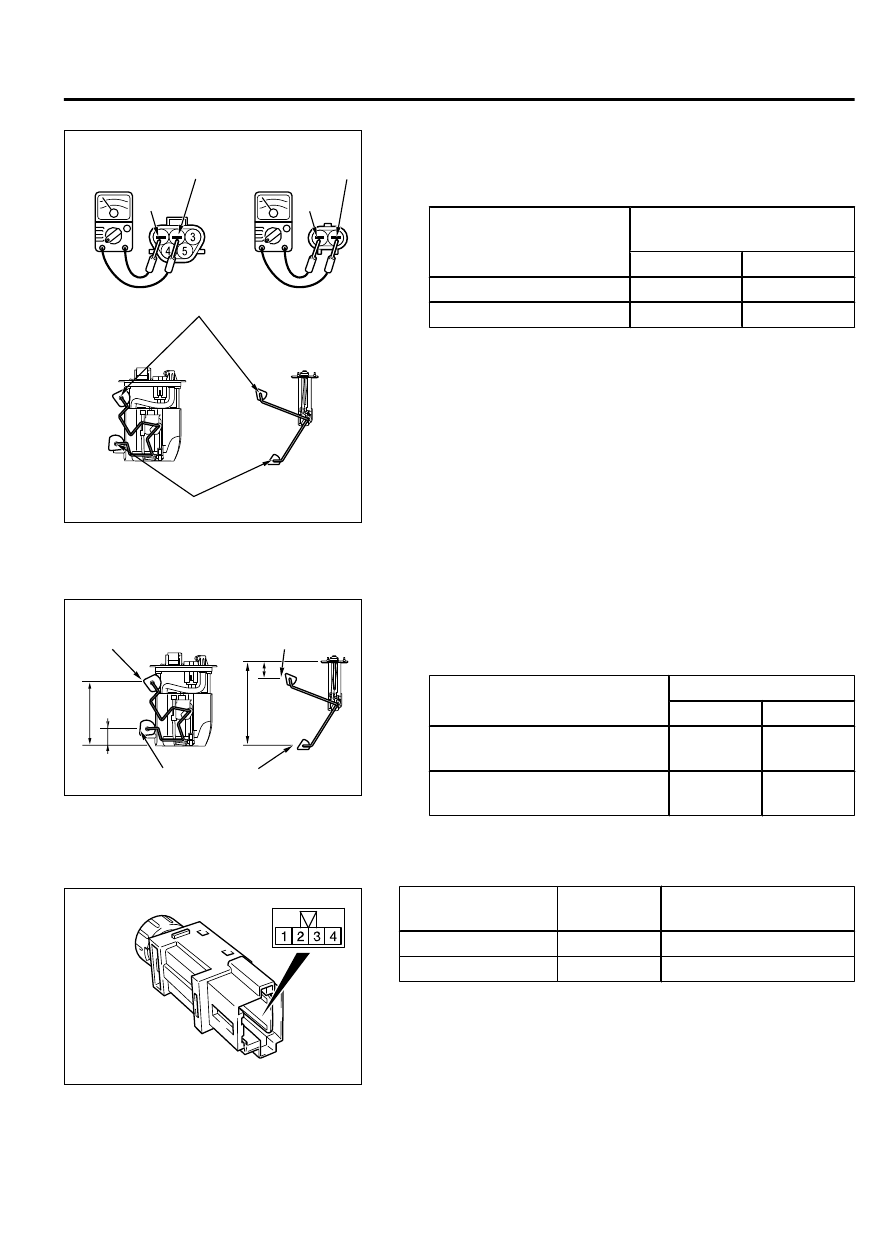

NOMINAL RESISTANCE OF THE FUEL LEVEL SENSOR

ZC6038160000

<Main>

<Sub>

Ground

Fuel level sensor

Fuel level sensor

Stopper position “F”

Ground

Stopper position “E”

When float of the fuel level sensor is in stopper positions F and
E, ensure that resistance between the fuel level sensor terminal
and earth terminal is within the standard value.

Standard value:

Float position

Gauge  resistance  value
(ohms)
Main

Sub

Stopper position "F"

6.5 ± 1.0

6.5 ± 1.0

Stopper position "E"

44.7 ± 1.0

75.3 ± 1.0

When the float is moved slowly between stopper positions "F"
and "E", ensure that the resistance is smoothly changing.



FUEL LEVEL SENSOR FLOAT HEIGHT

ZC6038170000

A

B

B

A

<Main>

<Sub>

Stopper position “E”

Stopper position “F”

Stopper position “F”

When  float  is  moved  to  contact  the  float  arm  on  the  stopper,
ensure that stopper positions "F" (height A) and "E" (height B)
are within the standard value.

Standard value:

Float position

Float height mm (in)
Main

Sub

Stopper  position  "F"  (height
A)

166.2 (6.5) 48.8  ±  3.0

(1.9 ± 0.1)

Stopper  position  "E"  (height
B)

38.8 (1.5)

238.0 ± 3.0
(9.3 ± 0.1)

METER INFORMATION SWITCH CHECK

M15410100051USA0000010000

ZC6036740000

Switch position

Tester
connection

Specified condition

Pressed

1-4

Less than 2 ohms

Released

1-4

Open circuit

COMBINATION METER

54Ab-69

ON-VEHICLE SERVICE

SERVICE REMINDER FUNCTION SET

M15410100101USA0000010000

How to set by operating the scan tool

MB991958

｠

When  the  combination  meter  is  replaced,  the
current driving distance and number of elapsed
days  must  be  entered  into  the  meter  after  the
replacement  in  order  to  be  used  for  service
reminder function. Therefore, read "Integrated
mileage  for  reminder,"  "Integrated  days  for
reminder,"  "Mileage  until  Extra  reminder,"
"Months  until  Extra  reminder,"  and  "Current
Schedule"  from  the  meter  before  the
replacement using the special function of scan
tool  MB991958,  and  note  them.  If  "Integrated
mileage  for  reminder"  or  "Integrated  days  for
reminder"  cannot  be  read  by  the  scan  tool
MB991958, follow the method described below.

a.

As  for  the  driving  distance  for  check
warning,  use  the  driving  distance
displayed on the multi information display.

b.

For  the  elapsed  days  for  check  warning,
calculate the number of elapsed days from

the delivery date to the customer (service
reminder  function  start  date)  and  current
date.

｠

After the service reminder function has started,
when  the  elapsed  days  for  check  warning  is
reset for the vehicle whose battery is removed
for a long period (15 days), calculate the elapsed
days  from  the  delivery  date  to  the  customer
(service  reminder  function  start  date)  and  the
current date, and then input it.

Using the scan tool MB991958, the following service
reminder functions can be set. Before setting, check
the current status ("Integrated mileage for reminder,"
"integrated  days  for  reminder,"  and  "Current
Schedule").

1.

Reminder reset (Indicator off)

2.

Next schedule reminder cancel

3.

Extra service reminder setting

4.

Extra reminder cancel

5.

Periodic reminder schedule set

6.

Integrated value adjustment

7.

Optional INT schedule setting

How to operate the scan tool MB991958

Before  setting,  if  the  combination  meter  does  not  start
measuring the elapsed time, turn the ignition switch to the
ON position while pressing the meter information switch to
start a measurement.

1.

Connect the scan tool MB991958 to the data link connector.

2.

Start the "M.U.T.-III system" on the personal computer, and
turn the ignition switch of the vehicle to the ON position.

3.

Select "Meter" on the "System Select" screen, and press the
"OK" button.

4.

Select "Special Function" on the next screen.

5.

Select "Service Reminder" on the "Special Function" screen.

DBA-CW5WXTHHZ1 2006MY

Function List

No.

1

2

3

4

5

6

7

Reminder reset (indicator off)

Data List

No.

Mileage until reminder

10000 mile

Months until reminder

1

2

4

5

7

8

Mileage until Extra
reminder

Months until Extra
reminder

Current Schedule

NAS1-1

Integrated mileage for
reminder

26 mile

16 month

Name

Value

Next schedule reminder cancel

Ext ra se r vice reminde

r

setting

Extra reminder cancel

Optional INT schedule set

Click the name of item to execute, and press the

OK button.

Name

Meter

Service Reminder

Special Function

- Service Reminder -  401430898

Integrated value adjustment

Periodic reminder schedule

set

ZC6026030001

6.

Select the function to be executed from "Function List."

｠

1 Reminder reset (Indicator off) (Refer to P.54Ab-71.)

｠

2 Next schedule reminder cancel (Refer to P.54Ab-71.)

｠

3 Extra service reminder setting (Refer to P.54Ab-72.)

｠

4 Extra reminder cancel (Refer to P.54Ab-72.)

｠

5 Periodic reminder schedule set (Refer to P.54Ab-73.)

｠

6 Integrated value adjustment (Refer to P.54Ab-74.)

｠

7 Optional INT schedule setting (Refer to P.54Ab-75.)

54Ab-70

COMBINATION METER

ON-VEHICLE SERVICE

1. Reminder reset (Indicator off)
The service reminder warning indicator which is currently output
can be cancelled.

NOTE:

In addition to the operation of the scan tool

MB991958, the service reminder warning indicator can be
cancelled by operating the meter information switch on the
combination meter. Refer to P.54Ab-76.

1

Selected

Item

Reminder rest (Indicator off)

Data List

No.

Mileage until reminder

0 mile

Months until reminder

1

2

4

5

Mileage until Extra
reminder

Months until Extra
reminder

0 month

Name

Value

Meter

Service Reminder

Special Function

DBA-CW5WXTHHZ1 2006MY - Service Reminder -  4014308A6

Press the OK button to execute.

ZC6026060001

1.

On the "Service Reminder" screen, select "1 Reminder reset
(Indicator off)."

NOTE:

The screen indicates that the warning period (Nos.

1 and 2 in the data list) is "0 mile" and "0 month."

2.

Press the "OK" button.

1

Selected

Item

Reminder reset (Indicator off)

Data List

No.

Mileage until reminder

20000 mile

Months until reminder

1

2

4

5

Mileage until Extra
reminder

Months until Extra
reminder

32 month

Name

Value

Meter

Service Reminder

Special Function

DBA-CW5WXTHHZ1 2006MY - Service Reminder -  4014308A6

Check the result.

ZC6026060002

3.

The  current  warning  indicator  is  cancelled,  and  the  next
warning period is displayed.

NOTE:

The screen indicates that the warning period (Nos.

1 and 2 in the data list) is set to "20000 mile" and "32
month."

2. Next schedule reminder cancel

If  "2  Next  schedule  reminder  cancel"  is  executed  twice
consecutively by mistake, the cancelled warning period can
be  restored  by  executing  "5  Periodic  reminder  schedule
set" to set a schedule different from the current one once,
and then returning it to the previous schedule.
The next warning period is cancelled, and its following warning
period can be set.

2

Selected

Item

Next schedule reminder

cancel

Data List

No.

Mileage until reminder

1000 mile

Months until reminder

1

2

4

5

Mileage until Extra
reminder

Months until Extra
reminder

1 month

Name

Value

Meter

Service Reminder

Special Function

DBA-CW5WXTHHZ1 2006MY - Service Reminder -  4014308A6

Press the OK button to execute.

ZC6026060003

1.

Select  "2  Next  schedule  reminder  cancel"  on  the  "Service
Reminder" screen.

NOTE:

The screen indicates that the warning period (Nos.

1 and 2 in the data list) is "1000 mile" and "1 month."

2.

Press the "OK" button.

COMBINATION METER

54Ab-71

ON-VEHICLE SERVICE

2

Selected

Item

Data List

No.

Mileage until reminder

20000 mile

Months until reminder

1

2

4

5

Mileage until Extra
reminder

Months until Extra
reminder

32 month

Name

Value

Meter

Service Reminder

Special Function

DBA-CW5WXTHHZ1 2006MY - Service Reminder -  4014308A6

Check the result.

ZC6026060004

Next schedule reminder

cancel

3.

The  next  warning  period  is  reset,  and  its  following  warning
period is set.

NOTE:

The screen indicates that the warning period (Nos.

1 and 2 in the data list) is changed to "20000 mile" and
"32 month."

3. Extra service reminder setting
In addition to the current warning period, the temporary service
reminder warning period can be set.

Data List

No.

Mileage until reminder

10000 mile

Months until reminder

1

2

4

5

Mileage until Extra
reminder

Months until Extra
reminder

16 month

Name

Value

Meter

Service Reminder

Special Function

DBA-CW5WXTHHZ1 2006MY

3

Selected

Item

Set value

Name

Value

Mileage until Extra reminder

Months until Extra reminder

-Input the Value-

-Input the Value-

Input the value for the item that you want to set

up, and press the OK button.

Extra service reminder

setting

- Service Reminder -  4014308A4

ZC6026040001

1.

On  the  "Service  Reminder"  screen,  select  "3  Extra  service
reminder setting."

NOTE:

The screen indicates that the temporary warning

period (Nos. 4 and 5 in the data list) has not been set.

3

Selected

Item

Extra service reminder

setting

0

1

2

3

Back

Space

Clear

4

5

6

Tab

7

8

9

Meter

Service Reminder

Special Function

DBA-CW5WXTHHZ1 2006MY

Set value

Name

Value

Mileage until Extra reminder

Months until Extra reminder

-Input the Value-

2

Input the value for the item that you want to set

up, and press the OK button.

- Service Reminder -  4014308A5

Range:0-254, Unit:month,

ZC6026050002

2.

Set the temporary warning period (distance or month) of the
"Set value."

NOTE:

Either input of distance or month can execute the

setting.

3.

Press the "OK" button.

3

Selected

Item

Extra service reminder

setting

Data List

No.

Mileage until reminder

10000 mile

Months until reminder

1

2

4

5

Mileage until Extra
reminder

Months until Extra
reminder

16 month

2 month

Name

Value

Meter

Service Reminder

Special Function

DBA-CW5WXTHHZ1 2006MY - Service Reminder -  4014308A6

Check the result.

ZC6026060005

4.

The temporary warning period is set.

NOTE:

The screen indicates that "2 month" has been added

to the temporary warning period (No. 5 in the data list).
(The distance of No. 4 in the data list has not been set.)

4. Extra reminder cancel
The temporary service reminder warning period which has been
set can be cancelled.

54Ab-72

COMBINATION METER

ON-VEHICLE SERVICE
