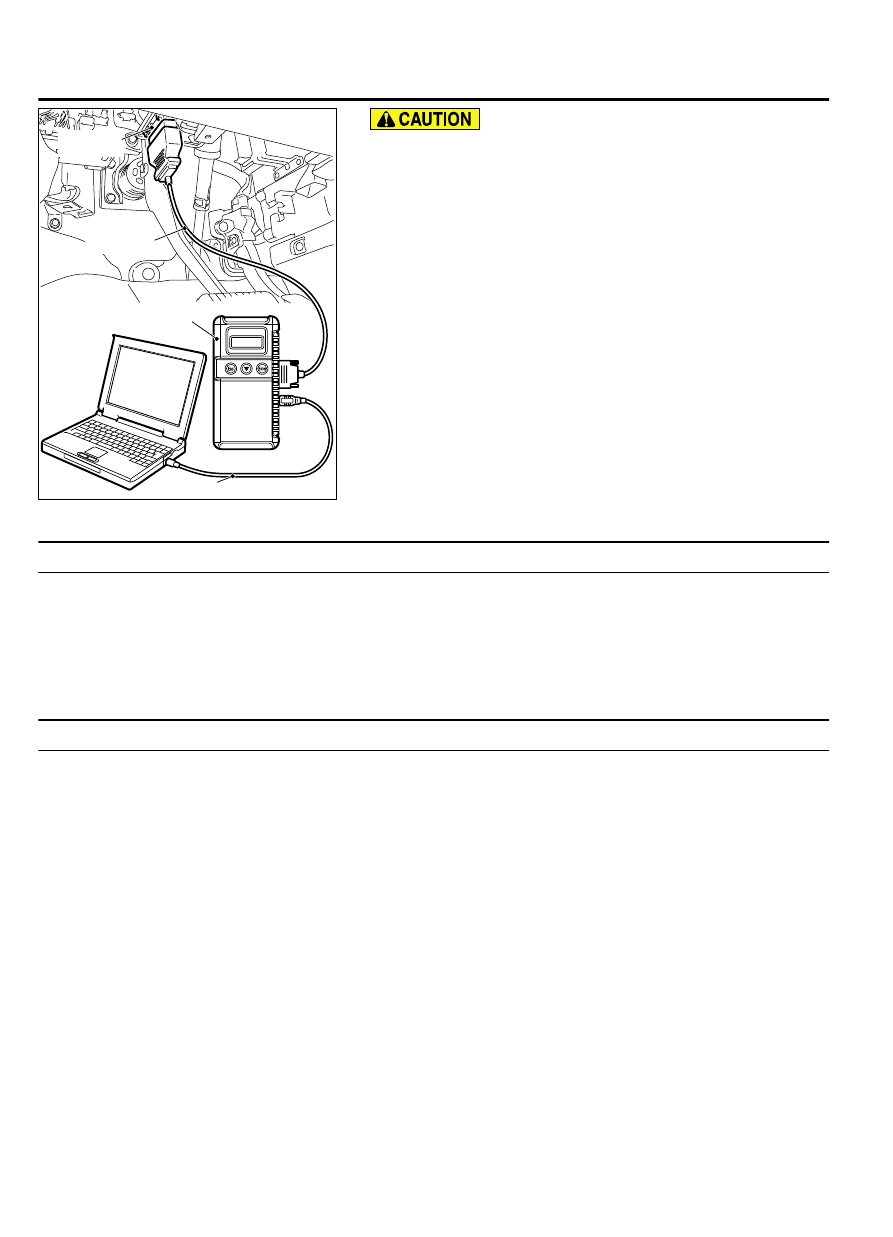

NO<AWD>:
Go to Step 8.
STEP 2. Check fuel pump module connector D-20 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q:Is fuel pump module connector D-20 in good condition?
YES:
Go to Step 3.
NO:
Repair the connector.
STEP 3. Check the fuel level sensor (main).
Check to see if the fuel level sensor (main) is normal. Refer
to P.54Ab-67.
Q:Is the check result normal?
YES:
Go to Step 4.
NO:
Replace the fuel level sensor (main).
STEP 4. Measure the resistance at fuel pump module
connector D-20.
(1)
Disconnect pump module connector D-20, and measure at
the wiring harness side.
ZC6022220007
Harness side: D-20
(2)
Measure the resistance value between terminal 1 and
ground.
｠
The measured value should be 2 ohm or less.
Q:Does the measured resistance value correspond with this
range?
YES:
Go to Step 6.
NO:
Go to Step 5.
STEP 5. Check the wiring harness between fuel pump
module connector D-20 (terminal 1) and ground.
Q:Is the wiring harness between fuel pump module
connector D-20 (terminal 1) and ground in good
condition?
YES:
There is no action to be taken.
NO:
Repair the wiring harness.
STEP 6. Check combination meter connector C-03 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q:Is combination meter connector C-03 in good condition?
YES:
Go to Step 7.
NO:
Repair the connector.
STEP 7. Check the wiring harness between fuel pump
module connector D-20 (terminal 2) and combination meter
connector C-03 (terminal 17 or 18).
NOTE:
Also check intermediate connectors C-31 and D-05. If
intermediate connectors C-31 and D-05 are damaged, repair
or replace the connector as described in GROUP 00E, Harness
Connector Inspection P.00E-2.
COMBINATION METER
54Ab-13
DIAGNOSIS
