DIAGNOSTIC TROUBLE CODE PROCEDURES

DTC B1200: Malfunction of odometer

M15410100009USA0000010000

TROUBLE JUDGMENT
If  the  odometer  information,  which  is  stored  in  the
combination  meter,  is  abnormal  when  the  ignition
switch at the ON position and the system voltage is 10
-16  volts  (data  from  ETACS-ECU),  DTC  B1200  is
stored.

TROUBLESHOOTING HINTS
The combination meter may be defective.

DIAGNOSIS

Required Special Tools:

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

MB991824: Vehicles Communication Interface (V.C.I.)

MB991827: M.U.T.-III USB Cable

MB991910:  M.U.T.-III  Main  Harness  A  (Vehicles  with
CAN communication system)

STEP 1. Using scan tool MB991958, read the combination
meter diagnostic trouble code.
Check if DTC is set to the combination meter.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

(1)

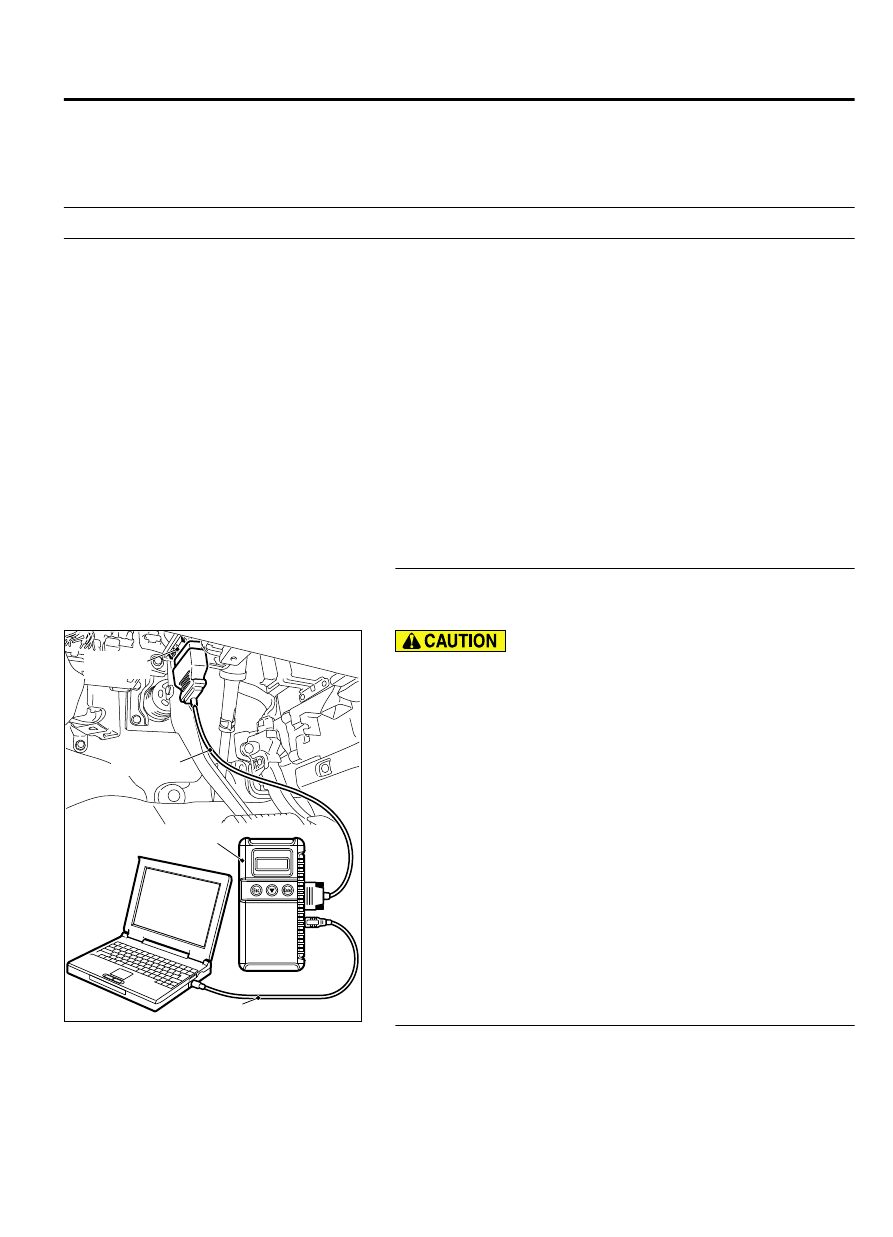

Connect scan tool MB991958. Refer to "How to connect the
Scan Tool (M.U.T.-III) P.54Ab-5."

(2)

Turn the ignition switch to the "ON" position.

(3)

Erase the DTC.

(4)

Turn the ignition switch from "LOCK" (OFF) position to "ON"
position.

(5)

Check if diagnosis code is set.

Q:Is the DTC set?

YES:

 Replace the combination meter, and then go to Step

2.

NO:

 The trouble can be an intermittent malfunction (Refer

to GROUP 00, How to Cope with Intermittent Malfunction P.
00-15).

STEP 2. Recheck for diagnostic trouble code.
Check if DTC is set to the combination meter.

(1)

Erase the DTC.

COMBINATION METER

54Ab-9

DIAGNOSIS

(2)

Turn the ignition switch from "LOCK" (OFF) position to "ON"
position.

(3)

Check if diagnosis code is set.

Q:Is the DTC set?

YES:

 Go to Step 1.

NO:

 The procedure is complete.

DTC B1201: Abnormal fuel information

54Ab-10

COMBINATION METER

DIAGNOSIS

DTC B1202: Abnormal fuel2 information

M15410100010USA0000010000

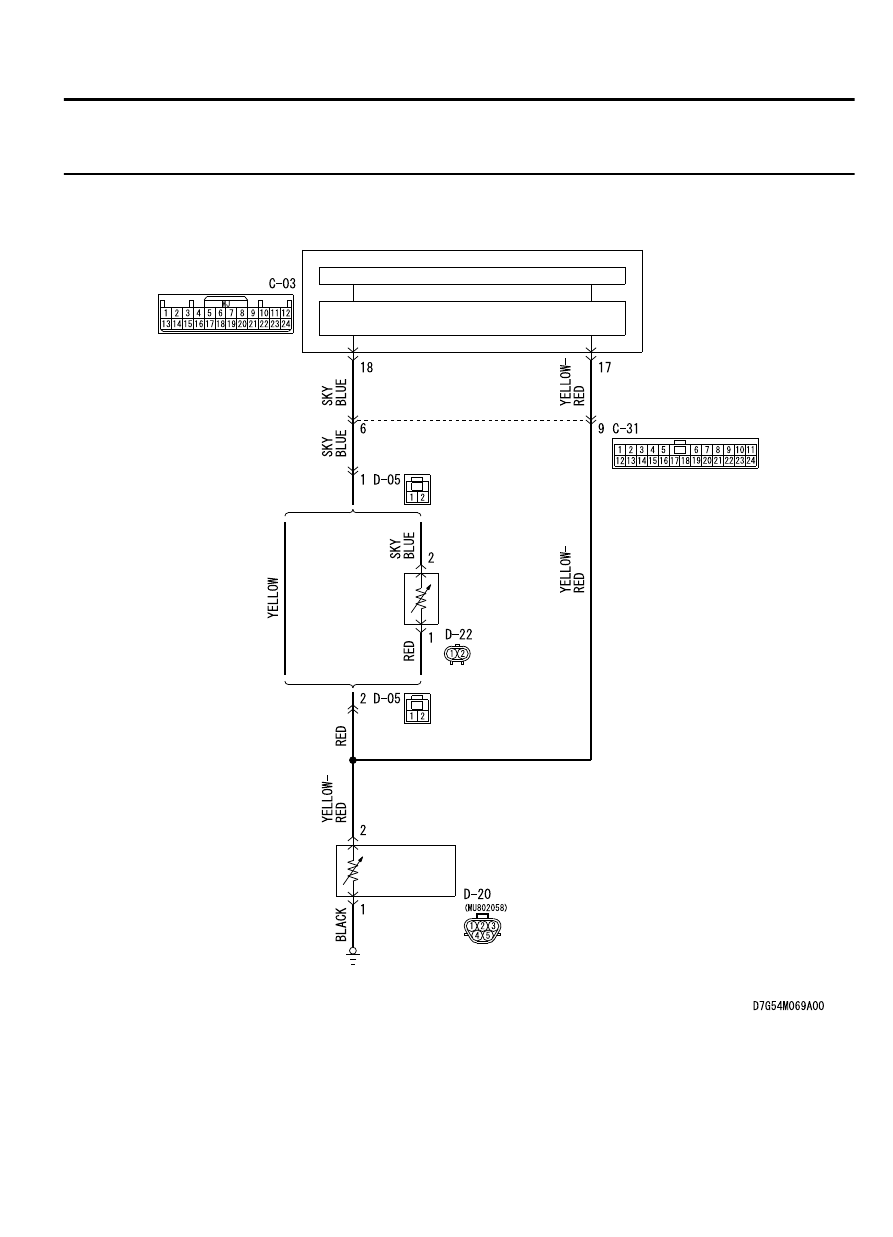

Fuel Level Sensor Circuit

INTERFACE
CIRCUIT

COMBINATION
METER

CPU

FUEL
LEVEL
SENSOR
(SUB)

FUEL
PUMP
MODULE

FUEL LEVEL
SENSOR
(MAIN)

COMBINATION METER

54Ab-11

DIAGNOSIS

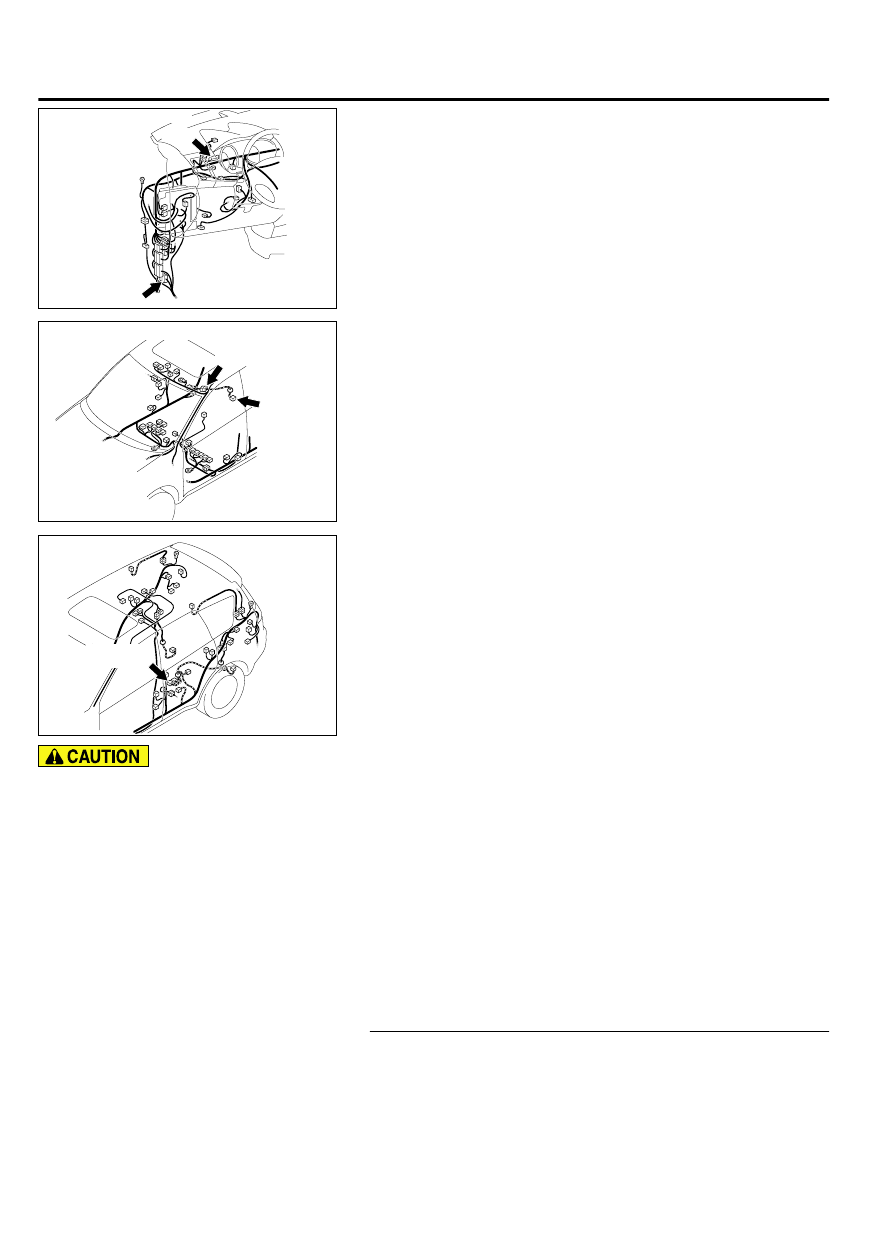

ZC6008750036

Connectors: C-03, C-31

D-03

D-31

ZC6008790028

Connectors: D-05, D-22

D-05

D-22

ZC6008800030

Connector: D-20

D-20 (GR)

Whenever  the  ECU  is  replaced,  ensure  that  the
communication circuit is normal.

TROUBLE JUDGMENT
With  the  ignition  switch  at  the  ON  position  and  the
system  voltage  at  10  -16  volts  (data  from  ETACS-
ECU), if the combination meter detects the abnormal
resistance of fuel level sensor circuit for 64 seconds
continuously, DTC B1201 or DTC B1202 is stored.

TROUBLESHOOTING HINTS

The  fuel  pump  module  [fuel  level  sensor  (main)]
may be defective. <FWD, AWD>

The  fuel  level  sensor  (sub)  may  be  defective.
<AWD>

The combination meter may be defective.

The wiring harness or connectors may have loose,
corroded,  or  damaged  terminals,  or  terminals
pushed back in the connector

DIAGNOSIS

Required Special Tools:

MB991223: Harness Set

MB992006: Extra Fine Probe

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

MB991824: Vehicles Communication Interface (V.C.I.)

MB991827: M.U.T.-III USB Cable

MB991910:  M.U.T.-III  Main  Harness  A  (Vehicles  with
CAN communication system)

STEP 1. Check the malfunctioning vehicle.

Q:Is the malfunctioning vehicle a FWD?

YES<FWD>:

 Go to Step 2.

54Ab-12

COMBINATION METER

DIAGNOSIS
