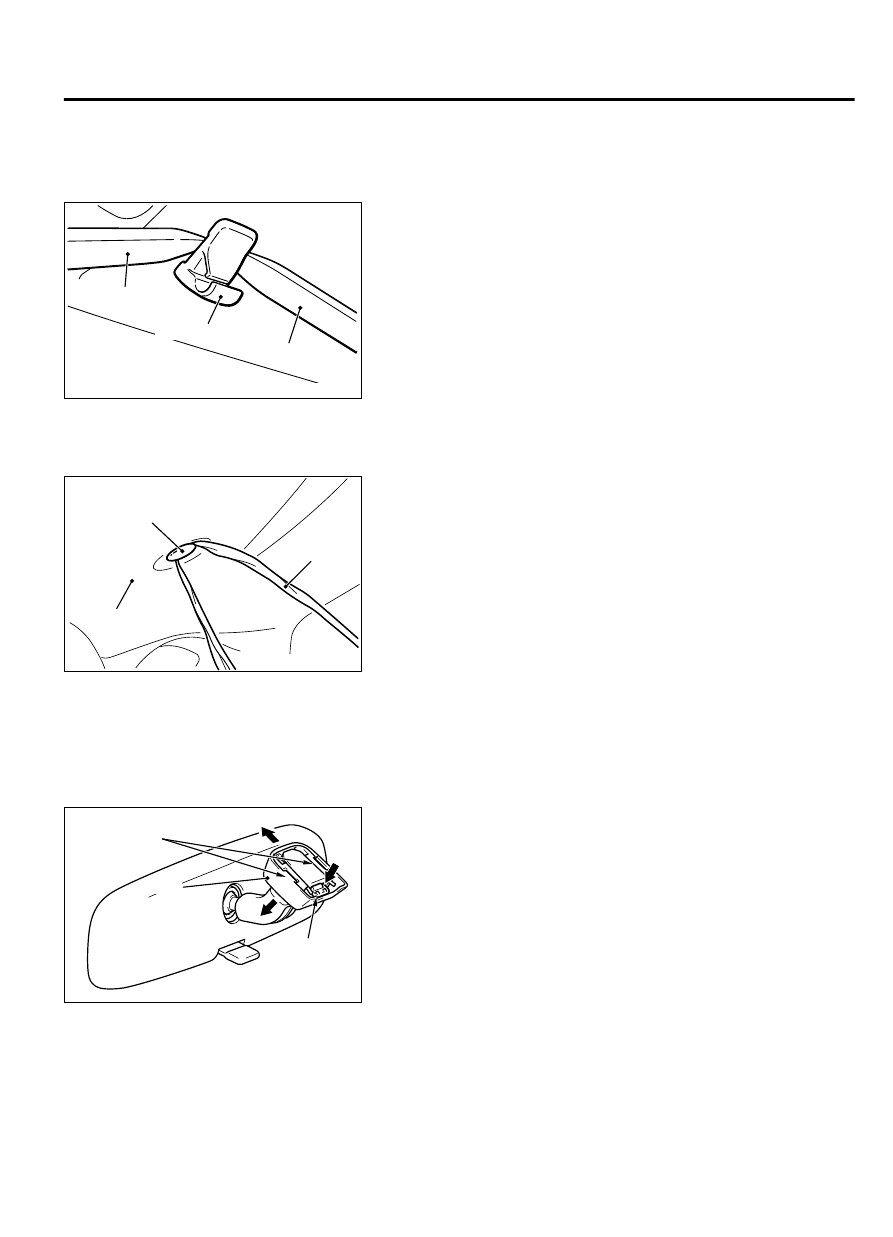

REMOVAL SERVICE POINTS

<<A>> SUN VISOR HOLDER REMOVAL

ZC600455

MB990784

MB990784

0000

Sunvisor holder

Insert the special tools into the sun visor holder from its left and
right sides to disengage the claws on the sun visor holder sides.



<<B>> HEADLINING ASSEMBLY REMOVAL

ZC604499

Headlinig

Clip

Vinyl cord

0000

To remove the clip, insert a vinyl cord into a clearance between
the clip and the headlining, and pass it around the clip. Then,
pull out the clip downwards while pulling the vinyl cord.

INTERIOR MIRROR

M15201000026USA0000010002

REMOVAL SERVICE POINT

ZC600663

Claw B

Claw A

Cover

1

2

3

0000

1.

Disengage  the  claw  A  and  lower  the  cover  toward  arrow  1
direction.

2.

Push the claw B toward arrow 2 direction to unlock, and pull
out the mirror toward arrow 3 direction.

INTERIOR

52A-17

INTERIOR MIRROR

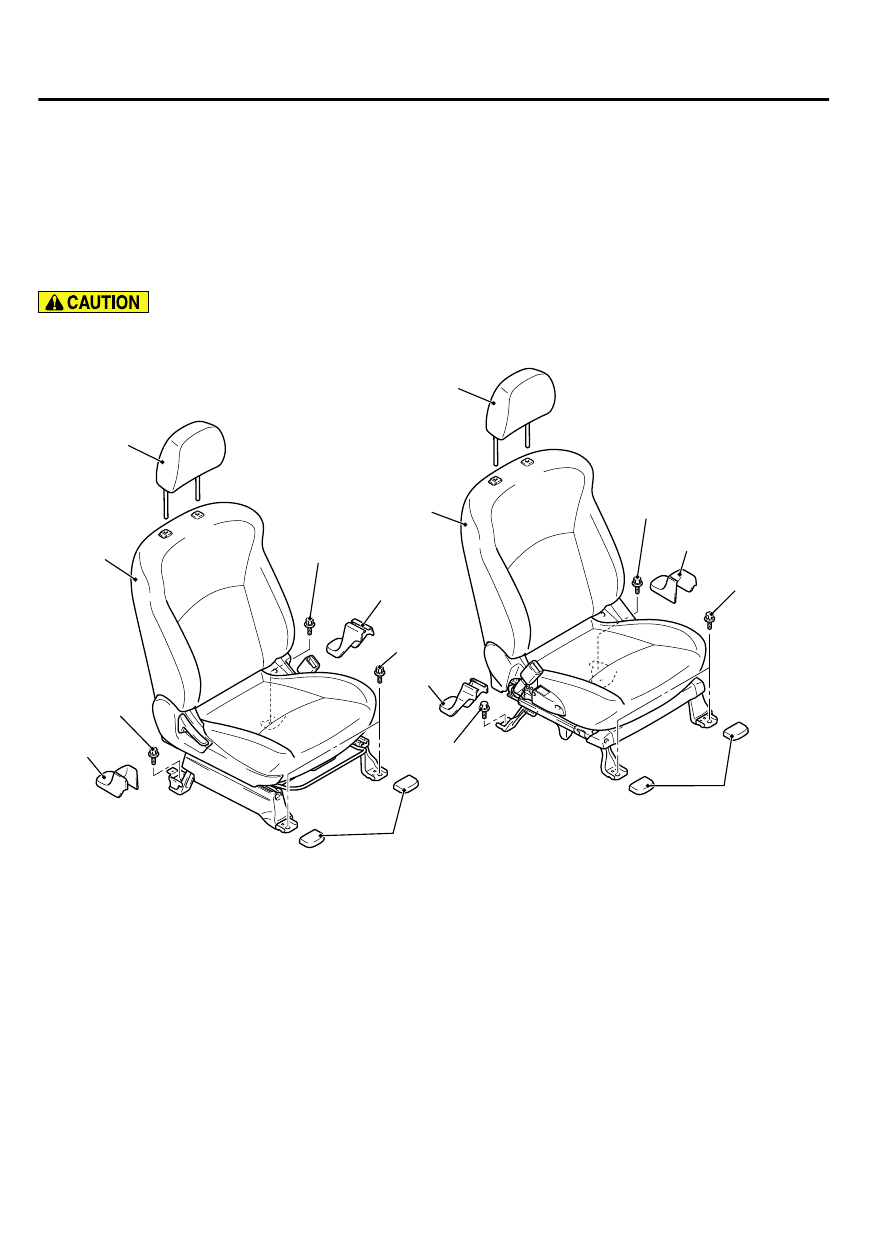

SEAT ASSEMBLY

FRONT SEAT ASSEMBLY

REMOVAL AND INSTALLATION

M15201000102USA0000010000

To remove the front seat assembly of vehicle with
side  air  bag,  refer  to  GROUP  52B  -  Service

Precautions  P.52B-28and  Curtain  Air  Bag
Module P.52B-341.

ZC600855

1

1

4

3

3

3

2

2

3

4

43 ± 8 N·m
32 ± 6 ft-lb

AA00

43 ± 8 N·m
32 ± 6 ft-lb

43 ± 8 N·m
32 ± 6 ft-lb

43 ± 8 N·m
32 ± 6 ft-lb

43 ± 8 N·m
32 ± 6 ft-lb

43 ± 8 N·m
32 ± 6 ft-lb

Removal steps

1.

Headrest

2.

Front seat anchor cover

3.

Rear seat anchor cover

Removal steps

<<A>>

·

Wiring harness connectors

>>A<<

4.

Front seat assembly

52A-18

INTERIOR

SEAT ASSEMBLY

REMOVAL SERVICE POINTS

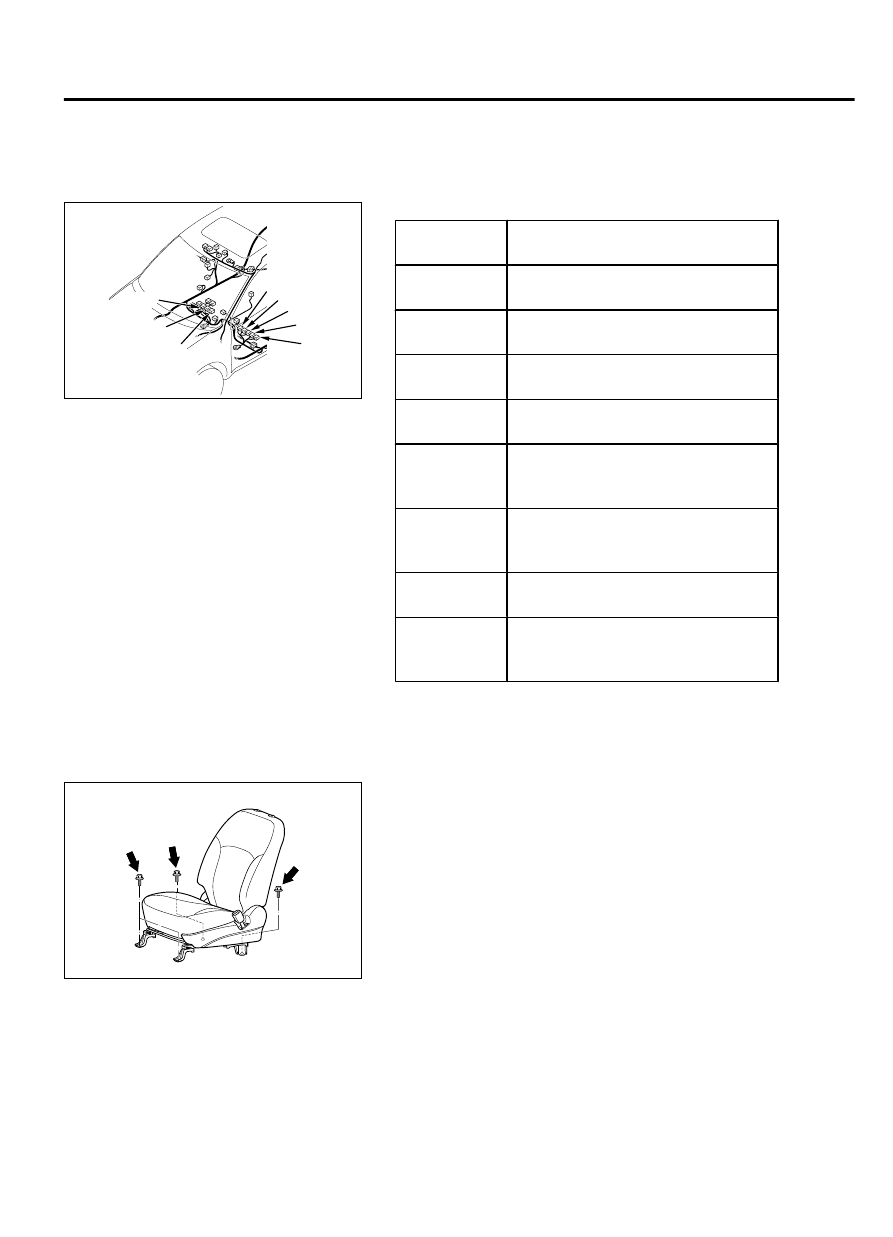

<<A>> WIRING HARNESS CONNECTOR DISCONNECTION

ZC6008560000

D-31

D-32

D-33

D-25

D-26

D-27

D-28

D-29

Disconnect the following wiring harness connectors:

Connector
number

Connector name

D-25 (2)

Power seat connector (driver's seat)
vehicle with power seat

D-26  (4  -
black)

Heated  seat  connector  (driver's
seat) vehicle with heated seat

D-27  (4  -
gray)

Seat slide sensor connector (driver's
seat)

D-28  (2  -
black)

Seat belt switch connector (driver's
seat)

D-29  (2  -
yellow)

Side  air  bag  module  (squib)
connector  (driver's  seat)  vehicles
with side air bag

D-31  (2  -
yellow)

Side  air  bag  module  (squib)
connector  (front  passenger's  seat)
vehicles with side air bag

D-32  (2  -
black)

Seat  belt  switch  connector  (front
passenger's seat)

D-33  (4  -
black)

Heated  seat  connector  (front
passenger's  seat)  vehicle  with
heated seat

INSTALLATION SERVICE POINTS

>>A<< FRONT SEAT ASSEMBLY INSTALLATION

ZC600857AA00

1.

Confirm  that  both  the  seat  slides  are  locked,  and  then
temporarily tighten all the bolts shown in the figure so that no
load is applied to the front seat cushion.

2.

Tighten all the bolts to the specified torque.

INTERIOR

52A-19

SEAT ASSEMBLY

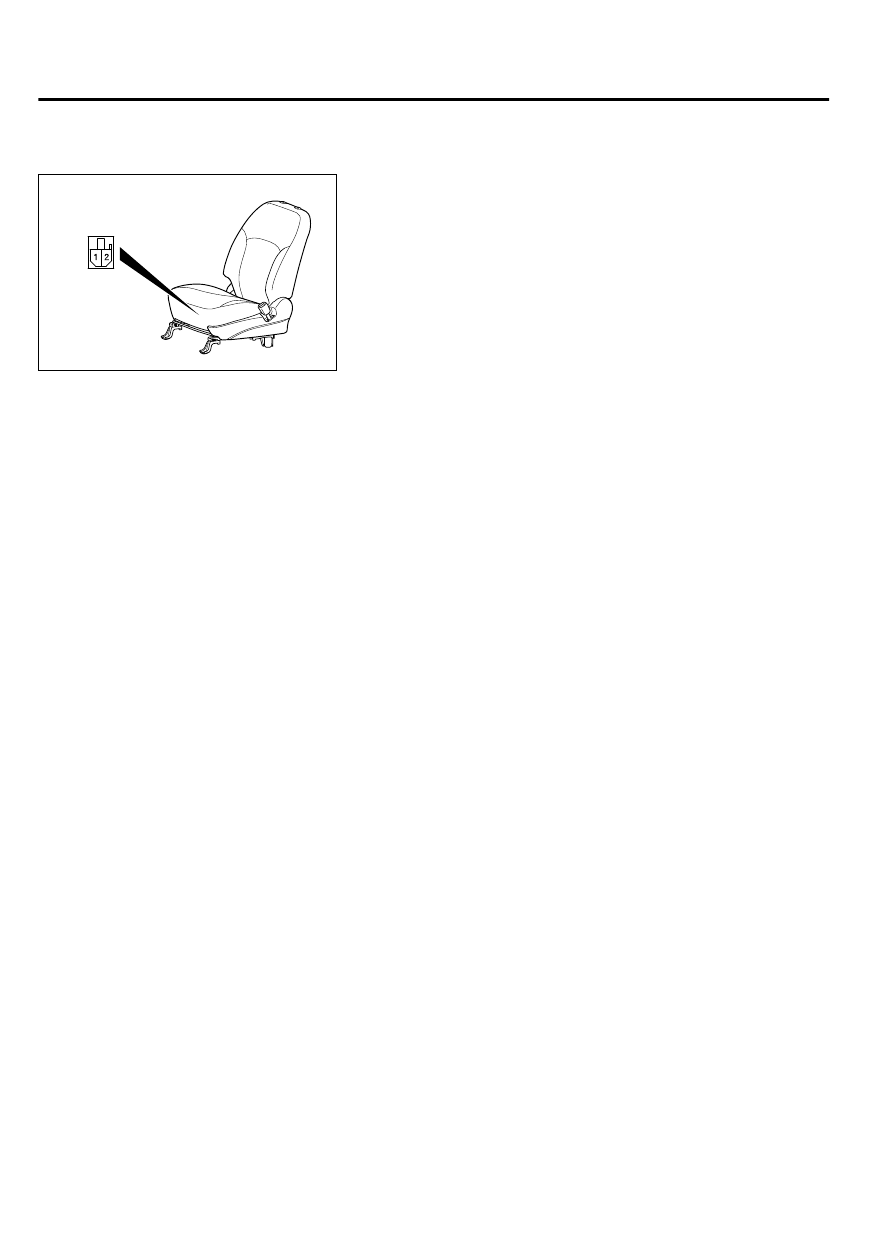

INSPECTION

M15201000110USA0000010000

ZC600898AA00

Connect the + terminal of the battery to the power seat connector
terminal No. 2 and the - terminal to terminal No. 1, and check
that the power seat works normally.

52A-20

INTERIOR

SEAT ASSEMBLY
