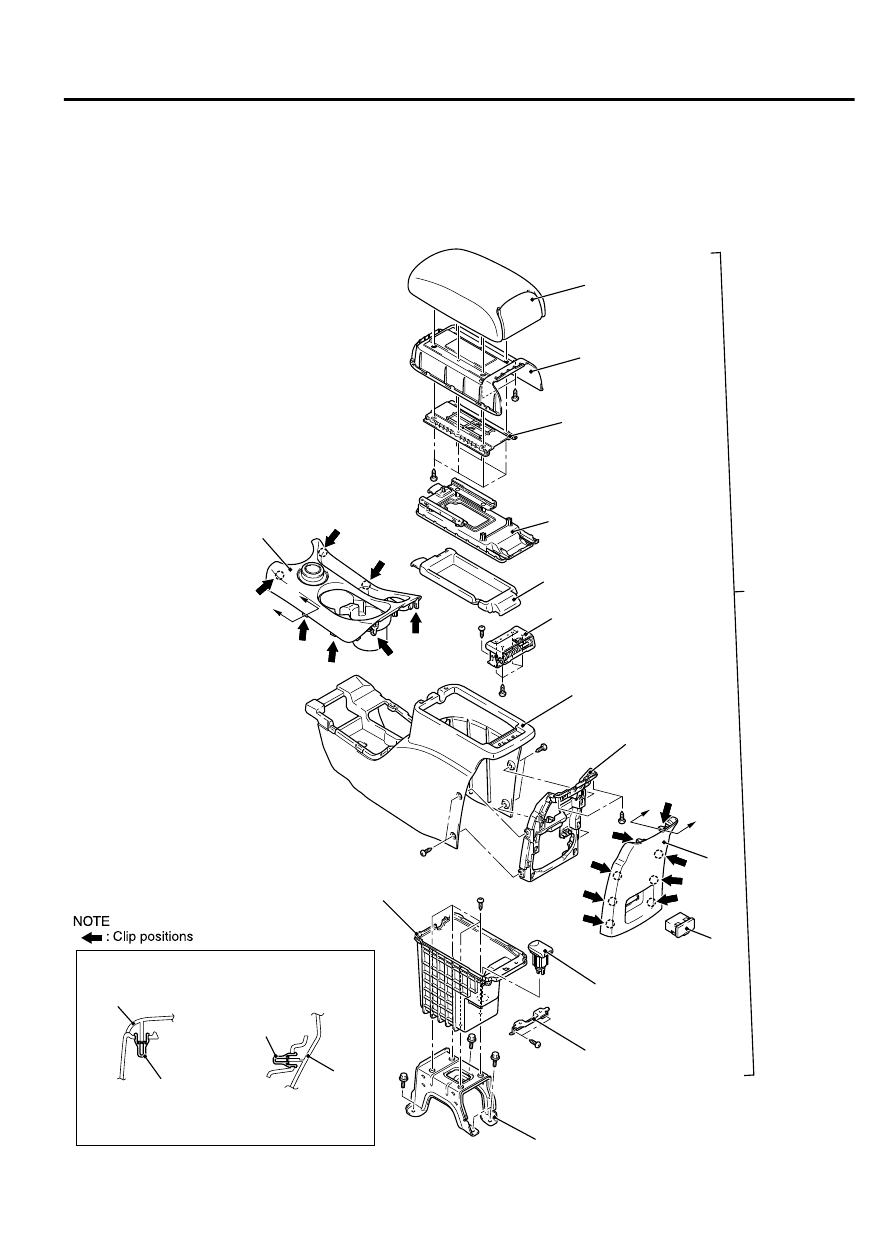

REAR FLOOR CONSOLE ASSEMBLY

REMOVAL AND INSTALLATION

M15201000057USA0000010000

ZC6007530000

11

9

6

2

12

3

5

10

1

7

8

15

13

14

16

4

 Section A – A

12

12

B

B

Clip

Clip

 Section B – B

A

A

INTERIOR

52A-9

FLOOR CONSOLE ASSEMBLY

Disassembly steps

1.

Rear floor console assembly

·

AWD selector switch connector

2.

Rear  floor  console  front  panel
assembly

3.

Hinge assembly

4.

Armrest box

5.

Slide base outer

6.

Slide base inner

7.

Armrest lid inner

8.

Armrest lid cover

9.

VTR adapter assembly

Disassembly steps

10. Rear floor console rear panel
11. Rear floor console rear panel frame
12. Rear floor console box
13. Accessory socket
14. Rear floor console box bracket
·

Accessory socket connector

·

VTR adapter connector

15. Rear floor console
16. Rear floor console bracket

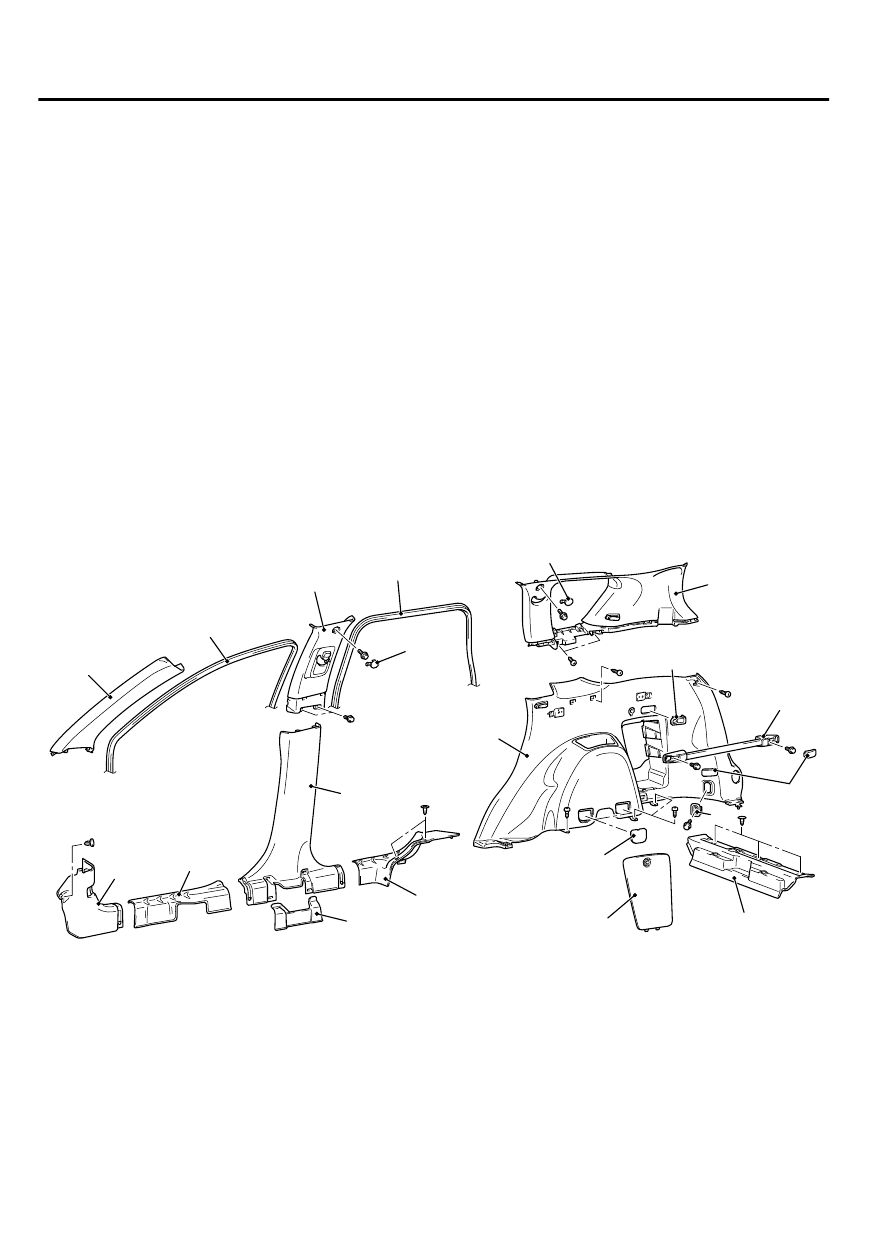

TRIMS

INTERIOR TRIM

REMOVAL AND INSTALLATION

M15201000011USA0000010000

ZC6005780000

8

5

6

3

2

10

4

13

21

19

1

12

11

15

16

9

7

14

20

18

1.

Front scuff plate

2.

Cowl side trim

3.

Rear scuff plate

4.

Front door opening trim

5.

Rear door opening trim

6.

Front pillar trim

7.

Center pillar trim lower cover

·

Seat belt pre-tensioner connector

8.

Center pillar trim, lower

9.

Center pillar trim upper cap

10. Center pillar trim, upper
11. Rear end trim

52A-10

INTERIOR

TRIMS

Quarter trim lower and quarter trim
upper removal steps

12. Maintenance lid
13. Cargo hook assembly
14. Utility bar cover
15. Utility bar
16

Jack lid assembly

17. Tumble switch

Quarter trim lower and quarter trim
upper removal steps

18

Quarter trim, lower

19. Sash guide cover
20. Quarter trim upper cap
21. Quarter trim, upper

NOTE:

For the vehicles with curtain air bag,

install the front pillar trim and quarter trim
upper provided for curtain air bag.

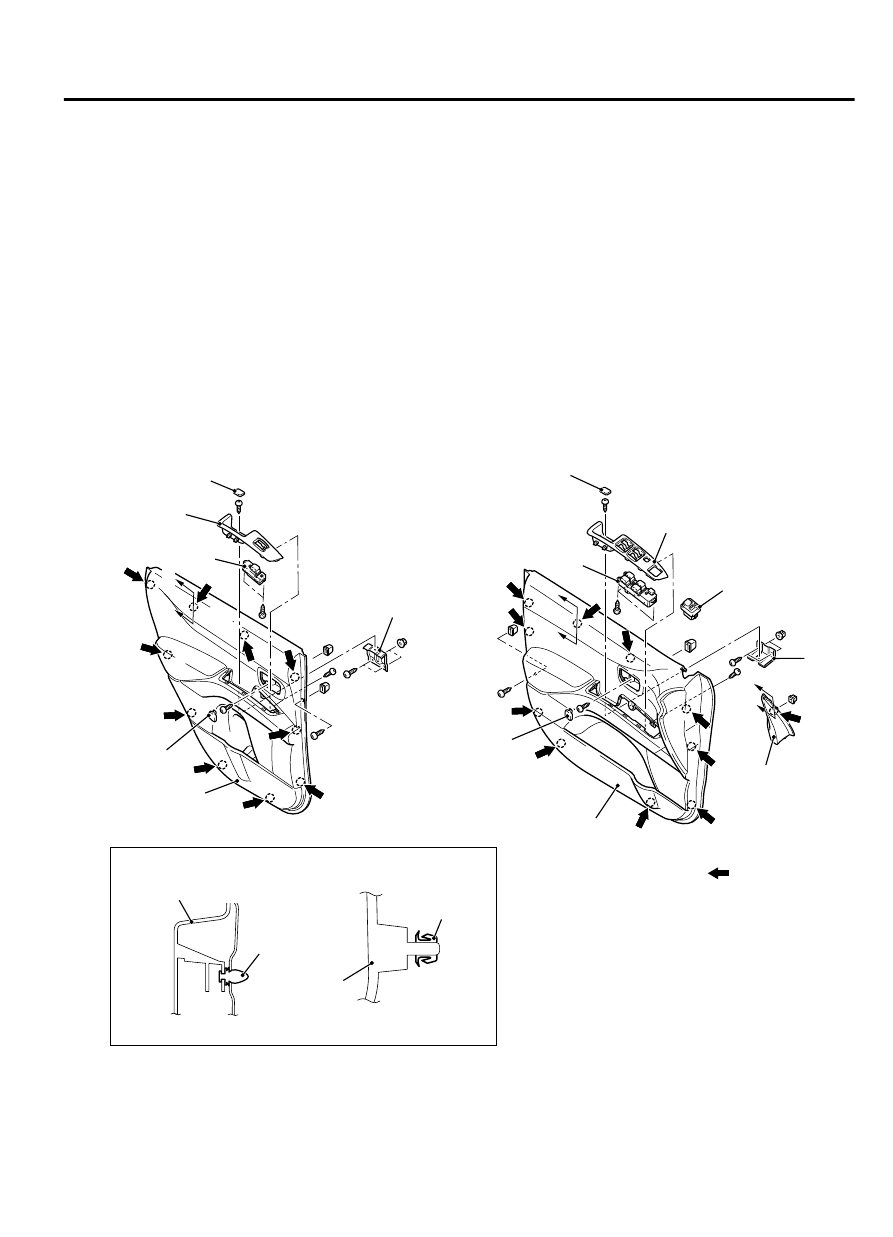

DOOR TRIM

REMOVAL AND INSTALLATION

M15201000064USA0000010000

ZC602156

Section A – A

2

Section B – B

1

0000

1

2

<Front door trim>

<Rear door trim>

3

5

6

7

4

8

1

4

5

3

6

B

B

B

A

A

B

4

<Front door trim>

,

3

<Rear door trim>

Clip

Clip

NOTE
       : Clip positions

Front door trim removal steps

·

Tweeter connector

Front door trim removal steps

>>A<<

1.

Front door sash trim

INTERIOR

52A-11

TRIMS

Front door trim removal steps

<<A>>

2.

Inside handle cover cap

3.

Door trim cap

<<B>>

>>B<<

4.

Front door trim

5.

Power window switch panel

·

Power window switch connector

6.

Power window switch

·

Remote-controlled

 mirror

 switch

connector (RH)

7.

Remote-controlled mirror switch (RH)

Front door trim removal steps

8.

Front door pull handle bracket
Rear door trim removal steps

<<A>>

1.

Inside handle cover cap

2.

Door trim cap

<<B>>

>>B<<

3.

Rear door trim

4.

Power window switch panel

·

Rear  power  window  sub-switch
connector

5.

Power window switch

6.

Rear door armrest bracket

REMOVAL SERVICE POINTS

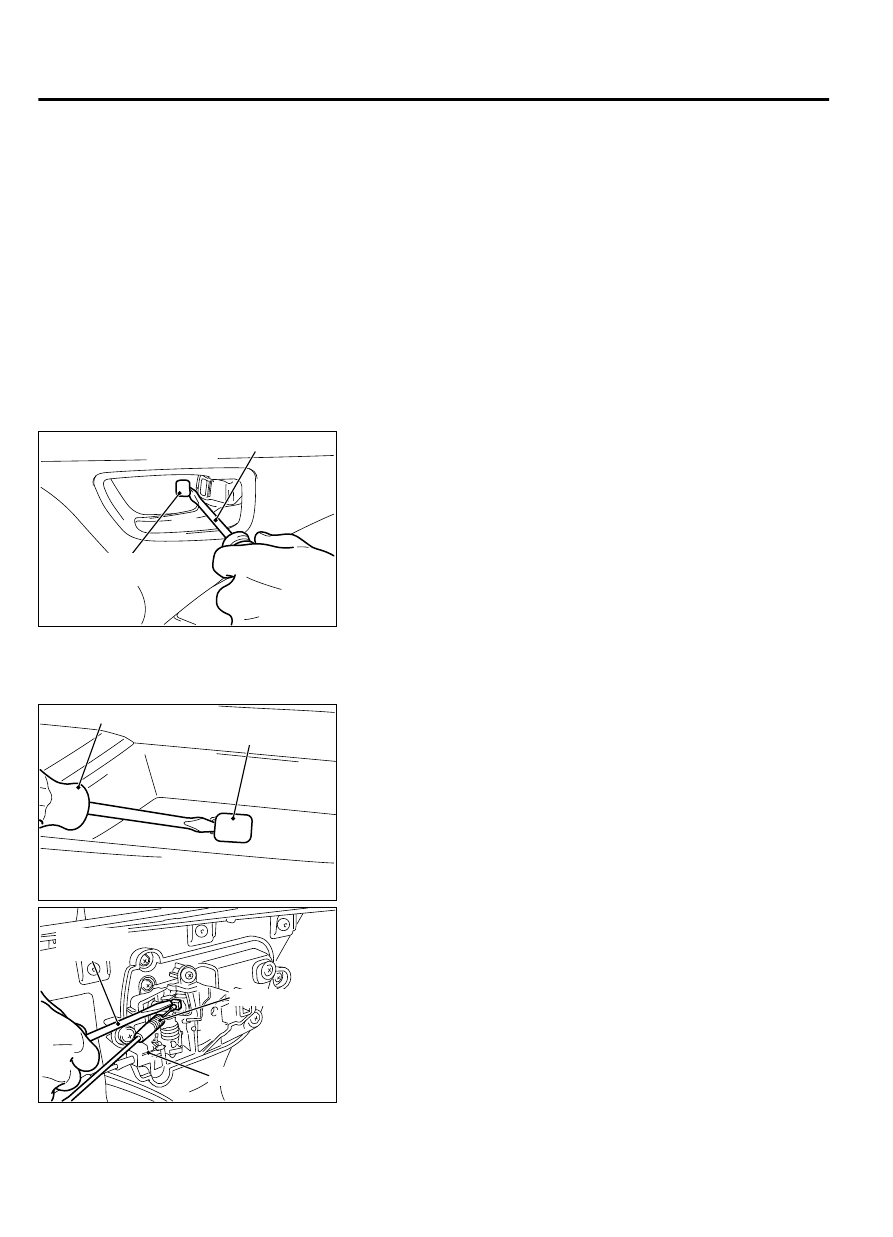

<<A>> INSIDE HANDLE COVER CAP REMOVAL

ZC602157

Inside handle
cover cap

0000

Flat-tipped screwdriver

Insert  a  flat-tipped  (-)  screwdriver  as  shown  in  the  figure  to
remove the inside handle cover cap.



<<B>> FRONT/REAR DOOR TRIM REMOVAL

ZC602158

Door trim cap

0000

Flat-tipped screwdriver

1.

Insert a flat-tipped (-) screwdriver as shown in the figure to
remove the door trim cap.

ZC602159

Inside lock cable

Inside handle cable

0000

Flat-tipped
screwdriver

2.

Using  a  flat-tipped  (-)  screwdriver  as  shown  in  the  figure,
remove the inside lock cable and the inside handle cable, then
remove the door trim.
