GROUP 52A

INTERIOR

CONTENTS

ADHESIVE.......................

52A-2

SPECIAL TOOL...................

52A-2

INSTRUMENT PANEL ASSEMBLY......

52A-2

REMOVAL AND INSTALLATION.......

52A-2

DISASSEMBLY AND ASSEMBLY.......

52A-7

FLOOR CONSOLE ASSEMBLY.........

52A-8

FRONT FLOOR CONSOLE ASSEMBLY
...............................

52A-8

REMOVAL AND INSTALLATION.........

52A-8

REAR FLOOR CONSOLE ASSEMBLY
...............................

52A-9

REMOVAL AND INSTALLATION.........

52A-9

TRIMS.........................

52A-10

INTERIOR TRIM.................

52A-10

REMOVAL AND INSTALLATION........

52A-10

DOOR TRIM.....................

52A-11

REMOVAL AND INSTALLATION........

52A-11

LIFTGATE TRIM.................

52A-14

REMOVAL AND INSTALLATION........

52A-14

HEADLINING....................

52A-15

REMOVAL AND INSTALLATION......

52A-15

INTERIOR MIRROR...............

52A-17

SEAT ASSEMBLY.................

52A-18

FRONT SEAT ASSEMBLY...........

52A-18

REMOVAL AND INSTALLATION........

52A-18

INSPECTION......................

52A-20

SECOND SEAT ASSEMBLY..........

52A-21

REMOVAL AND INSTALLATION........

52A-21

THIRD SEAT ASSEMBLY...........

52A-22

REMOVAL AND INSTALLATION........

52A-22

SEAT BELT.....................

52A-22

FRONT SEAT BELT...............

52A-22

REMOVAL AND INSTALLATION........

52A-22

INSPECTION......................

52A-24

REAR SEAT BELT................

52A-24

REMOVAL AND INSTALLATION........

52A-24

52A-1

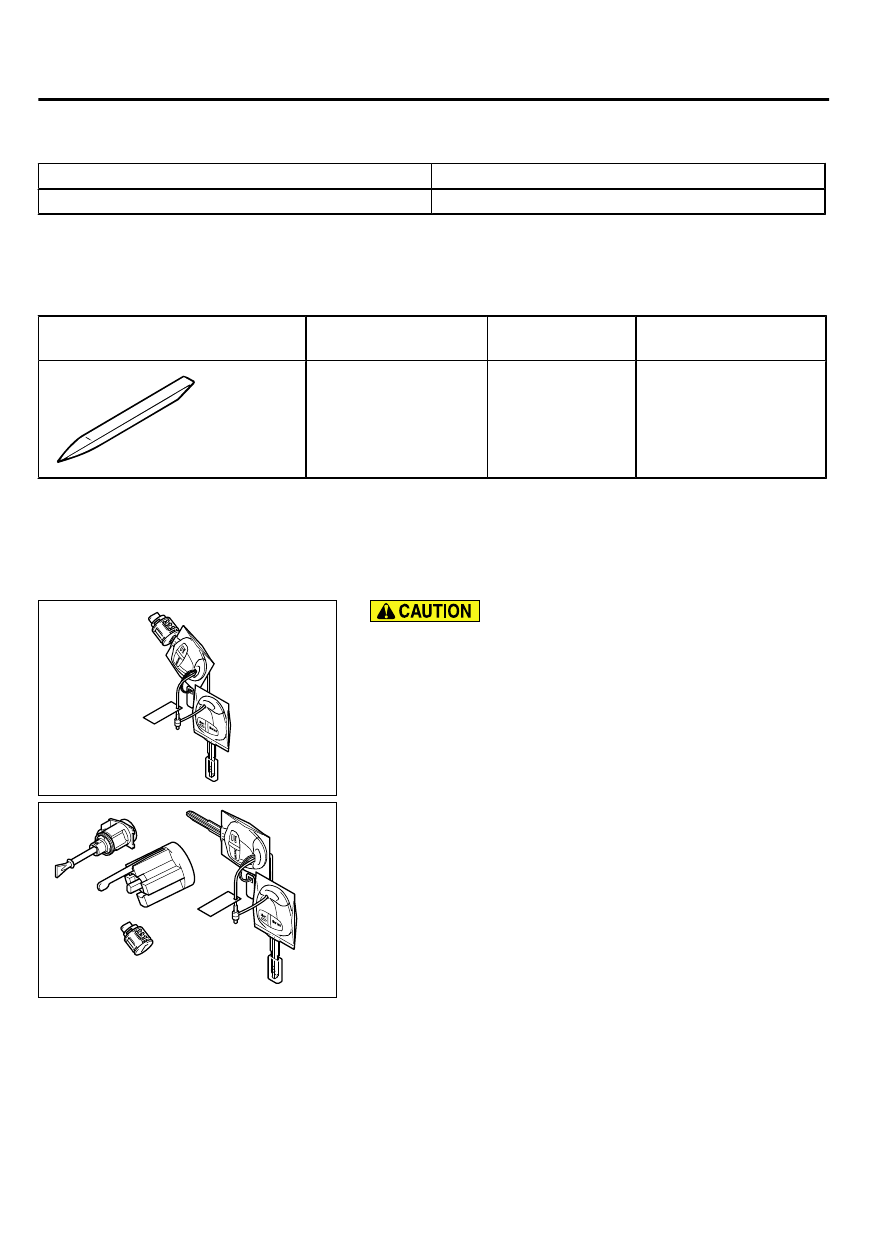

ADHESIVE

M15201000005USA0000010000

Application

Brand name

Interior mirror

Interior mirror adhesive kit MU-150Kit [MZ100425]

NOTE:

The symbol in parentheses indicates a part

number.

SPECIAL TOOL

M15201000006USA0000010000

Tool

Tool

 number

 and

name

Supersession

Application

MB990784

MB990784
Ornament remover

General

 service

tool

Removal of switch, trim,
etc.

INSTRUMENT PANEL ASSEMBLY

REMOVAL AND INSTALLATION

M15201000017USA0000010000

ZC600473

(A)

0000

ZC600474

(B)

0000

<Vehicles without WCM>

｠

When a supply unit of the glove box lock cylinder shown
in  the  illustration  (A)  is  replaced,  do  not  register  a
transponder ID using the bar code which is attached to
the  ignition  key  supplied  simultaneously.  If  the
transponder ID is registered with the attached bar code,
the  engine  cannot  start.  However,  only  for  vehicles
without WCM, when one ignition key is used both for lock
cylinder and engine start-up, it is necessary to replace a
key set shown in the illustration (B).

｠

When a key set in the illustration (B) is replaced, always
register the transponder ID.

52A-2

INTERIOR

ADHESIVE

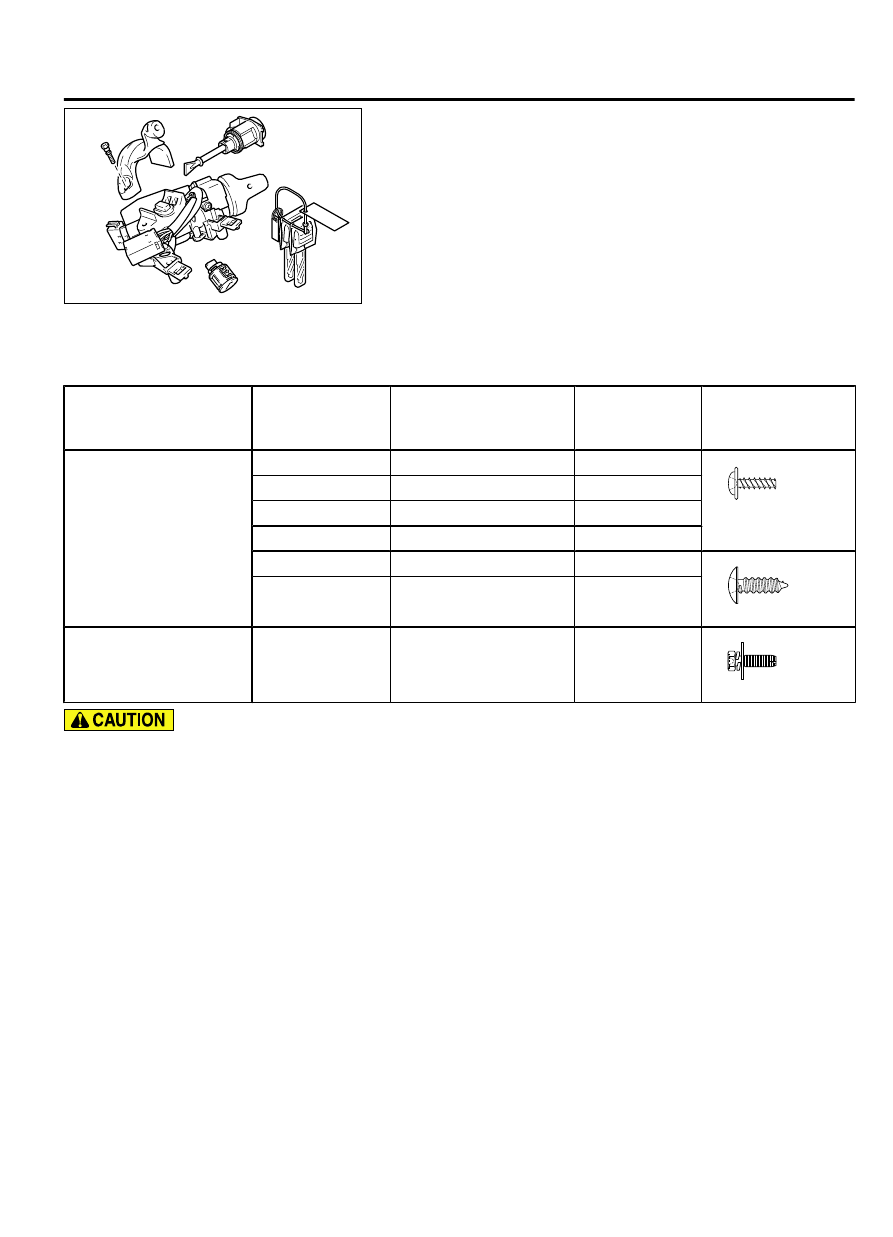

ZC600475

(C)

0000

<Vehicles with WCM>



The following bolts and screws are used for installing
the  instrument  panel:  The  bolts  and  screws  are
indicated  by  symbols  in  the  illustrations  in  sections

"REMOVAL

 AND

 INSTALLATION"

 and

"DISASSEMBLY AND ASSEMBLY."

Name

Symbol

Dimensions

 mm

(screw  diameter  ×
screw length)

Color

Shape

Tapping screw

a

5 × 12

-

ZC501326AA00

b

5 × 16

-

c

5 × 16

Black

d

5 × 20

-

e

5 × 12

Black

ZC501327AA00

f

5 × 14

-

Washer-assembled bolt g

6 × 16

-

ZC600476AA00

｠

For the removal of the front passenger's air bag
module,  refer  to  GROUP  52B  -  Service
Precautions  P.52B-329,  Driver's  and  Front

Passenger's Air Bag Module, and Clock Spring
before operation.

｠

Do  not  subject  SRS-ECU  to  any  shocks  when
removing or installing the instrument panel.

INTERIOR

52A-3

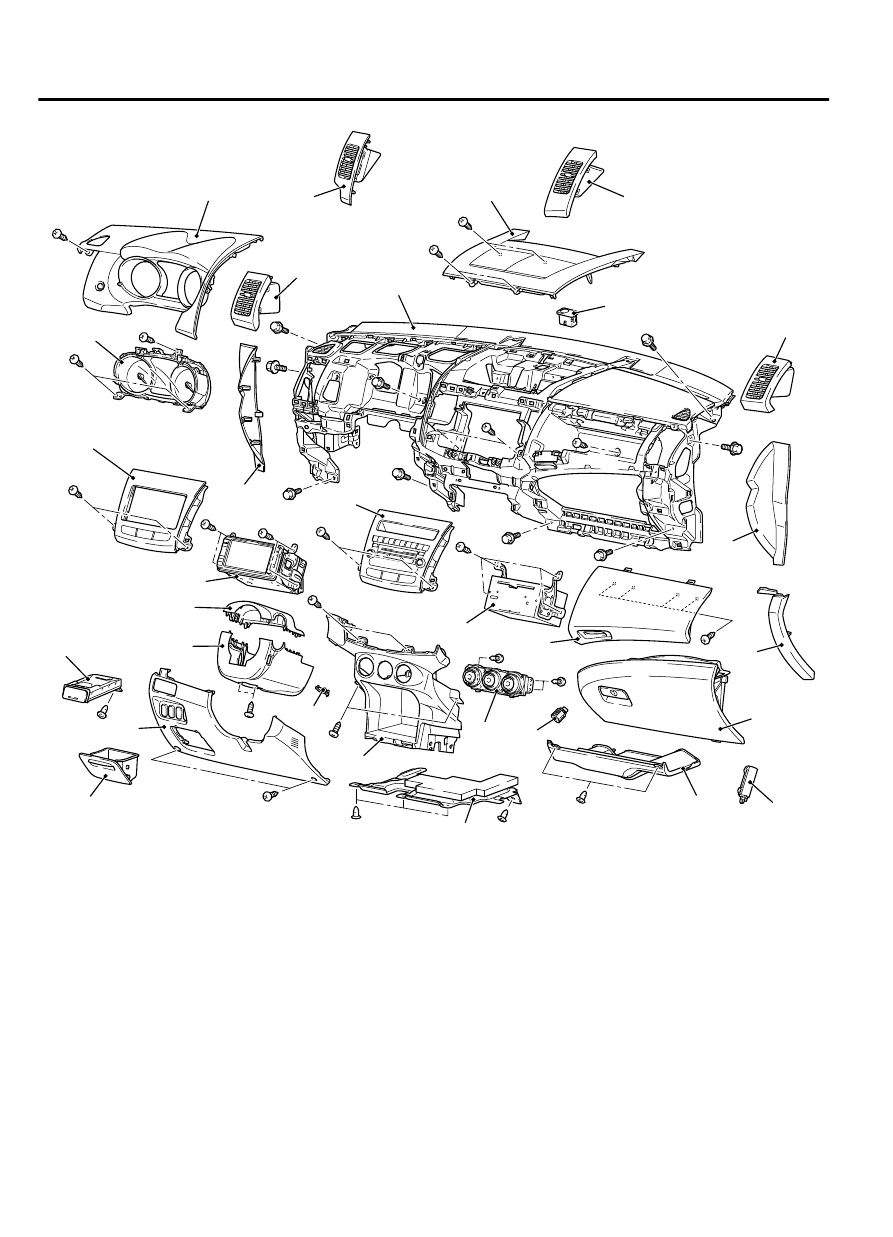

INSTRUMENT PANEL ASSEMBLY

ZC6004300000

1

2

3

17

4

5

d

c

18

9

19

12

10

11

13

20

21

e

14

g

6

6

15

14

g

24

22

25

e

b

g

g

g

16

b

b

b

20

7

 <Vehicles with MMCS>

<Vehicles with MMCS>

8

8

7

23

a

a

g

g

g

g

b

d

d

b

b

b

d

c

c

Removal steps

1.

Steering column upper cover

2.

Steering column lower cover

3.

Ignition key cover

4.

Cup holder assembly

5.

Side box

6.

Center air outlet

7.

Center panel assembly

8.

Center  panel  box  vehicles  with  audio
or  6  disc  CD  autochanger  &  AM/FM
radio

9.

Bottom cover assembly (driver's seat)

Removal steps

10. Bottom

 cover

 assembly

 (front

passenger's seat)

·

Glove box lamp connector

11. Glove box assembly
12. Glove box lock cylinder
13. Glove box dumper
14. Side air outlet
15. Combination meter bezel
16. Combination meter assembly
17. Side lower panel assembly
·

Lower  side  cover  (Refer  to  P.
52A-8).
