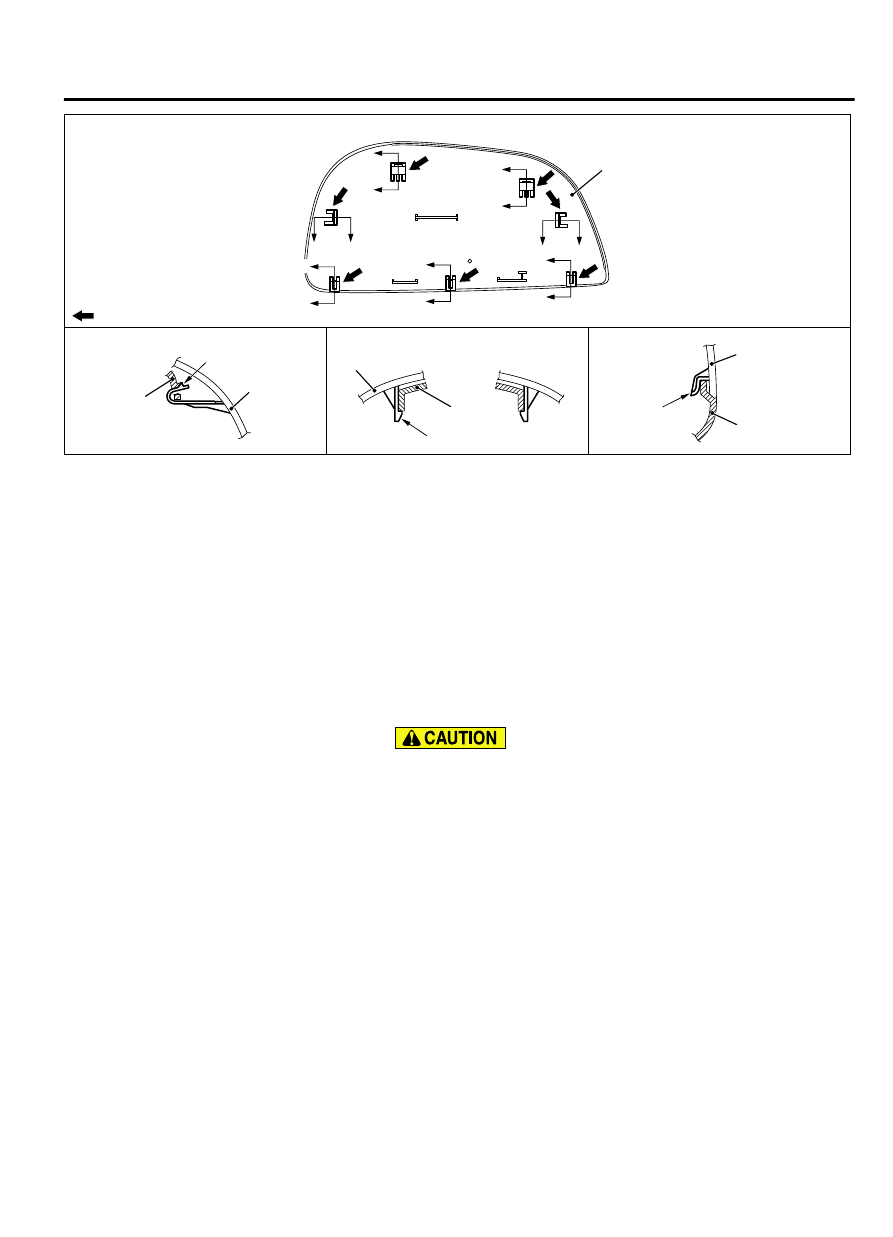

Door mirror outer cover claw positions

Claw

Claw

: Claw positions

Claw

Door  mirror  assembly  removal
steps

·

Front door trim (Refer to GROUP 52A,
Door Trim P.52A-11)

1.

Door mirror assembly
Door  mirror  outer  cover  removal
steps

1.

Door mirror assembly

Door  mirror  outer  cover  removal
steps

<<A>>

>>A<<

2.

Door mirror outer cover
Remote  controlled  mirror  switch
removal steps

·

Front door trim (Refer to GROUP 52A,
Door Trim P.52A-11)

3.

Remote controlled mirror switch

REMOVAL SERVICE POINTS

<<A>> DOOR MIRROR OUTER COVER REMOVAL

The tab of the mirror is prone to breakage when working in
cold  temperatures.  Always  use  a  hair  drier  or  the  like  to
warm up the mirror tab and its periphery to 20°C(68°F) or
higher prior to works. When the mirror is heated too quickly
from its cold state, it may be broken.

OUTSIDE MIRROR

51C-13

OUTSIDE MIRROR

ZC600375

AC302282

A

A

0000

Section A – A

Claw

Claw positions

Claws

Claw

Pivot plate

Mirror

Mirror

Minus screwdriver

Minus screwdriver

Minus screwdriver

Protective
tape

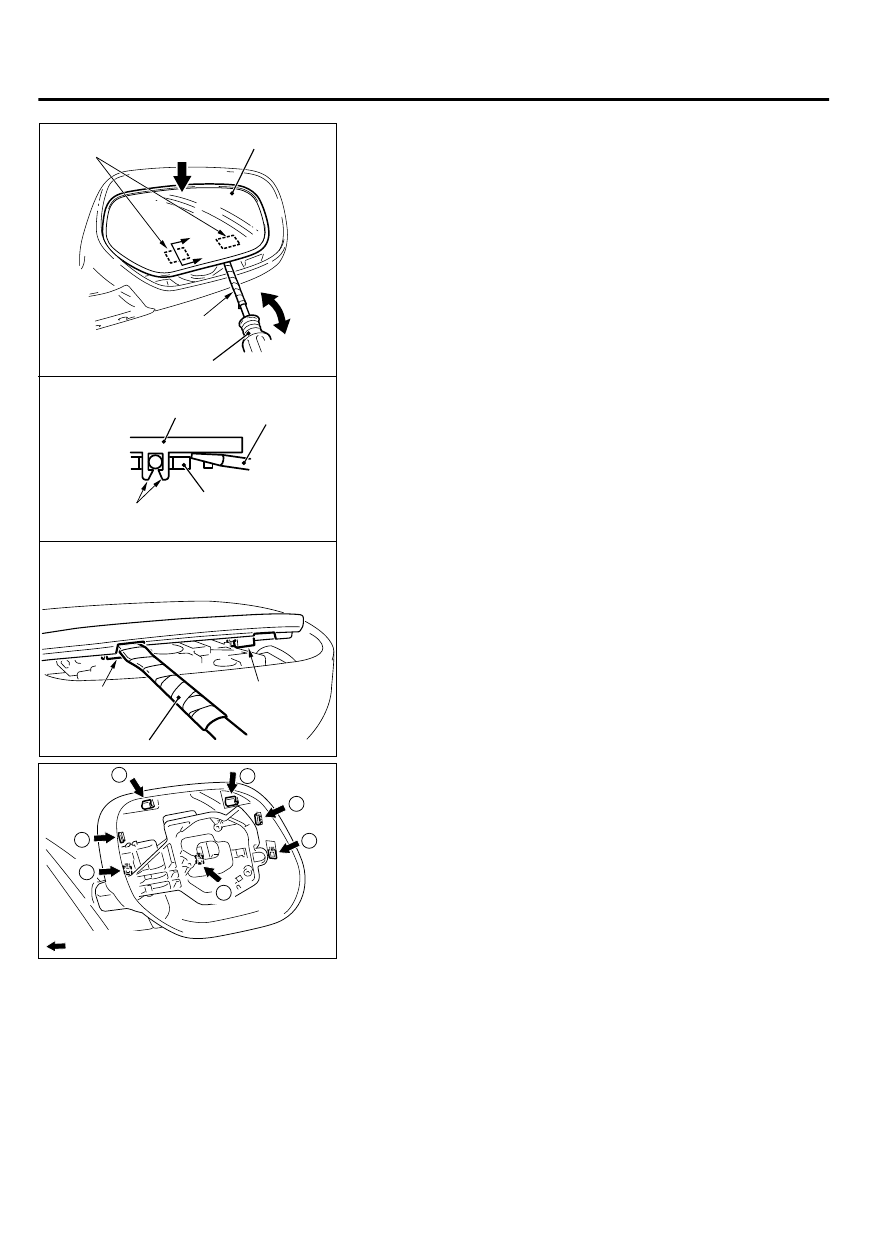

1.

Slant the mirror upward with your hands. Then insert a flat-
tipped screwdriver wrapped with protective tape between the
pivot  plate  and  mirror  through  the  cut-out  from  behind  the
mirror. Now pry off the mirror tab and release the lower side
of the mirror as shown in the illustration.

2.

Release the upper side of the mirror from the tab as shown
while pulling out the mirror.

3.

Disconnect the connectors of the heated mirror.

ZC6003760000

1

2

3

1

2

3

3

: Claw positions

4.

Remove the door mirror outer cover by disengaging the claws
in the numerical order of the illustration from the mirror body
side.

51C-14

OUTSIDE MIRROR

OUTSIDE MIRROR

INSTALLATION SERVICE POINT

>>A<< DOOR MIRROR OUTER COVER INSTALLATION

Tap  the  claw  positions  securely  to  confirm  that  they  are
engaged securely.

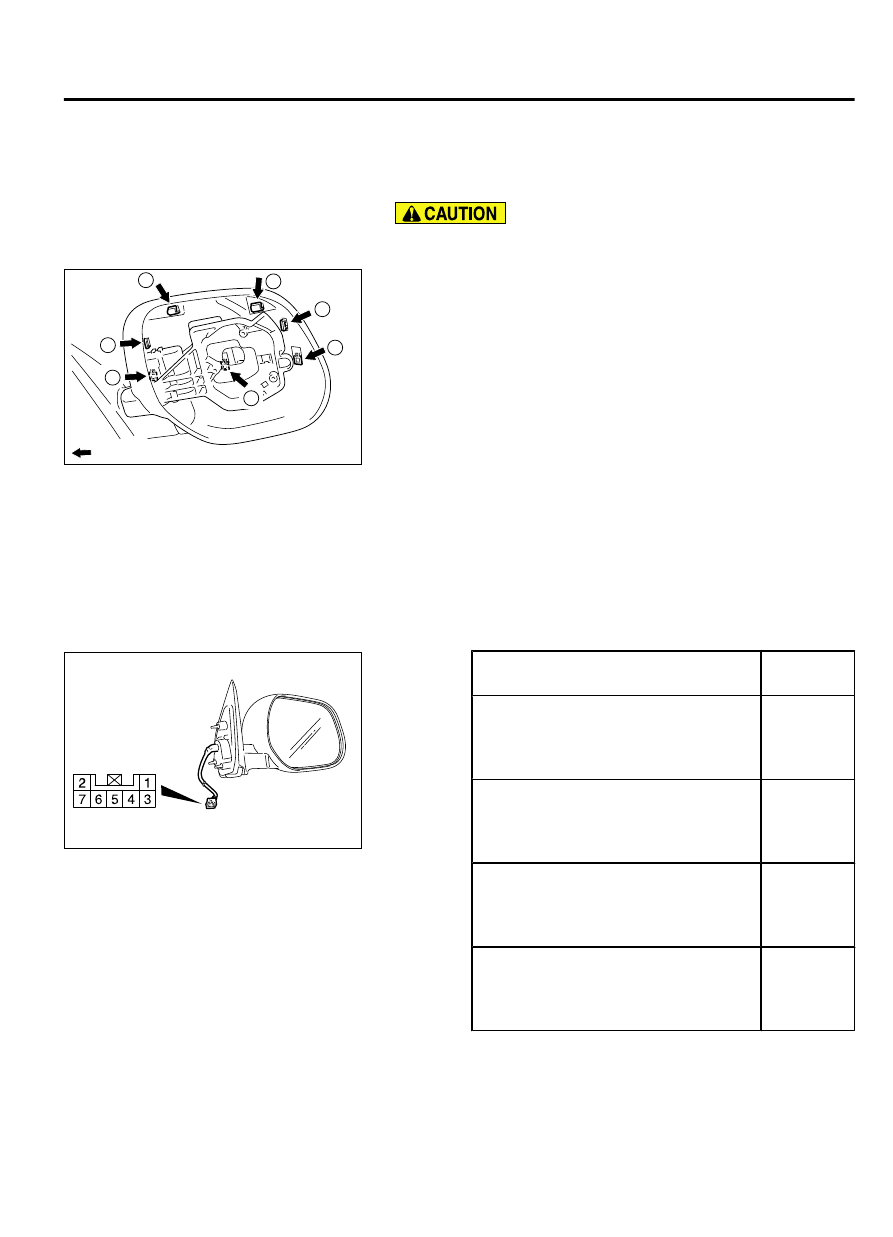

ZC6003760001

3

2

1

3

2

1

1

: Claw positions

Install the door mirror outer cover by engaging the claws in the
numerical order of the illustration.

INSPECTION

M15102200022USA0000010000

DOOR MIRROR ASSEMBLY OPERATION CHECK

Remove the door trim, and then connect the battery to the door
mirror  assembly  connector  to  check  that  the  door  mirror
operates.

ZC6003770000

Battery connection

Operation
direction

｠

Connect  terminal  5  to  the  negative
battery terminal.

｠

Connect  terminal  7  to  the  positive
battery terminal.

Up

｠

Connect  terminal  5  to  the  positive
battery terminal.

｠

Connect  terminal  7  to  the  negative
battery terminal.

Down

｠

Connect  terminal  5  to  the  negative
battery terminal.

｠

Connect  terminal  6  to  the  positive
battery terminal.

Right

｠

Connect  terminal  5  to  the  positive
battery terminal.

｠

Connect  terminal  6  to  the  negative
battery terminal.

Left

OUTSIDE MIRROR

51C-15

OUTSIDE MIRROR

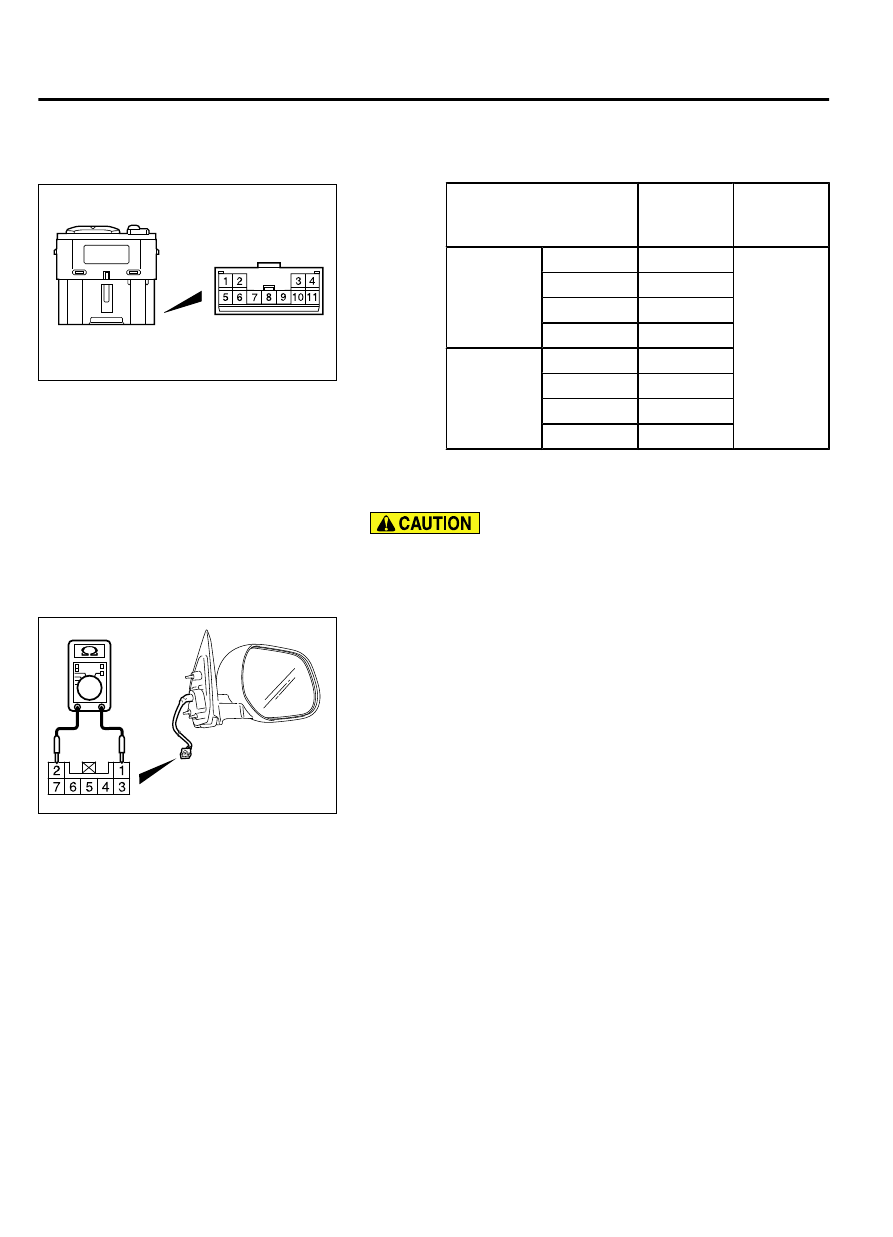

REMOTE CONTROLLED MIRROR SWITCH

CONTINUITY CHECK

AC005970

ZC6003780000

Switch position

Tester
connectio
n

Specified
condition

Left side

Up

1 - 6, 9 - 11 Continuity

(Less  than
2 Ω)

Down

1 - 11, 6 - 9

Right

1 - 6, 9 - 10

Left

1 - 10, 6 - 9

Right side

Up

1 - 6, 3 - 9

Down

1 - 3, 6 - 9

Right

1 - 6, 2 - 9

Left

1 - 2, 6 - 9

HEATED DOOR MIRROR CHECK

When relocating the car between locations with extremely
different temperatures (warm and cold), leave the car in the
location  for  a  while  to  adapt  to  the  temperature  prior  to
checking it.

ZC6003790000

Check  that  the  resistance  value  between  the  connector
terminals is at the standard value.

Standard value: 7.2 ± 1.4 Ω at 25°C(77°F)
