C-127 is damaged, repair or replace the damaged component
(s) as described in GROUP 00E, Harness Connector
Inspection P.00E-2.

Q:Is the wiring harness between door mirror (LH) connector

E-15 (terminal 1) and ground in good condition?

YES:

 No action is necessary and testing is complete.

NO:

 The wiring harness may be damaged. Repair the wiring

harness as necessary. And then check to see that the
heater function of the door mirror (LH) operates
normally.

STEP 6. Check rear window defogger relay connector C-309
for loose, corroded or damaged terminal, or terminals
pushed back in the connector.

Q:Is rear window defogger relay connector C-309 in good

condition?

YES:

 Go to Step 7.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2. And then
check to see that the heater function of the door mirror
(LH) operates normally.

STEP 7. Check the wiring harness between door mirror (LH)
connector E-15 (terminal 2) and rear window defogger relay
connector C-309 (terminal 3).

NOTE:

Also check intermediate connector C-127 for loose,

corroded or damaged terminals, or terminals pushed back in
the connector. If intermediate connector C-127 is damaged,
repair or replace the damaged component(s) as described in
GROUP 00E, Harness Connector Inspection P.00E-2.

Q:Is the wiring harness between door mirror (LH) connector

E-15  (terminal  2)  and  rear  window  defogger  relay

connector C-309 (terminal 3) in good condition?

YES:

 No action is necessary and testing is complete.

NO:

 Repair the wiring harness as necessary. And then

check to see that the heater function of the door mirror
(LH) operates normally.

STEP 8. Check the door mirror (RH) connector E-01 for
loose, corroded or damaged terminals, or terminals pushed
back in the connector.

Q:Is the door mirror (RH) connector E-01 in good condition?

YES:

 Go to Step 9.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2. And then
check to see that the heater function of the door mirror
(RH) operates normally.

OUTSIDE MIRROR

51C-9

DIAGNOSIS

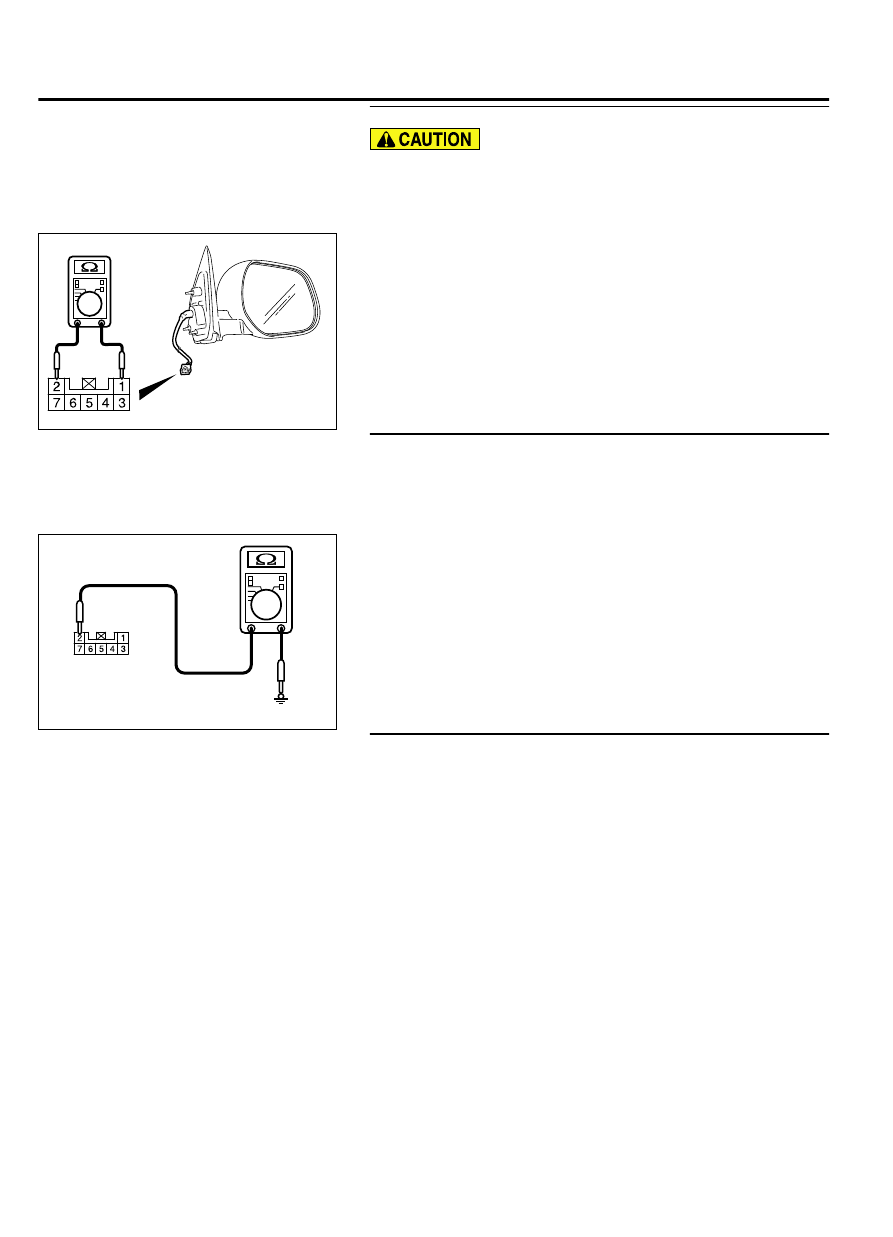

STEP 9. Check the heater function of the door mirror (RH).

When  relocating  the  car  between  locations  of  extremely
different temperatures (warm and cold), leave the car in a
location  for  a  while  to  adapt  to  the  temperature  prior  to
checking it.

ZC6003790000

Check to see that the resistance between terminal 1 and 2 of the
door mirror (RH) connector E-01.

The resistance should be 7.2 ± 1.4 Ω at 25°C (77°F).

Q:Is the resistance normal?

YES:

 Go to Step 10.

NO:

 Replace the door mirror (RH). And then check to see

that the heater function of the door mirror (RH) operates
normally.

STEP 10. Check the ground circuit between door mirror (RH)
connector E-01 and ground for open circuit. Measure the
resistance at door mirror (RH) connector E-01.

(1)

Disconnect door mirror (RH) connector E-01, and check at
the wiring harness side connector.

ZC5007880018

Harness side: E-01

(2)

Measure  the  resistance  value  between  terminal  1  and
ground.

The resistance should be 2Ω or less.

Q:Is the measured resistance 2Ω or less?

YES:

 Go to Step 12.

NO:

 Go to Step 11.

STEP 11. Check the wiring harness between door mirror
(RH) connector E-01 (terminal 1) and ground.

NOTE:

Also check intermediate connector C-112 and C-113 for

loose, corroded or damaged terminals, or terminals pushed
back in the connector. If intermediate connector C-112 and
C-113 is damaged, repair or replace the damaged component
(s) as described in GROUP 00E, Harness Connector
Inspection P.00E-2.

Q:Is the wiring harness between door mirror (RH) connector

E-01 (terminal 1) and ground in good condition?

YES:

 No action is necessary and testing is complete.

NO:

 The wiring harness may be damaged. Repair the wiring

harness as necessary. And then check to see that the
heater function of the door mirror (RH) operates
normally.

51C-10

OUTSIDE MIRROR

DIAGNOSIS

STEP 12. Check rear window defogger relay connector
C-309 for loose, corroded or damaged terminal, or terminals
pushed back in the connector.

Q:Is rear window defogger relay connector C-309 in good

condition?

YES:

 Go to Step 13.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2. And then
check to see that the heater function of the door mirror
(RH) operates normally.

STEP 13. Check the wiring harness between door mirror
(RH) connector E-01 (terminal 2) and rear window defogger
relay connector C-309 (terminal 3).

NOTE:

Also check intermediate connector C-113 for loose,

corroded or damaged terminals, or terminals pushed back in
the connector. If intermediate connector C-113 is damaged,
repair or replace the damaged component(s) as described in
GROUP 00E, Harness Connector Inspection P.00E-2.

Q:Is the wiring harness between door mirror (RH) connector

E-01  (terminal  2)  and  rear  window  defogger  relay

connector C-309 (terminal 3) in good condition?

YES:

 No action is necessary and testing is complete.

NO:

 Repair the wiring harness as necessary. And then

check to see that the heater function of the door mirror
(RH) operates normally.

OUTSIDE MIRROR

51C-11

DIAGNOSIS

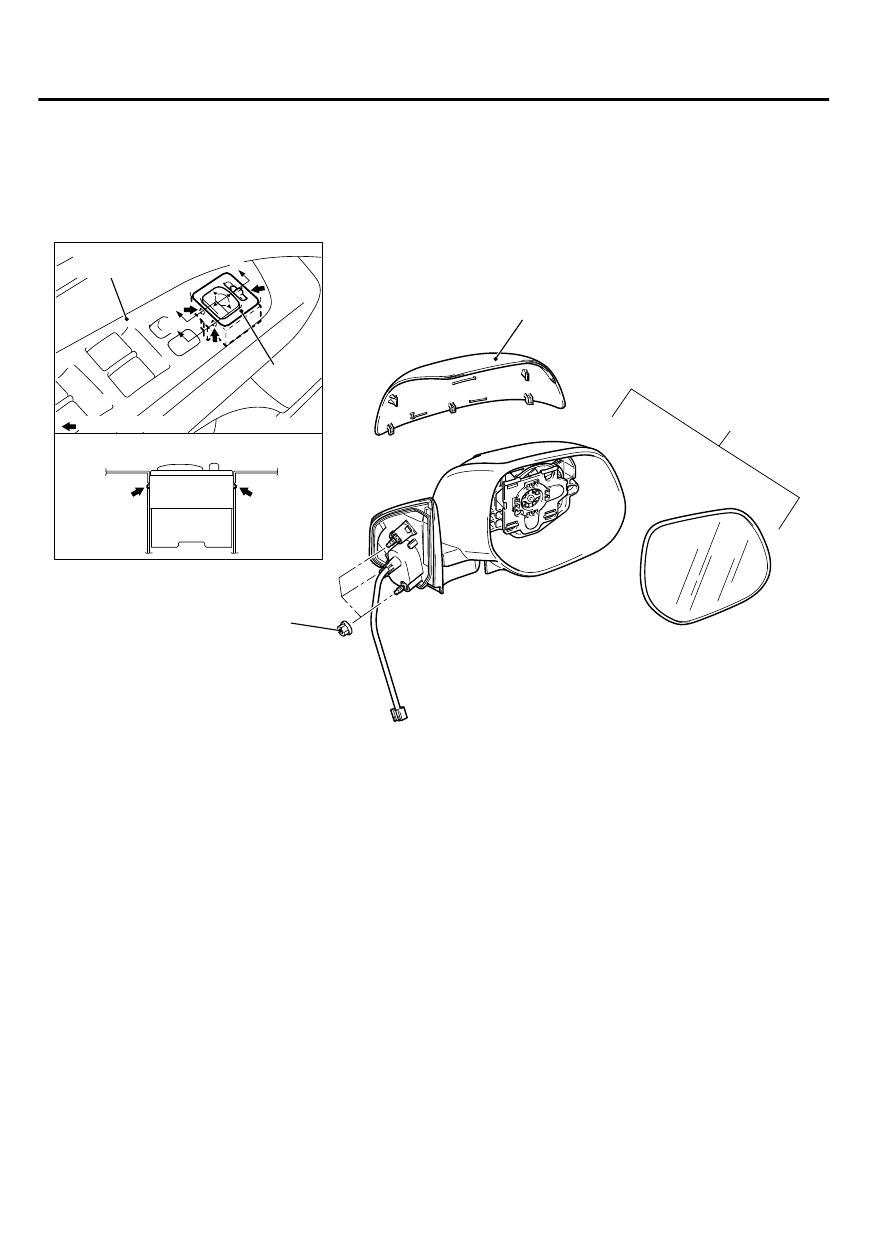

OUTSIDE MIRROR

REMOVAL AND INSTALLATION

M15102200021USA0000010000

ZC600373

2

1

3

0000

A

Power window
switch panel

: Claw positions

Section A – A

5.0 ± 2.0 N·m
45 ± 17 in-lb

A

A

51C-12
