GROUP 51C

OUTSIDE MIRROR

CONTENTS

GENERAL INFORMATION............

51C-2

SPECIFICATION(S)...............

51C-2

SERVICE SPECIFICATION..........

51C-2

DIAGNOSIS......................

51C-2

TROUBLESHOOTING STRATEGY.......

51C-2

TROUBLE SYMPTOM CHART..........

51C-2

SYMPTOM PROCEDURES.............

51C-3

INSPECTION PROCEDURE 1: All heated door
mirror does not operate..........

51C-3

INSPECTION PROCEDURE 2: Left or right
heated door mirror does not operate
.................................

51C-6

OUTSIDE MIRROR................

51C-12

REMOVAL AND INSTALLATION......

51C-12

INSPECTION....................

51C-15

51C-1

GENERAL INFORMATION

M15102200023USA0000010000

DOOR MIRROR OPERATION

Remote Controlled Mirror Operation

｠

The mirror on the door mirror moves up/down and
left/right  by  operating  the  remote  controlled  door
mirror switch when the ignition switch is at the "ON"
or "ACC" position.

Heated Door Mirror Operation

｠

The rear window defogger relay switch is activated
(ON)  by  turning  on  the  A/C-ECU  built-in  rear
window defogger switch when the ignition switch is

in  the  "ON"  position.  When  the  rear  window
defogger relay is turned ON, power is supplied to
the rear window defogger and door mirror, and the
heater of the door mirror (heated door mirror) starts
operations. The rear window defogger comes with
a timer function and will automatically turn OFF the
switch  approximately  20  minutes  after  the  rear
window defogger switch is turned ON. The heated
door  mirror  operations  are  also  terminated  along
with the rear window defogger, at this time.

SPECIFICATION(S)

SERVICE SPECIFICATION

M15102200001USA0000010000

Item

Standard value

Heated door mirror resistance value Ω

7.2 ± 1.4 at 25 °C (77°F)

DIAGNOSIS

TROUBLESHOOTING STRATEGY

M15102200045USA0000010000

Diagnosis  should  be  carried  out  by  the  following
procedures.

1.

Gather the information from the customer.

2.

Verify that the condition described by the customer
exists.

3.

Find  the  malfunction  by  the  following  Symptom
Chart.

4.

Verify the malfunction is eliminated.

TROUBLE SYMPTOM CHART

M15102200005USA0000010000

TROUBLE SYMPTOM

Inspection
procedure
No.

Reference
page

All heated door mirrors do not operate

1

 P.51C-3

Left or right side heated door mirror does not operate

2

 P.51C-6

51C-2

OUTSIDE MIRROR

GENERAL INFORMATION

SYMPTOM PROCEDURES

INSPECTION PROCEDURE 1: All heated door mirror does not operate

M15102200012USA0000010001

REAR WINDOW
DEFOGGER
RELAY

RELAY
BOX

C-126

C-113

C-127

C-112

DOOR MIRROR
ASSEMBLY (LH)

2

1

1

2

DOOR MIRROR
ASSEMBLY (RH)

BLA

CK-

WHITE

BLA

CK

BLA

CK

BLA

CK

BLA

CK

BLA

CK-

WHITE

BLA

CK-

WHITE

BR

O

WN

BLA

CK-

WHITE

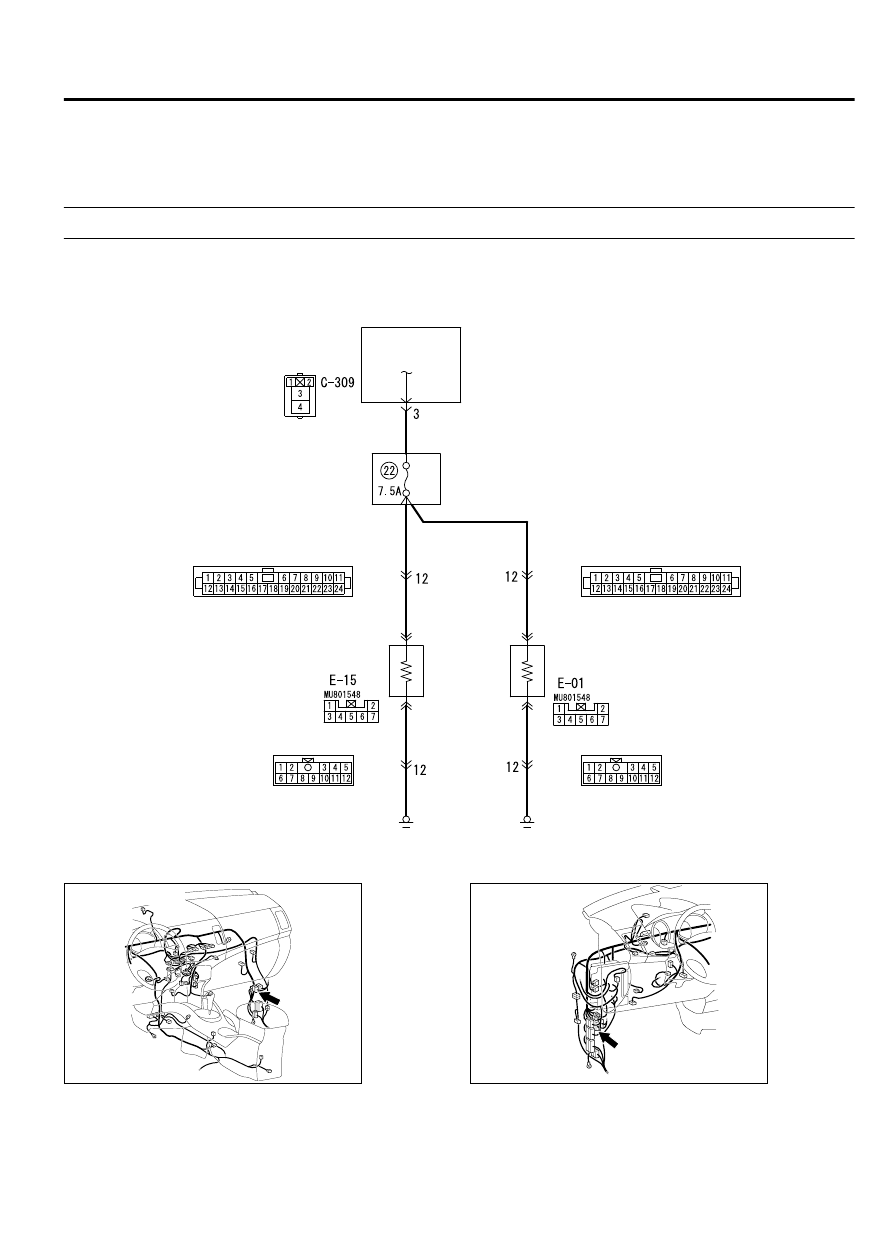

Heated Door Mirror Circuit

ZC6022550000

ZC600876

Connector: C-113

0020

C-113 (BR)

ZC6008750014

Connector: C-127

C-127 (BR)



OUTSIDE MIRROR

51C-3

DIAGNOSIS

ZC600878

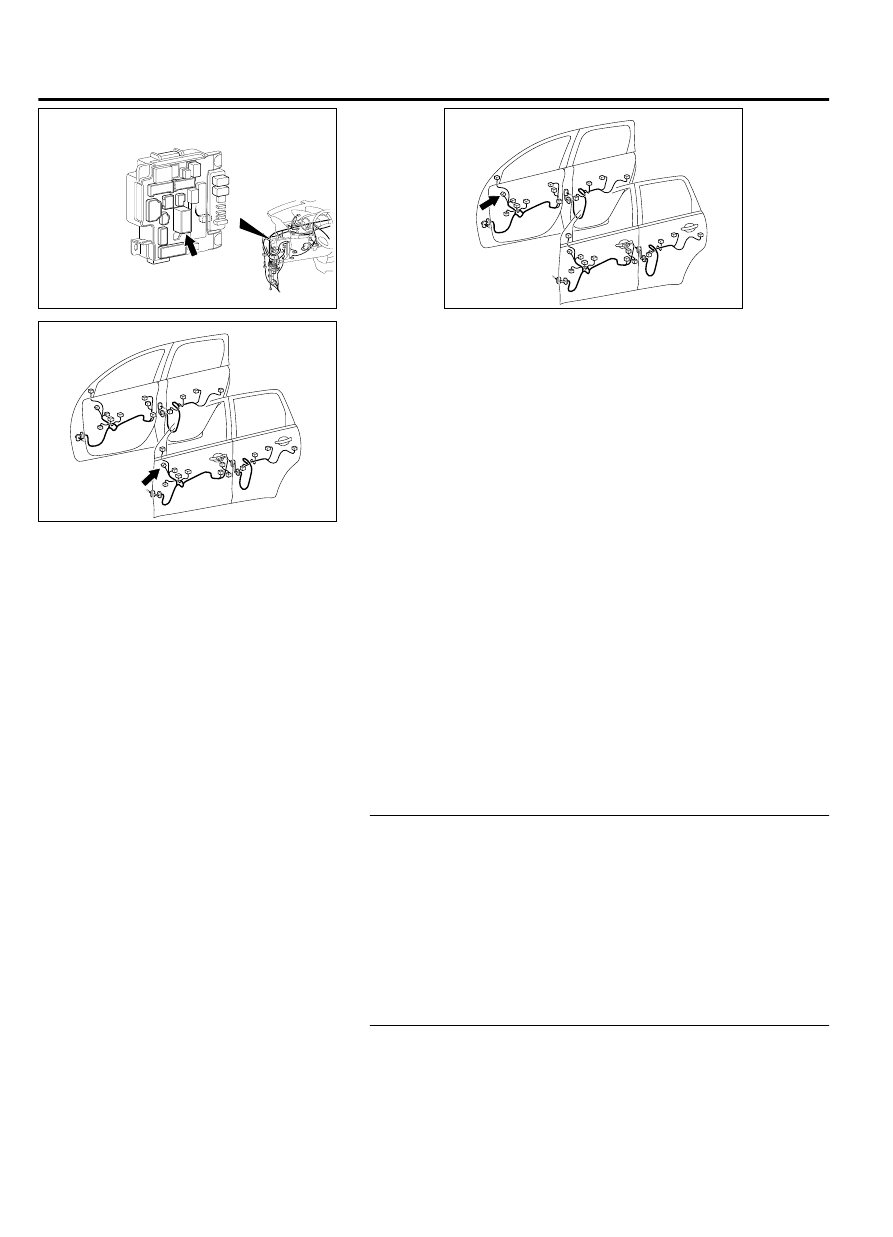

Connector: C-309

C-309 (B)

0009

ZC6008810007

Connector: E-15

ZC6008810006

Connector: E-01



CIRCUIT OPERATION
If  both  of  the  door  mirror  heaters  do  not  operate
normally  it  may  be  due  to  a  malfunction  in  the  rear
window defogger system.

TROUBLESHOOTING HINTS

｠

Malfunction of the rear window defogger system

｠

The wiring harness or connectors may have loose,
corroded  or  damaged  terminals,  or  terminals
pushed back in the connector.

DIAGNOSIS

Required Special Tools:

｠

MB991223: Test Harness Set

STEP 1. Check the rear window defogger.
Check that the rear window defogger works normally as follows.

(1)

Turn the ignition switch to the "ON" position.

(2)

Push  the  rear  window  defogger  switch  to  operate  the
defogger.

Q:Does the defogger work normally?

YES:

 Go to Step 2.

NO:

 Because of malfunction of the rear window defogger,

carry out the troubleshooting (Refer to GROUP 55A, Manual
A/C Diagnosis P.55A-60).

STEP 2. Check the door mirror (RH) connector E-01 and rear
window defogger relay connector C-309 for loose, corroded

51C-4

OUTSIDE MIRROR

DIAGNOSIS
