Mitsubishi Outlander XL. Manual - part 856

Move the nozzle to adjust the position so that the spray is in the
area shown in the illustration.

WINDSHIELD WASHER SWITCH CHECK

Check the windshield washer switch from the ETACS diagnosis
codes  for  proper  operation.(Refer  to  GROUP  54Ad,
DIAGNOSTIC TOUBLE CODE CHART P.54Ad-8.)

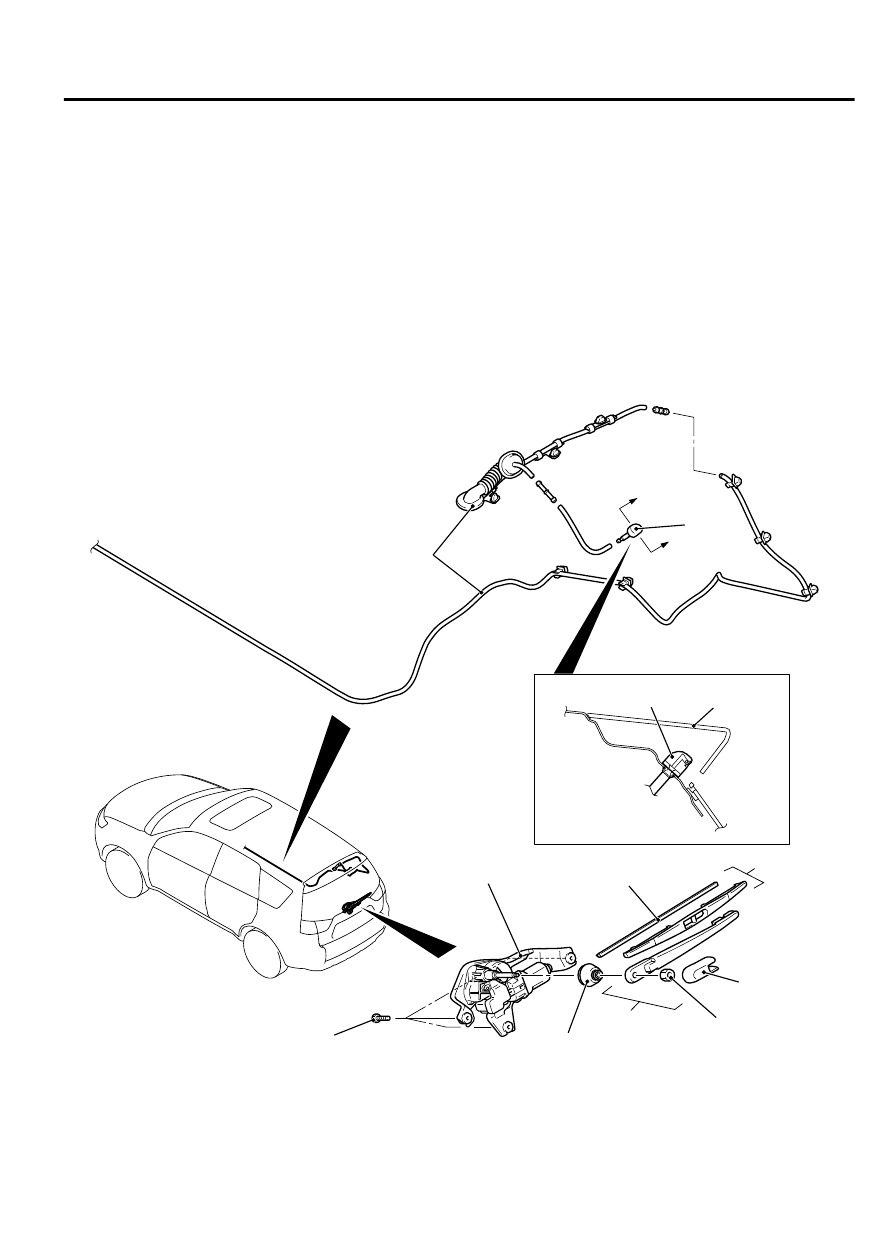

REAR WIPER AND WASHER

REMOVAL AND INSTALLATION

M15102100028USA0000010000

ZC600460

2

1

7

1

8

4

6

3

0000

5

A

A

Section A–A

Tailgate spoiler

4.5 ± 1.5 N·m
39 ± 13 in-lb

7.5 ± 1.5 N·m
67 ± 13 in-lb

·

Washer tank (Refer to P.51B-55)

·

Washer motor (Refer to P.51B-55)

Rear washer nozzle removal steps

·

Liftgate spoiler (Refer to P.51A-20)

WIPER AND WASHER

51B-57

REAR WIPER AND WASHER

Rear washer nozzle removal steps

·

High-mounted  stop  light  assembly
(Refer to P.51A-20)

1.

Rear washer nozzle assembly
Rear wiper blade removal steps

2.

Rear wiper blade assembly

>>A<<

3.

Rear wiper blade
Rear wiper motor removal steps

4.

Cover

>>B<<

5.

Rear wiper arm assembly

·

Liftgate  trim  (Refer  to  GROUP  52A,
Liftgate Trim P.52A-14)

Rear wiper motor removal steps

6.

Grommet

7.

Rear wiper motor assembly
Rear washer hose removal steps

·

Front/rear  scuff  plate,  cowl  side  trim,
quarter  trim  (Refer  to  GROUP  52A,
Interior Trim P.52A-10)

·

Liftgate  trim  (Refer  to  GROUP  52A,
Liftgate Trim P.52A-14)

8.

Rear washer hose

NOTE:

For removal and installation of the wiper

and washer switch, refer to GROUP 54Ah, Column
Switch P.54Ah-8.

INSTALLATION SERVICE POINTS

>>A<< REAR WIPER BLADE INSTALLATION

ZC6001590000

A

A

Wiper blade

Backing

Backing

Section A – A

Wiper
blade

Backing

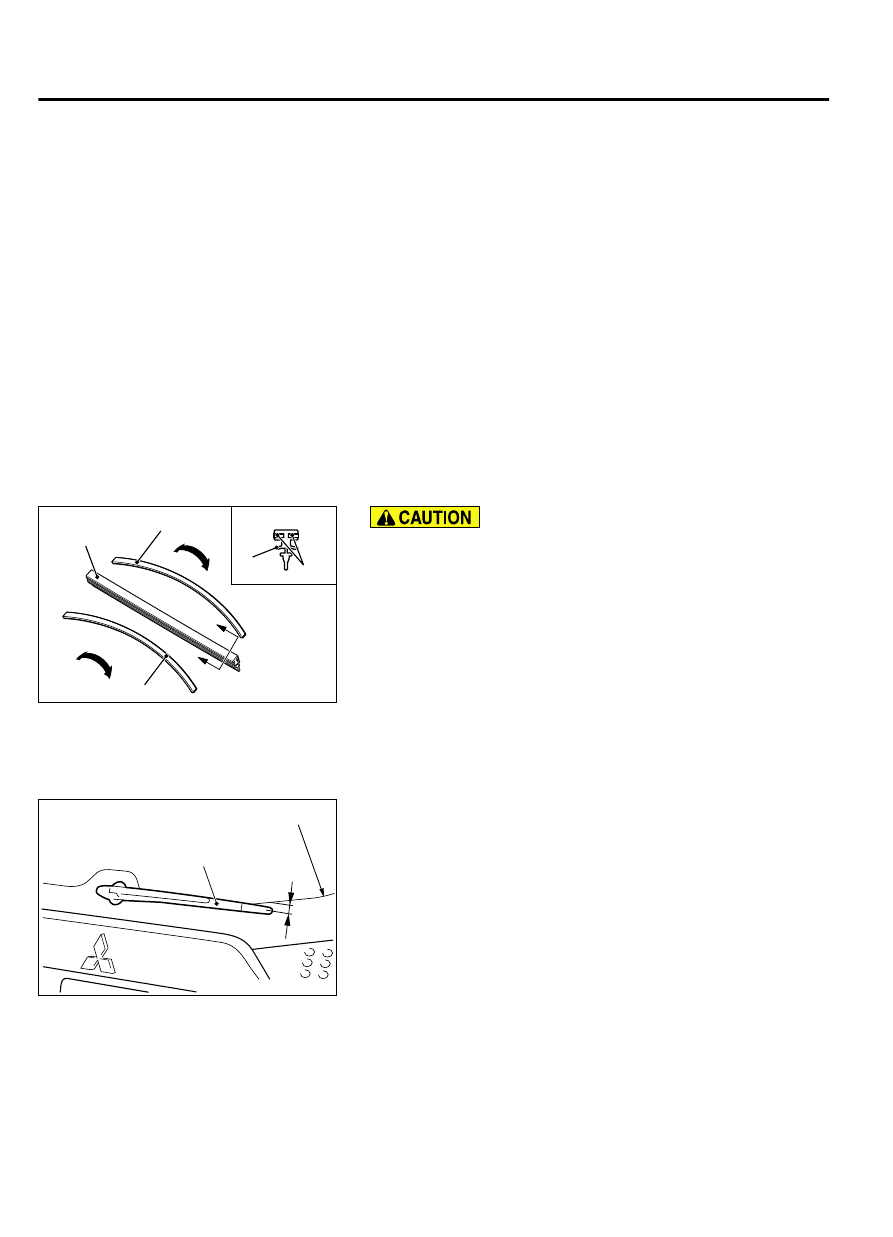

Use a curved backing like that shown for the backing of a
wiper blade to ensure sustained wiper wiping performance.



>>B<< REAR WIPER ARM AND BLADE ASSEMBLY
INSTALLATION

ZC6004610000

A

Rear wiper arm and
blade assembly

Ceramic line terminal

Assemble  the  wiper  blade  so  that  their  edge  stops  at  the
specified position.

(A): 0 to 20 mm(0 to 0.79 in) from edge of the ceramic
line

51B-58

WIPER AND WASHER

REAR WIPER AND WASHER

INSPECTION

M15102100029USA0000010000

REAR WIPER MOTOR CHECK

AC103246

ZC6004620000

Operation check

Stop position check

Inspect  the  rear  wiper  motor  by  disconnecting  the  harness
connector with the motor attached to the vehicle.

REAR WIPER MOTOR OPERATION CHECK

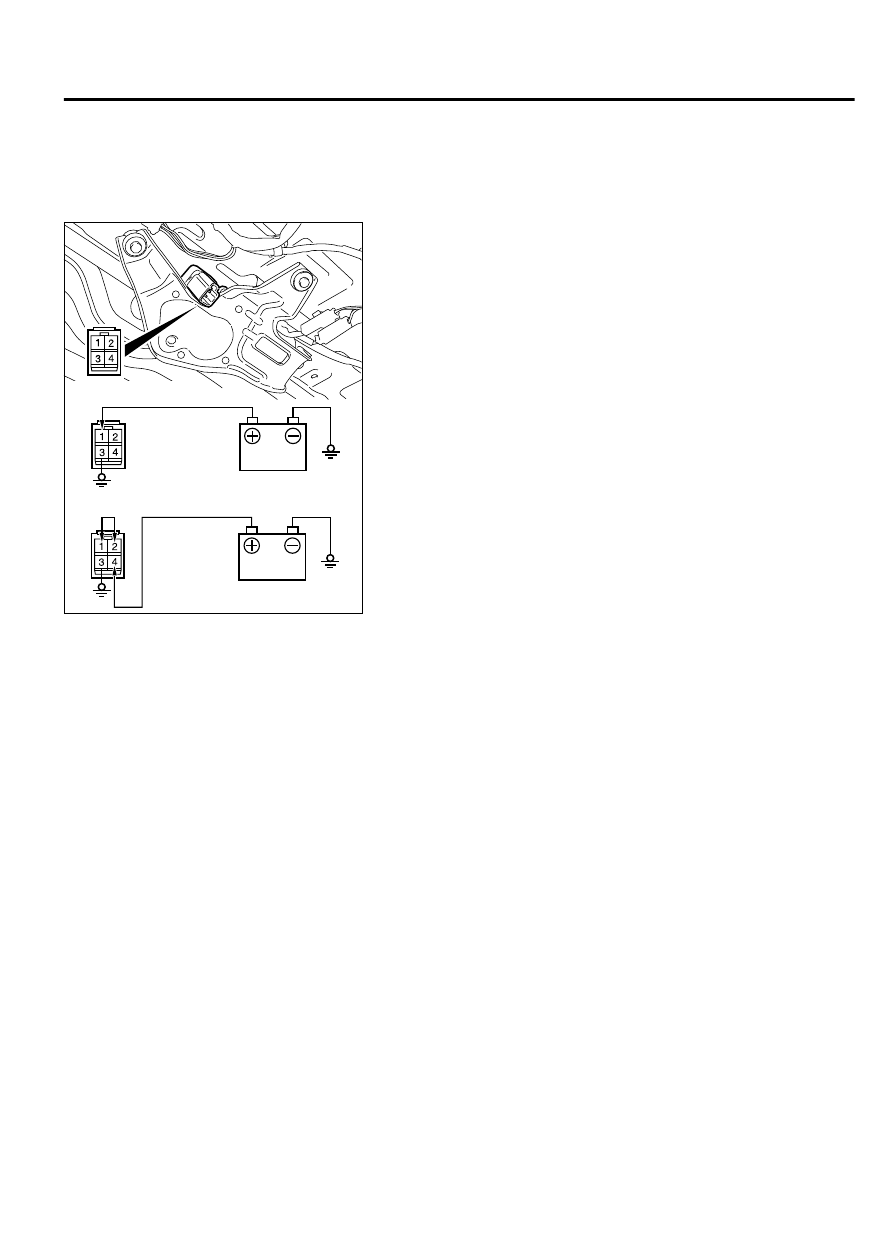

Connect the battery to the rear wiper motor to inspect the motor
operation as shown in the illustration.

REAR WIPER MOTOR STOP POSITION CHECK

1.

Connect the battery to the rear wiper motor as shown in the
illustration.

2.

Disconnect the battery in the middle of the motor rotation and
check to see that the motor stops.

3.

Reconnect the battery.

4.

Check to see that the rear wiper motor runs and then stops
at the automatic stop position.

WIPER AND WASHER

51B-59

REAR WIPER AND WASHER

REAR WASHER MOTOR INSPECTION

ZC6004630000

Rear washer
hose

1.

The rear washer motor must be checked with the washer tank
installed and the washer fluid filled.

2.

Connect the battery to the washer motor connector as shown.
Check that the washer motor delivers washer strongly to the
rear washer hose side.

CHECKING THE REAR WASHER NOZZLE

INJECTION DIRECTION

ZC600464

3(0.12)

0000

Unit: mm(in)

40(1.57)

25(0.98)

180(7.09)

25(0.98)

Rear washer nozzle

Liftgate spoiler

Ceramic
line terminal

Vehicle center line

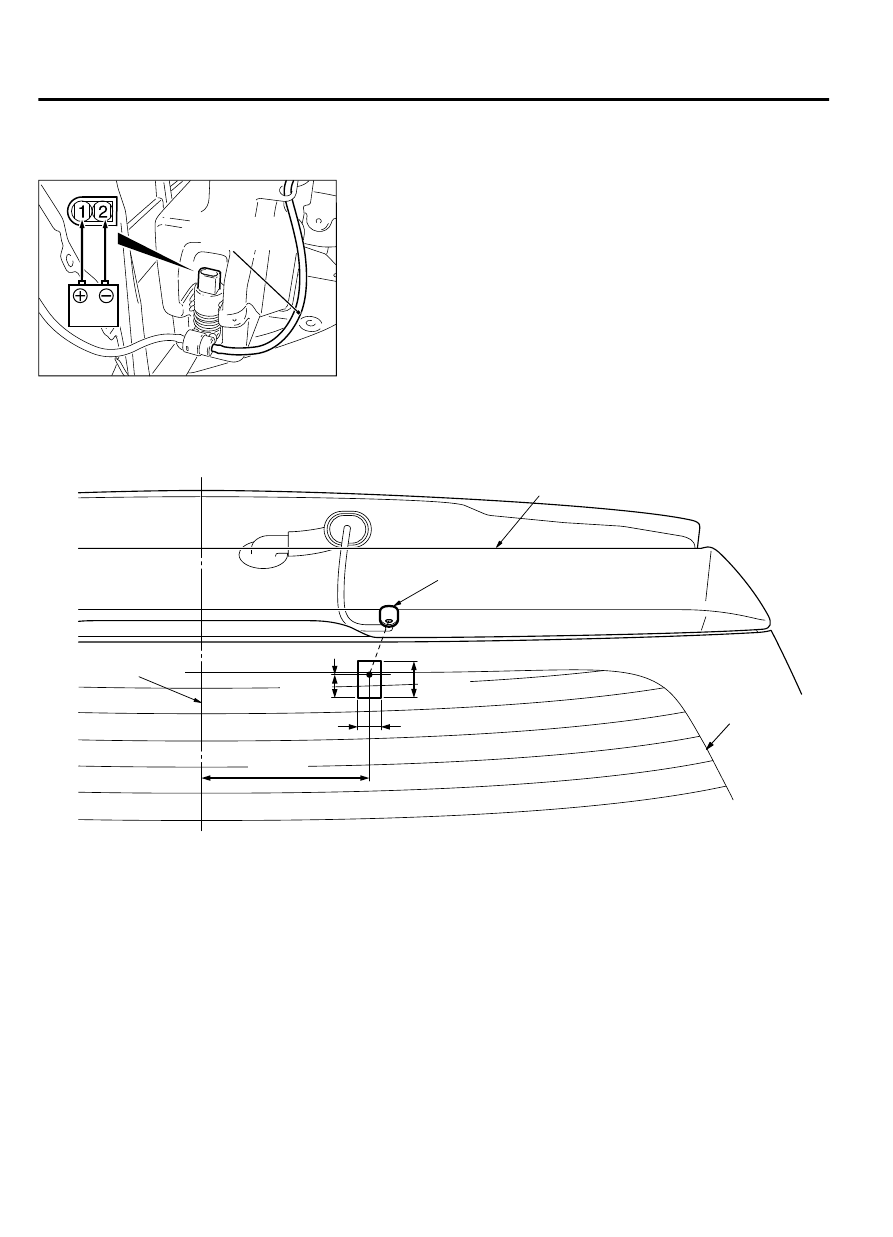

Adjust  the  nozzle  so  that  it  injects  washer  fluid  to  the  range
shown.

CHECKING THE REAR WIPER AND WASHER

SWITCH

The rear wiper and washer switch can be checked for proper
operation by confirming ETACS diagnostic trouble code.(Refer
to  GROUP  54Ad,  DIAGNOSTIC  TOUBLE  CODE  CHART  P.
54Ad-8.)
