Mitsubishi Outlander XL. Manual - part 855





INSPECTION

M15102100023USA0000010000

WINDSHIELD WIPER MOTOR CHECK

4

5

3

1 2

4

5

3

1 2

4

5

3

1 2

ZC6002730000

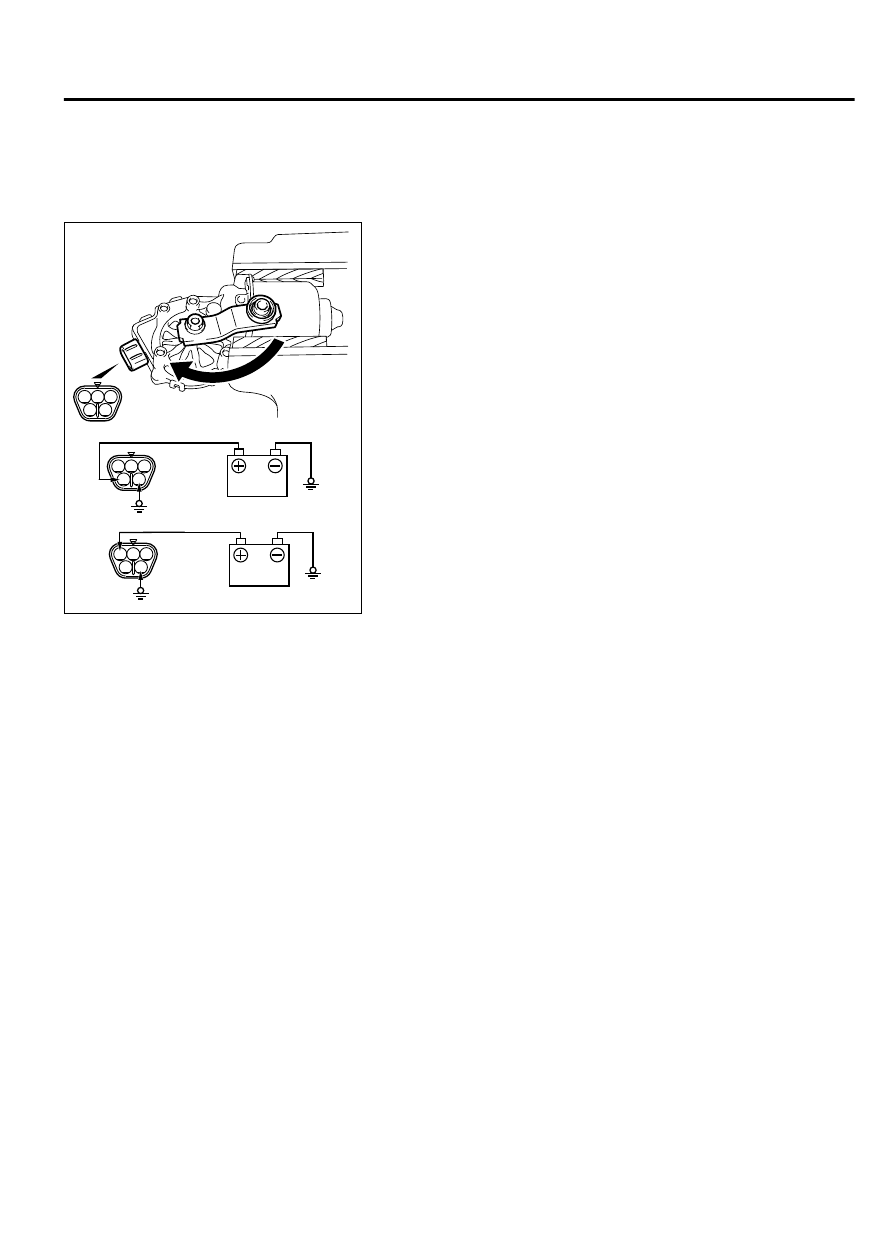

Operation check

Low speed

High speed

Remove the windshield wiper motor and inspect it at the harness
connector.

WINDSHIELD WIPER MOTOR AT LOW OR HIGH SPEED
OPERATION
Connect the battery to the windshield wiper motor to inspect the
operation of motor rotation at low or high speed.

WIPER AND WASHER

51B-53

WINDSHIELD WIPER

4

5

3

1 2

4

5

3

1 2

ZC600274

4

5

3

1 2

0000

+ 5º
-10º

13º

(B) Automatic stop

(A) Low speed

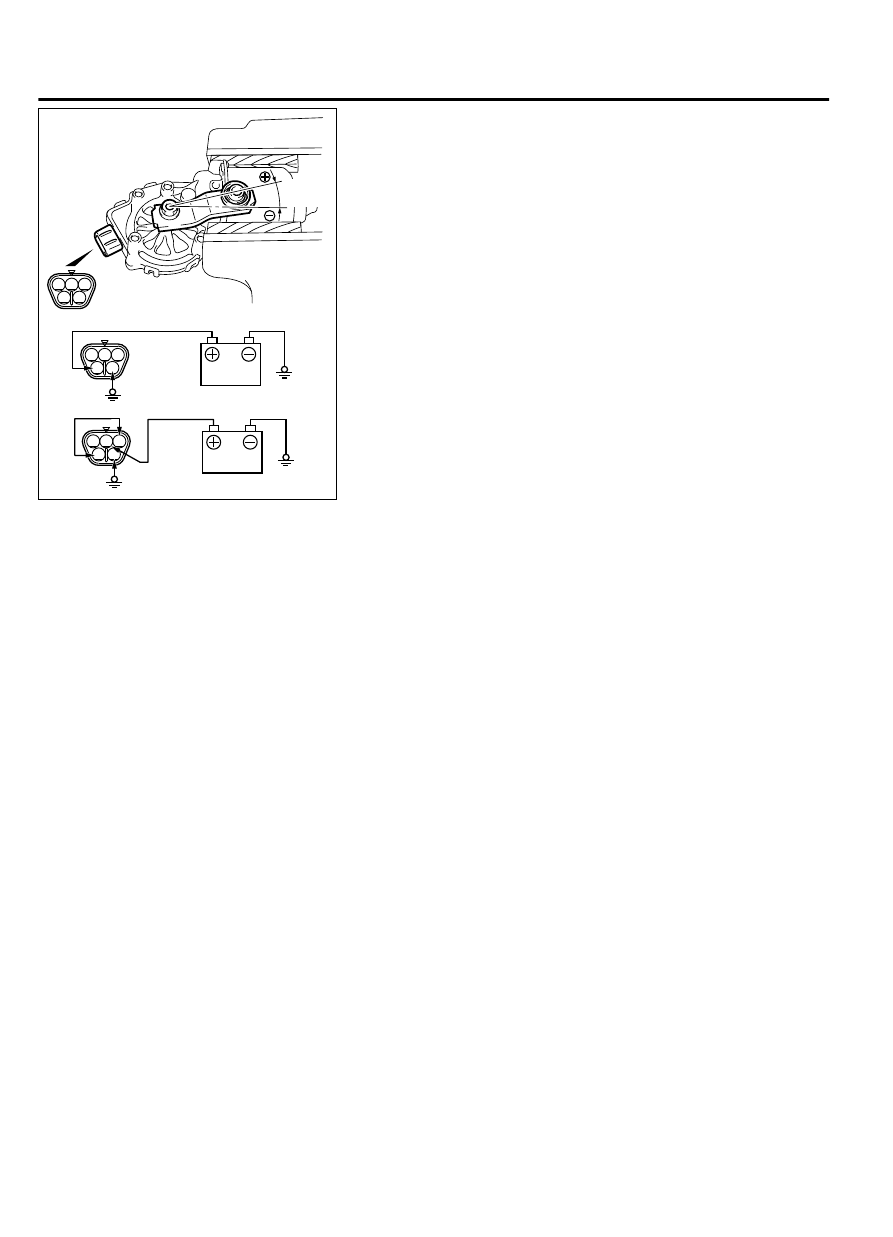

Stop position check

WINDSHIELD WIPER MOTOR AT STOP POSITION
OPERATION

1.

Connect the battery to the windshield wiper motor as shown
in the illustration (A).

2.

Run the windshield wiper motor at low speed, then disconnect
the battery in the middle of the motor rotation and check to see
that the motor stops.

3.

Connect the battery to the windshield wiper motor as shown
in the illustration (B).

4.

Connect the terminals of the windshield wiper motor connector
as shown in the illustration (B).

5.

Check  to  see  that  the  windshield  wiper  motor  runs  at  low
speed and then stops at the automatic stop position.

WINDSHIELD WIPER SWITCH CHECK

Check the windshield wiper switch (mist, intermittent, low speed
and  high  speed)  from  the  ETACS  diagnosis  codes  for  proper
operations.(Refer  to  GROUP  54Ad,  DIAGNOSTIC  TOUBLE
CODE CHART P.54Ad-8.)

51B-54

WIPER AND WASHER

WINDSHIELD WIPER

WINDSHIELD WASHER

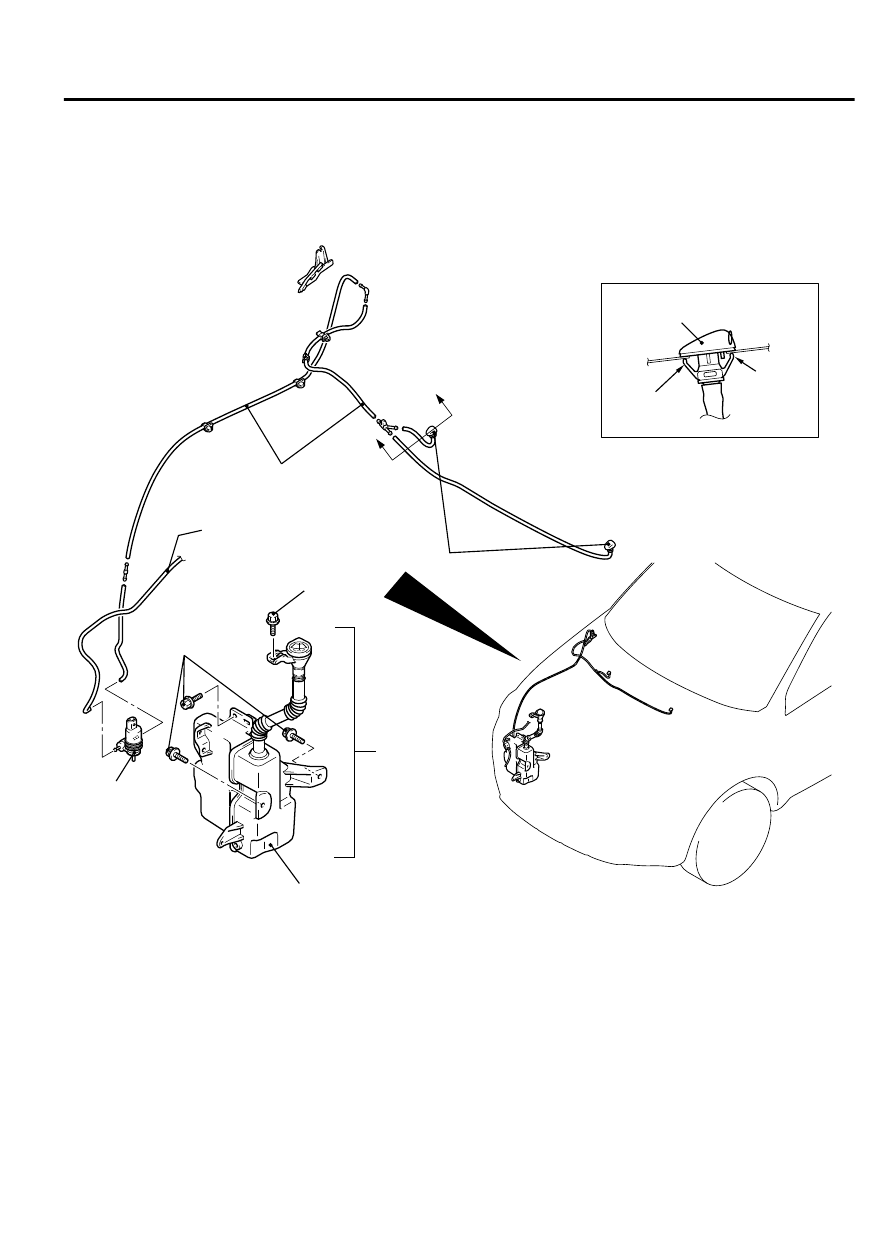

REMOVAL AND INSTALLATION

M15102100025USA0000010000

ZC600282

1

1

2

3

4

5

A

A

0000

Section A – A

Claw

Claw

Rear washer hose

4.0 ± 2.0 N·m
36 ± 17 in-lb

10.5 ± 2.5 N·m
93 ± 22 in-lb

Windshield washer nozzle removal steps
·

Connection of windshield washer hose

1. Windshield washer nozzle
Washer hose removal steps
·

Splash shield (RH) mounting clips

·

Connection  of  washer  nozzle/washer
motor

2. Windshield washer hose

Washer tank removal steps
·

Engine  room  under  cover  front  (Refer
to P.51A-18)

·

Splash shield (RH) mounting clips

·

Connection of front/rear washer hose

3. Windshield washer tank assembly
4. Windshield washer motor
5. Windshield washer tank

WIPER AND WASHER

51B-55

WINDSHIELD WASHER

Washer motor removal steps
·

Engine  room  under  cover  front  (Refer
to P.51A-18)

·

Connection of front/rear washer hose

Washer motor removal steps
4. Windshield washer motor

INSPECTION

M15102100026USA0000010000

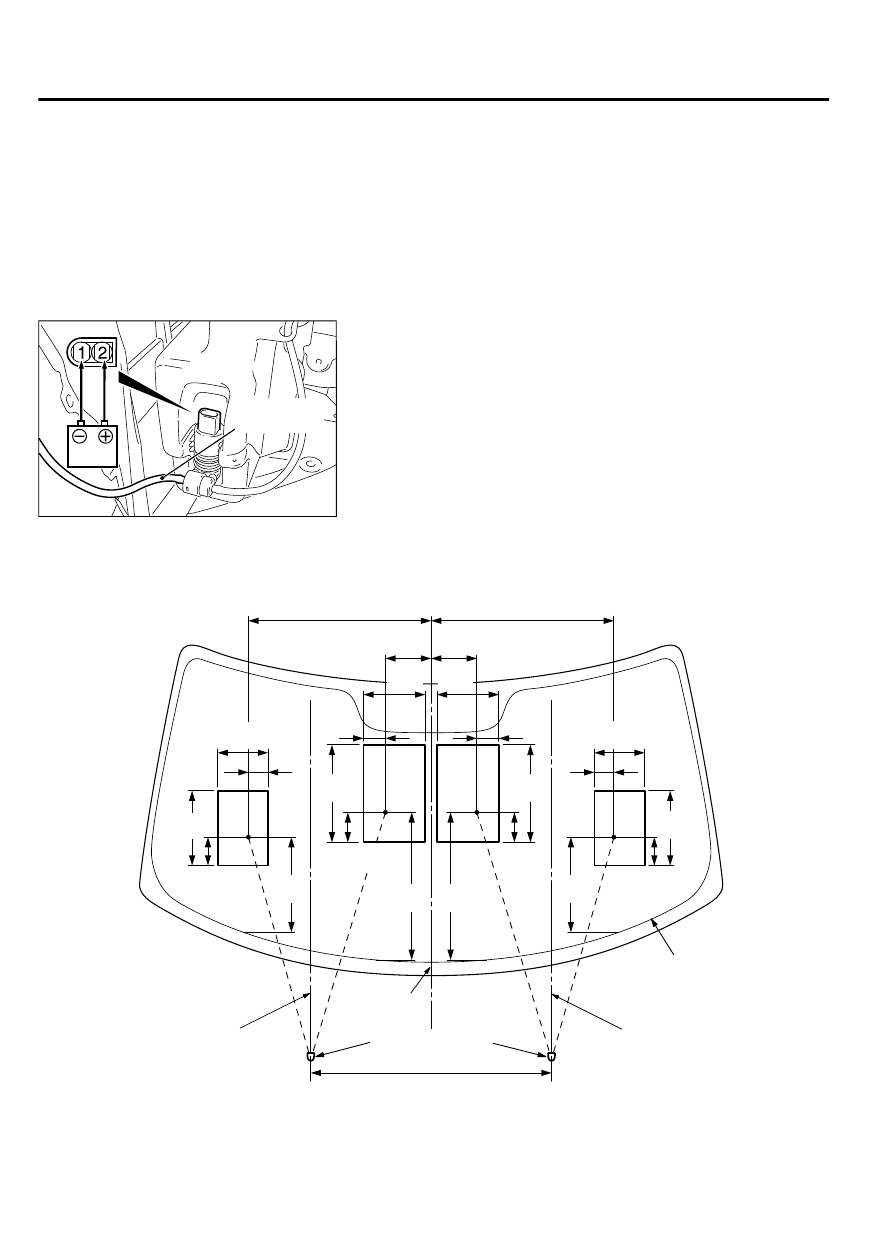

FRONT WASHER MOTOR INSPECTION

ZC6002830000

Front washer
hose

1.

The front washer motor must be checked with the washer tank
installed and the washer fluid filled.

2.

Connect the battery to the washer motor connector as shown.
Check that the washer motor delivers washer strongly to the
front washer hose side.

WINDSHIELD WASHER FLUID EJECTION CHECK

ZC600284

600

(23.62)

49

(1.93)

49

(1.93)

461(18.15)

461(18.15)

117

(4.61)

117

(4.61)

56

(2.20)

56

(2.20)

0000

68

(2.68)

68

(2.68)

155

(6.10)

155

(6.10)

Windshield washer
nozzle

<Left>

<Right>

Vehicle center
line

Unit: mm(in)

Windshield

washer

nozzle

perpendicular

Windshield

washer

nozzle

perpendicular

Ceramic line terminal

125

(4.92)

125

(4.92)

245

(9.65)

245

(9.65)

286

(11.26)

286

(11.26)

437

(17.20)

437

(17.20)

185

(7.28)

185

(7.28)

75

(2.95)

75

(2.95)

51B-56

WIPER AND WASHER

WINDSHIELD WASHER
