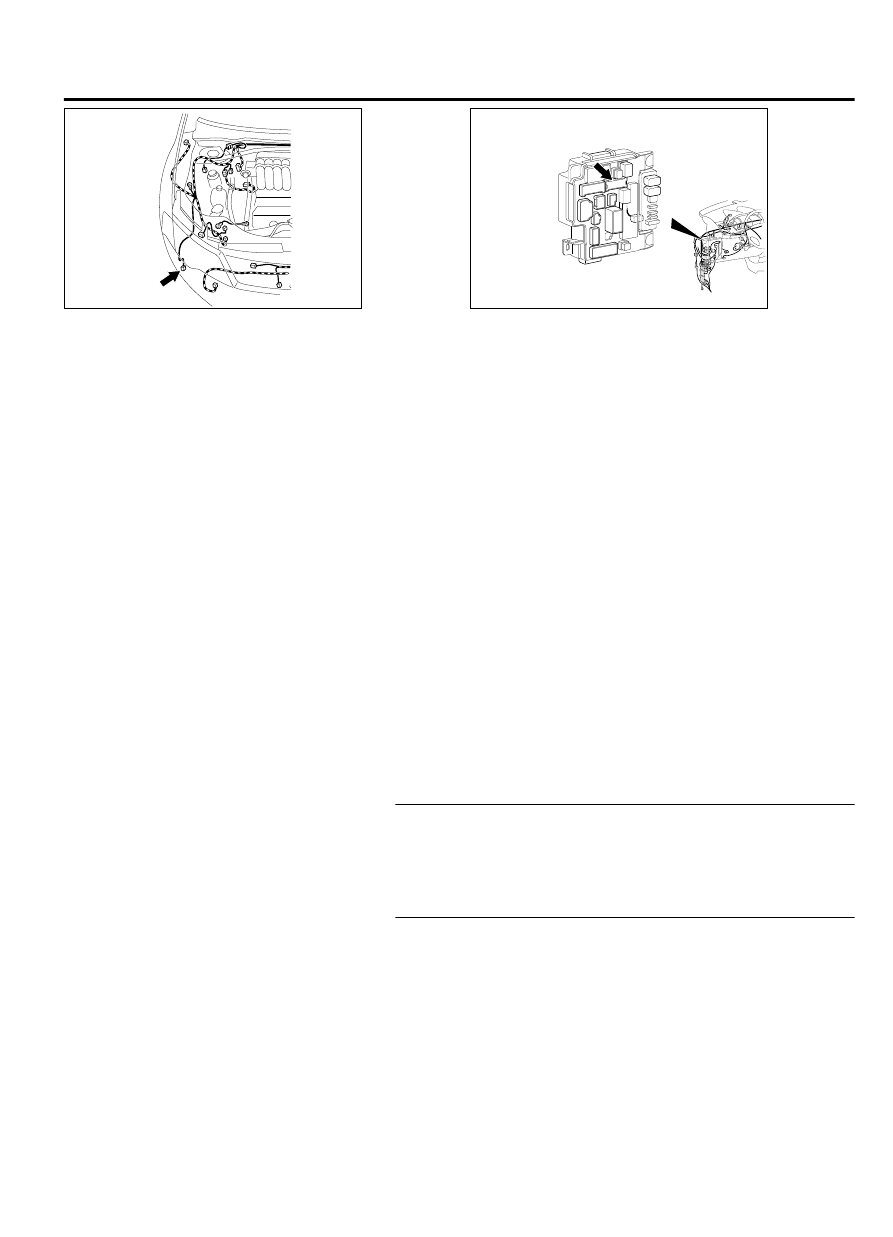

ZC6008710005

Connector: A-54

ZC6008780022

Connector: C-304



CIRCUIT OPERATION
The  rear  washer  switch  sends  a  signal  through  the
column-ECU  (incorporated  in  the  column  switch)  to
the  ETACS-ECU.  If  the  column-ECU  sends  a  rear
washer  switch  "ON"  signal  to  the  ETACS-ECU,  the
ETACS-ECU turns on the relay (incorporated in the
ETACS-ECU), thus causing the windshield and rear
washer motor to be turned on.

TECHNICAL DESCRIPTION (COMMENT)
If  the  rear  washer  does  not  work  normally,  the
windshield and rear washer motor, the column switch

(windshield wiper and washer switch) or the ETACS-
ECU may be defective.

TROUBLESHOOTING HINTS

｠

The  windshield  and  rear  washer  motor  may  be
defective

｠

The  column  switch  (windshield  wiper,  washer
switch) may be defective

｠

The ETACS-ECU may be defective

DIAGNOSIS

Required Special Tools:

｠

MB991223: Harness Set

｠

MB992006: Extra Fine Probe

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicles communication interface (V.C.I.)

｠

MB991827: M.U.T.-III USB cable

｠

MB991911: M.U.T.-III Main harness B

STEP 1. Verify the windshield washers.

Q:Does the windshield washers operate?

YES:

 Go to Step 2.

NO:

 Refer to Inspection Procedure 7 "Windshield washer

does not work. P.51B-30."

STEP 2. Verify the rear wiper.

Q:Does the rear wiper operate?

YES:

 Go to Step 3.

NO:

 Refer to Inspection Procedure 8 "Rear wiper does not

work. P.51B-34."

WIPER AND WASHER

51B-45

DIAGNOSIS

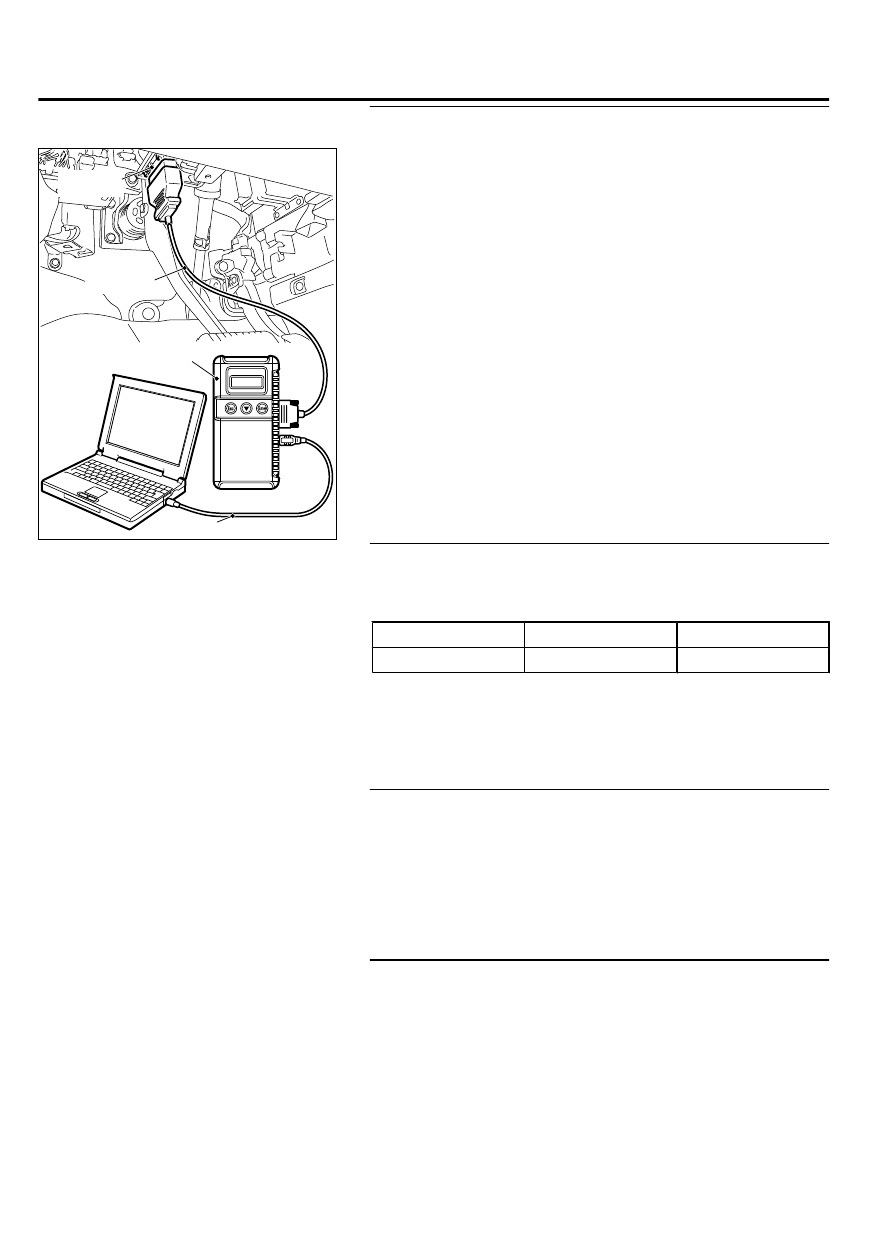

STEP 3. Use the scan tool MB991958 to check if an ETACS-
related diagnostic trouble code is set.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

Connect  the  scan  tool.  Refer  to  GROUP  54Ad  ETACS,
"Diagnostic function P.54Ad-5."

Q:Is the diagnostic trouble code set?

YES:

 Diagnose the ETACS-ECU. Refer to GROUP 54Ad ETACS,

"Diagnostic trouble code chart P.54Ad-8."

NO:

 Go to Step 4.

STEP 4. Check the input signal related to the rear washer
operation.

｠

Ignition switch: ACC

｠

Rear washer switch: ON

Item No.

Item name

Normal condition

Item 238

Rear washer

ON

OK: Normal condition is displayed.

Q:Is the check result normal?

NO:

 Go to Step 5.

YES:

 Refer to GROUP 54Ad - ETACS, Input signal

procedures P.54Ad-61.

STEP 5. Check the washer motor connector A-54 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Q:Is washer motor connector A-54 in good condition?

YES:

 Go to Step 6.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2. Verify
that the rear washer works normally.

STEP 6. Check the washer motor.

(1)

Disconnect the washer motor connector A-54.

(2)

Fill the washer tank with washer fluid.

51B-46

WIPER AND WASHER

DIAGNOSIS

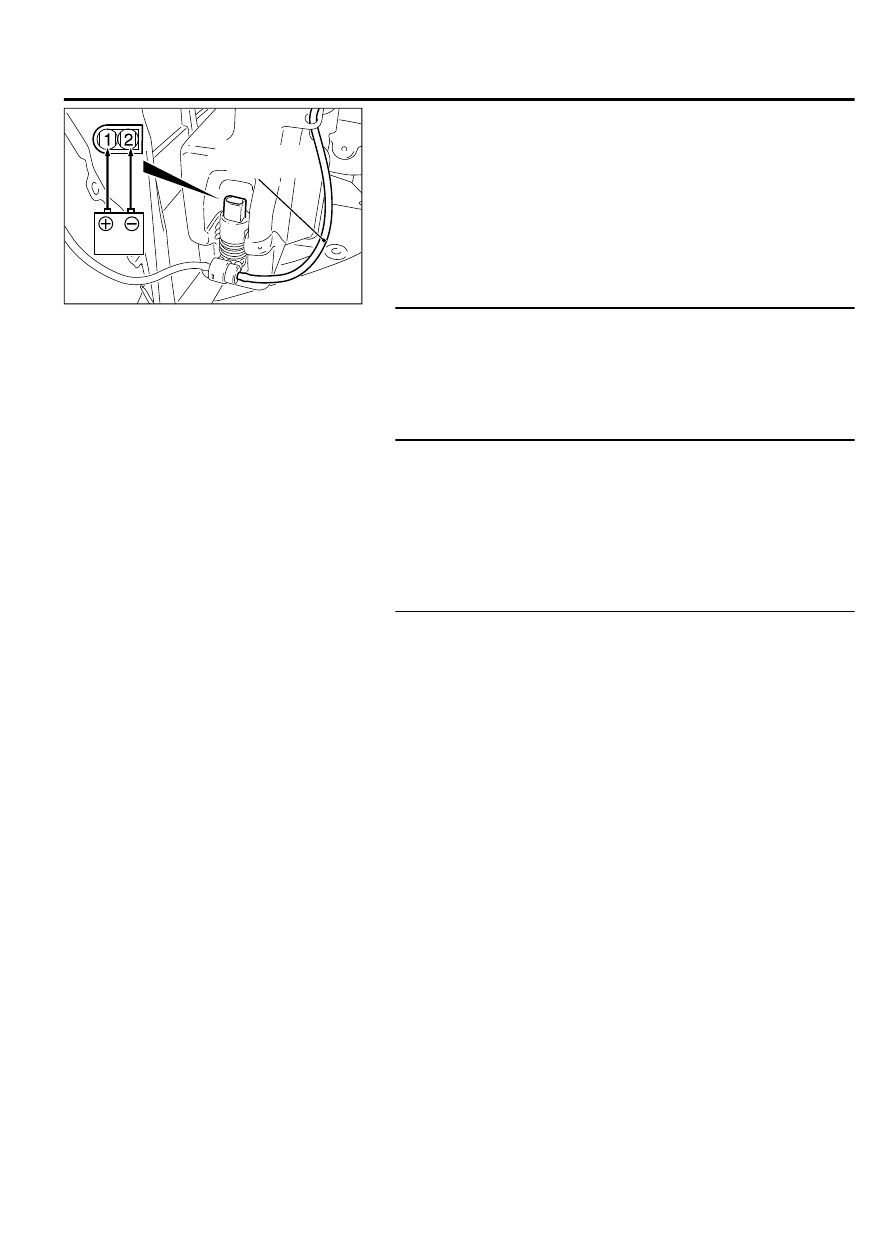

ZC6004630000

Rear washer
hose

(3)

When battery voltage is applied between terminals 1 and 2,
washer fluid should spray out.

Q:Does the washer motor operate normally?

YES:

 Go to Step 7.

NO:

 Replace the washer motor. Verify that the rear washer

works normally.

STEP 7. Check the ETACS-ECU connector C-304.

Q:Is the check result normal?

YES:

 Go to Step 8.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2. Verify
that the rear washer works normally.

STEP 8. Check the wiring harness between washer motor
connector A-54 (terminal 1,2) and ETACS-ECU connector
C-304 (terminal 13,14).

｠

Check the lines for open or short circuit.

Q:Is the check result normal?

YES:

 Go to Step 9.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Cables and wire check P.00E-13.

STEP 9. Replace the ETACS-ECU, and then check its
operation.
Replace the ETACS-ECU, and then check that the rear washer
works normally.

(1)

Replace the ETACS-ECU.

(2)

Ignition switch: ON

(3)

The rear washer should now work normally.

Q:Is the check result satisfactory?

YES:

 Intermittent malfunction. Refer to GROUP 00, How to

cope with intermittent malfunction P.00-15.

NO:

 Replace the front-ECU.

ON-VEHICLE SERVICE

WINDSHIELD INTERMITTENT WIPER INSPECTION

M15102100020USA0000010000

1.

Check  that  the  intermittent  wiper  interval  is
changed  as  the  windshield  intermittent  wiper
volume is operated.

2.

Turn the windshield intermittent wiper switch to the
intermittent operation position. Use the scan tool
to  set  a  simulated  vehicle  speed  with  the  wiper

volume held. The intermittent wiper interval should
be  changed  as  the  simulated  vehicle  speed  is
changed.

3.

If  either  of  above  is  defective,  carry  out  the
troubleshooting. (Refer to P.51B-26)

WIPER AND WASHER

51B-47

ON-VEHICLE SERVICE

OPERATION CHECK OF REVERSE GEAR-LINKED OPERATION OF REAR WIPER

M15102100030USA0000010000

1.

When  the  selector  lever  is  moved  to  the  "R"
position  with  the  rear  wiper  switch  at  the  "INT"
position, the wiper should operate twice or three
times  at  low  speed  after  approximately  one
second.

2.

If not, carry out the troubleshooting. (Refer to P.
51B-42)

CONFIGURATION FUNCTION

M15102100031USA0000010000

With the scan tool MB991958 operation, the following
functions  can  be  programmed.  The  programmed

information  is  held  even  when  the  battery  is
disconnected.

Adjustment
item (scan tool
MB991958
display)

Adjustment item

Adjusting

 contents

(scan  tool  MB991958
display)

Adjusting contents

Front

 wiper

operation

Adjustment  of  the
intermittent
windshield

 wiper

operation

Normal INT

Intermittent  wiper  interval  is  fixed  to  4
seconds.

Variable INT

Intermittent wiper interval is calculated only
by the wiper volume control.

Vehicle

 speed

dependent

Intermittent  wiper  interval  is  calculated
according to the intermittent wiper volume
control and vehicle speed (default).

Front

 wiper

washer

Disabling

 or

enabling

 washer-

linked

 wiper

function

Washer only

Without function

Washer-linked wiper

With function (default)

Rear

 wiper

intermittent
duration

Adjustment  of  rear
wiper interval

0 seconds

No wiper interval

4 seconds

4 seconds

8 seconds

8 seconds (default)

16 seconds

16 seconds

Rear  wiper  low
speed mode

Disabling

 or

enabling  rear  wiper
continuous
operation

Disabled

Without function (default)

Enabled

With function
