INSTALLATION SERVICE POINTS

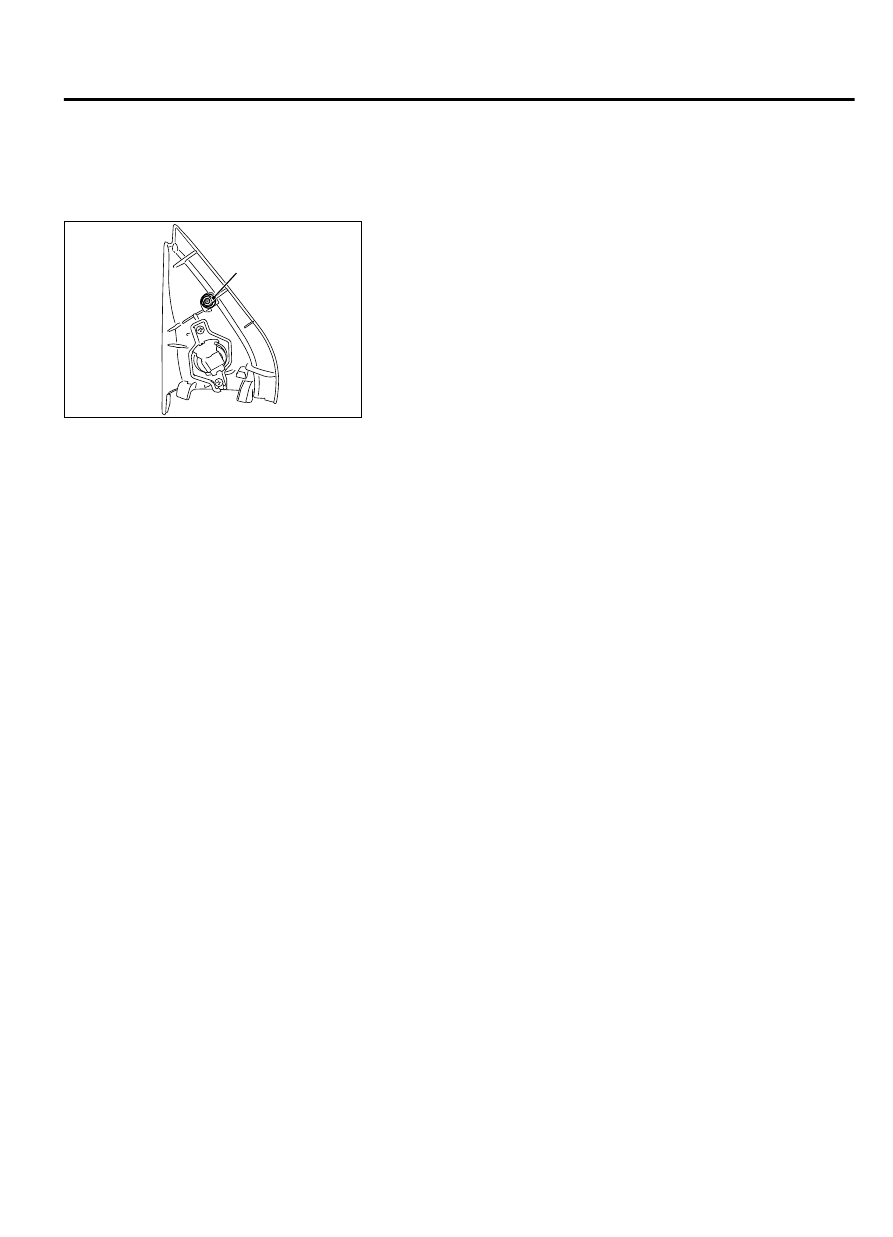

>>A<< FRONT DOOR SASH TRIM INSTALLATION

ZC60216 0000

Clip

Install it with the clip attached as shown in the figure.



>>B<< FRONT DOOR/REAR DOOR TRIM INSTALLATION
After the power window switch is installed or replaced, perform
learning  of  the  power  window  fully-closed  position.  (Refer  to
GROUP 42Ab - Door Glass and Regulator P.42Ab-97.)

INTERIOR

52A-13

TRIMS

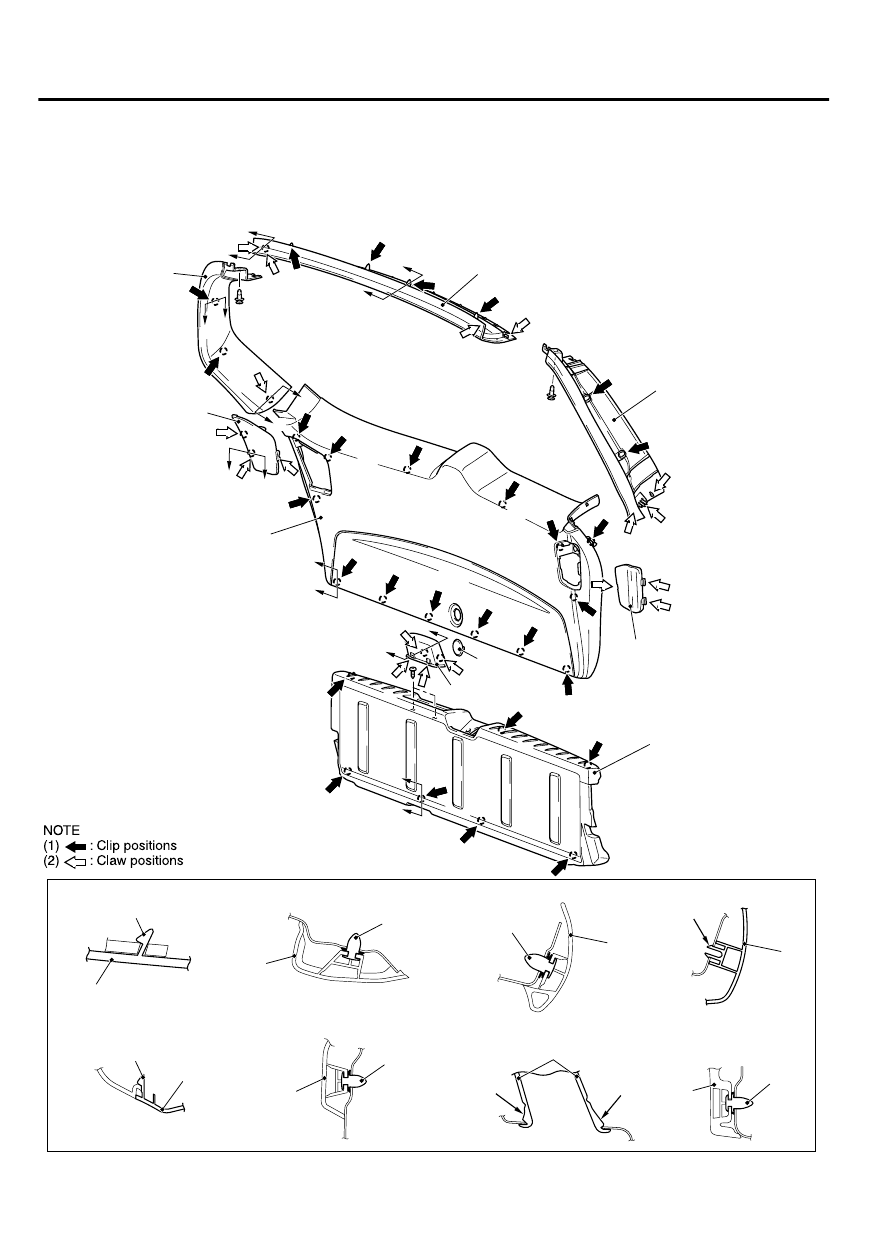

LIFTGATE TRIM

REMOVAL AND INSTALLATION

M15201000065USA0000010000

ZC6005890000

1

2

3

4

5

6

7

6

1

B

B

Section A – A

Section E – E

Section F – F

Section G – G

Section H – H

Section B – B

Section C – C

Section D – D

5

6

A

A

5

C

C

6

E

E

1

F

F

4

G

G

2

H

H

7

D

D

Claw

Claw

Claw

Claw

Clip

Clip

Clip

Clip

Claw

52A-14

INTERIOR

TRIMS

Removal steps

1.

Liftgate cover garnish

2.

Liftgate pull handle

3.

Liftgate trim cap

4.

Liftgate trim

Removal steps

5.

Liftgate upper trim

6.

Liftgate opening side trim

7.

Lower liftgate trim

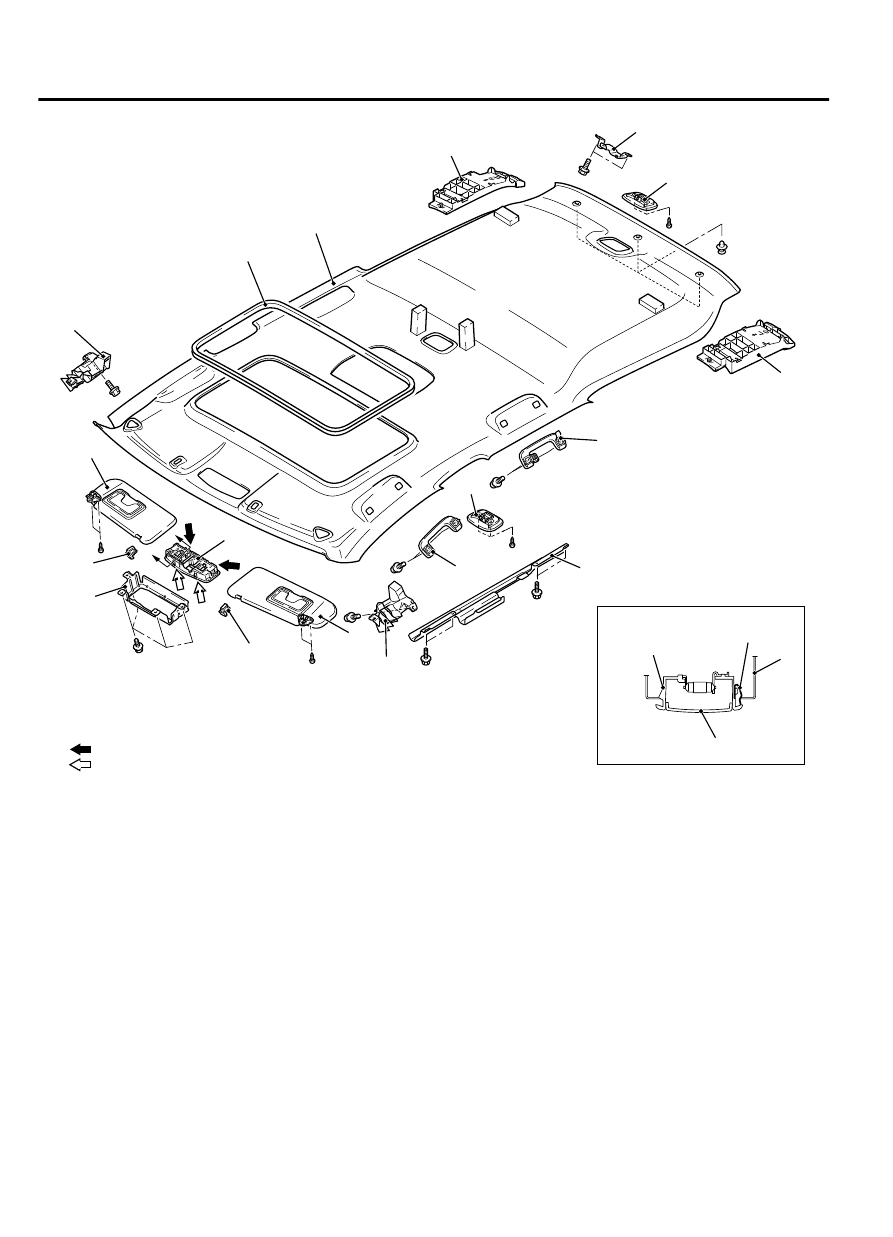

HEADLINING

REMOVAL AND INSTALLATION

M15201000014USA0000010001

For the removal of the headlining, refer to GROUP
52B  -  Service  Precautions  (Refer  to  P.52B-28)
and Curtain Air Bag Module (Refer to P.52B-329).

INTERIOR

52A-15

HEADLINING

ZC604264

2

3

1

1

5

5

6

6

4

AA00

7

A

A

11

13

12

9

10

8

Section A – A

9

4

Clip

Claw

NOTE
(1)       : Clip positions
(2)       : Claw positions

11

12

Removal steps

·

Quarter  trim  upper,  center  pillar  trim
upper, and front pillar trim (Refer to P.
52A-10).

·

Rear monitor (Refer to GROUP 54A -
Rear Monitor ).

1.

Assist grip

2.

Rear dome light assembly

3.

Luggage compartment light assembly

·

Front dome light connector

·

Sunroof  switch  connector  <Vehicles
with sunroof>

4.

Front dome light assembly

5.

Sun visor

Removal steps

<<A>>

6.

Sun visor holder

7.

Sunroof  lid  inner  weather  strip  rear
<Vehicles with sunroof>

<<B>>

8.

Headlining

9.

Front dome light bracket

10. Luggage compartment light bracket
11. Front energy absorber roof side box
12. Rear  energy  absorber  roof  box

<Vehicles without curtain air bag>

13. Front  energy  absorber  roof  bracket

<Vehicles with sunroof>

52A-16

INTERIOR

HEADLINING
