ZC6004490000

A

B

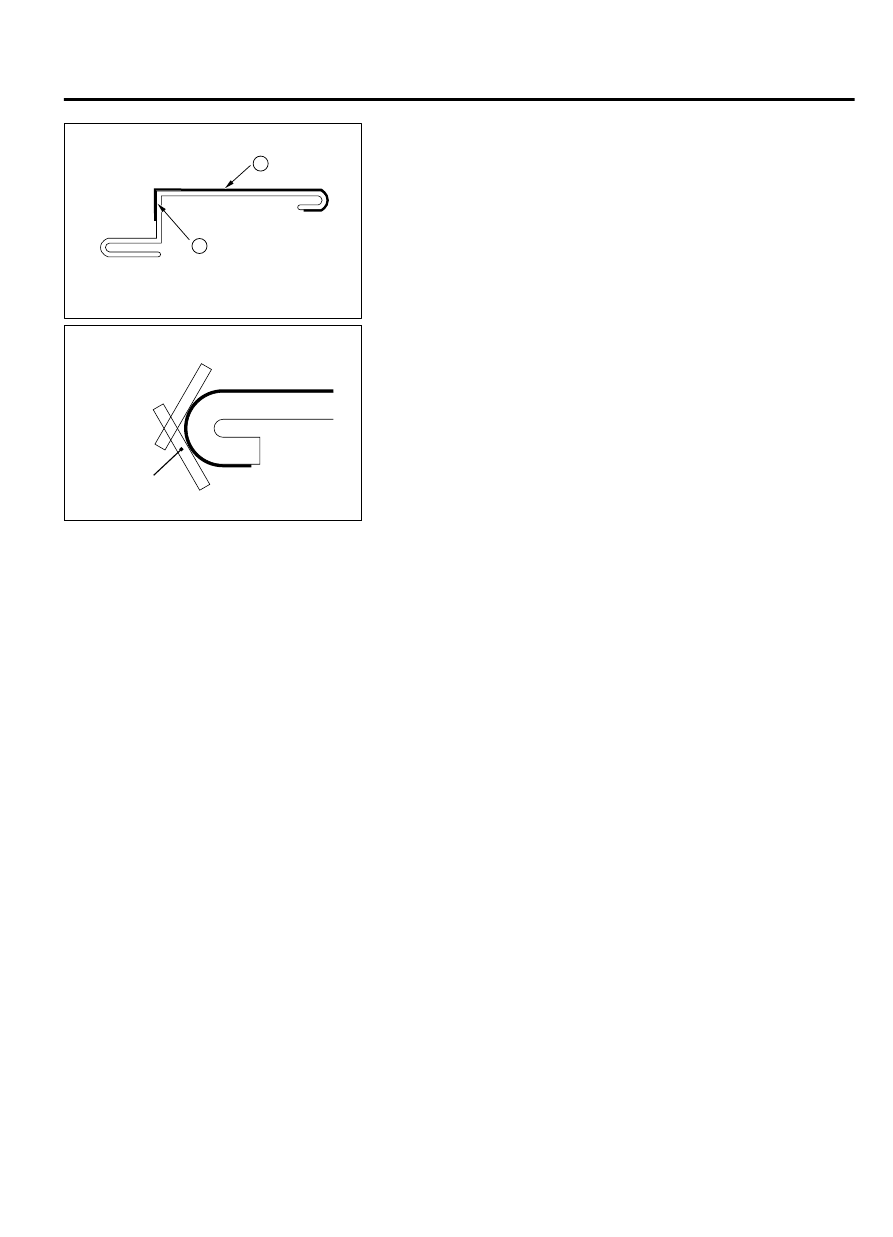

Rear door sash tape front

Stepped part

Plain part

ZC5016260000

MB990528

120°

60°

Hemming part

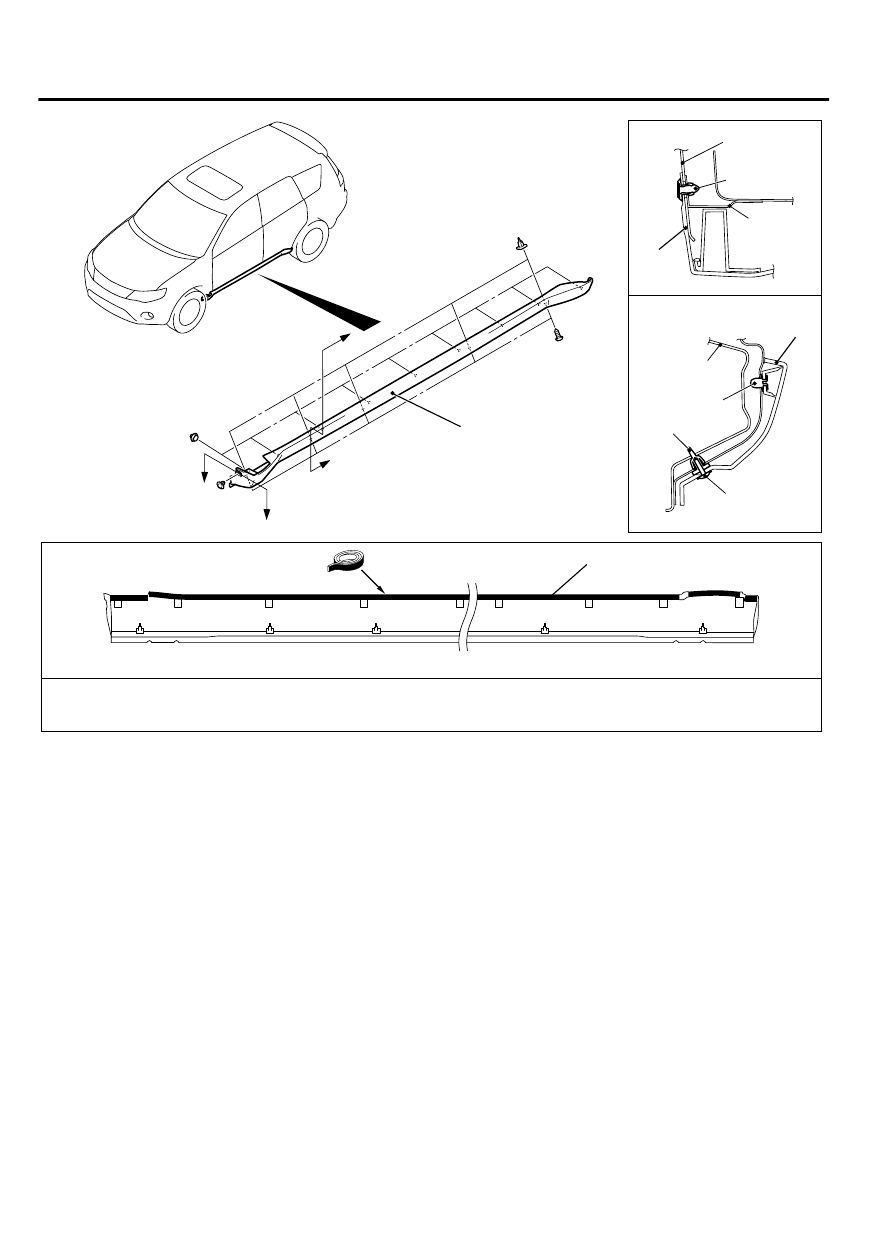

SIDE AIR DAM

REMOVAL AND INSTALLATION

M15101000055USA0000010000

EXTERIOR

51A-15

SIDE AIR DAM

ZC600398

1

1

1

1

0000

B

A

A

B

Double-sided tape affixed location

Clip

Clip

Grommet

Screw

Section A – A

Section B – B

Front
fender

Splash
shield

Side outer
panel

Double-sided tape:
4 mm (0.16 in) width and 1.2 mm (0.05 in) thickness

Removal

<<A>>

>>A<<

1.

Side air dam

REMOVAL SERVICE POINT

<<A>> SIDE AIR DAM REMOVAL
Gently lift and remove the side air dam. If there is any double-
sided tape remaining on the side air dam, remove according to
the following instructions.

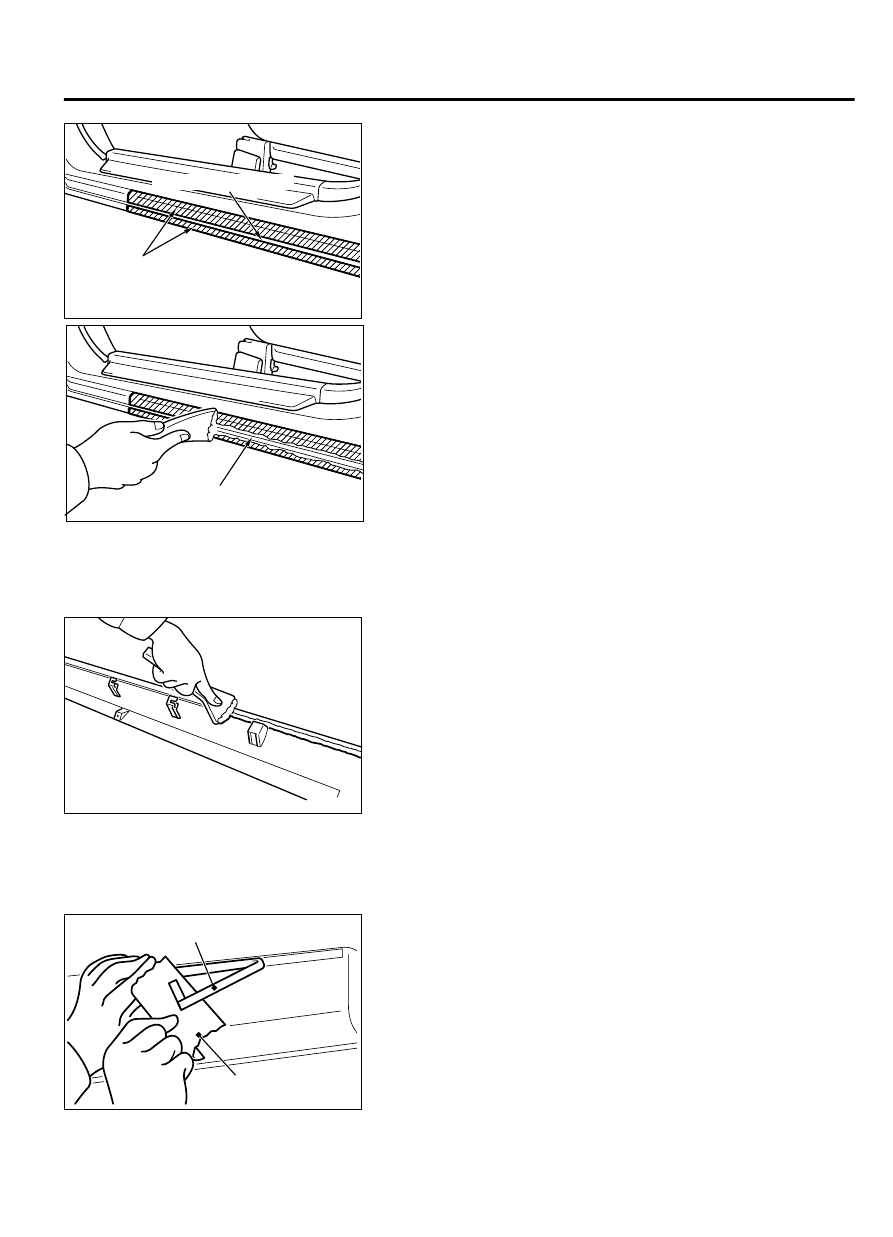

Remove double-sided tape remaining on the body surface

51A-16

EXTERIOR

SIDE AIR DAM

ZC5014140000

Protection tape

Double-sided tape

1.

Attach  protection  tape  all  the  way  along  the  edges  of  the
double-sided tape which is still adhering to the body.

ZC5014160000

Double-sided tape

2.

Scrape off the double-sided tape with a resin spatula as much
as possible.

3.

Peel off the protection tape.

4.

Wipe the body surface and clean it with a rag moistened with
isopropyl alcohol.



Remove  double-sided  tape  remaining  on  side  air  dam  and
adhere double-sided tape (when re-using side air dam)

ZC5014190000

1.

Scrape off the double-sided tape on the side air dam with a
resin spatula as much as possible.

2.

Wipe  the  side  air  dam  surface  and  clean  it  with  a  rag
moistened with isopropyl alcohol.

3.

Remove only a small portion of the residual adhesive.

4.

Adhere the double-sided tape as specified on the side air dam.

INSTALLATION SERVICE POINT

>>A<< SIDE AIR DAM INSTALLATION

ZC501420

Backing paper

Adhesive tape

0000

1.

Tear off the double-sided tape backing paper.

NOTE:

If attach the adhesive tape to the edge of the

backing paper, it will be easy to tear off.

2.

Install the side air dam.

NOTE:

If the double-sided tape is difficult to affix in

cold temperature, etc., warm the bonding surfaces of the
body and side air dam to about 40- 60°C before affixing
the tape.

3.

Firmly press in the side air dam.

EXTERIOR

51A-17

SIDE AIR DAM

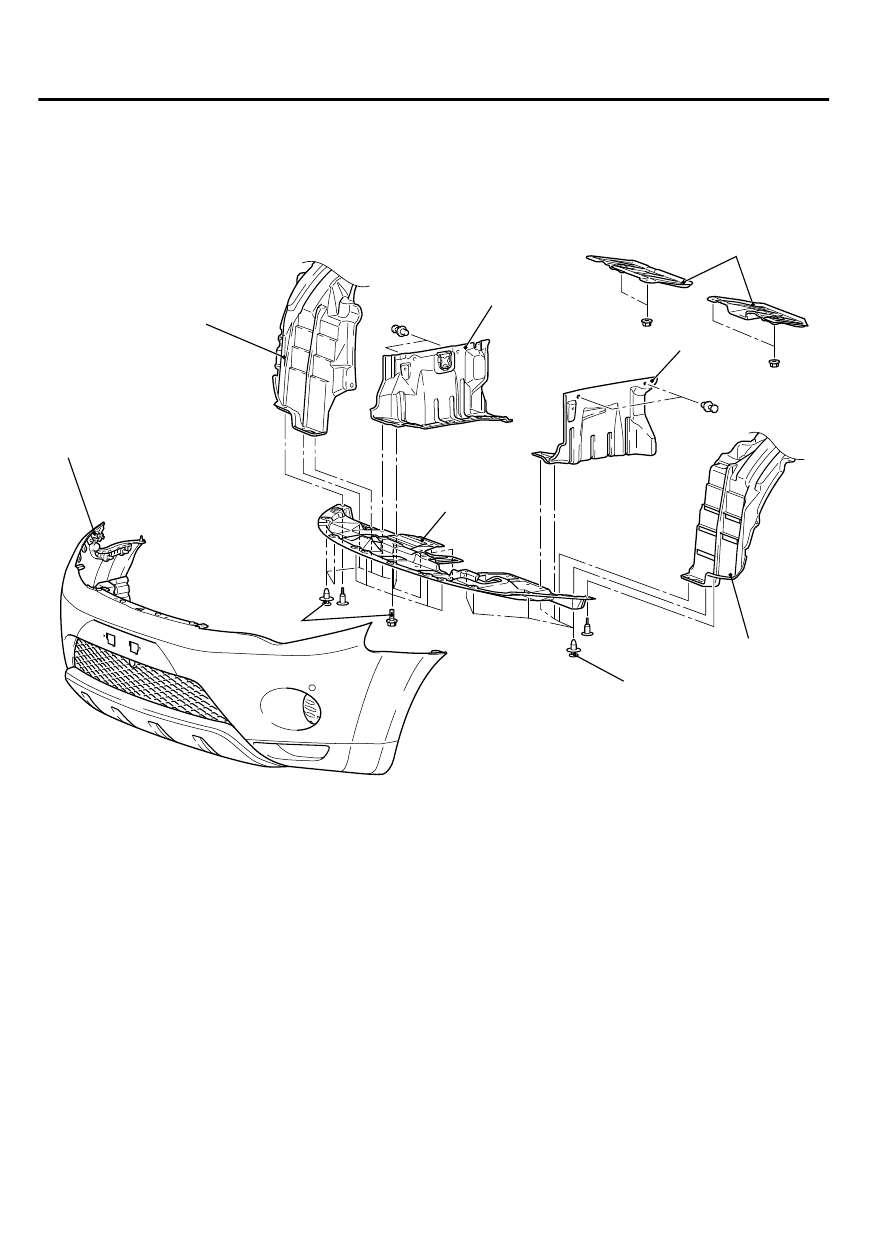

UNDER COVER

REMOVAL AND INSTALLATION

M15101000196USA0000010000

ZC600400

1

4

1

3

3

2

0000

Splash shield

Splash shield

Front bumper assembly

Removal steps

1.

Front bumper mounting clips and bolts

2.

Engine room under cover front

3.

Engine room side cover

Removal steps

4.

Engine room under cover rear

51A-18

EXTERIOR

UNDER COVER
