Mitsubishi Outlander XL. Manual - part 841





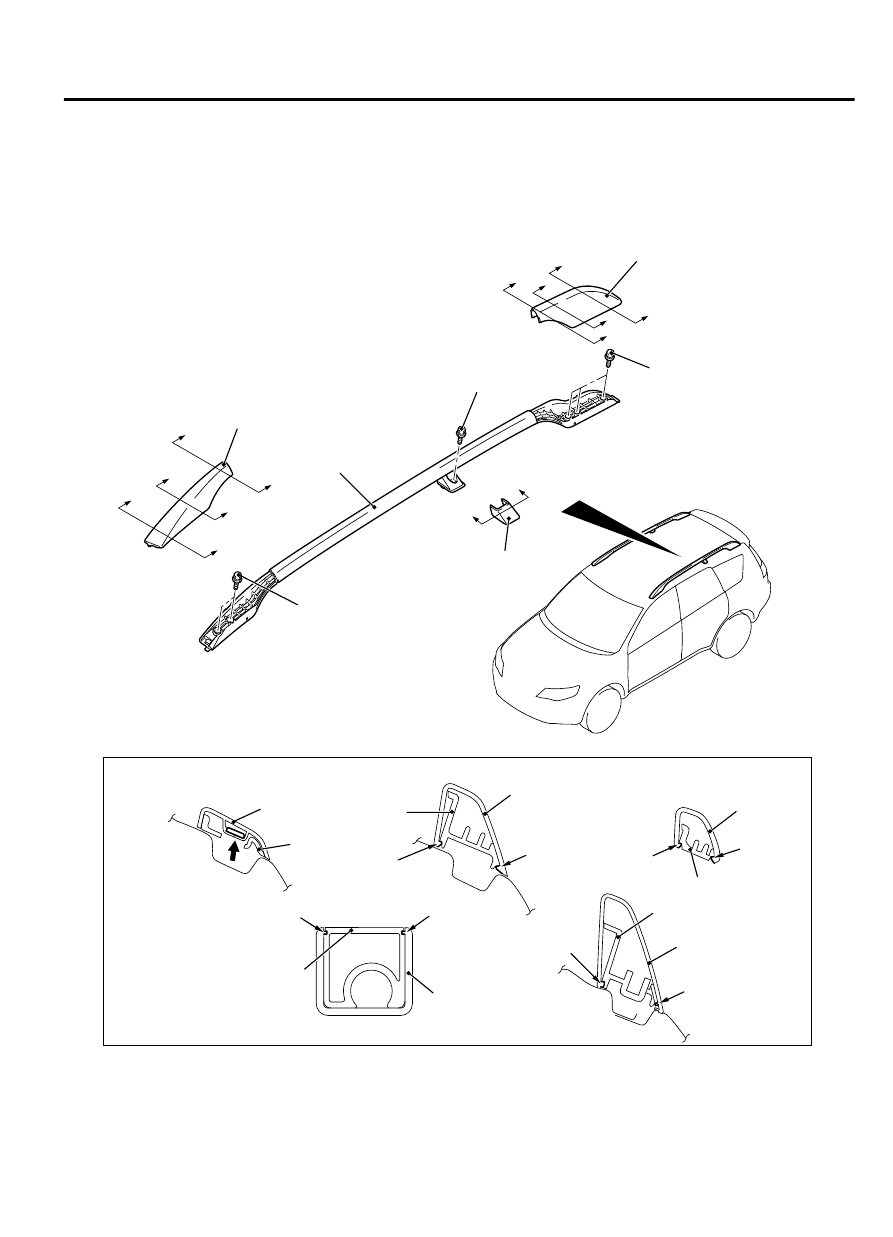

ROOF RAIL

REMOVAL AND INSTALLATION

M15101000166USA0000010000

ZC600423

1

4

2

3

0000

A

A

B

C

C

B

D

D

E

C

E

C

A

A

1,3

4

4

1

1,3

4

3

4

2

4

Section A – A

Section B – B

Section E – E

Section D – D

Section C – C

Claw

Claw

Claw

Claw

Claw

Claw

Claw

Claw

8.5 ± 3.5 N·m
75 ± 31 in-lb

8.5 ± 3.5 N·m
75 ± 31 in-lb

8.5 ± 3.5 N·m
75 ± 31 in-lb

Removal steps

·

Roof  drip  molding  front  (Refer  to  P.
51A-8)

Removal steps

1.

Front roof rail cover

EXTERIOR

51A-19

ROOF RAIL

Removal steps

2.

Center roof rail cover

3.

Rear roof rail cover

Removal steps

4.

Roof rail

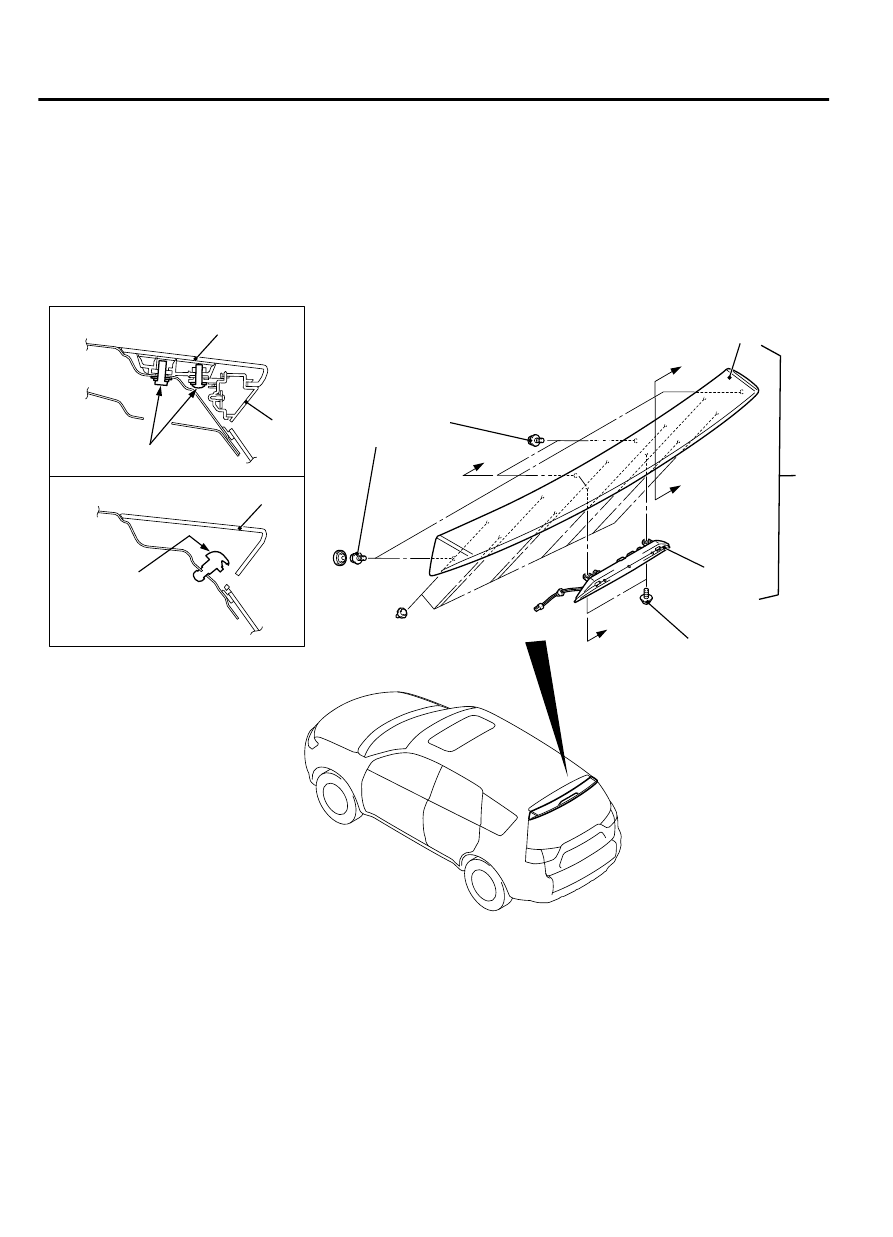

LIFTGATE SPOILER

REMOVAL AND INSTALLATION

M15101000199USA0000010000

ZC600427

B

A

A

B

1

3

2

2

2

3

0000

Section A – A

Section B – B

Bolt

Rear washer
nozzle

2.5 ± 0.5 N·m
23 ± 4 in-lb

4.0 ± 2.0 N·m
35 ± 18 in-lb

Removal steps

·

Liftgate  upper  trim  (Refer  to  GROUP
52A, Liftgate trim P.52A-14)

·

High-mount  stop  light  connector
connection

Removal steps

1.

Liftgate spoiler assembly

2.

Liftgate spoiler

3.

High-mount stop light assembly

51A-20

EXTERIOR

LIFTGATE SPOILER

MARK

REMOVAL AND INSTALLATION

M15101000118USA0000010000

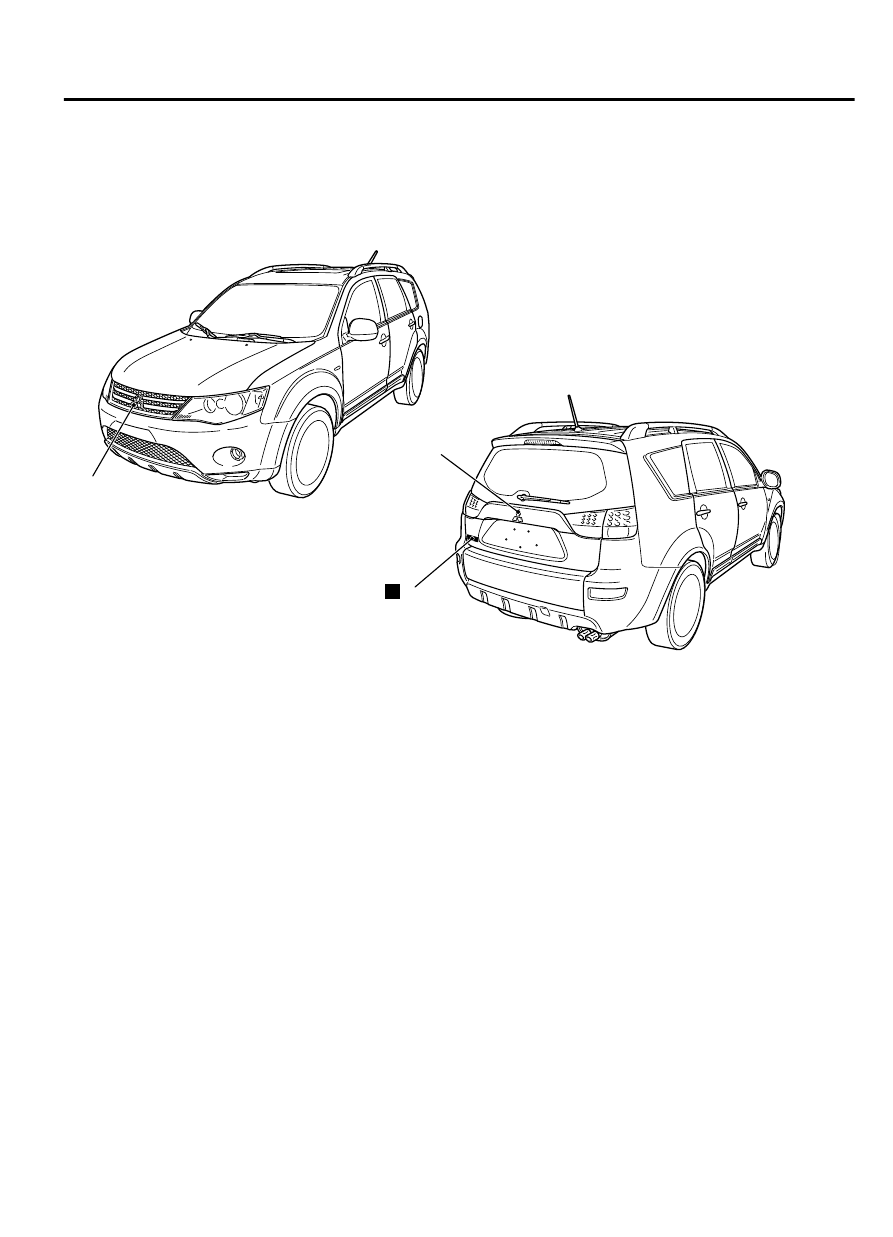

ZC600442

1

2

3

N

0000

1.

Front three-diamond mark (Refer to P.
51A-7)

>>A<<

2.

Rear three-diamond mark

>>A<<

3.

OUTLANDER mark

INSTALLATION SERVICE POINT

>>A<< MARK APPLICATION

1.

Installation position
Attach each mark to the position shown in the illustration.

EXTERIOR

51A-21

MARK

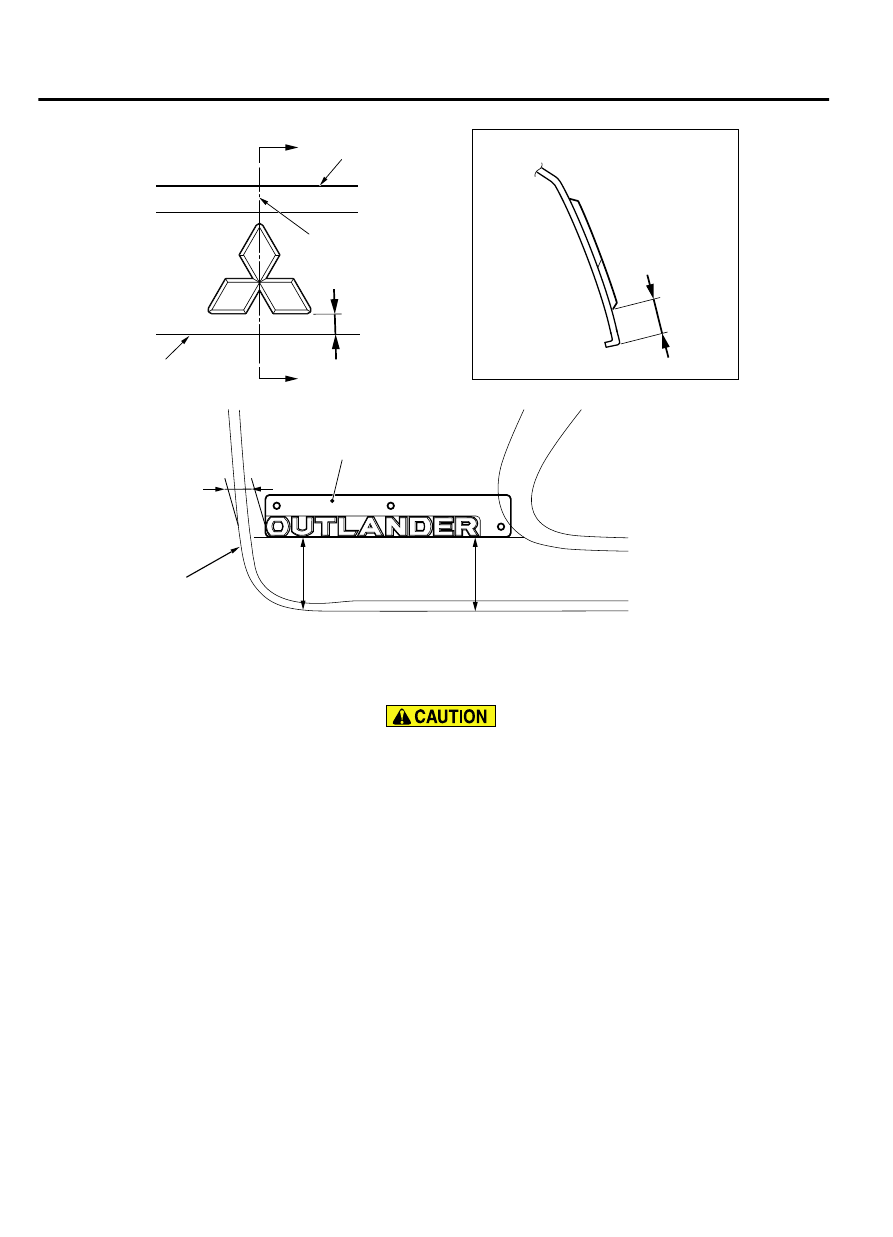

ZC600443

A

A

0000

13 mm
(0.51 in)

13 mm (0.51 in)

2. Rear three-diamond mark

Section A – A

Center line of
vehicle

Liftgate garnish
lower end

Liftgate garnish
upper end

ZC6004440000

58.4 mm
(2.30 in)

24.4 mm
(0.96 in)

60 mm
(2.36 in)

Application tape

Tailgate panel end

3. OUTLANDER mark

　
2.

Installation procedure

(1)

Use 3M™ AAD Part number 8906 or equivalent to clean
the mark installation surfaces on the body.

When  attaching  the  marks,  the  ambient  temperature
should  be  20  -  38°C  (60  -  100°F)  and  the  air  should  be
completely  free  of  dust.  If  the  ambient  temperature  is
lower than 20°C (60°F), the marks and the places on the
vehicle body where the marks are to be attached should
be heated to 20 - 30°C (60 - 86°F).

(2)

Peel off the protection sheet on the back of the marks to
paste it on the installation position.

51A-22

EXTERIOR

MARK
