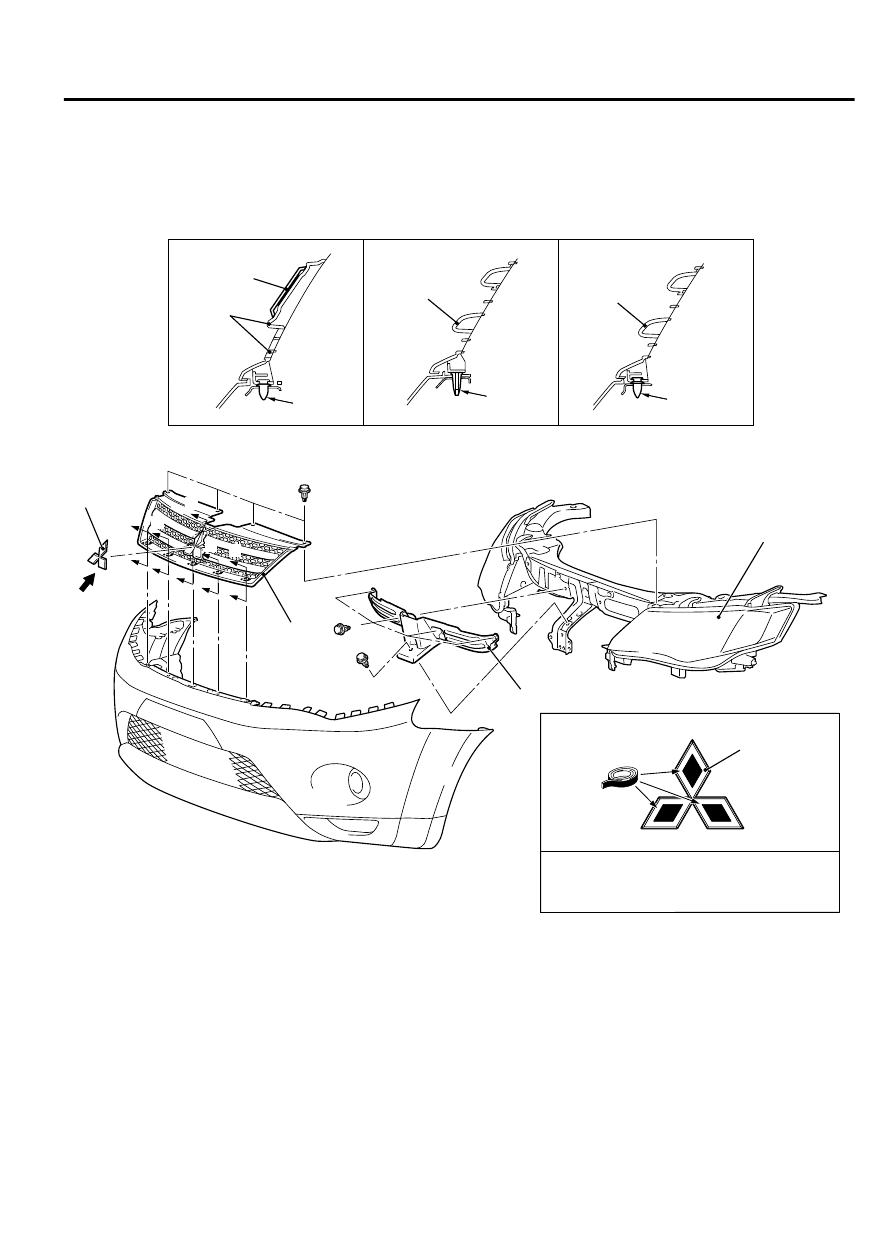

RADIATOR GRILLE

REMOVAL AND INSTALLATION

M15101000029USA0000010000

ZC600364

1

3

2

2

1

1

1

0000

B

C

C

D

D

2

A

B

C

C

D

D

Double-sided tape:
0.8 mm (0.03 in) thickness

View A

Section B – B

Section C – C

Section D – D

Clip

Boss

Headlight

Clip

Removal steps

1.

Radiator grille

2.

Front-three diamond mark

Removal steps

3.

Headlight support upper panel cover

EXTERIOR

51A-7

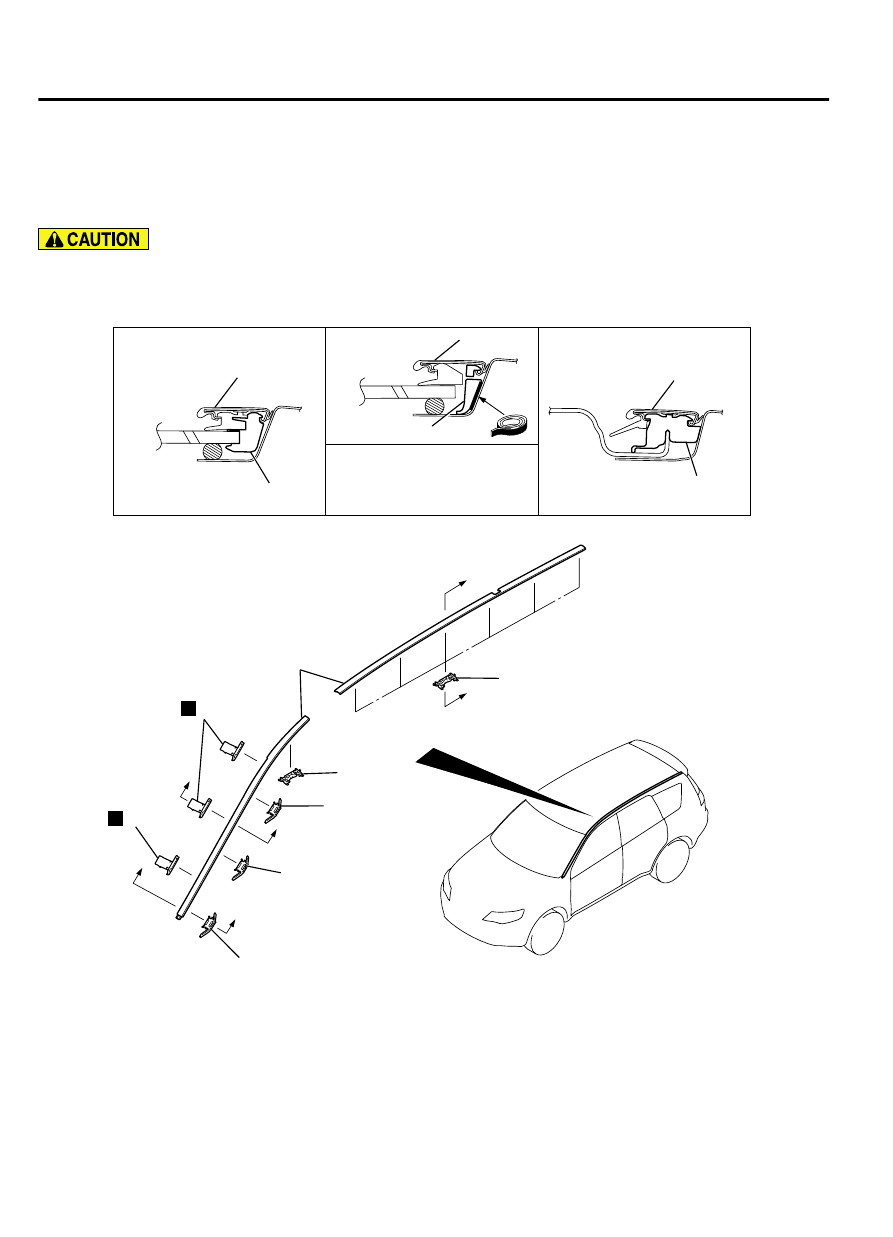

MOLDINGS

MOLDINGS

REMOVAL AND INSTALLATION

M15101000047USA0000010000

Before  installing  the  roof  drip  molding,  the
windshield  adhesive  remained  on  the  clip
installation points should be removed 3 to 5 mm

(0.12  to  0.20  in)  from  the  edge  of  the  glass.
However, if the windshield adhesive has not been
cured yet, it is not necessary to remove it.

ZC600027

Section A – A

Section B – B

Section C – C

Double-sided tape:
10 mm (0.39 in) width and
30 mm (1.18 in) length

0000

A

A

B

B

C

C

1

6

6

5

2

3

4

N

5

N

1

5

6

2,3,4

1

1

Removal steps

<<A>>

1.

Roof drip molding

2.

Clip A (red)

3.

Clip B (orange)

4.

Clip C (pink)

Removal steps

5.

Clip D

6.

Clip E

51A-8

EXTERIOR

MOLDINGS

REMOVAL SERVICE POINT

<<A>> ROOF DRIP MOLDING REMOVAL

ZC6000230000

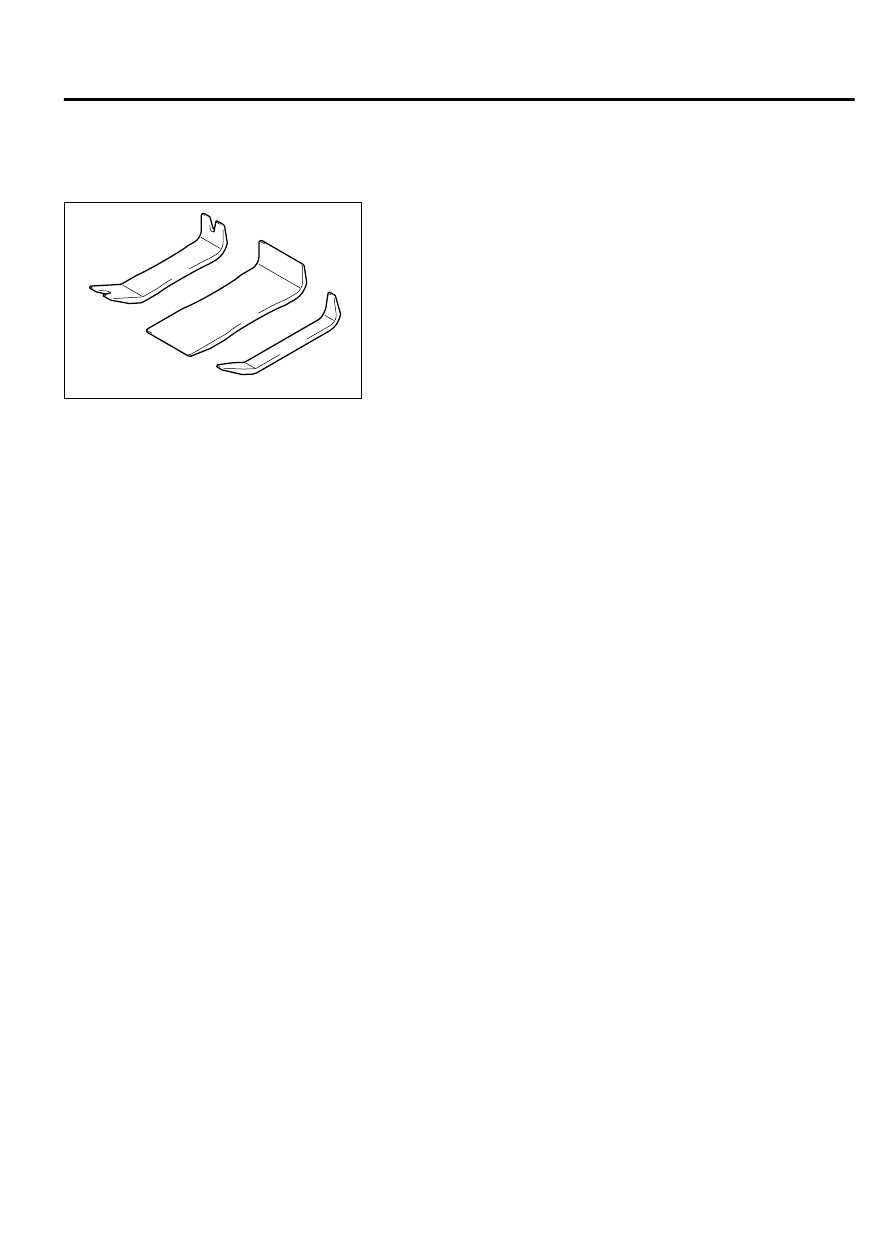

NOTE:

Use a commercial available ornament remover (resin-

made) as shown to pry out the roof drip molding.



EXTERIOR

51A-9

MOLDINGS

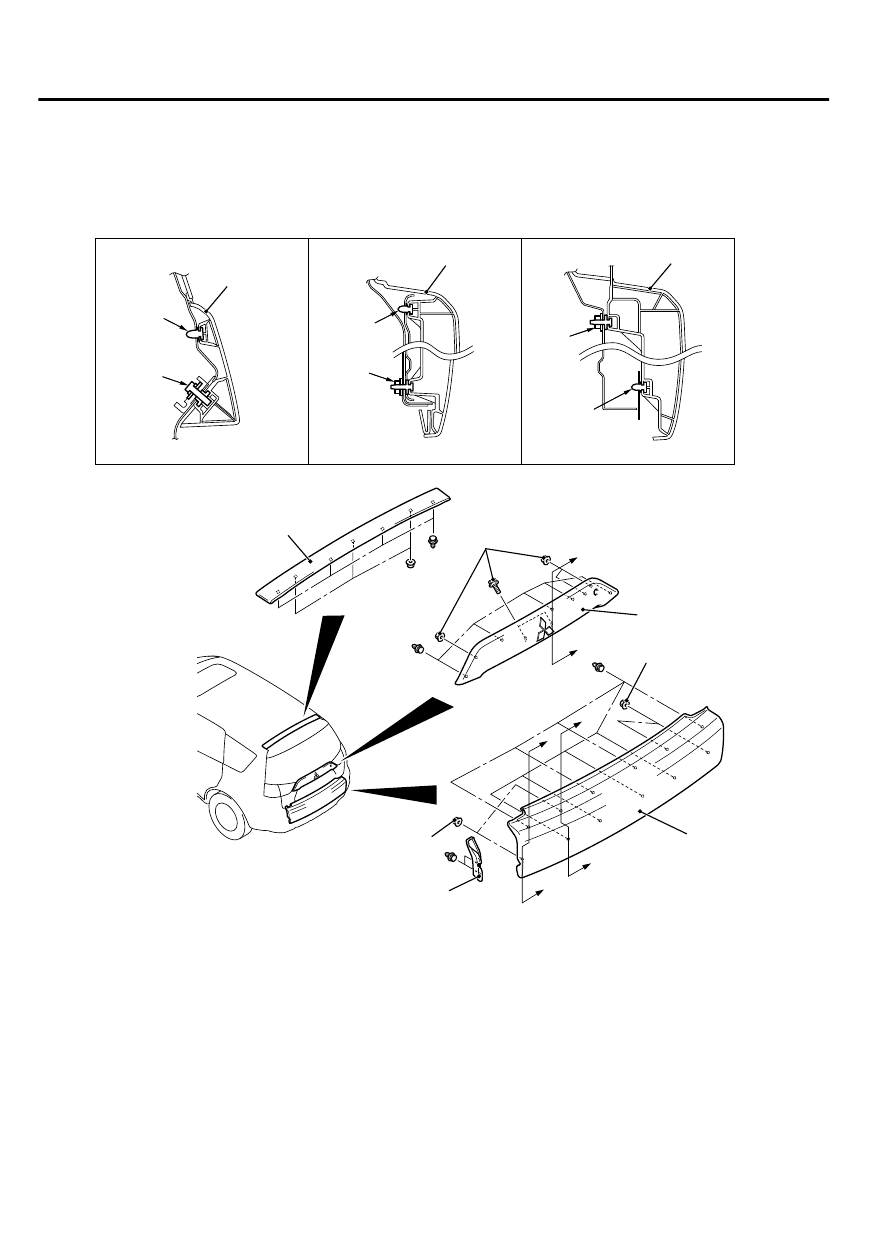

GARNISHES

REMOVAL AND INSTALLATION

M15101000041USA0000010000

ZC600757

Section A – A

Section B – B

Section C – C

Clip

Bolt

2

4

3

4

4

2

1

0000

B

A

A

B

C

C

Clip

Nut

Clip

Nut

4.0 ± 2.0 N·m
35 ± 18 in-lb

4.0 ± 2.0 N·m
35 ± 18 in-lb

4.0 ± 2.0 N·m
35 ± 18 in-lb

51A-10
