Mitsubishi Outlander XL. Manual - part 836





ZC604548AA00

4.

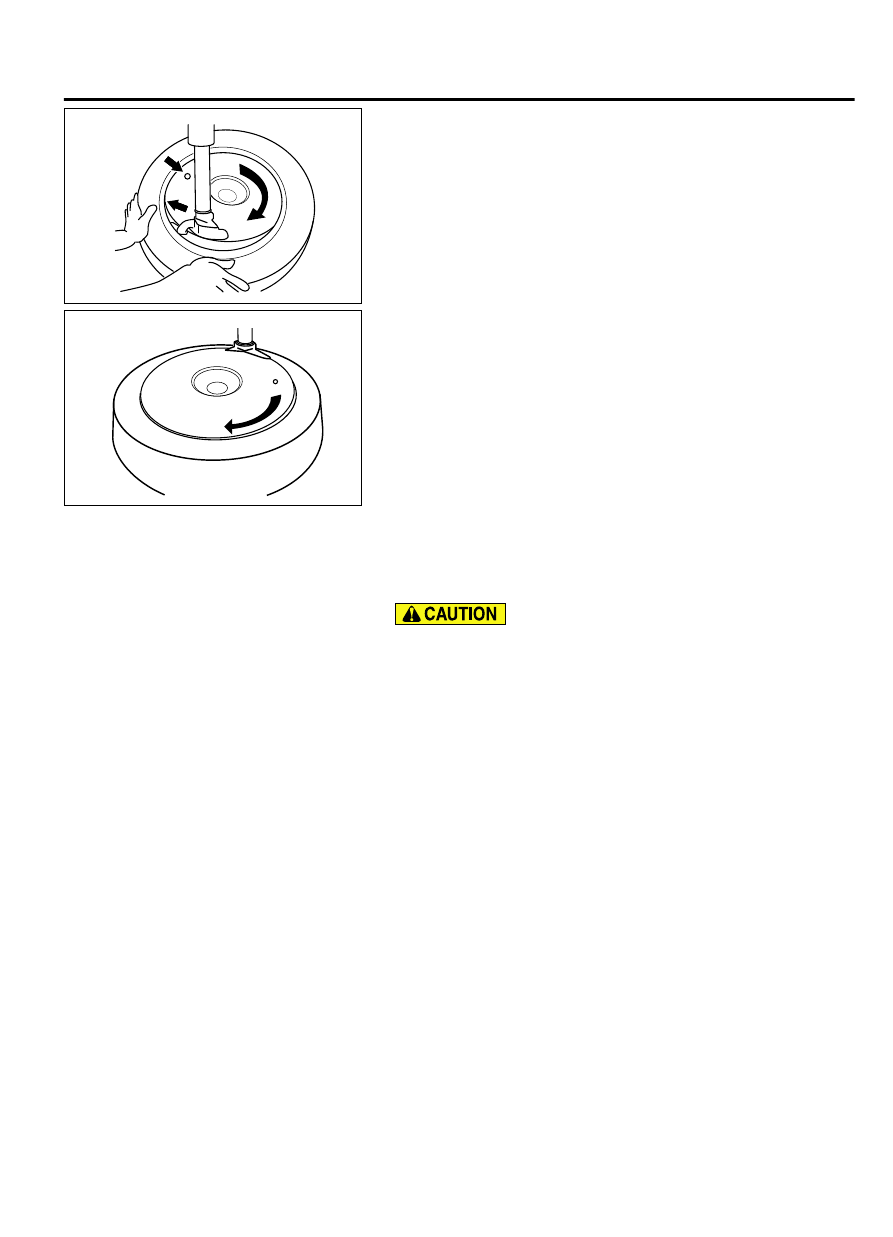

Put the second side of the tire in position, so that the cross
point of the belt with the rim is approximately 20 cm (7.9 inch)
away from the valve. the curved arrow shows the direction of
rotation of the wheel.

ZC604549AA00

5.

Turn the wheel in order to engage all of the second side of the
tire.

NOTE:

The standard shoes can pass over the sensor without

damaging it.



>>C<< TIRE PRESSURE INFLATION/VALVE NUT
RETIGHTENING

After tire inflation, retighten the valve nut 8.0N·m (71 inch
pounds). This is necessary, because the TPMS transmitter
is  secured  to  the  wheel  with  the  valve  nut  and  rubber
grommet.  The  rubber  grommet  will  be  depressed  by  tire
pressure or deteriorate over a period of time, which requires
the valve nut to be retightened.
Inflate tire to required pressure, then retorque the valve nut to
8.0 N·m (71 inch pounds).

WIRELESS CONTROL MODULE (WCM)

42C-103

TPMS TRANSMITTER

MEMO

42C-104

WIRELESS CONTROL MODULE (WCM)

GROUP 51A

EXTERIOR

CONTENTS

SPECIFICATION(S)...............

51A-2

ADHESIVES......................

51A-2

SPECIAL TOOLS..................

51A-2

FRONT BUMPER ASSEMBLY..........

51A-3

REMOVAL AND INSTALLATION.......

51A-3

DISASSEMBLY AND ASSEMBLY.......

51A-4

REAR BUMPER ASSEMBLY...........

51A-5

REMOVAL AND INSTALLATION.......

51A-5

DISASSEMBLY AND ASSEMBLY.......

51A-6

RADIATOR GRILLE................

51A-7

REMOVAL AND INSTALLATION.......

51A-7

MOLDINGS.......................

51A-8

REMOVAL AND INSTALLATION.......

51A-8

GARNISHES.....................

51A-10

REMOVAL AND INSTALLATION.....

.51A-10

DOOR SASH TAPE................

51A-11

REMOVAL AND INSTALLATION......

51A-11

SIDE AIR DAM..................

51A-15

REMOVAL AND INSTALLATION......

51A-15

UNDER COVER...................

51A-18

REMOVAL AND INSTALLATION......

51A-18

ROOF RAIL....................

.51A-19

REMOVAL AND INSTALLATION......

51A-19

LIFTGATE SPOILER..............

51A-20

REMOVAL AND INSTALLATION......

51A-20

MARK..........................

51A-21

REMOVAL AND INSTALLATION......

51A-21

51A-1

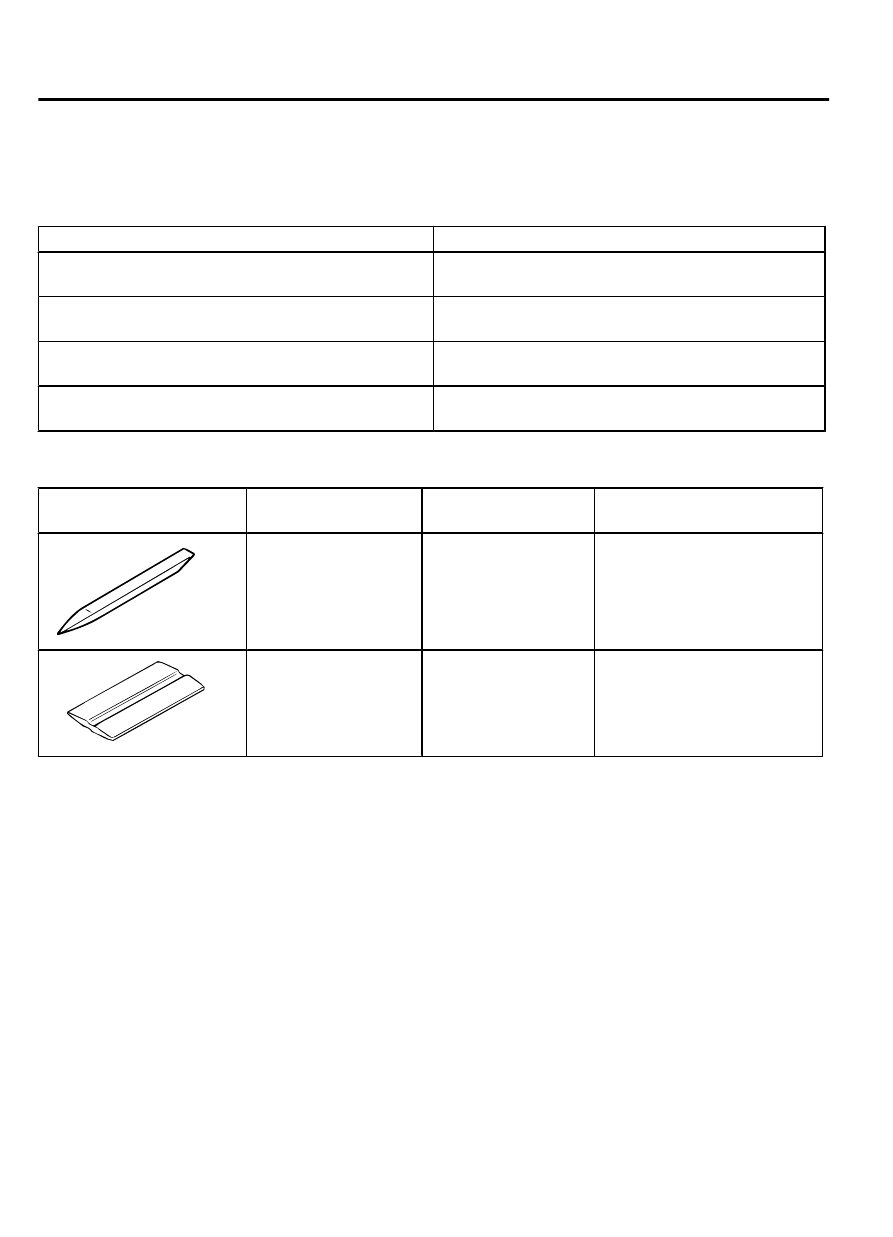

SPECIFICATION(S)

ADHESIVES

M15101000005USA0000010000

Item

Specifications

Front three-diamond mark

Adhesive tape: Double-sided tape
0.8 mm (0.03 in) thickness

Clip D for roof drip molding

Adhesive tape: Double-sided tape
10 mm (0.39 in) width and 30 mm (1.18 in) thickness

Side air dam

Adhesive tape: Double-sided tape
4.0 mm (0.16 in) width and 1.2 mm (0.05 in) thickness

Rear roof garnish

Adhesive tape: Double-sided tape
10 mm (0.39 in) width and 1.2 mm (0.05 in) thickness

SPECIAL TOOLS

M15101000006USA0000010000

Tool

Tool  number  and
name

Supersession

Application

MB990784

MB990784
Ornament remover

General service tool

Removal of garnishes

MB990528

MB990528
Stripe tape spatular

General service tool

Installation of door sash tape

51A-2
