To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

1.

Connect scan tool MB991958 to the data link connector.

2.

Turn the ignition switch to the "ON" position.

3.

Select "Interactive Diagnosis" from the start-up screen.

4.

Select "System select."

5.

Choose "TPMS" from the "CHASSIS" tab.

6.

Select "MITSUBISHI."

7.

Select "Special Function."

8.

Select "Tire Pressure Sensor ID Check."

9.

Check the tire pressure sensor IDs on the PC display.

10.

After tire pressure sensor ID check, turn the ignition switch
to the "LOCK" (OFF) position.

11.

Remove scan tool MB991958.

FROM SCAN TOOL MB99158 DIAGNOSIS SCREEN
You  can  check  the  tire  pressure  sensor  ID  on  the  diagnosis
screen as described below.

1.

Operate scan tool MB991958 as follows:

｠

Press "Special" button on the diagnosis screen.

｠

Select "Tire Pressure Sensor ID Check" from the "Special
Function" menu.

2.

Check the tire pressure sensor IDs on the PC display.

3.

After tire pressure sensor ID check, turn the ignition switch to
the "LOCK" (OFF) position.

4.

Remove scan tool MB991958.

WCM

REMOVAL AND INSTALLATION

M14209200054USA0000010000

｠

To  remove  the  driver  airbag  module,  refer  to
GROUP  52B  -  Service  Precautions  P.
52B-28and  Air  Bag  Module(s)  and  Clock
Spring P.52B-329.

｠

When WCM has been replaced, all key ID codes
should  be  registered,  referring  to  the  ID  code
registration necessity judgment table P.42C-8.

Pre-removal operation

｠

Lower  panel  and  steering  column  cover  removal  (Refer  to

GROUP 52A - Instrument Panel Assembly P.52A-2.)

｠

Clock  spring  column  switch  assembly  removal  (Refer  to

GROUP 37 - Steering Shaft P.37-23or GROUP 52B - Air Bag

Module(s) and Clock Spring P.52B-329.)

Post-installation operation

｠

Clock  spring  column  switch  assembly  installation  (Refer  to

GROUP 37 - Steering Shaft P.37-23or GROUP 52B - Air Bag

Module(s) and Clock Spring P.52B-329.)

｠

Lower panel and steering column cover installation (Refer to

GROUP 52A - Instrument Panel Assembly P.52A-2.)

WIRELESS CONTROL MODULE (WCM)

42C-95

WCM

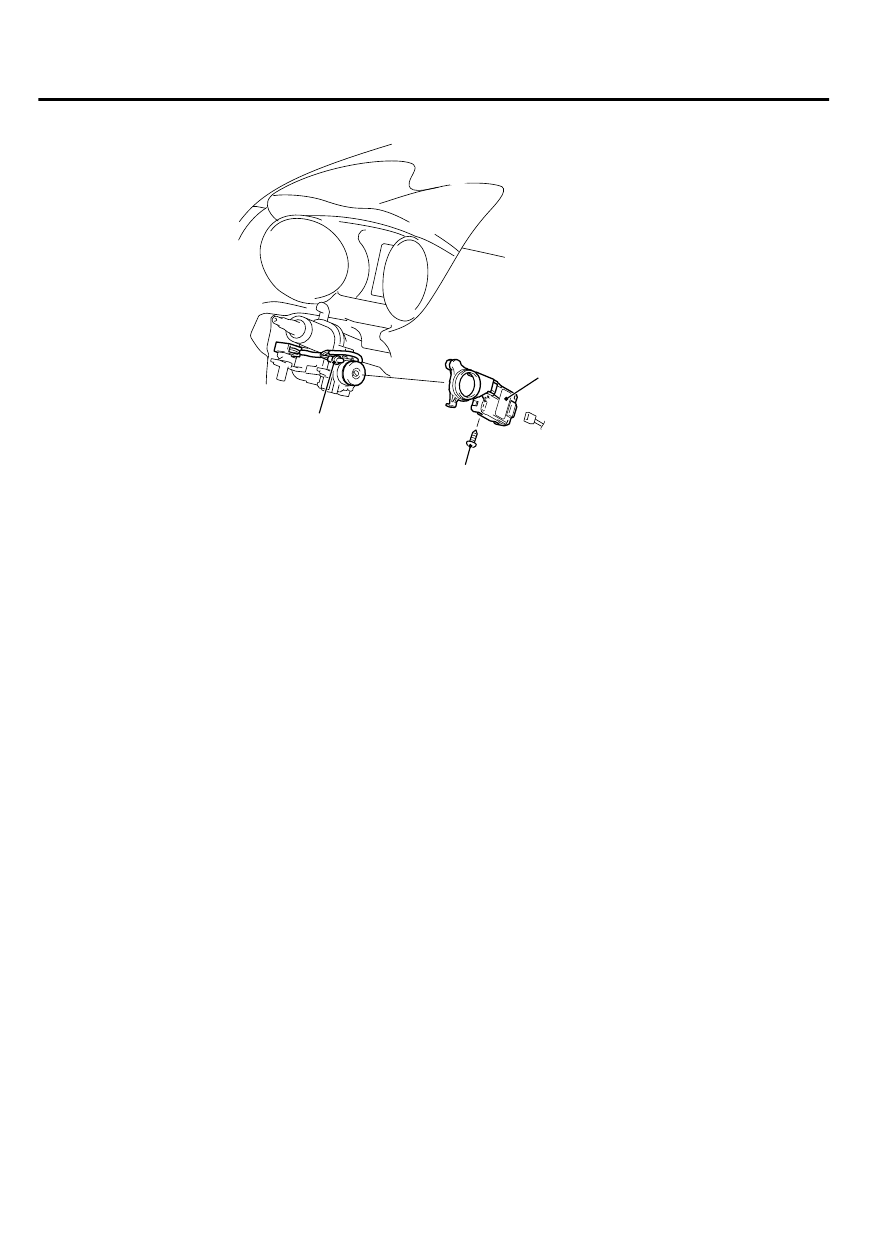

ZC600980

1

2

AA00

2.0 ± 0.5 N·m
18 ± 4 in-lb

Removal steps

1.

Key ring illumination light

Removal steps

>>A<<

2.

WCM

INSTALLATION SERVICE POINT

>>A<< WCM INSTALATION
Check that the top claw of WCM is fixed securely to the boss of
steering lock and the antenna is not floated on the key cylinder.

TRANSMITTER

DISASSEMBLY AND ASSEMBLY

M14209200056USA0000010000

Post-installation operation

｠

Transmitter operation check

42C-96

WIRELESS CONTROL MODULE (WCM)

TRANSMITTER

ZC600220

1

2

3

4

0000

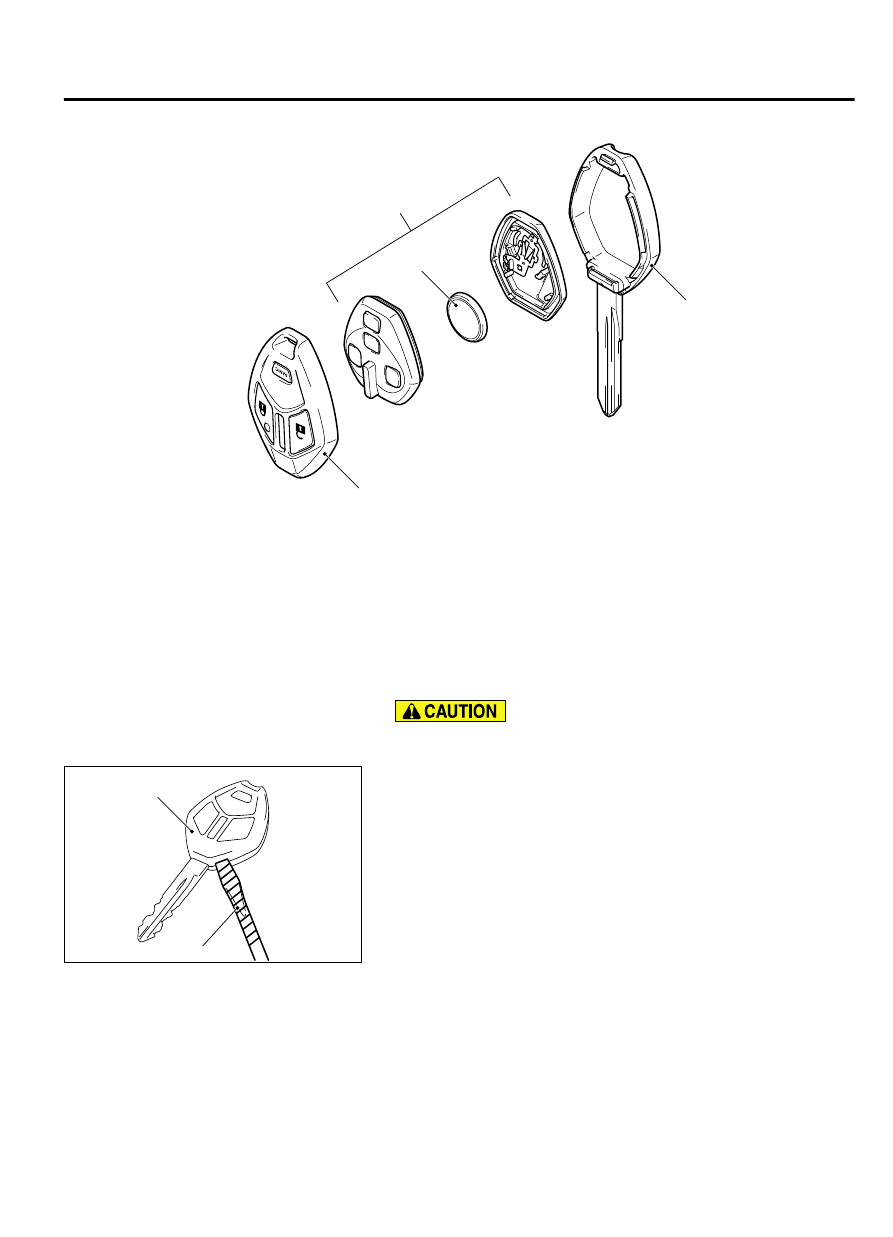

Disassembly steps

<<A>>

1.

Upper cover

2.

Transmitter assembly

<<B>>

>>A<<

3.

Battery

Disassembly steps

4.

Master key

DISASSEMBLY SERVICE POINTS

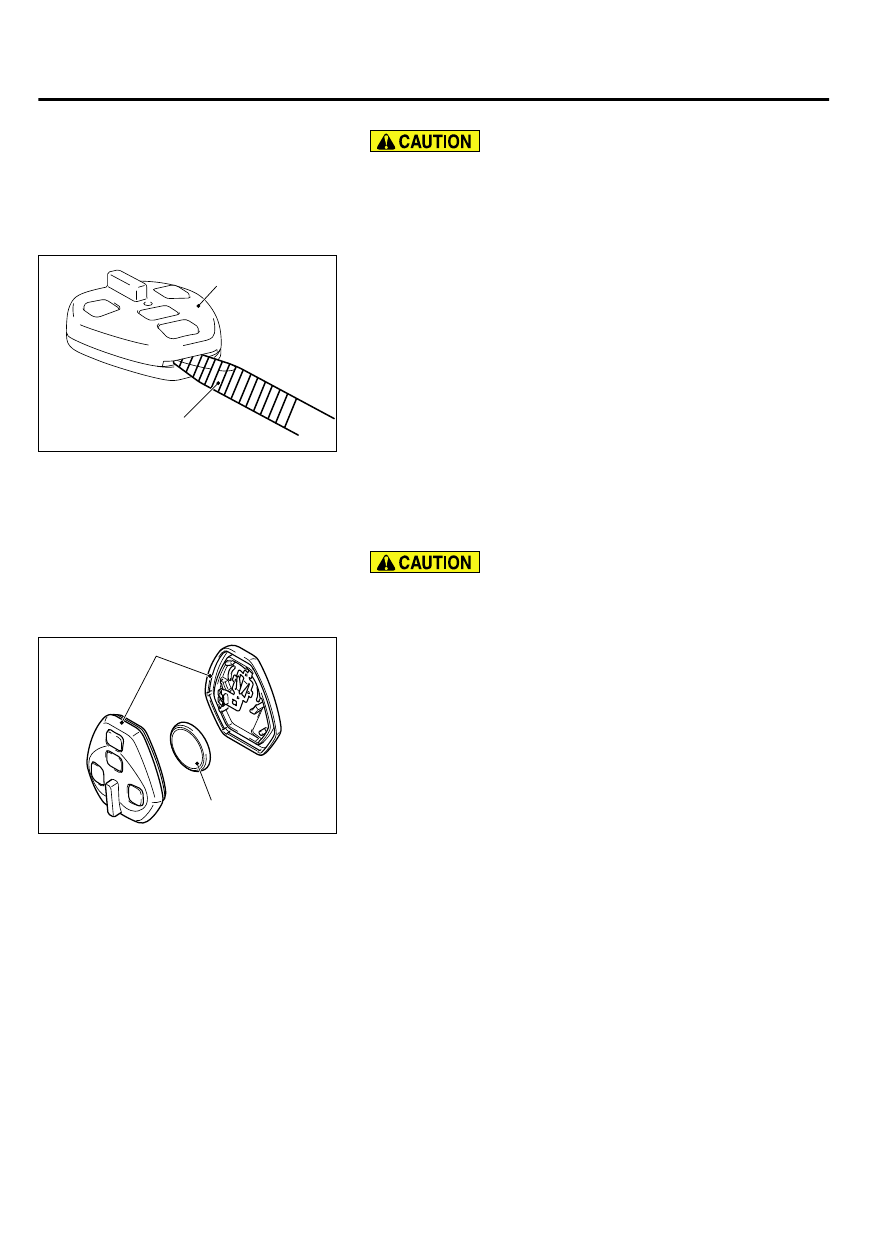

<<A>> UPPER COVER REMOVAL

To  prevent  damage  to  the  transmitter,  wrap  a  flat-tipped
screwdriver with protective tape before prying.

ZC600348

Transmitter

Flat-tipped scr

ewdriver

0000

Insert a flat-tipped screwdriver in the area shown, and remove
the upper cover by prying it with the screwdriver.



WIRELESS CONTROL MODULE (WCM)

42C-97

TRANSMITTER

<<B>> BATTERY REMOVAL

｠

Do  not  allow  water  or  dust  to  enter  the  inside  of  the
transmitter assembly when it is open. Also, do not touch
the precision electronic device.

｠

To prevent damage to the transmitter assembly, wrap a
flat-tipped screwdriver with protective tape before prying.

ZC600349

Transmitter assembly

Flat-tipped scr

ewdriver

0000

Insert a flat-tipped screwdriver in the area shown, and remove
the battery by prying it with the screwdriver.

ASSEMBLY SERVICE POINT

>>A<< BATTERY INSTALLATION

Do  not  allow  water  or  dust  to  enter  the  inside  of  the
transmitter assembly when it is open. Also, do not touch the
precision electronic device.

ZC600350

+

Master key side

Upper

cover

side

Battery

Transmitter assembly

–

0000

Install a new battery to the transmitter assembly with its (+) side
facing towards the master key side.

Battery  required  for  replacement:  Coin  type  battery
CR1620

42C-98

WIRELESS CONTROL MODULE (WCM)

TRANSMITTER
