Mitsubishi Outlander XL. Manual - part 832





ZC603754 0000

Screen flow of M.U.T.-III

Key Registration
(Barcode No.)*1

Key
Registration*1

Key &
KOS Key
Registration*2

Cancel

OK

OK

OK

OK

OK

OK

OK

OK

OK

Key ID input

Execution check

Barcode No.

registration

completed

Special Function

KOS key

registration

Executing

KOS key

registration

completed

Registration

result display

Key registration

Completion and

an addition?

Special Function

Special Function

Refer to GROUP 00,
How to Perform
VIN Writing.

ENG key code
Reg.*1*2

OK

Keyless ID
Reg.*1

OK

Keyless ID

registration

Executing

Keyless ID

registration

Completed

OK

OK

Steering lock
unit Reg.*2

OK

Password input

Steering lock

unit registration

Executing

OK

Antenna select

Antenna

communication

test Executing

NOTE:
*1 Show the menu displayed when the vehicles for WCM.
*2 Show the menu displayed when the vehicles for KOS.

Cancel

Steering lock

unit registration

Completed

Password input

Password input

Password input

Key registration

Completion and

an addition?

Password input

Registration

result display

Comm.
Test*2

Antenna

communication
test Completed

Additional key
registration*1

Key(Barcode No.) &
KOS Key Reg.*2

OK

OK

OK

OK

OK

OK

Key ID Input

Key registration
password

The completion of
barcode registration

KOS key
registration
password

KOS key registration
completed

Registration result
display

KOS key registration
Executing

WIRELESS CONTROL MODULE (WCM)

42C-87

ON-VEHICLE SERVICE

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

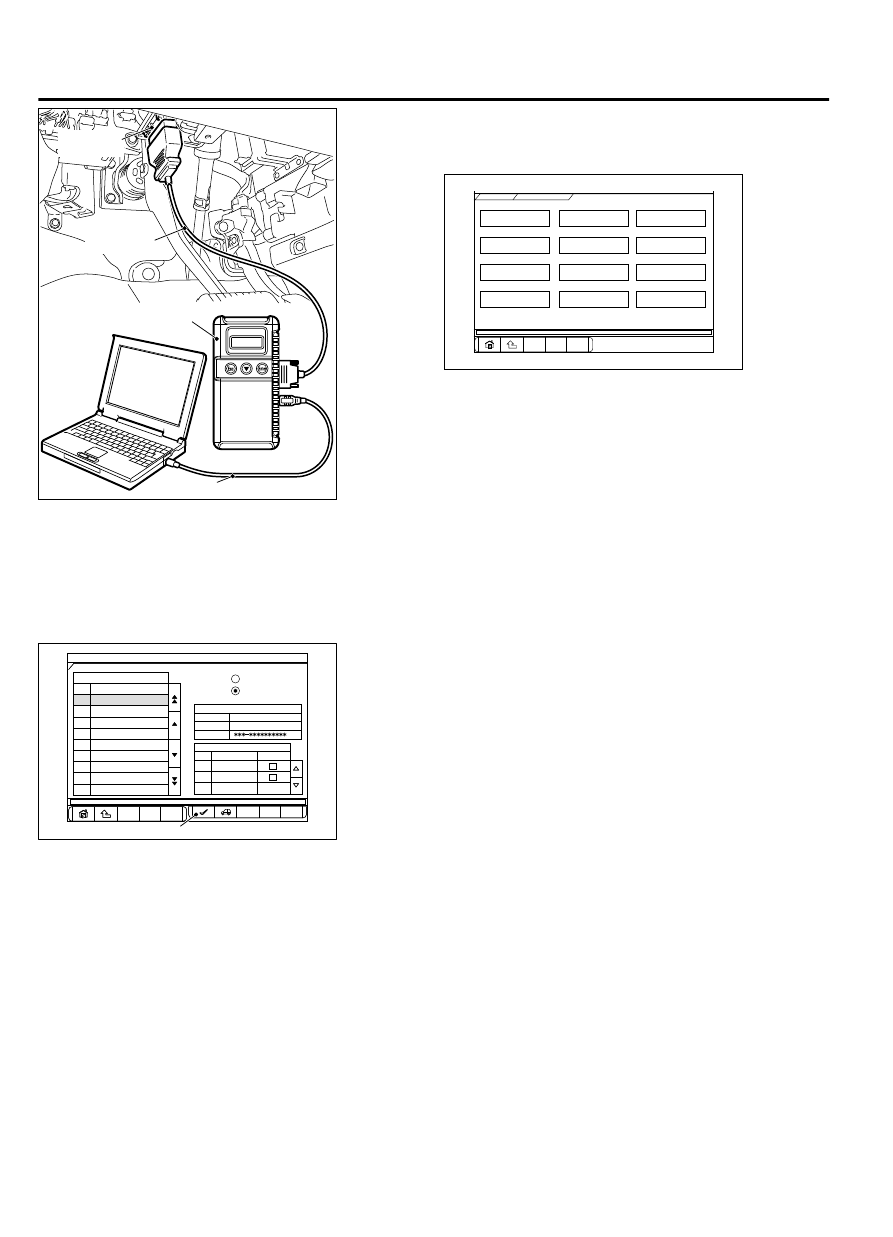

Connect the scan tool to the 16-pin data link connector
as follows.

NOTE:

For details on how to use the scan tool,

refer to the "M.U.T.-III User's Manual."

1.

Start the M.U.T.-III system on the PC and turn the
ignition switch to the "ON" position.

System Select

Select Model Year and System

System List

Model  Yea r

Vehicle In fo r matio n

Loading Option Setup

OPC

With Option

Option Name

Model Name

Model  Yea r

OUTLANDER

2007

Model Code

Up to 2005 MY

From to 2006 M

Y

1

2

3

4

5

6

7

8

9

10

MPI/GDI/Diesel

KOS/IMMOBI/ Keyless/TPM S

AT/CVT/A-M

T

ABS/ASC/ASTC

SAS

Multi Select 4WD

SRS Airbag

A/C

E TA C S

Meter

ZC6037850000

OK button

2.

Select  "KOS/IMMO//Keyless/TPMS"  button  from
the  "System  Select"  screen.  Then,  select  the

applicable  option  code  item  and  push  the  OK
button.

3.

Select "Special Function" on the next screen.

System Select

Please select function.

Special Function

Key Regist ratio n

Key Regist ration (Barcode N

o.)

Keyless ID Reg

ENG  Key Code Reg .

ZC6037870000

Vehicles for WCM

K OS/IMMO/

K e yless/TPM

S

Additional  ke y regist ratio n

Tire Pressure Sensor ID Che

ck

Tire Pressure Sensor ID Regist

ratio n

Tire Pressure Sensor Che

ck

4.

Select the button of the operation to be performed
from the "Special Function" screen.

"Key  Registration":  When  the  ignition  key  is
replaced or added as a single unit.

"Additional  key  registration":  When  the  ignition
key is added as a single unit.

"Key  Registration  (Barcode  No.)":  When  the
ignition key is replaced by the full service key set
or the handle lock service key set is replaced by
the piece.

"ENG key code Reg.": When the engine control
module is replaced.

"Keyless  ID  Reg.":  When  the  ignition  key  is
replaced or added.

"Tire Pressure Sensor ID Registration": When the
TPMS transmitter is replaced.

"Tire  Pressure  Sensor  Check":  When  the  tire
pressure sensor data is checked.

"Tire Pressure Sensor ID Check": When the tire
pressure sensor ID is checked.

NOTE:

For "Key Code Registration," refer to GROUP 00 -
Precautions before Service P.00-26.

For  "Tire  Pressure  Sensor  ID  Registration,"  refer
to P.42C-92
.

For  "Tire  Pressure  Sensor  Check,"  refer  to  P.
42C-94
.

For  "Tire  Pressure  Sensor  ID  Check,"  refer  to  P.
42C-94
.



KEY REGISTRATION METHOD

42C-88

WIRELESS CONTROL MODULE (WCM)

ON-VEHICLE SERVICE

ZC603850 0000

OK button

1.

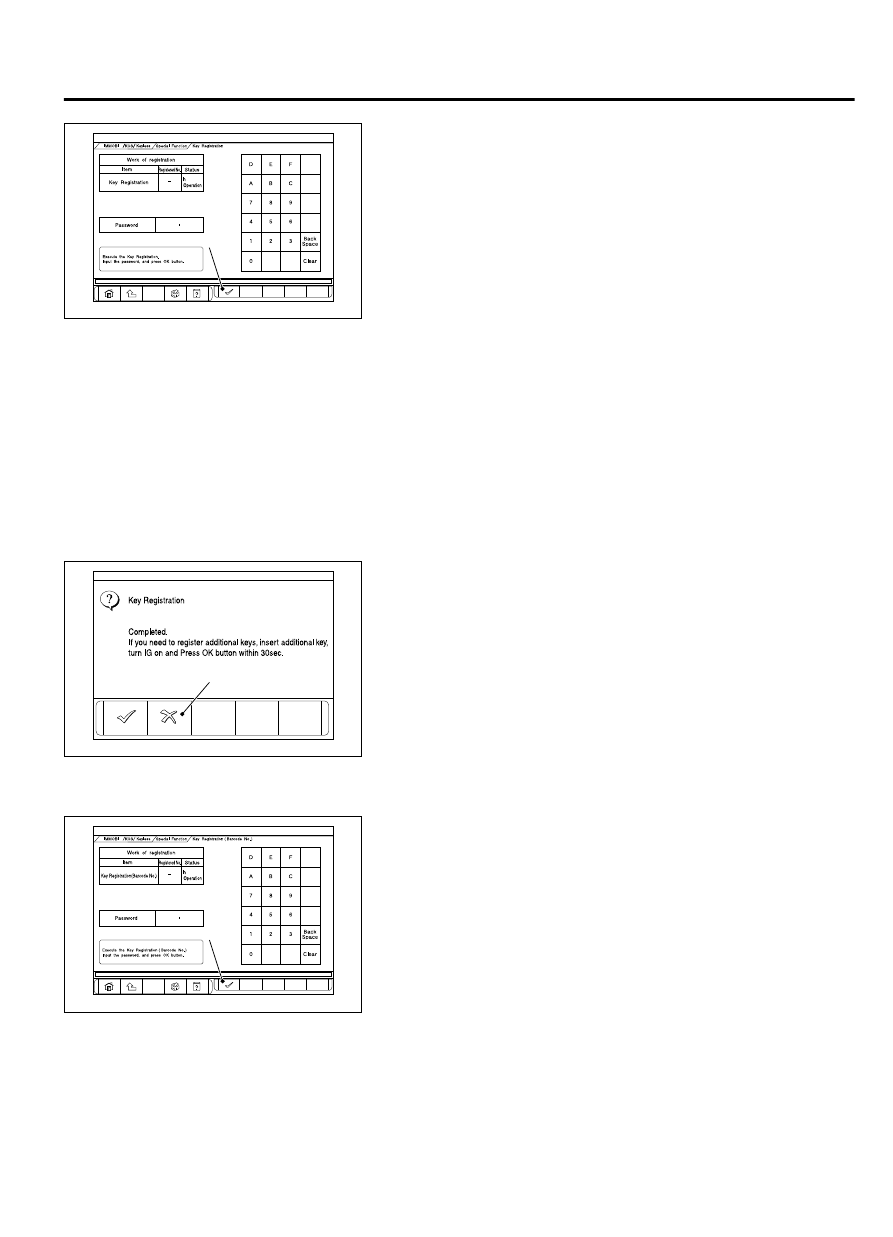

When  "Key  registration"  or  "Additional  key
registration"  screen  is  displayed,  enter  the
password for the key registration and press the OK
button.  Then,  "Executing!"  is  displayed  and  the
registration process starts.

NOTE:

If the wrong password is entered consecutively 5
times, the password entry for the key registration
will be disabled for 16 minutes.

The key registration cannot be cancelled during
the operation.

ZC6038510000

Cancel button

2.

When  the  key  registration  is  completed,
"Completed" is displayed. To register the next key,
follow the message on the screen and press the OK
button. Then, "Executing!" is displayed again and
the registration process for the next key starts. To
finish the key registration, press the cancel button.

NOTE:

In  order  to  register  another  key  consecutively
after registering the first key, the ignition switch
must be turned to the ON position with the second
key  within  30  seconds  after  turning  it  to  the
"LOCK" (OFF) position with the first key.

Up to eight keys can be registered.



KEY REGISTRATION (BARCODE NO.) METHOD

ZC6038520000

OK button

1.

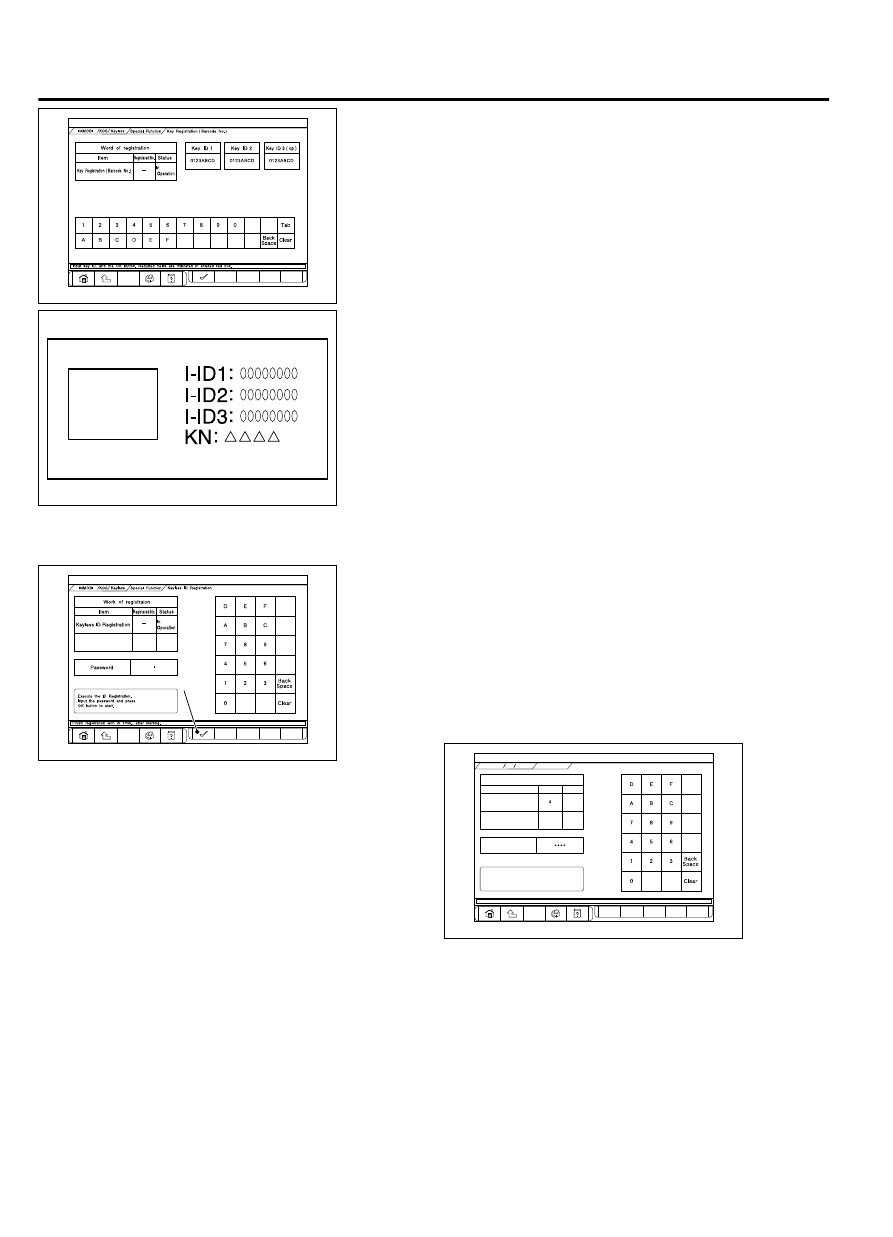

When "Key Registration (Barcode No.)" screen is
displayed,  enter  the  password  for  the  key
registration and press the OK button.

NOTE:

If the wrong password is entered

consecutively 5 times, the password entry for
the key registration will be disabled for 16
minutes.

WIRELESS CONTROL MODULE (WCM)

42C-89

ON-VEHICLE SERVICE

ZC6038530000

ZC6038480000

Barcode

2.

Follow the message on the screen to enter the bar
code No., and then press the OK button.

3.

When  "Do  you  want  to  start  registration?"  is
displayed,  press  the  OK  button  to  start  the
registration,  or  press  the  Cancel  button  to  cancel
the registration.

4.

"Key  Registration  was  completed"  is  displayed.
Press the OK button to finish the registration.



"KEYLESS ID REG." METHOD

ZC6037580000

OK button

1.

On  the  "Keyless  ID  Reg."  screen,  enter  the
password and press the OK button.

2.

Register within 1 minute and send the programming
packet*to  register  the  keyless  ID.  To  register
multiple keys, register the next key within 1 minute
from  the  registration  operation  of  previous  key.
Complete the registration of necessary keys, then
press  the  OK  button  to  finish  the  keyless  ID
registration.

NOTE:

Up to eight ignition keys can be registered.

*: Programming packet sending procedure
Complete  the  following  steps  1  to  3  within  four
seconds.

1.

Press and hold both the lock and the unlock
switch for 1 second or longer.

2.

Release both the lock and the unlock switch
for 0.5 second or longer.

3.

Press the unlock switch.

3.

Push the OK button after "Keyless ID Registration
was finished." is displayed.

IMMOBI

K e yles s

K O S

Special  Function

K e yless  ID  Regist

r atio n

Item

Keyless ID Regist

ratio n

Registered N o. Status

Pas sw or d

W ork  of  regist ratio n

Completed

Che c k  the

n umber  of  regist

r ation .

ZC6037570000

4.

Check number of the keyless IDs registered.



42C-90

WIRELESS CONTROL MODULE (WCM)

ON-VEHICLE SERVICE
