INSPECTION

M14209200057USA0000010000

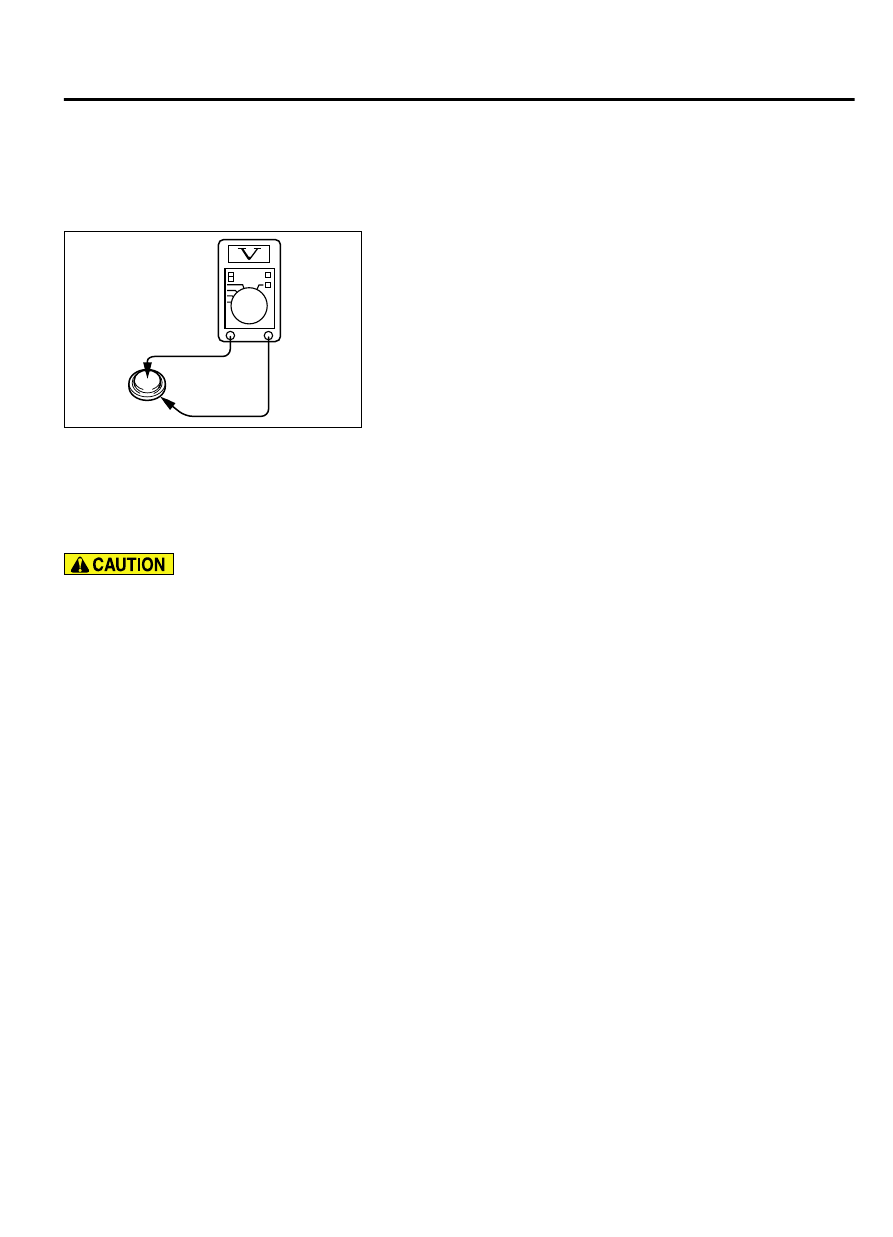

TRANSMITTER BATTERY CHECK

AC004486

Measure the voltage of the battery. If the voltage of the battery
is not within the standard value, replace the battery.

Standard value:2.5 - 3.2 V

TPMS TRANSMITTER

REMOVAL AND INSTALLATION

M14209200072USA0000010000

｠

Ensure valve cap is always in place except when
adjusting tire pressure.

｠

If the valve core and valve cap are replaced, use
a genuine replacement part. The valve core is
similar  to  a  conventional  one,  but  uses  nickel
plating to avoid corrosion.

｠

Replace  the  valve  stem  grommet  and  washer
with a new one every five years or when the tire
is replaced.

｠

Do not drop the TPMS transmitter from height
greater than 1 meter (3.3 feet).

｠

Do  not  expose  the  TPMS  transmitter  to
extraneous magnetic fields.

｠

TPMS  transmitter  should  not  be  stored  at
temperatures above 80°C (176°F).

｠

TPMS  transmitter  should  not  be  exposed  to
temperatures above 100°C (212°F).

｠

If  the  TPMS  transmitter  is  replaced,  execute
"Tire Pressure Sensor ID Registration" on scan
tool MB99158 "Special Function."

Pre-removal Operation

｠

Wheel and Tire Removal

Post-installation Operation

｠

Wheel and Tire Installation

｠

Tire Pressure Sensor ID Registration If a new TPMS transmitter is installed (Refer to P.42C-92.)

｠

After the tire pressure sensor ID registration, check that the TPMS warning light does not illuminate

or flash.

WIRELESS CONTROL MODULE (WCM)

42C-99

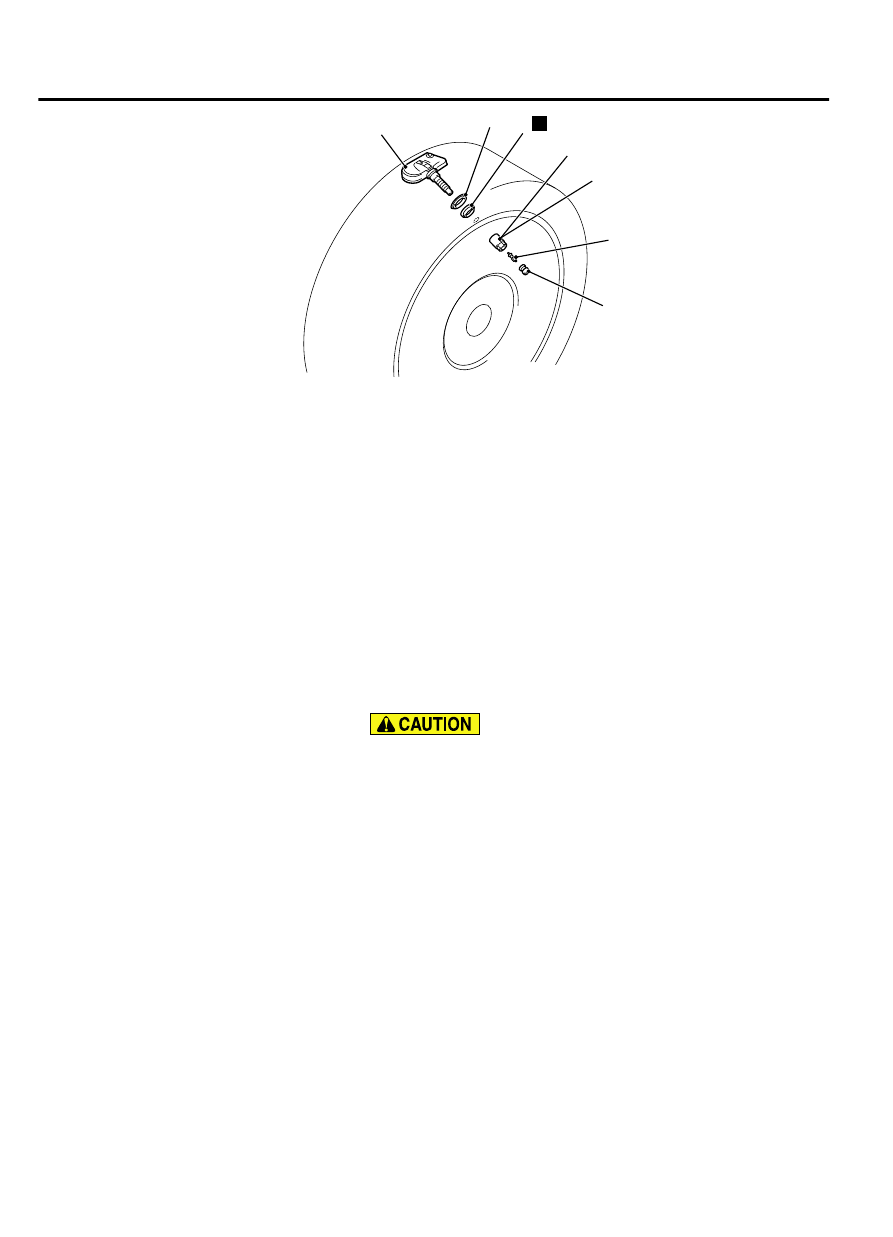

TRANSMITTER

ZC6045420000

1

2

3

4

N

8.0 ± 0.5 N·m
71 ± 4 in-lb

0.25 N·m
2.5 in-lb

5

REMOVAL STEPS

<<A>>

1.

VALVE CAP

<<A>>

2.

VALVE NUT

·

LET  TPMS  TRANSMITTER
FALL INTO TIRE

·

TIRE BEAD

<<B>>

3.

TPMS TRANSMITTER

<<C>>

4.

GROMMET

<<C>>

5.

WASHER
INSTALLATION STEPS

>>A<<

5.

WASHER

INSTALLATION STEPS

>>A<<

4.

GROMMET

>>A<<

3.

TPMS TRANSMITTER

>>A<<

2.

VALVE NUT

>>B<<

·

TIRE BEAD MOUNTING

>>C<<

·

TIRE PRESSURE INFLATION

>>C<<

·

VALVE NUT RETIGHTENING

1.

VALVE CAP

REMOVAL SERVICE POINTS

<<A>> VALVE CAP/VALVE NUT REMOVAL

Ensure valve cap is always in place except when adjusting
tire pressure.

1.

Remove the valve cap.

2.

Rotate tire so that valve stem is in the 6 o’clock position.

3.

Use a long-reach 17.2 mm (0.68 inch) socket to unscrew the
valve nut and remove it. Slowly push valve stem into tire so
that tire pressure is relieved.

4.

Once tire pressure is relieved, let TPMS transmitter into tire.

42C-100

WIRELESS CONTROL MODULE (WCM)

TPMS TRANSMITTER

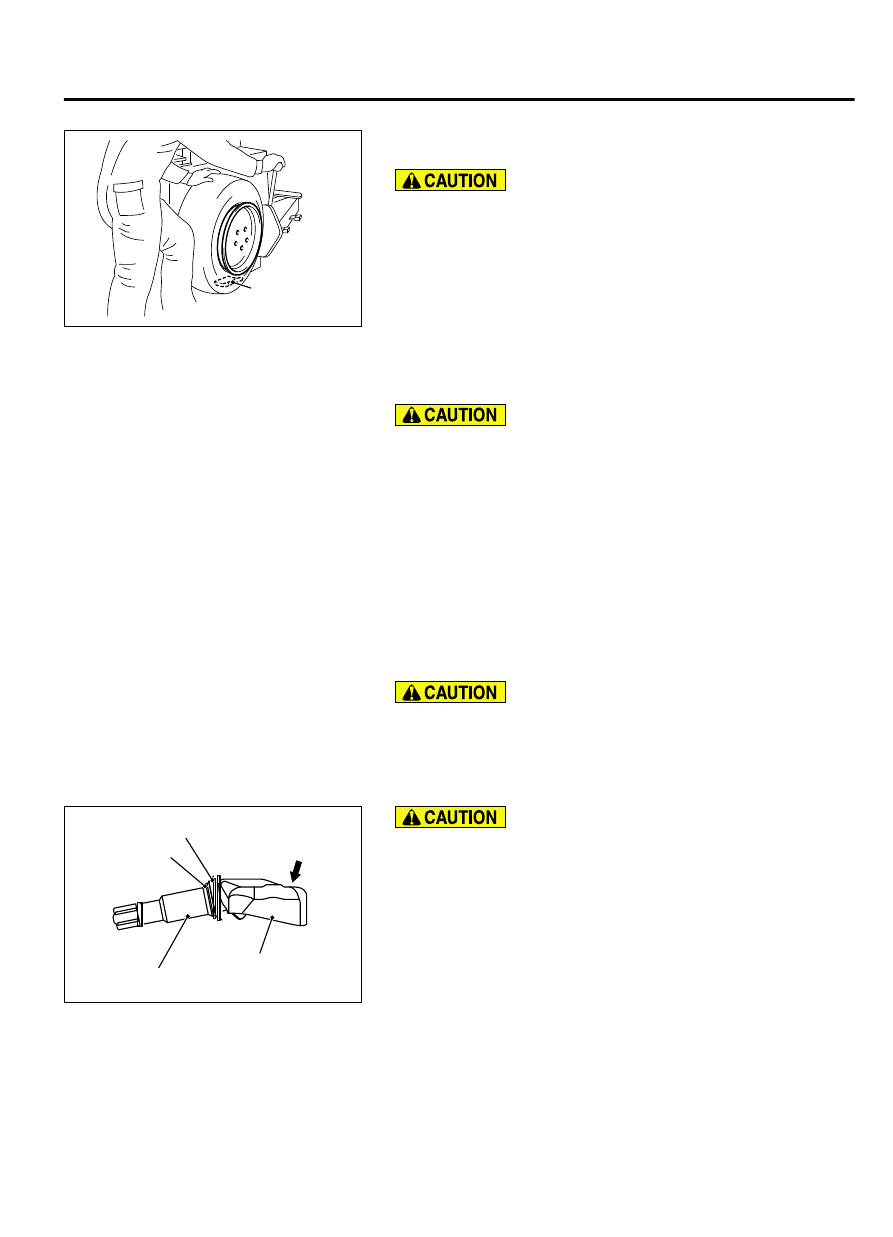

<<B>> TPMS TRANSMITTER REMOVAL

ZC6008320000

TPMS
Transmitter

1.

Place  on  tire  changing  machine  and  break  both  tire  beads
ensuring that the transmitter remains in the bottom of the tire.

Be careful not to damage the TPMS transmitter.

2.

Lubricate tire well and remove outer side of the tire.

3.

Reach inside the tire and remove the TPMS transmitter.

4.

Remove tire from rim using proper tire changing equipment
procedures.



<<C>> GROMMET/WASHER REMOVAL

｠

Do not vary the angle of valve except at mounting on the
rim.  If  varying  the  angle  over  and  over,  it  may  cause
breakage  of  antenna  plate  resulting  in  the  failure  of
transmitter.

｠

Use  a  soft  tool  to  remove  the  grommet  and  washer  to
prevent scratching the valve of the TPMS transmitter.

Remove the grommet and washer from the TPMS transmitter.

INSTALLATION SERVICE POINTS

>>A<< GROMMET/WASHER/TPMS TRANSMITTER/VALVE
NUT INSTALLATION

When installing a new grommet and washer, make sure to
support the valve stem base with a thumb so that there is
no  movement  of  the  stem.  Otherwise,  the  stem  may
protrude resulting in the breakage of antenna plate.

1.

Install a new grommet and washer to the TPMS transmitter.

ZC6045430000

TPMS transmitter

Grommet

Valve nut

Holes

Washer

｠

Visually check that TPMS transmitter is not deformed or
damaged.

｠

When  installing  the  TPMS  transmitter,  be  sure  the  rim,
grommet and valve nut are clean.

｠

Ensure  the  grommet  is  located  inside  the  valve  hole
before installing the valve nut.

｠

While  installing  the  valve  nut,  push  the  transmitter  to
maintain the lower lip of the transmitter case is in contact
with the rim without clearance.

｠

While  installing  the  valve  nut,  ensure  the  tool  is  kept
aligned to the valve and the valve hole.

｠

After installing the valve nut, check that the grommet is
compressed and washer is bend.

WIRELESS CONTROL MODULE (WCM)

42C-101

TPMS TRANSMITTER

2.

Mount TPMS transmitter valve through rim hole as illustrated.
Pressure holes in the transmitter case should face away from
center of rim. Tighten valve nut finger tight, then slowly torque
the valve nut to 8.0 ± 0.5 N·m (71 ± 4 in-lb).

Install  the  TPMS  transmitter  correctly.  If  the  TPMS
transmitter  is  installed  incorrectly,  it  may  not  work
correctly, or become damaged when the tire is installed.

3.

Check  that  the  TPMS  transmitter  is  correctly  assembled
(Refer to illustration).

｠

Lower lip of the TPMS transmitter case is touching the rim
after torquing.



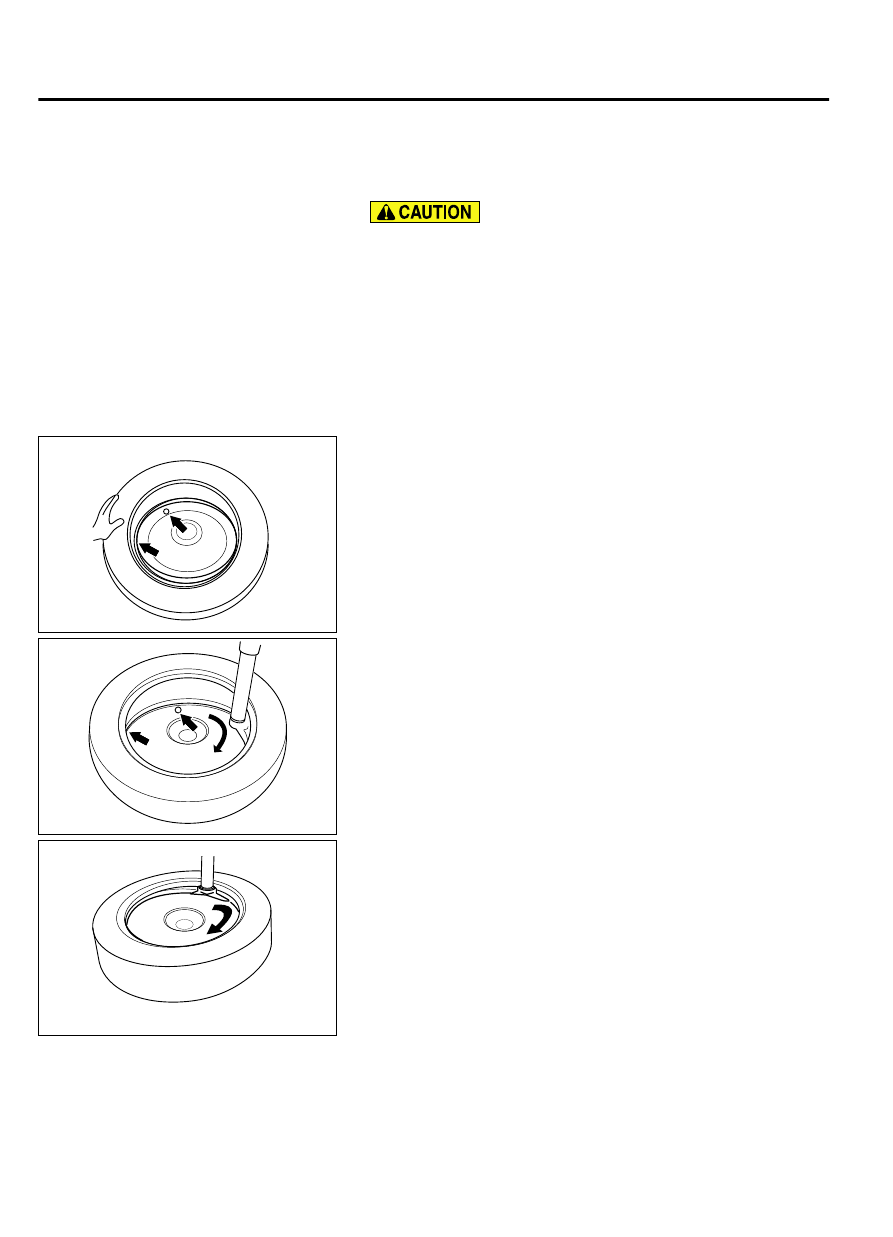

>>B<< TIRE BEAD MOUNTING

ZC604545 AA00

1.

Put the tire on the rim, so that the cross point of the belt with
the rim is approximately 20 cm (7.9 inch) away from the valve

ZC604546AA00

2.

Engage  the  shoe  and  make  sure  that  20  cm  (7.9  inch)  is
maintained between the cross point and the valve. The arrow
shows the direction of rotation of the wheel.

ZC604547AA00

3.

Turn the wheel in order to engage all the first side of the tire.

NOTE:

The standard shoes can pass over the sensor without

damaging it.

42C-102

WIRELESS CONTROL MODULE (WCM)

TPMS TRANSMITTER
