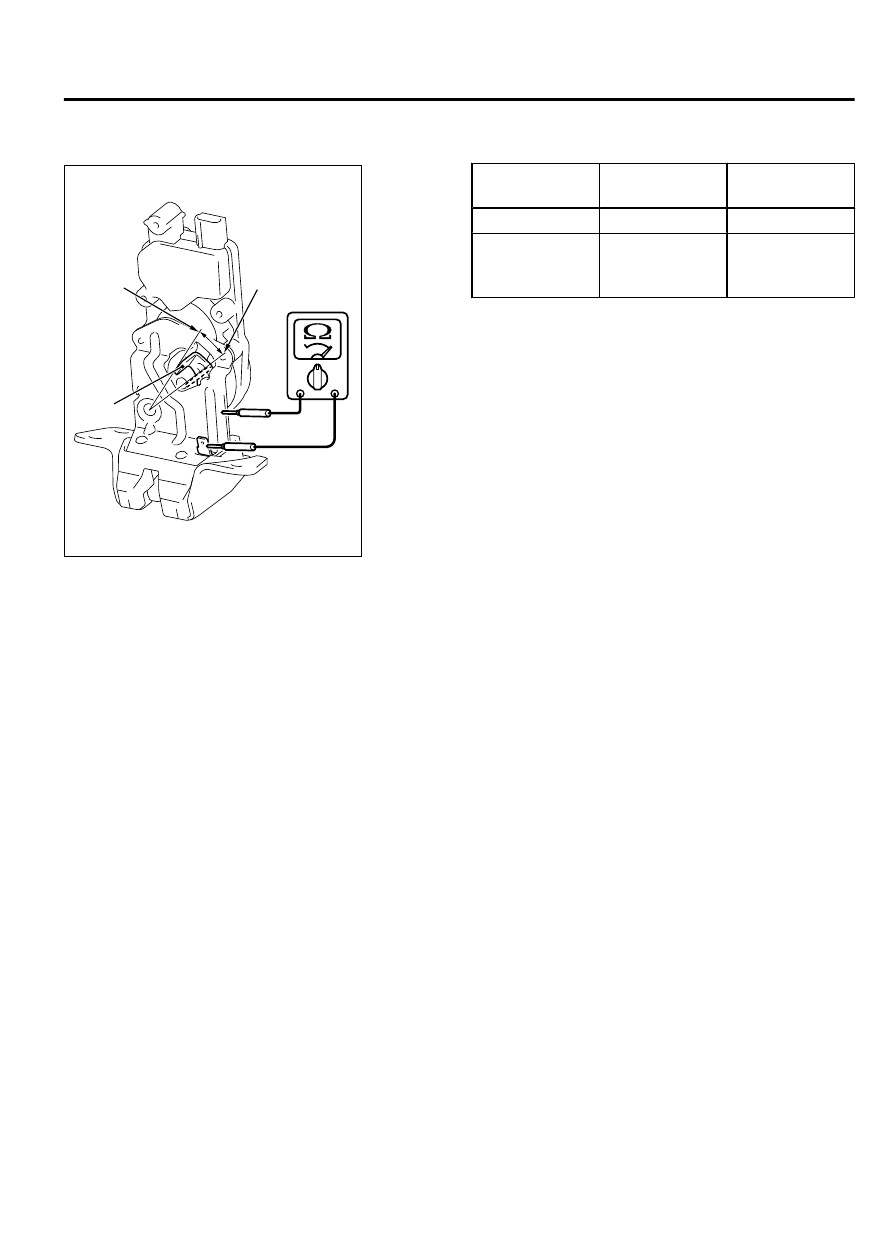

LIFTGATE LATCH SWITCH CHECK

ZC6001200000

1

Lock

Lever

Unlock

Lever position Terminal

number

Normal value

Lock

1 - Ground

Open circuit

Unlock

1 - Ground

Continuity
exists  (2  Ω  or
less)

LIFTGATE

42Ac-15

LIFTGATE HANDLE AND LATCH

MEMO

42Ac-16

LIFTGATE

GROUP 42Ad

SUNROOF

CONTENTS

SPECIFICATION(S)..............

42Ad-2

SERVICE SPECIFICATION.........

42Ad-2

SEALANT.......................

42Ad-2

GENERAL INFORMATION...........

42Ad-2

SUNROOF DIAGNOSIS.............

42Ad-4

TROUBLESHOOTING STRATEGY.....

.42Ad-4

DIAGNOSTIC TROUBLE CODE CHART
..............................

42Ad-4

TROUBLE SYMPTOM CHART.........

42Ad-4

DIAGNOSTIC TROUBLE CODE PROCEDURES
..............................

42Ad-5

Code No. L0630 S/R Power Supply
................................

42Ad-5

Code No. L0632 S/R Switch fall
................................

42Ad-8

Code No. L0634 S/R Sensor signal
...............................

42Ad-11

Code No. L0637 S/R Position....

42Ad-12

Code No. L0640 S/R Over load
...............................

42Ad-13

SYMPTOM PROCEDURES...........

42Ad-14

INSPECTION PROCEDURE 1: Sunroof does
not Work at All................

42Ad-14

INSPECTION PROCEDURE 2: The Sunroof Lid
Glass does not Tilt-up (Open, Tilt-down
and Close Normally)............

42Ad-21

INSPECTION PROCEDURE 3: The Sunroof Lid
Glass does not Open (Tilt-up, Tilt-down
and Close Normally)............

42Ad-24

INSPECTION PROCEDURE 4: The Sunroof Lid
Glass does not Tilt-down or Close
(Tilt-up and Open Normally).
...............................

42Ad-27

INSPECTION PROCEDURE 5: Sunroof Safety
Function does not Work Normally.
...............................

42Ad-30

INSPECTION PROCEDURE 6: The Sunroof
Timer Function does not Work Normally.
...............................

42Ad-31

SUNROOF MOTOR ASSEMBLY TERMINAL
CHECK........................

42Ad-34

SPECIAL TOOLS................

42Ad-35

ON-VEHICLE SERVICE...........

42Ad-36

WATER TEST...................

42Ad-36

SUNROOF FIT ADJUSTMENT.......

42Ad-36

SUNROOF SAFETY FUNCTION CHECK
.............................

42Ad-37

SUNROOF CHECK................

42Ad-37

SUNROOF TIMER FUNCTION CHECK
.............................

42Ad-37

SUNROOF LID GLASS OPERATION CURRENT
CHECK........................

42Ad-38

LEARNING PROCEDURES OF THE SUNROOF
FULLY CLOSED POSITION........

42Ad-38

SUNROOF OPERATION CHECK......

42Ad-39

SUNROOF ASSEMBLY.............

42Ad-41

REMOVAL AND INSTALLATION. . . . .

42Ad-41

INSPECTION...................

42Ad-43

42Ad-1

SPECIFICATION(S)

SERVICE SPECIFICATION

M14206000003USA0000010000

ITEM

STANDARD VALUE

Sunroof lid glass operation current A

7 or less [at 20°C(68°F)]

SEALANT

M14206000005USA0000010000

ITEM

SPECIFIED SEALANT

Sunroof assembly

Grease: Use resin - proof silicone grease

GENERAL INFORMATION

M14206000001USA0000010001

SUNROOF FUNCTION

A motor-driven inner slide-type glass sunroof with a
tilt-up  mechanism  is  available  in  all  models  as  am
optional  equipment.  Even  when  the  sunroof  is  fully

closed, a sufficient amount of lighting and a feeling of
openness can still be obtained by opening the sunroof
sunshade.

SUNROOF TIMER FUNCTION

ZC6002580003

t

Driver's door switch or

passenger’s door switch

OFF

ON

OFF

(Close)

ON

(Open)

Ignition switch (IG1)

Sunroof operation

(Disabled) OFF

(Enabled) ON

t: 30 Seconds

(Sunroof timer operation time)

The sunroof ECU (integrated into the sunroof motor
assembly)  receives  the  ignition  switch  (IG1)  signal
transmitted  by  ETACS-ECU.  If  the  ignition  switch
(IG1) signal turns OFF, the sunroof ECU allows the
sunroof  switch  to  open/close  (timer  activation)  the
sunroof  for  approximately  30  seconds.  During  the
timer  operation,  if  the  driver's  or  passenger’s  door
open  is  detected  from  the  door  switch  signal
transmitted  by  ETACS-ECU,  the  sunroof  timer
function stops at this time.

42Ad-2

SUNROOF

SPECIFICATION(S)
