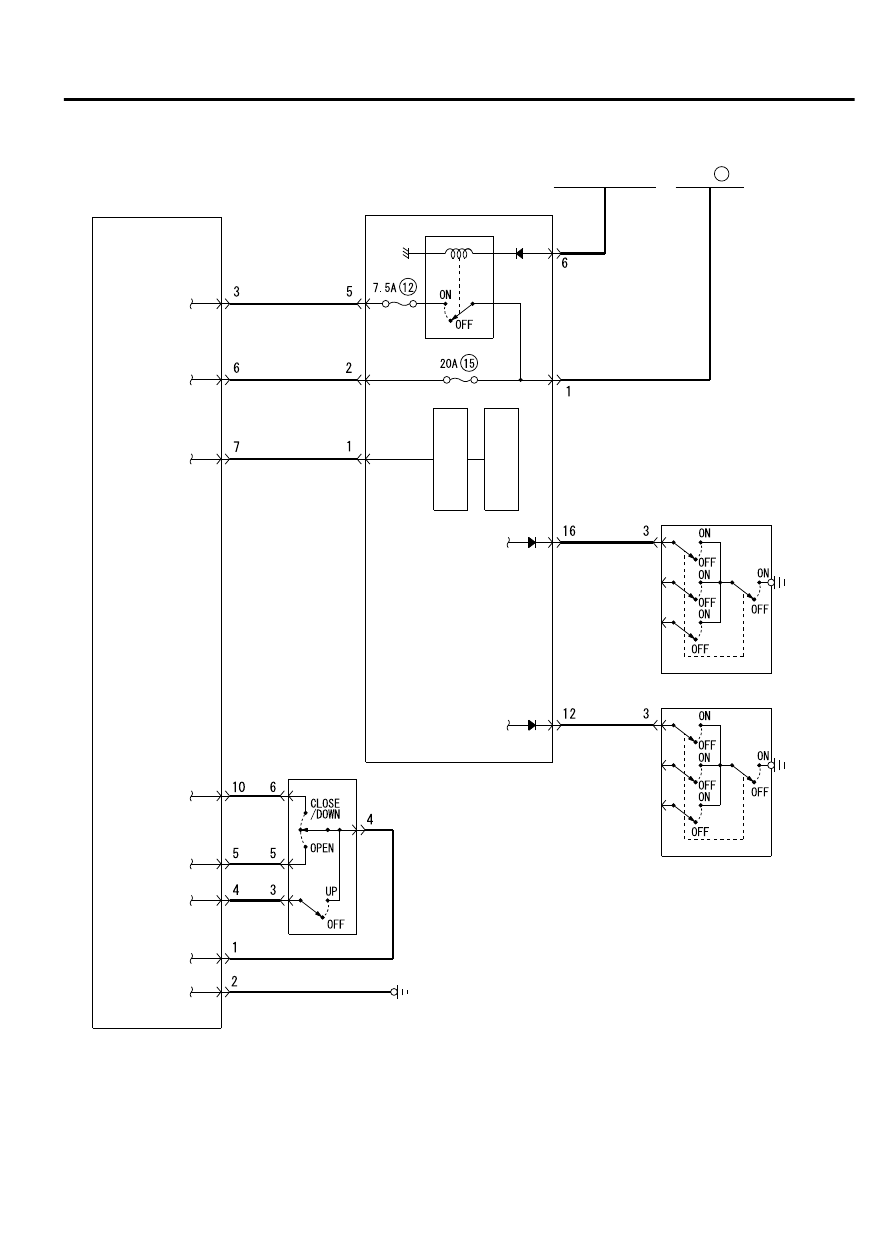

GENERAL CIRCUIT DIAGRAM REGARDING THE SUNROOF

ZC602677

SUNROOF
SWITCH

SUNROOF
MOTOR
ASSEMBLY

INTERF

A

CE

CIRCUIT

LIN DRIVE

CIRCUIT

FUSIBLE
LINK

34

ETACS-ECU

IGNITION
SWITCH (IG1)

0000

FRONT DOOR
SWITCH

(LH)

FRONT DOOR
SWITCH

(RH)

SUNROOF

42Ad-3

GENERAL INFORMATION

SUNROOF DIAGNOSIS

TROUBLESHOOTING STRATEGY

M14206000017USA0000010001

Refer  to  GROUP  00,  How  to  Use  Troubleshooting/Inspection
Service Points, Troubleshooting Contents P.00-6.

DIAGNOSTIC TROUBLE CODE CHART

M14206000019USA0000010000

On troubleshooting, if the ignition switch is turned
ON while disconnecting connector(s), diagnostic
trouble code(s) associated with other system may

be  set.  On  completion,  confirm  all  systems  for
diagnostic  trouble  code(s).  If  diagnostic  trouble
code(s) are set, erase them all.

Diagnostic trouble code No.

Diagnostic item

Reference page

L0630

S/R Power supply

 P.42Ad-5

L0632

S/R Switch fall

 P.42Ad-8

L0634

S/R Sensor signal

 P.42Ad-11

L0637

S/R Position

 P.42Ad-12

L0640

S/R Over load

 P.42Ad-13

NOTE:

S/R: Abbreviation of sunroof

TROUBLE SYMPTOM CHART

M14206000020USA0000010001

During  diagnosis,  a  diagnostic  trouble  code
associated with other system may be set when the
ignition  switch  is  turned  on  with  connector(s)

disconnected.  On  completion,  confirm  all
systems  for  diagnostic  trouble  code(s).  If
diagnostic trouble code(s) are set, erase them all.

TROUBLE SYMPTOM

INSPECTION
PROCEDURE
NUMBER

REFERENCE
PAGE

Sunroof does not work at all.

1

 P.42Ad-14

The sunroof lid glass does not tilt-up (tilt-down, open, and close normally).

2

 P.42Ad-24

The sunroof lid glass does not open (tilt-up, tilt-down, and close normally).

3

 P.42Ad-21

The sunroof lid glass does not tilt-down or close (tilt-up and open normally). 4

 P.42Ad-27

Sunroof safety function does not work normally.

5

 P.42Ad-31

Sunroof timer lock function does not work normally.

6

 P.42Ad-30

42Ad-4

SUNROOF

SUNROOF DIAGNOSIS

DIAGNOSTIC TROUBLE CODE PROCEDURES

Code No. L0630 S/R Power Supply

M14206000901USA0000010000

Before replacing the ECU, ensure that the input and output
signal circuits are normal.

SUNROOF

42Ad-5

SUNROOF DIAGNOSIS

ZC602545

CPU

INPUT CIRCUIT

INPUT CIRCUIT

DRIVE CIRCUIT

SUNROOF MOTOR

HALL SENSOR

SUNROOF
MOTOR
ASSEMBLY

INTERFACE
CIRCUIT

LIN DRIVE
CIRCUIT

FUSIBLE
LINK

34

ETACS-ECU

BLA

CK

GREEN

VIOLET

WHITE

WHITE

0000

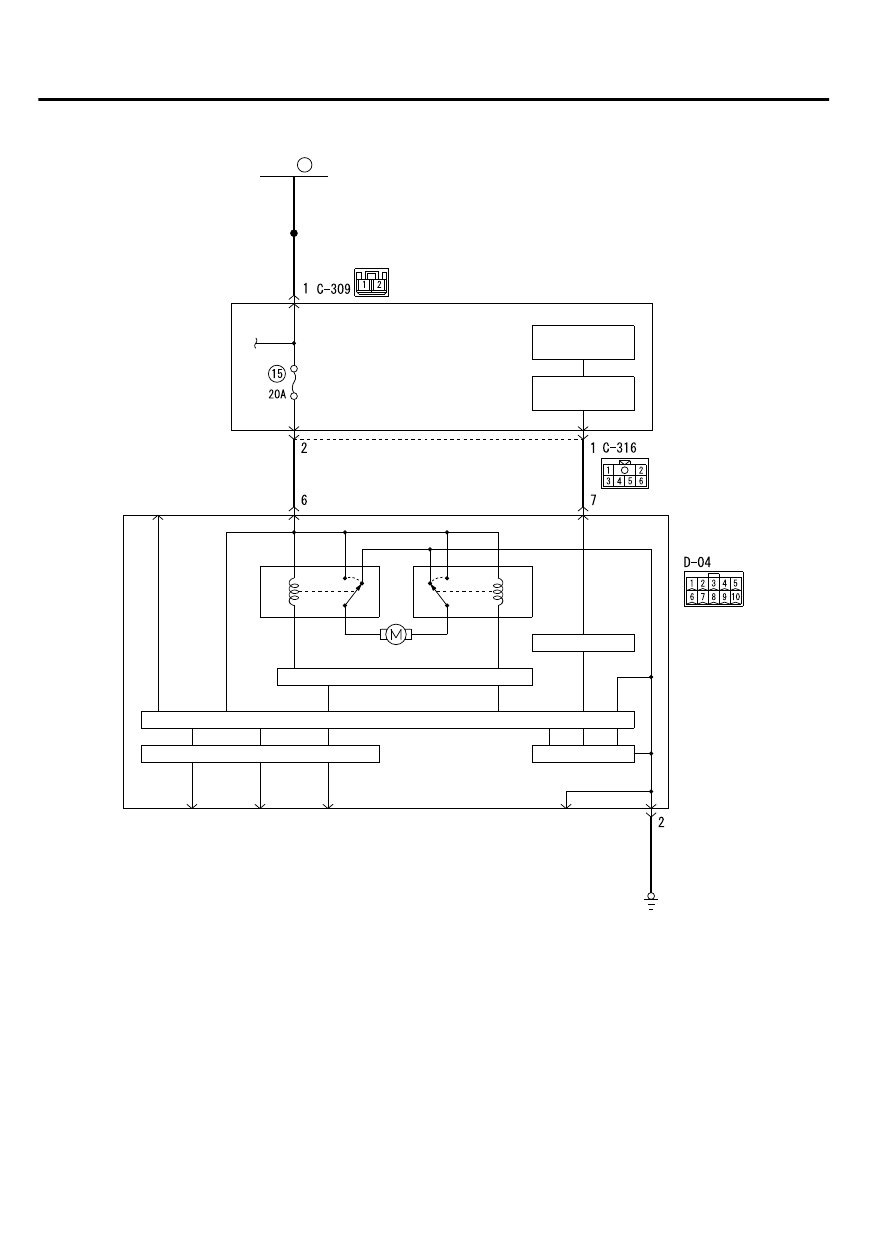

Sunroof Motor Assembly Power Supply Circuit

42Ad-6

SUNROOF

SUNROOF DIAGNOSIS
