CENTRAL DOOR LOCKING SYSTEM CHECK

M14203000908USA0000010000

｠

Check that the central door locking system works by operating
the driver's door key cylinder or the door lock switch. If it does
not operate, perform troubleshooting. Refer to P.42Ab-11.

NOTE:

When the inside lock knob is operated with the

driver's door opened, the driver's door is not locked.

｠

Check whether the driver's door is opened when the driver's
door inside handle is pulled with all the doors locked. If it does
not operate, replace the driver's door latch assembly. Refer
to P.42Ab-102.

KEY-IN PREVENTION FUNCTION CHECK

M14203000909USA0000010000

Check that the driver's door is not locked when the key cylinder
or door lock switch is operated with the driver's door opened. If
it is locked, replace the door latch. Refer to P.42Ab-102.

SELECTOR "P" POSITION-LINKED DOOR

UNLOCKING FUNCTION CHECK

M14203000910USA0000010000

When the selector is moved to the P (parking) position with the
ignition switch on, all the doors and the liftgate will be unlocked.
Carry  out  troubleshooting  if  the  door  is  unlocked.  Refer  to  P.
42Ab-11.

NOTE:

The selector "P" position-linked door unlocking

function can be switched with the customization function.
Confirm it before check. Refer to P.42Ab-94.

DOOR

42Ab-91

ON-VEHICLE SERVICE

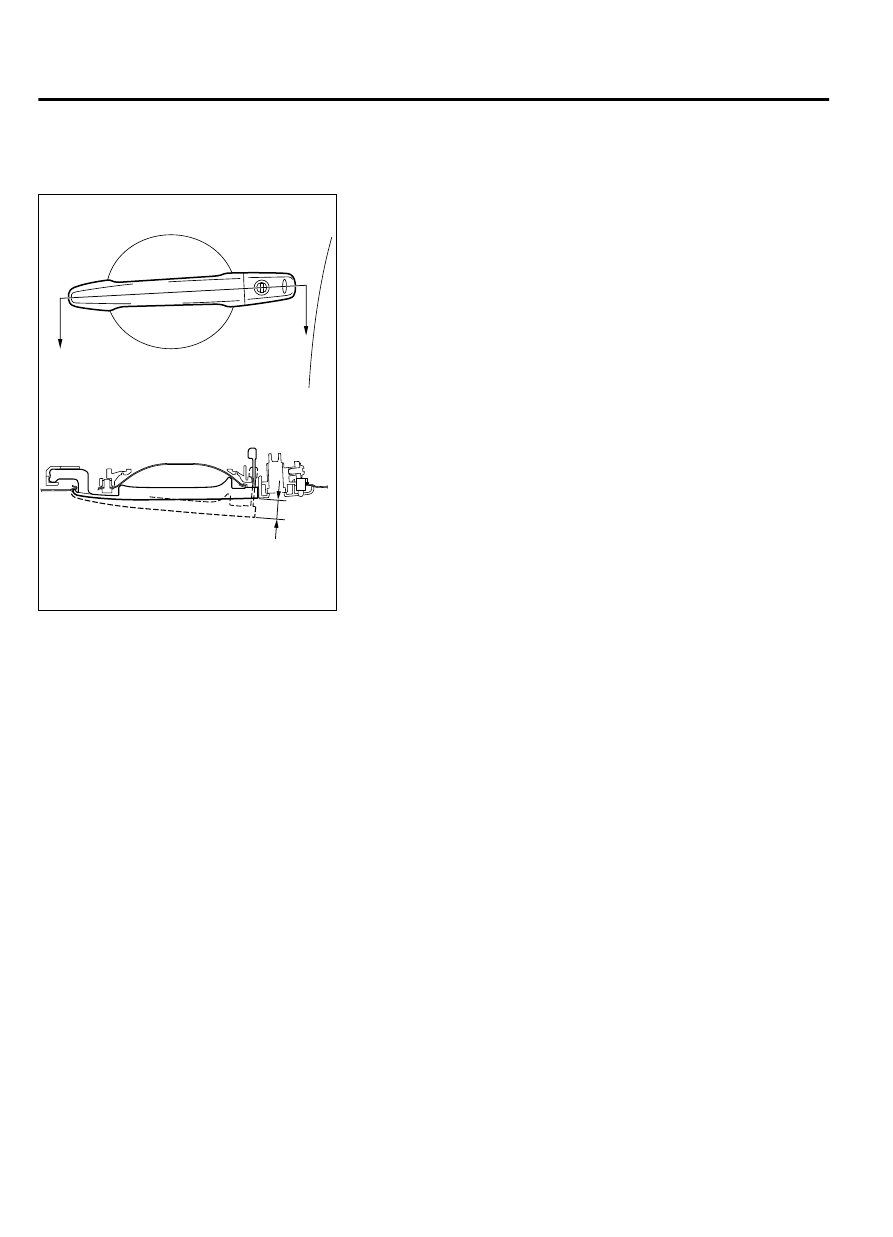

DOOR OUTSIDE HANDLE ASSEMBLY PLAY

CHECK

M14203000016USA0000010000

ZC600073

A

A

B

0000

Section A – A

1.

Check that the door inside handle assembly play meets the
standard value.

Standard  value  (B):  0.1  -  5.2  mm  (0.004  -  0.2  inch)
[Target value: 2.5 mm (0.1 inch)]

2.

Check  the  door  outside  handle  assembly  and  door  latch
assembly, and replace them if they are out of the standard
value.

42Ab-92

DOOR

ON-VEHICLE SERVICE

DOOR INSIDE HANDLE CHECK

M14203000015USA0000010000

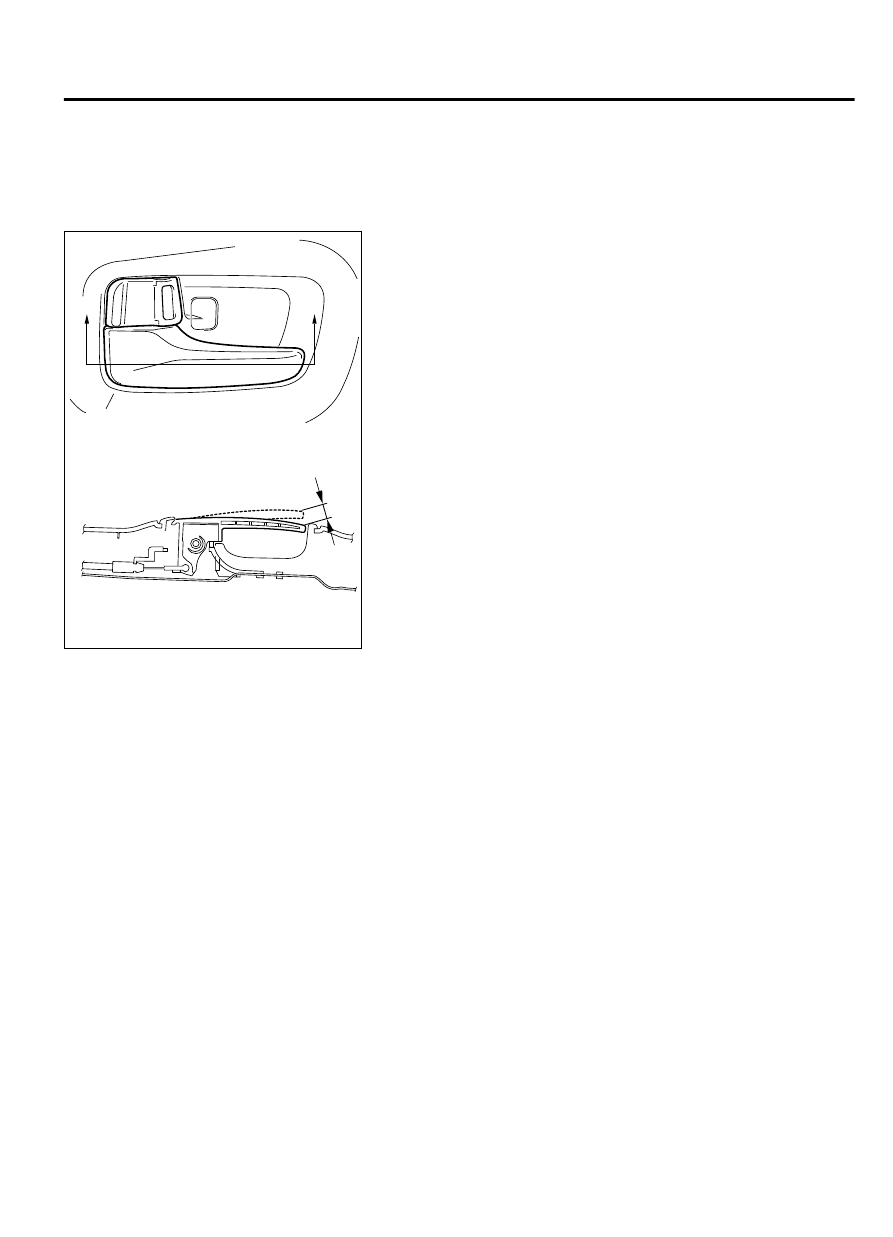

DOOR INSIDE HANDLE KNOB PLAY CHECK

ZC600074

A

A

B

0000

Section A – A

1.

Check  that  the  door  inside  handle  knob  play  meets  the
standard value.

Standard value (B):
Front driver’s side: 10.0 - 23.7 mm (0.39 - 0.93 inch)
[Target value: 17.0 mm (0.67 inch)]
Except Front driver’s side: 5.0 - 18.7 mm (0.2 - 0.74
inch) [Target value: 12.0 mm (0.47 inch)]

2.

Check the door inside handle and door latch assembly, and
replace them if they are out of the standard value.

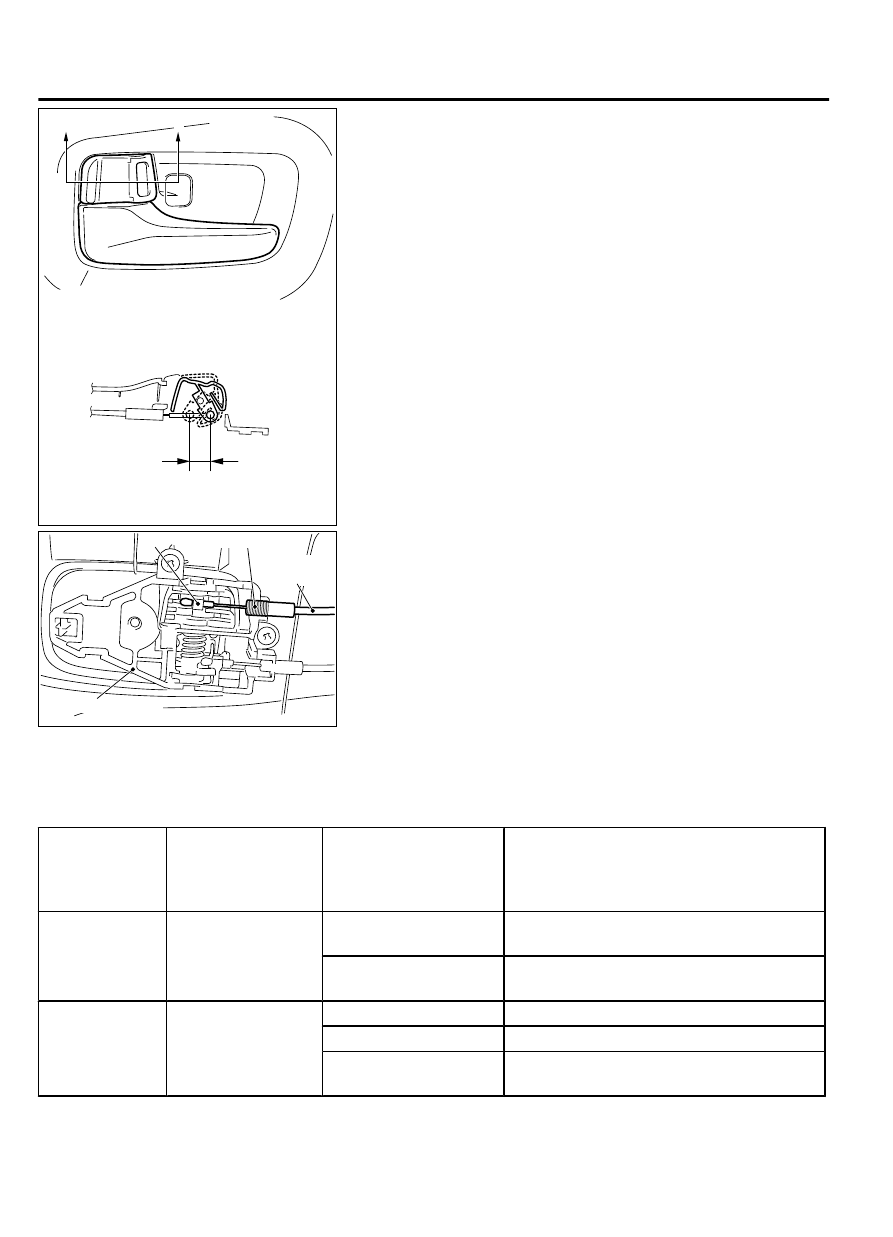

DOOR INSIDE HANDLE LOCK KNOB STROKE

CHECK

1.

Remove the door trim assembly (Refer to GROUP 52A - Door
Trim P.52A-11).

DOOR

42Ab-93

ON-VEHICLE SERVICE

ZC600075

A

B

0000

A

Section A – A

2.

Check  that  the  stroke  of  the  door  inside  handle  lock  knob
meets the standard value.

Standard value (B): 13.7 - 15.0 mm (0.54 - 0.59 inch)
[Target value: 14.7 mm (0.58 inch)]

ZC6000760000

Clip

Outer cable end

Inside lock

cable

Door inside handle

3.

If it is outside the standard value, adjust the stroke of the inside
handle lock knob by using the outer cable end, which connects
the inside handle lock knob to the inside lock cable.

CUSTOMIZE FUNCTION

M14203000976USA0000010000

With the scan tool MB991958 operation, the following
functions  can  be  programmed.  The  programmed

information  is  held  even  when  the  battery  is
disconnected.

Adjustment
item (scan tool
MB991958
display)

Adjustment item

Adjusting

 contents

(scan  tool  MB991958
display)

Adjusting contents

Door

 unlock

mode

Door lock system

All doors unlock

All the doors are unlocked when the driver's
side door is unlocked.

Dr door unlock

Only the driver's side door is unlocked when
the driver's side door is unlocked. (default)

Auto

 door

unlock  by  P
position

Auto door unlock by
P position function

Disable

Without function (default)

Always enabled

Always with function

P/W unlocked

With  function  (with  power  window
unlocked)

42Ab-94

DOOR

ON-VEHICLE SERVICE
