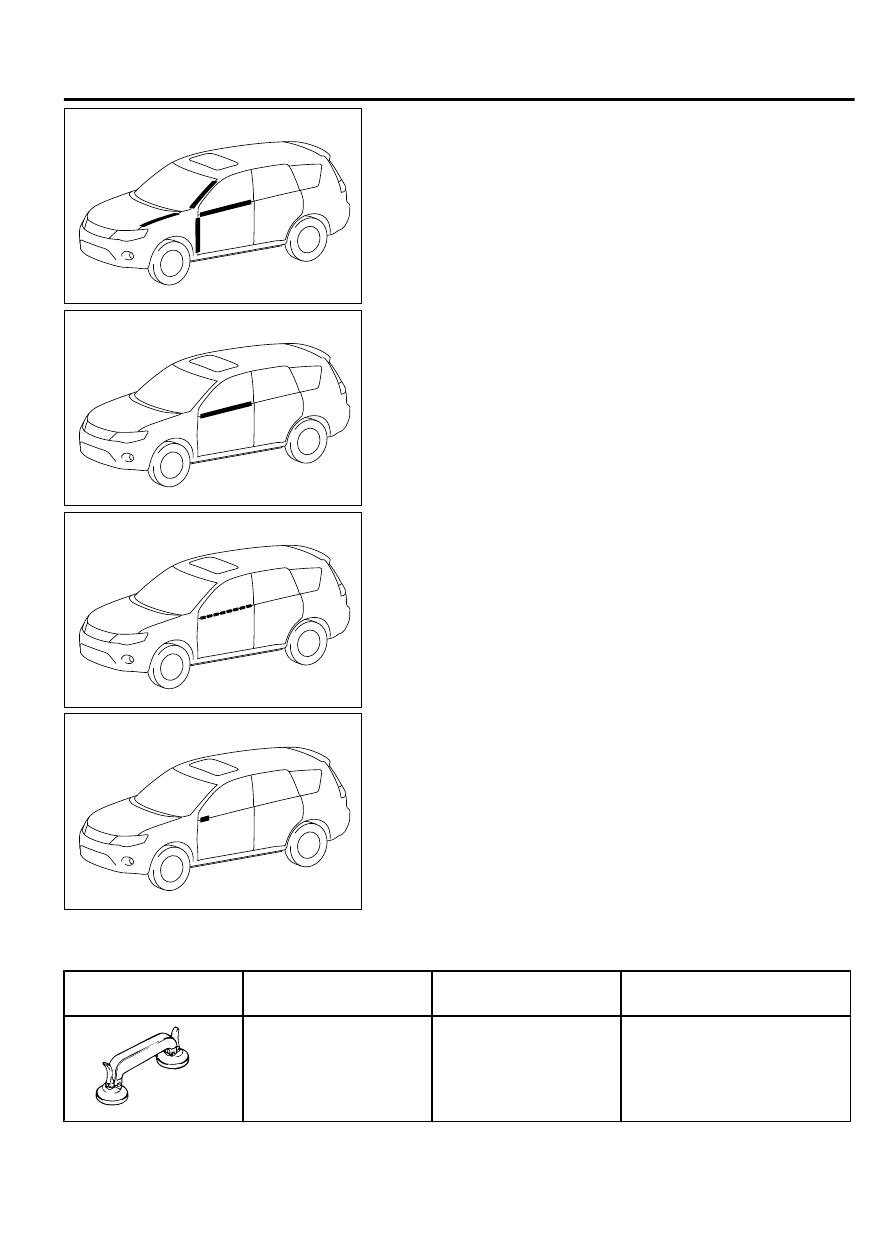

ZC6001230000

3.

Remove the strips of tape one by one, making a road test after
each is removed, until a wind noise source is discovered.

ZC6001240000

4.

When  such  a  place  is  found,  cover  it  again  and  repeat  the
procedure to check if there are any other noise source.

5.

If  no  others  are  found,  the  last  remaining  tape  is  the  only
source.

ZC6001250000

6.

Cut the remaining piece of tape into smaller pieces, attach it
again as it was before, and then remove the pieces one by
one to narrow down the source.

ZC6001260000

7.

Check that wind noise occurs when the last remaining tape is
removed, and that noise does not occur when it is re-attached.

8.

When the source(s) of the wind noise is finally located, attach
butyl  tape,  body  sealer  or  similar  material  to  obstruct  this
source as much as possible.

SPECIAL TOOLS

M14203000006USA0000010000

TOOL

TOOL  NUMBER  AND
NAME

SUPERSESSION

APPLICATION

MB990480

MB990480 Glass holder General service tool

Removal  and  installation  of
power window regulator

DOOR

42Ab-83

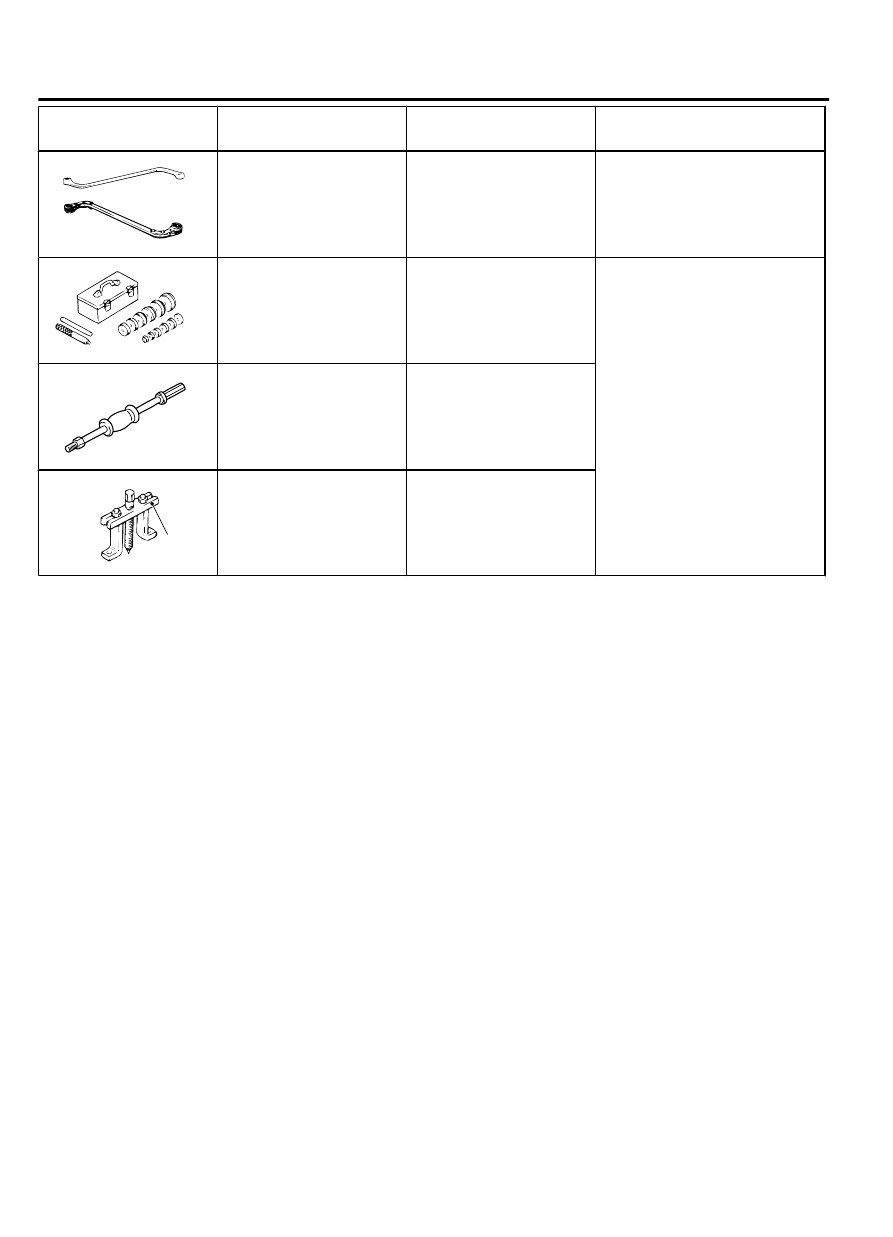

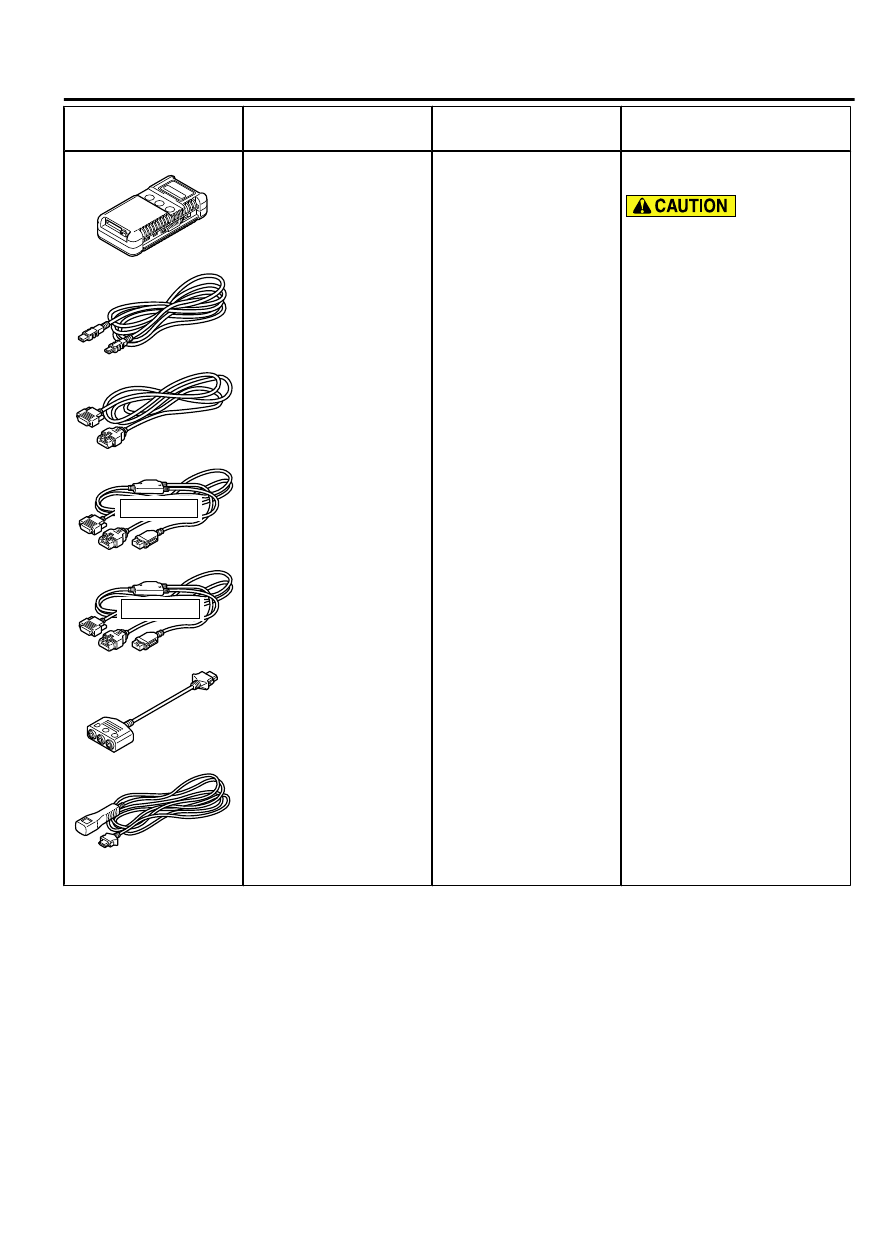

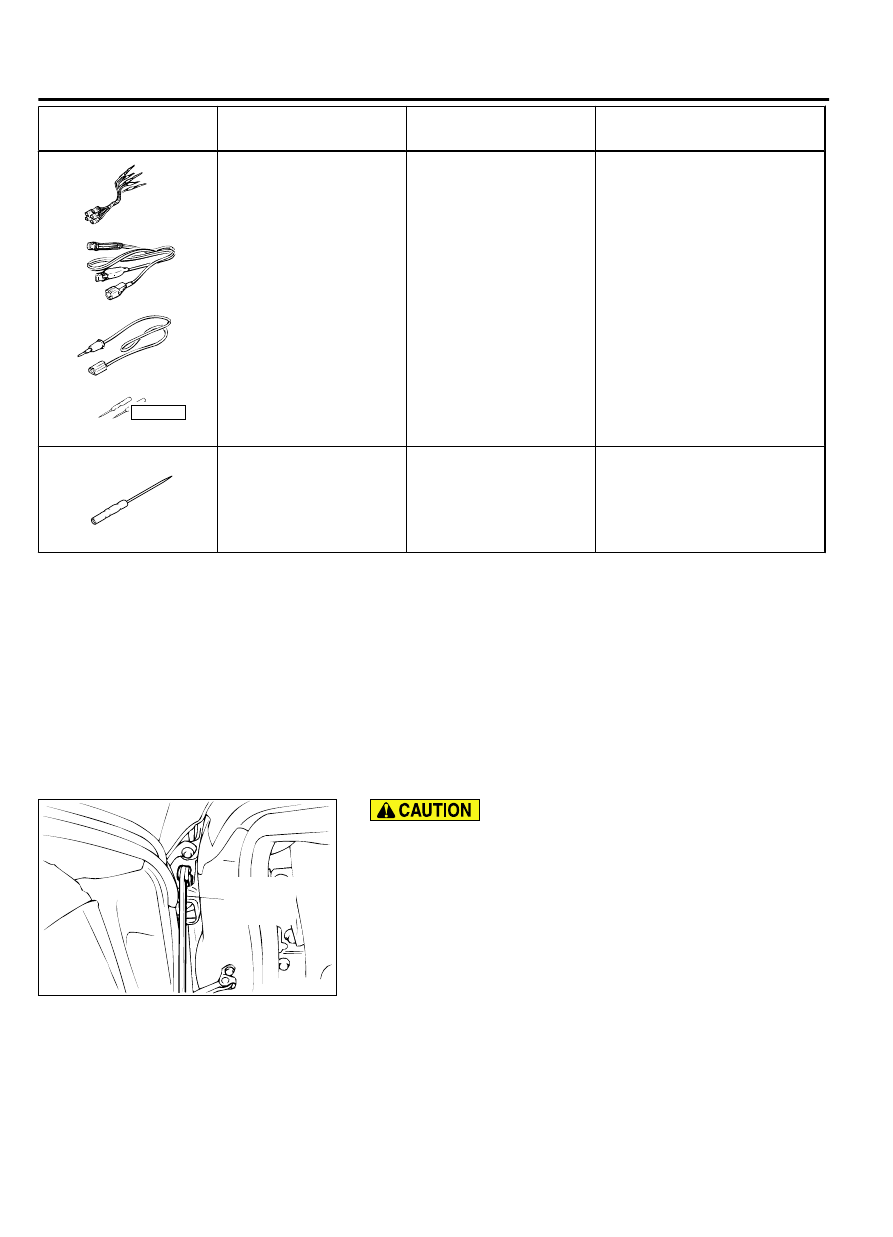

SPECIAL TOOLS

TOOL

TOOL  NUMBER  AND
NAME

SUPERSESSION

APPLICATION

MB990900

MB990900

 or

MB991164

 Door

adjusting wrench

MB990900-01

Adjustment of door fit

MB990925

MB990925  Bearing  and
oil seal installer set

A:

 MB990939

Remover bar

MB990925-01

 or

General service tool

Adjustment of door striker

YB990211AA00

MB990211

 Slider

hammer

MB990211-01

MB990241

A

AE

MB990241  Axle  shaft
puller

A:  MB990243  Body
puller

MB990241-01

 or

General service tool

42Ab-84

DOOR

SPECIAL TOOLS

TOOL

TOOL  NUMBER  AND
NAME

SUPERSESSION

APPLICATION

MB991910

MB991826

MB991911

MB991914

MB991824

MB991827

MB991825

Do not use

A

B

C

D

E

F

G

Do not use

YB9919580001

MB991958

A: MB991824
B: MB991827
C: MB991910
D: MB991911
E: MB991914
F: MB991825
G: MB991826

Scan tool (M.U.T.-III sub
assembly)

A:

 Vehicle

communication
interface (V.C.I.)
B:  M.U.T.-III  USB
cable
C:  M.U.T.-III  main
harness  A  (Vehicles
with

 CAN

communication
system)
D:  M.U.T.-III  main
harness  B  (Vehicles
without

 CAN

communication
system)
E:  M.U.T.-III  main
harness C (for Daimler
Chrysler models only)
F:

 M.U.T.-III

measurement adapter
G:  M.U.T.-III  trigger
harness

MB991824-KIT

NOTE:

G: MB991826

M.U.T.-III Trigger
Harness is not
necessary when pushing
V.C.I. ENTER key.

Communication  line  check
(ECU check and service data)

For  vehicles  with  CAN
communication, use M.U.T.-
III  main  harness  A  to  send
simulated  vehicle  speed.  If
you  connect  M.U.T.-III  main
harness B instead, the CAN
communication  does  not
function correctly.

DOOR

42Ab-85

SPECIAL TOOLS

TOOL

TOOL  NUMBER  AND
NAME

SUPERSESSION

APPLICATION

YB9912230000

Do not use

a

b

c

d

MB991223 Harness set

A:  MB991219  Test
harness
B:  MB991220  LED
harness
C:  MB991221  LED
harness adapter
D: MB991222 Probe

General service tools

Making voltage and resistance
measurement

 during

troubleshooting

A:  Connector  pin  contact
pressure inspection
B: Power circuit inspection
C: Power circuit inspection
D:

 Commercial

 tester

connection

MB992006

MB992006
Extra fine probe

-

Making voltage and resistance
measurement

 during

troubleshooting

ON-VEHICLE SERVICE

FRONT DOOR FIT ADJUSTMENT

M14203000012USA0000010000

Required Special Tools:

MB990211: Slide Hammer

MB990243: Body Puller

MB990900 or MB991164: Door adjusting Wrench

MB990939: Brass Bar

ZC600064

MB990900

or

MB991164

0000

Do not rotate special tool MB991164 with a torque of over
98 N?m (72 ft-lb).

1.

When the clearance between the door and the body is uneven

(1)

Apply  protective  tape  to  the  fender  around  the  hinge
installation position and door edge.

(2)

Remove the splash shield front <Front door only> (Refer
to GROUP 42Aa, Splash Shield P.42Aa-9).

(3)

Remove the center pillar trim <Rear door only> (Refer to
GROUP 52A, Interior Trim P.52A-10).

(4)

Use  special  tool  MB990900  or  MB991164  to  loosen  the
hinge mounting bolts on the body side, and then adjust the
clearance around the door so that it is uniform on all sides.

(5)

Move the door to adjust until the clearance around the door
is even.



42Ab-86

DOOR

ON-VEHICLE SERVICE
