Mitsubishi Outlander XL. Manual - part 739





INSPECTION PROCEDURE C-6: Power Window Anti-trap Function does not Work
Normally <Driver’s Side Only>.

M14203000930USA0000010000

ZC601368

GREEN-WHITE

GREEN

ORANGE

ORANGE

VIOLET

BLA

CK

BLA

CK

POWER WINDOW MAIN SWITCH

FRONT
POWER
WINDOW
MOTOR (LH)

FRONT
(LH)

CPU

LIN DRIVE
CIRCUIT

IC

IC

BLA

CK-YELLO

W

0000

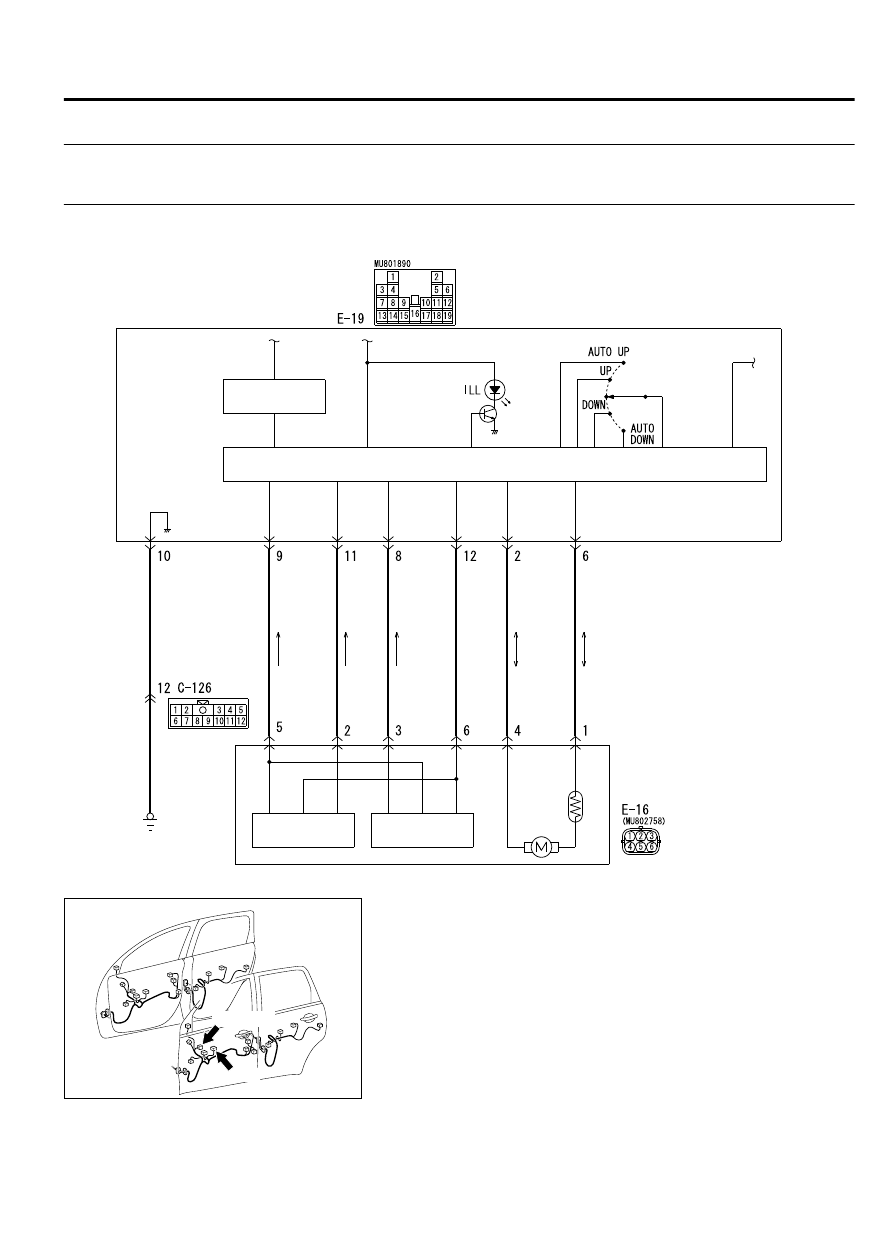

 Driver’s Power Window Circuit

ZC600881

Connectors: E-16, E-19

E-19

E-16 (GR)

0003

CIRCUIT OPERATION
Malfunction  of  the  power  window  motor  revolution
detection sensor is suspected.

TROUBLESHOOTING HINTS

Malfunction of the power window motor

Damaged wiring harness and connectors

DOOR

42Ab-75

POWER WINDOW DIAGNOSIS

DIAGNOSTIC PROCEDURE

STEP 1. Check the power window operating current.
Check that the power window operating current is normal. (Refer
to P.42Ab-89).

Q:Is the check result normal?

YES:

 Door window glass adjustment (Refer to P.

42Ab-88). Then go to Step 2.

NO:

 Replace the power window motor. Verify that the power

window anti-trap function works normally.

STEP 2. Confirm the power window learning function.
Check that the power window switch has learned the fully closed
position of the windows.

Q:Is the check result normal?

YES:

 Go to Step 3.

NO:

 Make the power window switch learn the fully closed

position of the windows (Refer to P.42Ab-90). Verify
that the power window anti-trap function works normally.

STEP 3. Check power window main switch connector E-19,
front power window motor (LH) connector E-16 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Q:Are  power  window  main  switch  connector  E-19,  front

power  window  motor  (LH)  connector  E-16  in  good

condition?

YES:

 Go to Step 4.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2. Verify
that the power window anti-trap function works normally.

STEP 4. Check the wiring harness between power window
main switch connector E-19 (terminals 8, 9, 11 and 12) and
front power window motor (LH) connector E-16 (terminals
3, 5, 2 and 6).

Q:Is the wiring harness between power window main switch

connector E-19 (terminals 8, 9, 11 and 12) and front power

window motor (LH) connector E-16 (terminals 3, 5, 2 and

6) in good condition?

YES:

 Go to Step 5.

NO:

 The wiring harness may be damaged or the connector

(s) may have loose, corroded or damaged terminals, or
terminals pushed back in the connector. Repair the wiring
harness as necessary. Verify that the power window anti-
trap function works normally.

STEP 5. Retest the system.
Check that the power window anti-trap function works.

Q:Is the check result normal?

42Ab-76

DOOR

POWER WINDOW DIAGNOSIS

YES:

 Intermittent malfunction (Refer to GROUP 00 - How

to Use Troubleshooting/Inspection Service Points - How to
Cope with Intermittent Malfunction P.00-15).

NO:

 Replace the front power window motor (LH). Verify

that the power window anti-trap function works normally.

INSPECTION PROCEDURE C-7: The Window Glass Lowers Automatically while it is
Rising <Driver’s Side Only>.

M14203000931USA0000010000

CIRCUIT OPERATION
If the sliding resistance is too great when the window is being
raised or the window glass encounters an object, the window
glass will lower by approximately 150 mm (5.9 inches).

TROUBLESHOOTING HINTS

Improper adjusted door window glass

Incorrectly installed or warped glass slider

Malfunction of the power window motor

Malfunction of the window regulator

DIAGNOSTIC PROCEDURE

STEP 1. Check the power window anti-trap function.
Check  that  the  power  window  anti-trap  function  works.  Refer
to P.42Ab-89.

Q:Is the check result normal?

YES:

 Go to Step 2.

NO:

 Refer to P.42Ab-39.

STEP 2. Check that the door window glasses are installed
correctly.
Check that the door window glasses are installed correctly.

Q:Is the check result normal?

YES:

 Go to Step 3.

NO:

 Adjust the door window glass (Refer to P.42Ab-88).

Verify that the power window works normally.

STEP 3. Retest the system.
Check that the power window does not lower while it is being
raised.

Q:Is the check result normal?

YES:

 Intermittent malfunction (Refer to GROUP 00, How to

Use Troubleshooting/Inspection Service Points - How to
Cope with Intermittent Malfunction P.00-15).

NO:

 Replace the power window motor of the defective

window. Verify that the power window works normally.

DOOR

42Ab-77

POWER WINDOW DIAGNOSIS

CHECK AT ECU TERMINAL

M14203000977USA0000010000

POWER WINDOW SWITCH TERMINAL CHECK

POWER WINDOW MAIN SWITCH

ZC600613

E-19

0000

Terminal
No.

Check items

Check conditions

Normal conditions

1

Output  to  power  window  motor
(Passenger’s side)

-

-

2

Output  to  power  window  motor
(Driver’s side)

-

-

3

Output  to  power  window  motor
(Passenger’side)

-

-

4

Power supply

Power window relay: ON

Battery voltage

5

Power supply

Always

Battery voltage

6

Output  to  power  window  motor
(Driver’s side)

-

-

7

LIN  communication  line  (between
ETACS-ECUs)

Always

0 to 12 V (pulse signal)

8

Input  from  power  window  motor
(pulse sensor signal)

When  the  power  windows  are
operating

0 to 5 V (pulse signal)

9

Input  from  power  window  motor
(pulse sensor ground)

-

0 V

10

Ground

Always

0 V

11

Input  from  power  window  motor
(pulse sensor signal)

When  the  power  windows  are
operating

0 to 5 V (pulse signal)

12

Input  from  power  window  motor
(power supply to pulse sensor)

When  the  power  windows  are
operating

5 V

13

-

-

-

14

-

-

-

15

Output  to  power  window  motor
(Rear right side)

-

-

16

-

-

-

17

Output  to  power  window  motor
(Rear right side)

-

-

18

Output  to  power  window  motor
(Rear left side)

-

-

42Ab-78

DOOR

POWER WINDOW DIAGNOSIS
