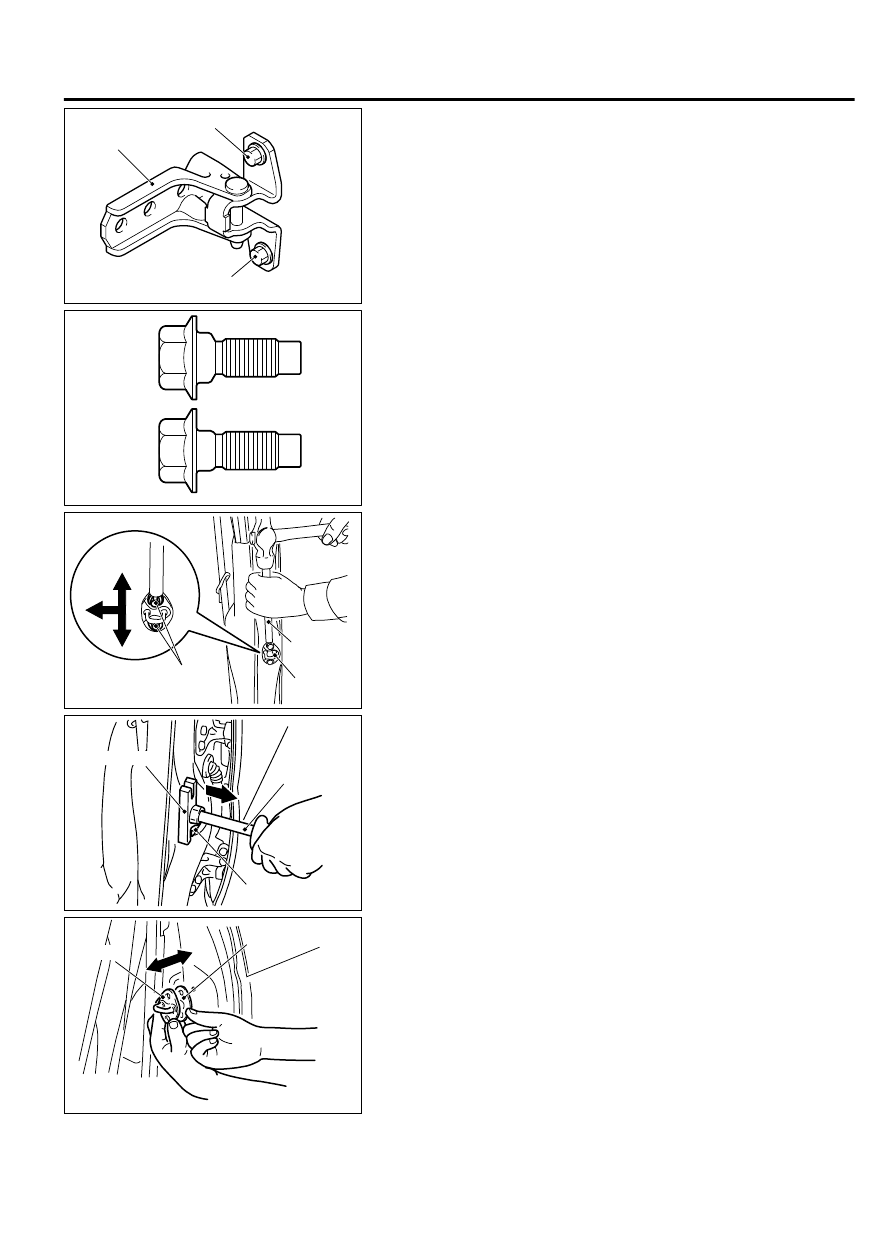

ZC6000770000

Door hinge

Bolt

Bolt

ZC600078

<Non adjustable bolt>

<Adjusting bolt
(MU001031)>

0000

2.

When the door is not flush with the vehicle body surface.

(1)

Loosen the door-side hinge mounting bolts.

(2)

Move the door to adjust so that the door is flush with the
vehicle body.

(3)

If adjustment is not possible, replace the door-side door
hinge mounting bolt with the adjustment bolt (MU001031).

NOTE:

If the adjustment bolt has been already

installed, reuse it.

(4)

Move the door to adjust so that the door is flush with the
vehicle body.

(5)

Tighten  the  door-side  door  hinge  mounting  bolt  to  the
specified torque.

Tightening torque: 26 ± 6 N?m (19 ± 5 ft-lb)

ZC6000660000

MB990939

Striker

Temporary

bolts

ZC6000670000

MB990211

MB990243

Striker

ZC6000680000

Shim

Striker

3.

When the door is stiff to close and open

(1)

Adjustment  using  the  striker  (toward  the  inside  of  the
vehicle and vertical direction)
Install a temporary bolt instead of the striker mounting bolt,
and use special tool MB990939 and a hammer to tap the
bolt in the desired direction.

(2)

Adjustment by using the striker (toward the outside of the
vehicle)
Use  special  tools  MB990211  and  MB990243  to  pull  the
striker toward the outside of the vehicle.

(3)

Adjustment using shims (forward and rearward)
Increase  or  decrease  the  number  of  shims  so  that  the
striker engages with the door latch properly.

DOOR

42Ab-87

ON-VEHICLE SERVICE

DOOR WINDOW GLASS ADJUSTMENT

M14203000013USA0000010000

Check that the door glass operates smoothly and moves along
the door glass run channel when the door window glass is fully
raised  and  fully  lowered.  If  there  is  a  problem,  adjust  by  the
following procedure.

1.

Remove the door trim assembly (Refer to GROUP 52A, Door
Trim P.52A-11).

2.

Remove the waterproof film (Refer to P.42Ab-110).

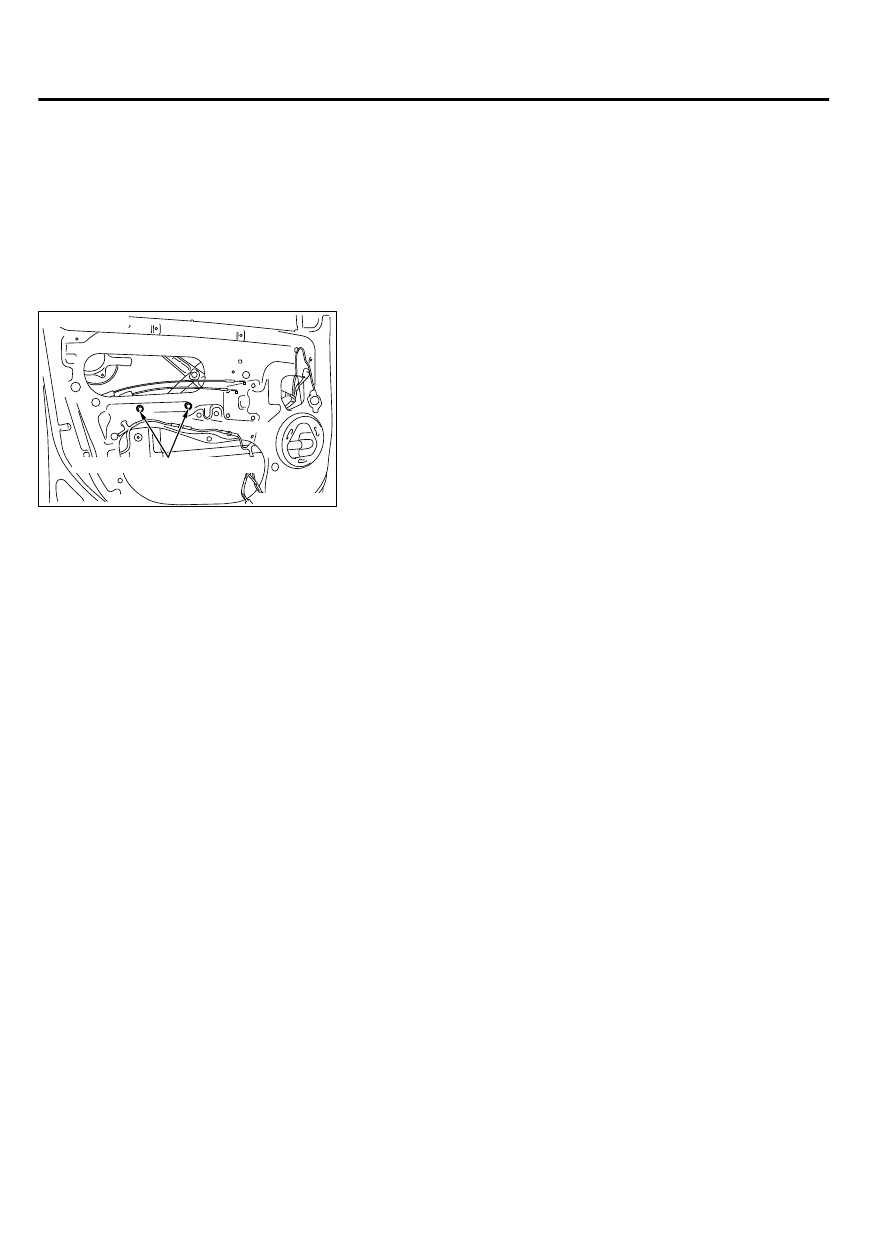

AC5070890000

<Front door>

Channel guide mounting bolts

3.

Raise the door window glass and loosen the channel guide
mounting bolts to adjust tilting up/down of the glass.

POWER WINDOW CHECK

M14203000901USA0000010000

Check the power window as described below. If it does not work,
perform troubleshooting (Refer to P.42Ab-39).

Turn off the power window lock switch of the power window
main switch, and operate each of the power window switches
to check that each power window operates.

Turn on the power window lock switch of the power window
main switch, and operate the front and rear passenger's power
window sub switches to check that the power windows do not
work.

Turn on the power window lock switch of the power window
main switch, and operate the power window main switch to
check that each power window operates.

NOTE:

The power window lock switch function can be

adjusted with the customization feature, confirm it
before check (Refer to P.42Ab-94).

ADJUSTMENT OF FAULTY POWER WINDOW

M14203000902USA0000010000

If  the  door  window  glass  wrongly,  automatically  lowers  while
being raised, adjust or replace as follows:

1.

Remove the door trim assembly (Refer to GROUP 52A, Door
Trim P.52A-11).

2.

Remove waterproof film (Refer to P.42Ab-110).

3.

Remove the window regulator assembly from the door window
glass, and then raise and lower the door window glass by hand
to check the operation force.

42Ab-88

DOOR

ON-VEHICLE SERVICE

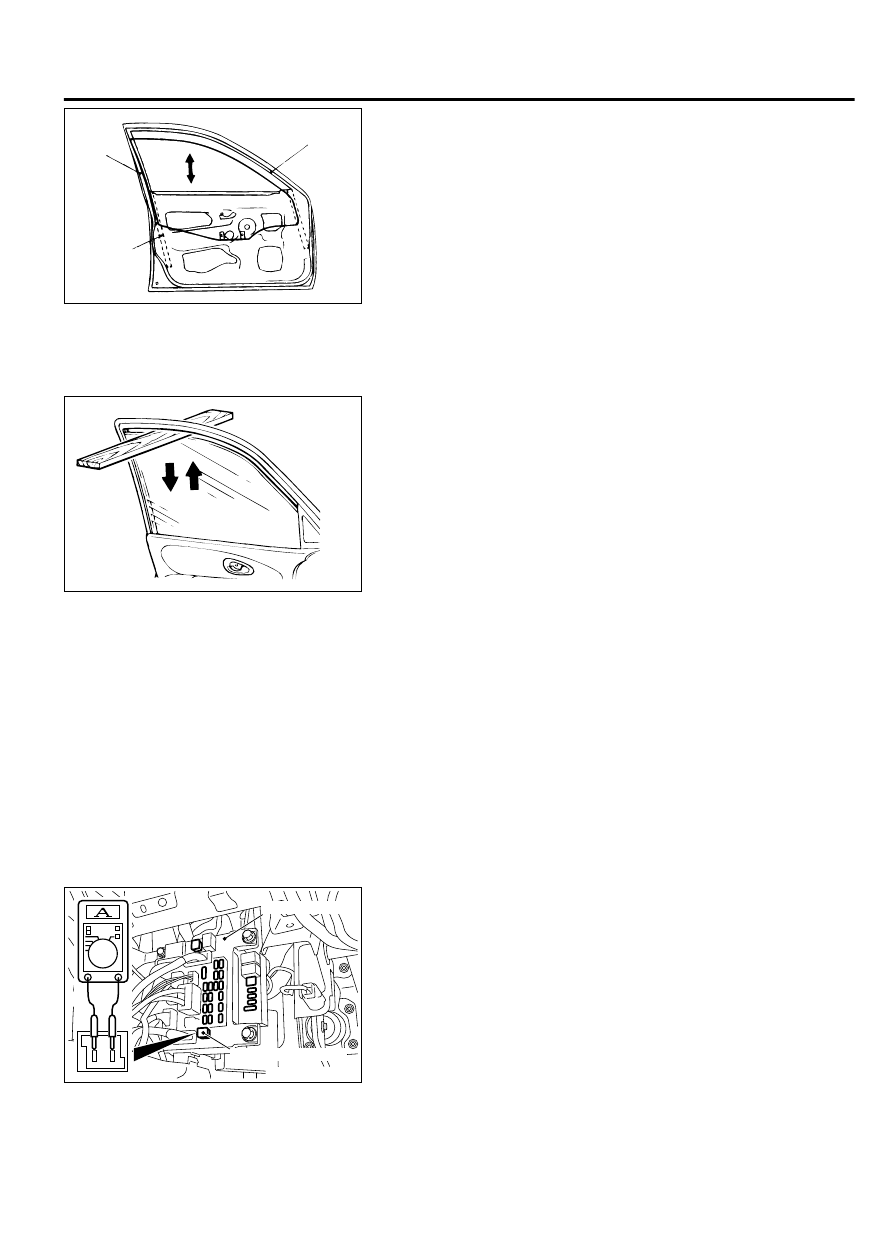

ZC6000700000

Runchannel

Door
sash

Lower
sash

4.

If  the  door  window  glass  does  not  move  up  and  down
smoothly, check and repair as follows:

Check the installation condition of the runchannel.

Straighten twist in the door sash.

Check the installation condition of the lower sash.

5.

If  repair  or  adjustment  is  impossible,  replace  the  door
assembly.

POWER WINDOW SAFETY MECHANISM CHECK

<Driver’s side only>

M14203000984USA0000010000

ZC6000710000

1.

Place an approximately 10 mm (0.39 inch) thick wood chip as
shown. Then, raise the window glass.

2.

Check that the window lowers by about 150 mm (5.9 inches)
when the window clamps the board. If this doesn't happen, do
troubleshooting. Refer to P.42Ab-39.

NOTE:

If the anti-trap function (safety mechanism) is

activated consecutively three times or more, carry out
the learning procedures of the power window fully closed
position (Refer to P.42Ab-88).

POWER WINDOW TIMER FUNCTION CHECK

M14203000904USA0000010000

Check the power window timer as described below. If it does not
work, perform troubleshooting (Refer to P.42Ab-39).

Close the door and turn the ignition switch to the LOCK (OFF)
position, and then check that the power windows operate for
30 seconds.

Close the door and turn the ignition switch to the LOCK (OFF)
position. While the timer is on, open the driver's door or front
passenger's door, and check that the timer is cancelled.

POWER WINDOW OPERATION CURRENT CHECK

M14203000905USA0000010000

ZC6011500002

Power window fuse

ETACS-ECU

1.

Remove the power window fuse, and connect a multimeter as
shown in the illustration.

2.

Raise  the  power  window  to  measure  the  current  during
operation.

Standard  value:  7  A  or  less  [Power  supply  voltage
14.5 ± 0.5 V, at 25°C (77°F)]

NOTE:

If the power supply voltage does not meet the

standard value, check and repair the generator and the
battery. Then carry out this check again.

3.

If  the  operation  current  is  outside  the  standard  value,  refer
to P.42Ab-88.

DOOR

42Ab-89

ON-VEHICLE SERVICE

LEARNING PROCEDURES OF THE POWER

WINDOW FULLY CLOSED POSITION

M14203000924USA0000010000

LEARNING PROCEDURES OF THE FULLY

CLOSED POSITION WHEN THE POWER WINDOW

SWITCH IS REMOVED, OR THE POWER WINDOW

REGULATOR ASSEMBLY IS REMOVED OR

REPLACED

1.

If  the  anti-trap  function  (safety  mechanism)  is  activated
consecutively  three  times  or  more,  the  fully  closed  position
that  the  power  window  switch  has  learned  will  be  erased
(initialised).

2.

Operate  the  power  window  switch  and  fully  open  the  door
window glass.

The anti-trap function will not activated until the learning
procedures  of  the  fully  closed  position  have  been
completed (because the anti-trap function was reset).

3.

Operate  the  power  window  switch  and  fully  close  the  door
window glass. The power window activates for 0.7 seconds
and  stops  automatically  when  the  power  window  switch  is
pressed  once.  Repeat  this  operation  until  the  door  window
glass fully closes and release the switch once. Then, hold the
power  window  switch  to  the  fully  closed  side  again  for  one
second so that the power window switch completes learning
the fully closed position.

NOTE:

If the power window switch is operated to open the

door window glass while the switch is learning, the
learning will be cancelled. If this happens, return to
step 2.

LEARNING PROCEDURES WHEN THE POWER

WINDOW SWITCH IS REPLACED WITH A NEW

ONE

The anti-trap function will not activated until the learning
procedures  of  the  fully  closed  position  have  been
completed (because the anti-trap function was reset).
Operate the power window switch to fully close the door window
glass by one-shot up action so that the power window switch will
complete learning (no initialization is required).

42Ab-90

DOOR

ON-VEHICLE SERVICE
