Mitsubishi Outlander XL. Manual - part 453





DIAGNOSTIC FUNCTION

M11702000901USA0000010000

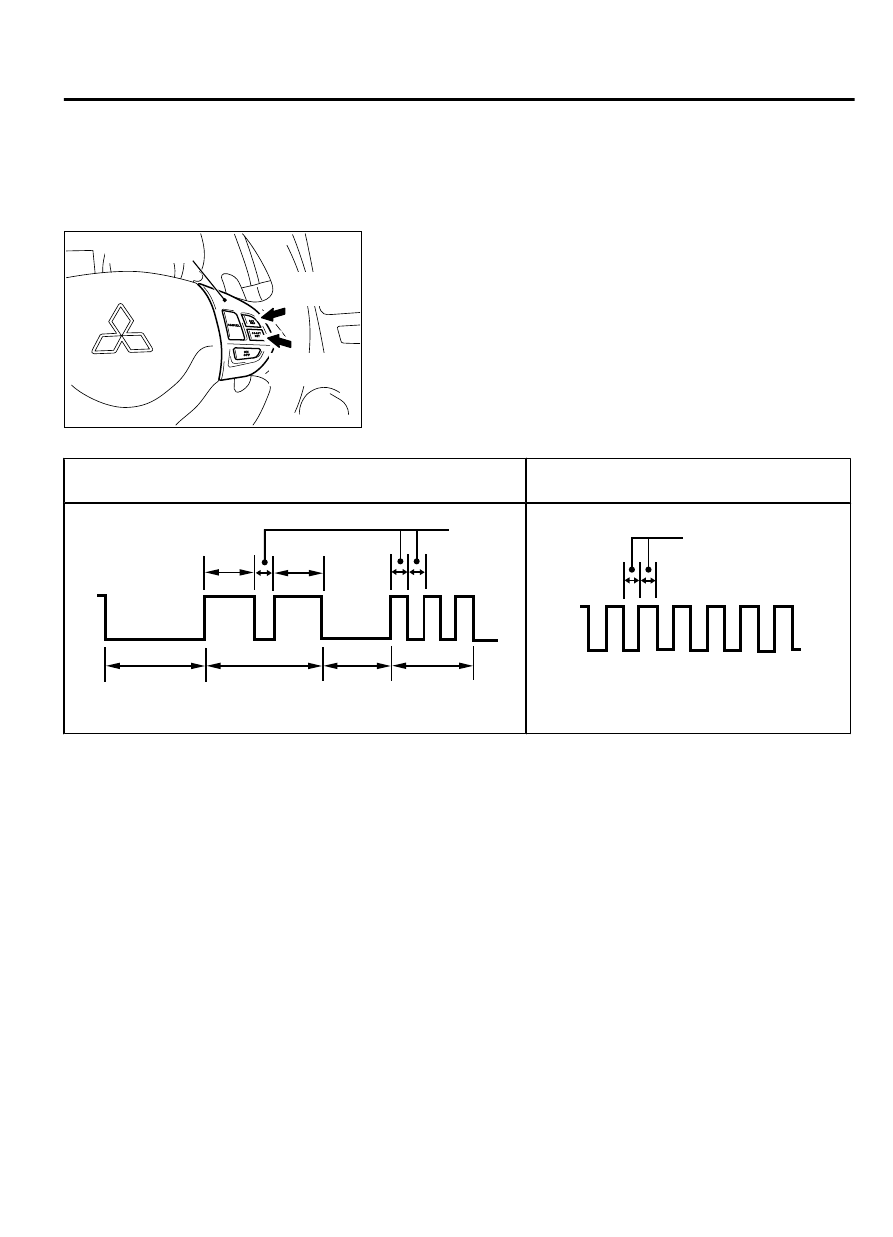

HOW TO READ DIAGNOSTIC TROUBLE CODES

ZC601484 0000

Auto-cruise
control switch

"COAST SET"
switch: ON

"ACC RES"
switch: ON

1.

Turn the ignition switch to the "ON" position while pushing the
"COAST/SET" switch. Then, within one second, release the
"COAST/SET" switch and push the "ACC/RES" switch.

2.

Read a diagnostic trouble code by observing the flash display
pattern  of  the  "CRUISE"  indicator  light  in  the  combination
meter.

Diagnostic result display method when using the "CRUISE" indicator light

When the diagnostic trouble code number 23 is output

When  no  diagnostic  trouble  code  is
output

ZC601825

12V

0V

Pause
time: 3 s

Ten digit

Digit
division:
2 s

First digit

0.5 s

1 s

0000

1 s

ZC6018260000

12V

0V

0.25 s

Continuous ON and OFF signals
at intervals of 0.25 s

NOTE:

Other on-board diagnostic items are also output as

voltage waveforms corresponding to diagnostic trouble code
numbers.

HOW TO ERASE DIAGNOSTIC TROUBLE CODES

Disconnect the negative (-) battery cable.

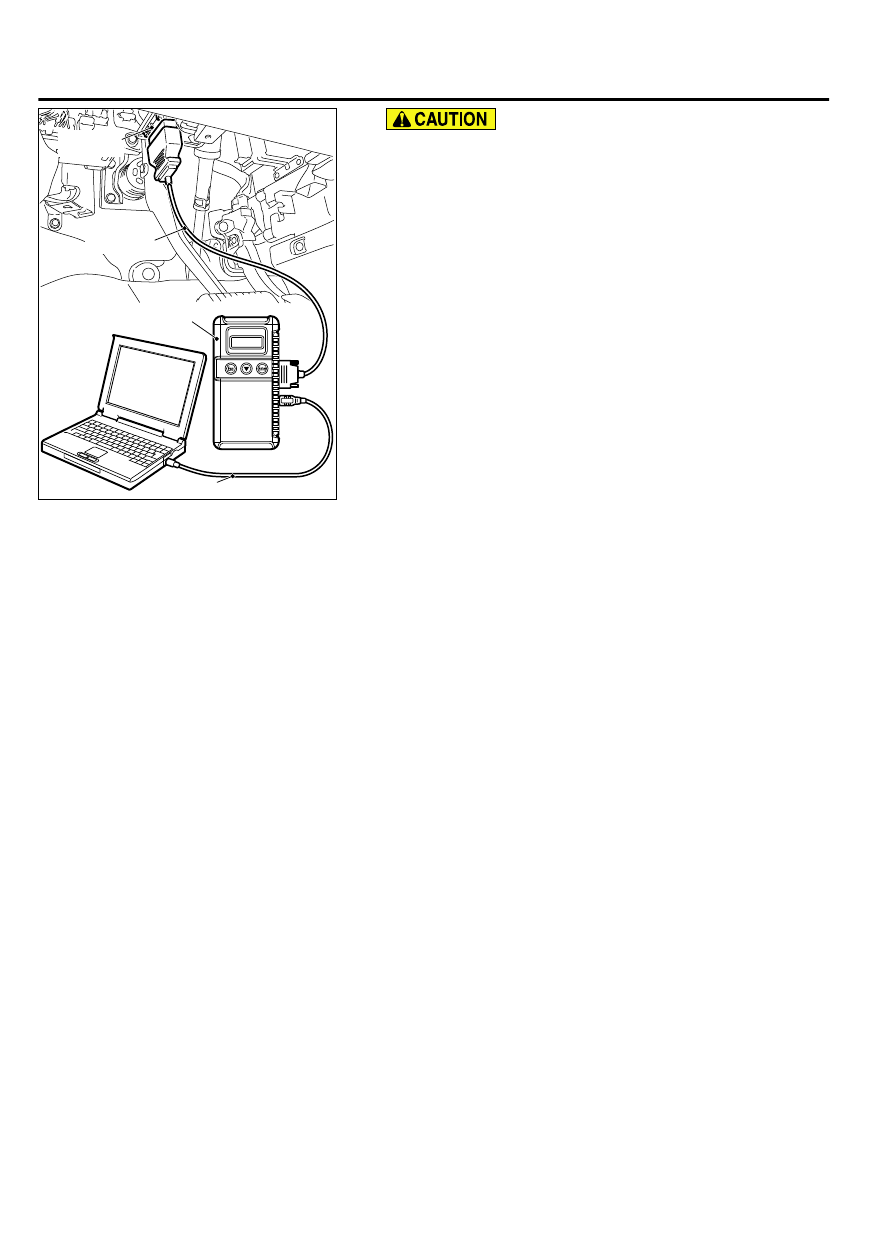

HOW TO CONNECT THE SCAN TOOL (M.U.T.-III).

Required Special Tools:

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

MB991824: Vehicle Communication Interface (V.C.I.)

MB991827: M.U.T.-III USB Cable

MB991910: M.U.T.-III Main Harness A

AUTO-CRUISE CONTROL SYSTEM

17b-5

AUTO-CRUISE CONTROL SYSTEM DIAGNOSIS

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector



To prevent damage to scan tool MB991958, always turn
the ignition switch to the "LOCK" (OFF) position before
connecting or disconnecting scan tool MB991958.

1.

Start up the personal computer.

2.

Connect special tool MB991827 to special tool MB991824 and
the personal computer.

3.

Connect special tool MB991910 to special tool MB991824.

4.

Connect special tool MB991910 to the data link connector.

5.

Turn the power switch of special tool MB991824 to the "ON"
position.

NOTE:

When special tool MB991824 is energized, special

tool MB991824 indicator light will be illuminated in
green color.

6.

Start the M.U.T.-III system on the personal computer.

NOTE:

Disconnecting scan tool MB991958 is the reverse of

the connecting sequence, making sure that the ignition
switch is at the "LOCK" (OFF) position.

HOW TO READ DATA LIST

Required Special Tools:

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

MB991824: V.C.I.

MB991827: M.U.T.-III USB Cable

MB991910: M.U.T.-III Main Harness A

1.

Connect scan tool MB991958 to the data link connector.

2.

Turn the ignition switch to the "ON" position.

3.

Select "System Select" from the start-up screen.

4.

Select "From 2006 MY" of "Model Year." When the "Vehicle
Information" is displayed, check the contents.

5.

Select  "AUTO  CRUISE"  from  "System  List",  and  press  the
"OK" button.

NOTE:

When the "Loading Option Setup" list is displayed,

check the applicable item.

6.

Select the "MITSUBISHI."

7.

Select the "Data List."

NOTE:

When the "Data List Reference Table" button is

selected, the service data reference table is displayed,
and the normal values can be checked.

8.

Choose an appropriate item.

9.

Turn the ignition switch to the "LOCK" (OFF) position.

10.

Disconnect scan tool MB991958.

HOW TO DIAGNOSE THE CAN BUS LINE

Required Special Tools:

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

17b-6

AUTO-CRUISE CONTROL SYSTEM

AUTO-CRUISE CONTROL SYSTEM DIAGNOSIS

MB991824: V.C.I.

MB991827: M.U.T.-III USB Cable

MB991910: M.U.T.-III Main Harness A

1.

Connect scan tool MB991958 to the data link connector.

2.

Turn the ignition switch to the "ON" position.

3.

Select the "CAN Bus Diagnosis" from the start-up screen.

4.

When  the  vehicle  information  is  displayed,  confirm  that  it
matches the vehicle whose CAN bus lines will be diagnosed.

If they match, go to step 8.

If not, go to step 5.

5.

Select the "view vehicle information" button.

6.

Enter the vehicle information and select the "OK" button.

7.

When the vehicle information is displayed, confirm again that
it  matches  the  vehicle  which  whose  CAN  bus  lines  will  be
diagnosed.

If they match, go to step 8.

If not, go to step 5.

8.

Press the "OK" button.

9.

When the optional equipment screen is displayed, choose the
one which the vehicle is fitted with, and then select the "OK"
button.

10.

Turn the ignition switch to the "LOCK" (OFF) position.

11.

Disconnect scan tool MB991958.

DIAGNOSTIC TROUBLE CODE CHART

M11702000022USA0000010000

Check  according  to  the  inspection  chart  that  is
appropriate for the diagnostic trouble code.

Diagnostic  trouble  code
number

Inspection item

Reference page

15

Auto-cruise control switch system

 P.17b-8

22

Stoplight switch system

 P.17b-17

23

ECM and its related components

 P.17b-23

AUTO-CRUISE CONTROL SYSTEM

17b-7

AUTO-CRUISE CONTROL SYSTEM DIAGNOSIS

DIAGNOSTIC TROUBLE CODE PROCEDURES

DTC 15: Auto-cruise Control Switch System

M11702000036USA0000010000

ZC6018410000

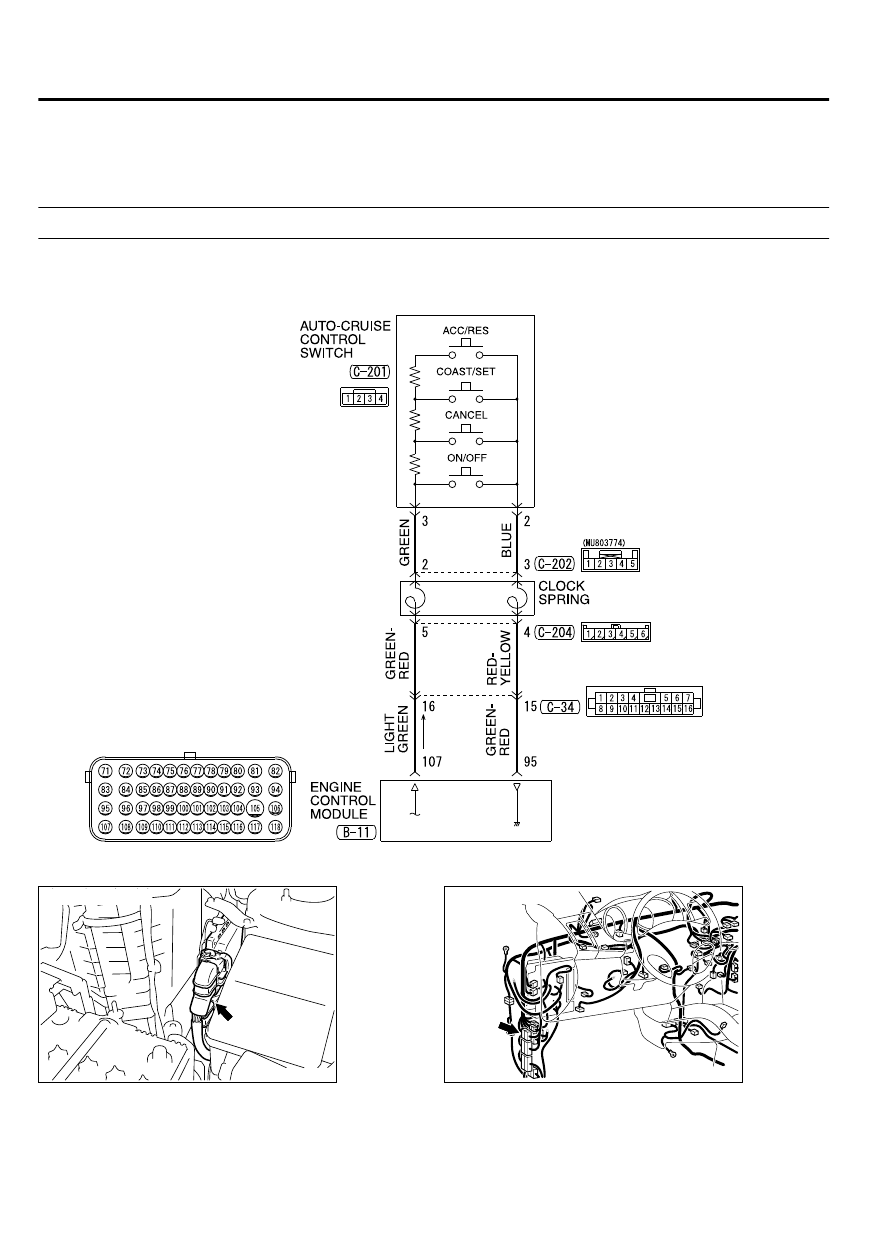

Auto-cruise Control Switch System Circuit



ZC6018500000

B-11 (GR)

Connector: B-11

ZC601851

Connector: C-34

0000

C-34
(BR)



17b-8

AUTO-CRUISE CONTROL SYSTEM

AUTO-CRUISE CONTROL SYSTEM DIAGNOSIS
