Mitsubishi Outlander XL. Manual - part 451





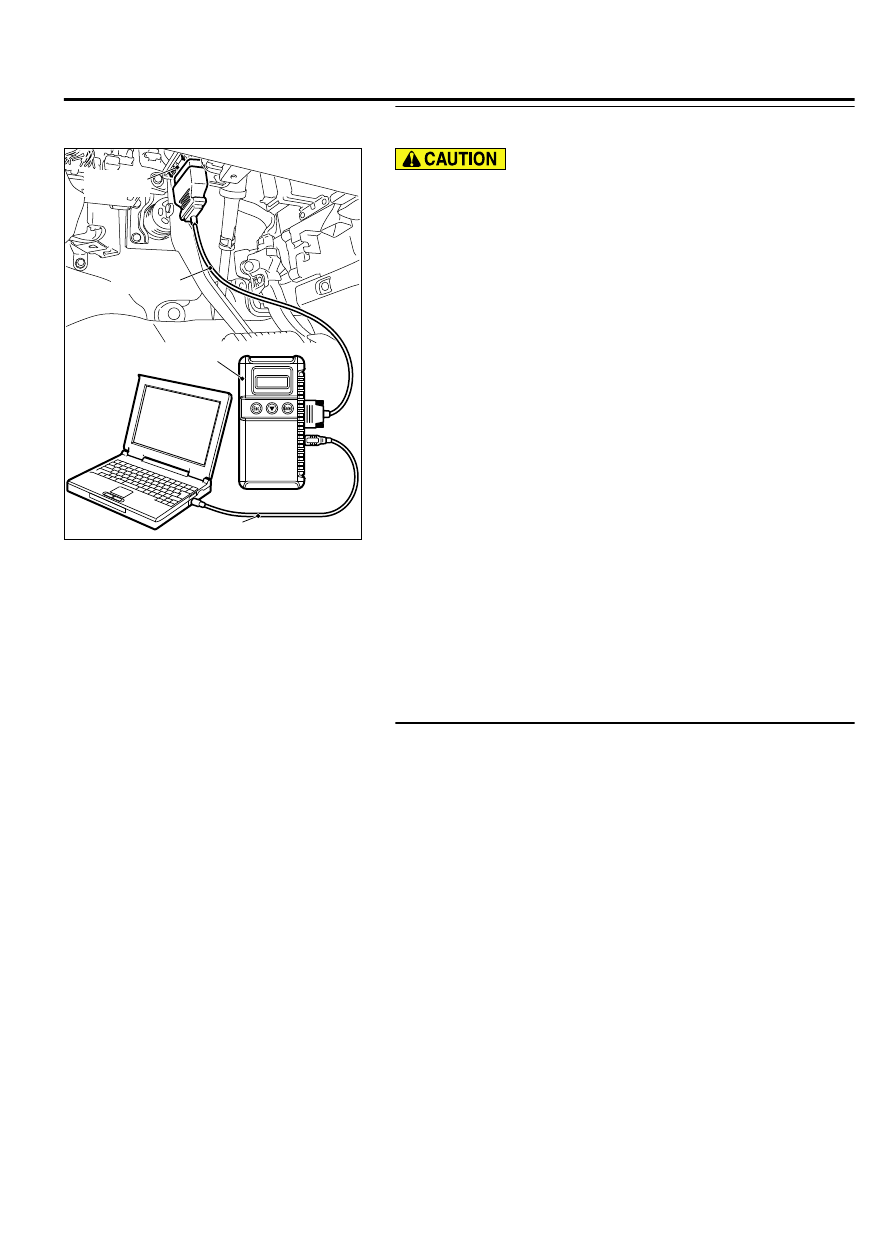

STEP 2. Using scan tool MB991958, read the MFI system
diagnostic trouble code.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

(1)

Ensure  that  the  ignition  switch  is  at  the  "LOCK"  (OFF)
position.

(2)

Start up the personal computer.

(3)

Connect special tool MB991827 to special tool MB991824
and the personal computer.

(4)

Connect special tool MB991910 to special tool MB991824.

(5)

Connect special tool MB991910 to the data link connector.

(6)

Turn the power switch of special tool MB991824 to the "ON"
position.

NOTE:

When special tool MB991824 is energized, special

tool MB991824 indicator light will be illuminated in a
green color.

(7)

Start the M.U.T.-III system on the personal computer.

(8)

Turn the ignition switch to the "ON" position.

(9)

Check  for  MFI  system  diagnostic  trouble  code  (Refer  to
GROUP 13Ab, Diagnostic Function - How to Read and Erase
Diagnostic Trouble Codes P.13Ab-8).

(10)

Turn the ignition switch to the "LOCK" (OFF) position, and
then remove scan tool MB991958 in the reverse order of
installation.

Q:Is any DTC set?

YES:

 Repair MFI system (Refer to GROUP 13Ab, Diagnostic

Trouble Code Chart P.13Ab-44). Then go to Step 3.

NO:

 Go to Step 3.

STEP 3. Retest the system.

Q:Does the accelerator pedal work normally?

YES:

 The procedure is complete.

NO:

 Return to Step 1.

ENGINE CONTROL

17a-5

ENGINE CONTROL SYSTEM DIAGNOSIS

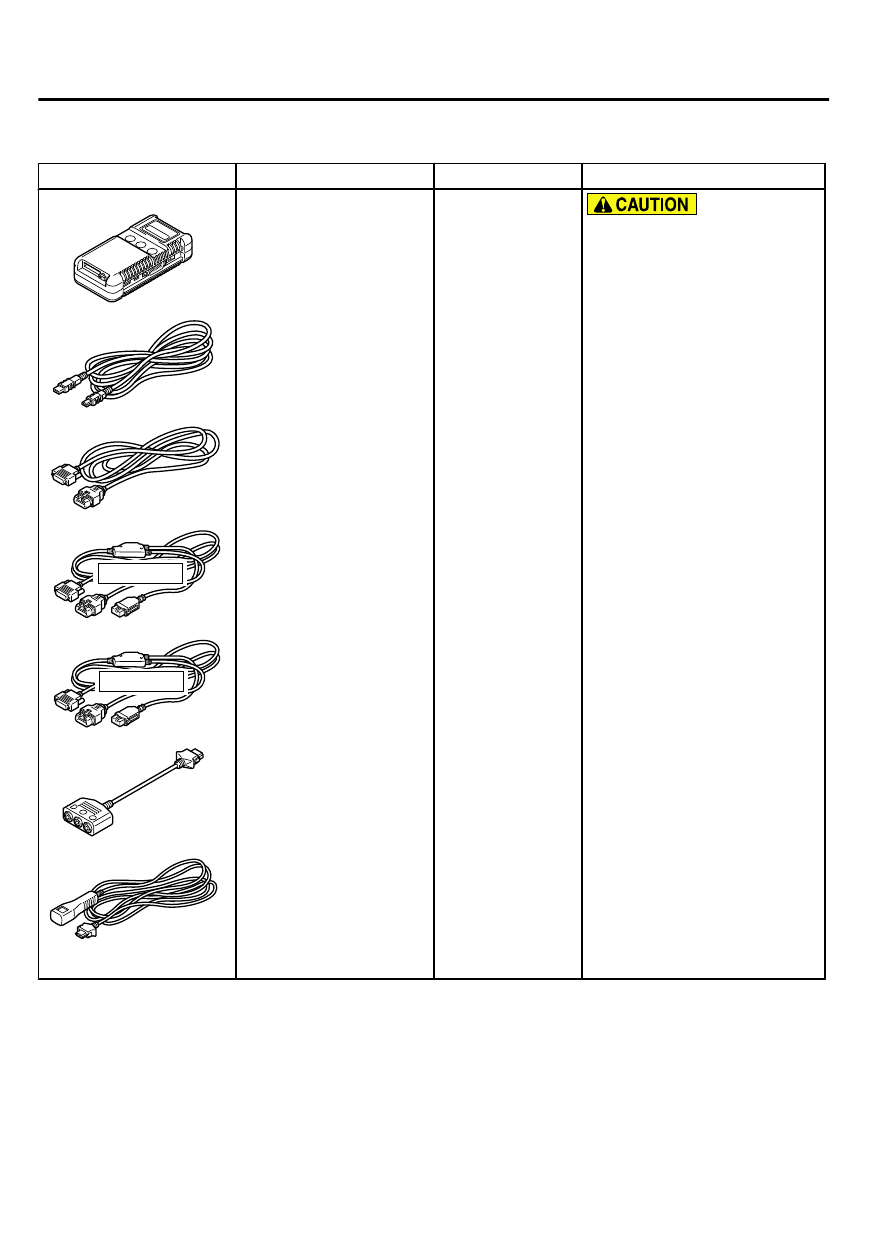

SPECIAL TOOL

M11701000006USA0000010000

Tool

Tool number and name Supersession

Application

MB991910

MB991826

MB991911

MB991914

MB991824

MB991827

MB991825

Do not use

A

B

C

D

E

F

G

Do not use

YB9919580001

MB991958

A: MB991824
B: MB991827
C: MB991910
D: MB991911
E: MB991914
F: MB991825
G: MB991826

M.U.T.-III sub assembly

A:

 Vehicle

communication
interface (V.C.I.)
B: M.U.T.-III USB cable
C:

 M.U.T.-III

 main

harness  A  (Vehicles
with

 CAN

communication system)
D:

 M.U.T.-III

 main

harness  B  (Vehicles
without

 CAN

communication system)
E:

 M.U.T.-III

 main

harness  C  (for  Daimler
Chrysler models only)
F:  M.U.T.-III  adapter
harness
G:  M.U.T.-III  trigger
harness

MB991824-KIT

NOTE:

G: MB991826

M.U.T.-III
trigger harness
is not necessary
when pushing
V.C.I. ENTER key.

For

 vehicles

 with

 CAN

communication, use M.U.T.-III
main  harness  A  to  send
simulated  vehicle  speed.  If
you  connect  M.U.T.-III  main
harness  B  instead,  the  CAN
communication

 does

 not

function correctly.
Checking  diagnostic  trouble
codes

17a-6

ENGINE CONTROL

SPECIAL TOOL

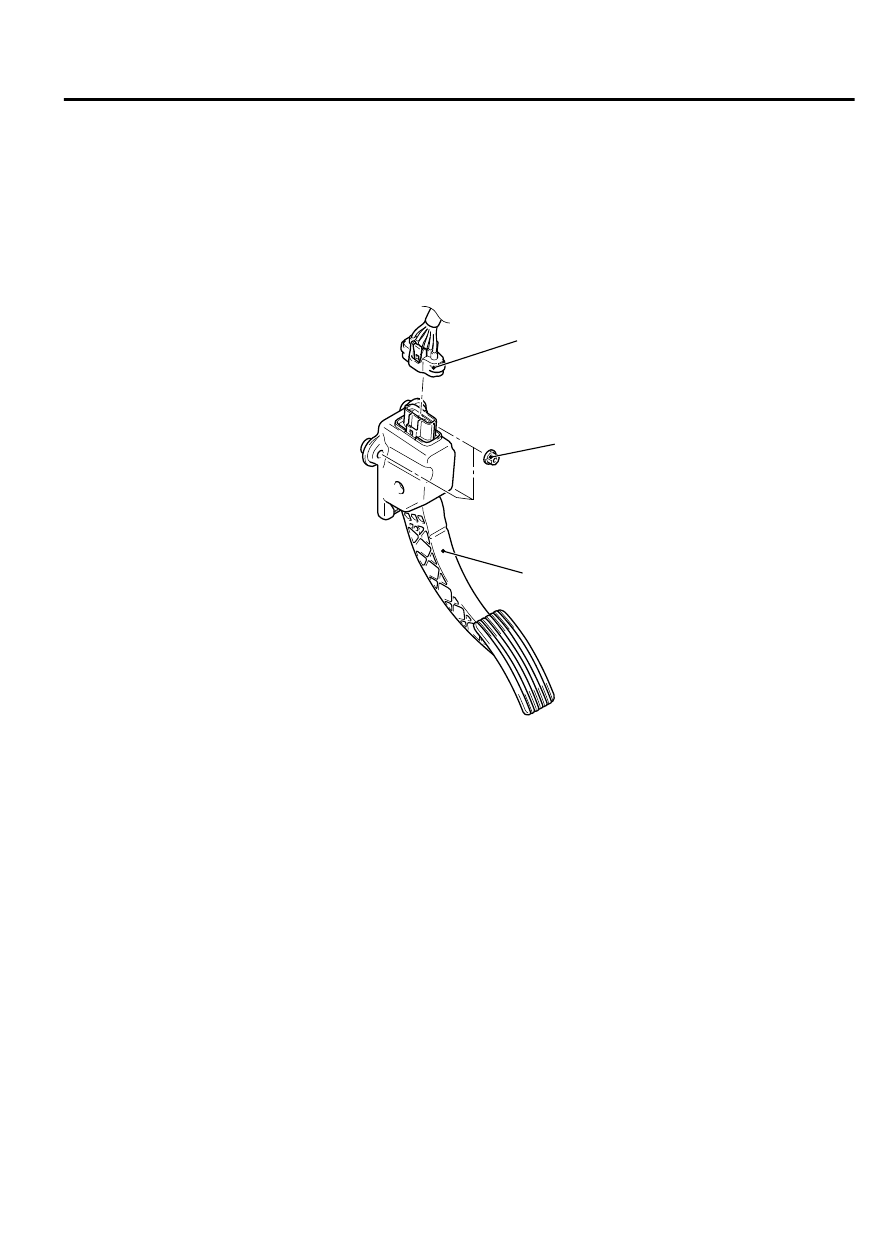

ACCELERATOR PEDAL

REMOVAL AND INSTALLATION

M11701000030USA0000010000

Pre-removal and Post-installation Operation
Bottom  Cover  Assembly  (driver's  seat)  Removal  and  Installation  (Refer  to  GROUP  52A,  Instrument  Panel  Assembly  P.

52A-2).

ZC601706AA00

1

2

13 ± 2 N·m
111 ± 22 in-lb

Removal steps

1. APP sensor connector

Removal steps

2. Accelerator pedal assembly

ENGINE CONTROL

17a-7

ACCELERATOR PEDAL

MEMO

17a-8
