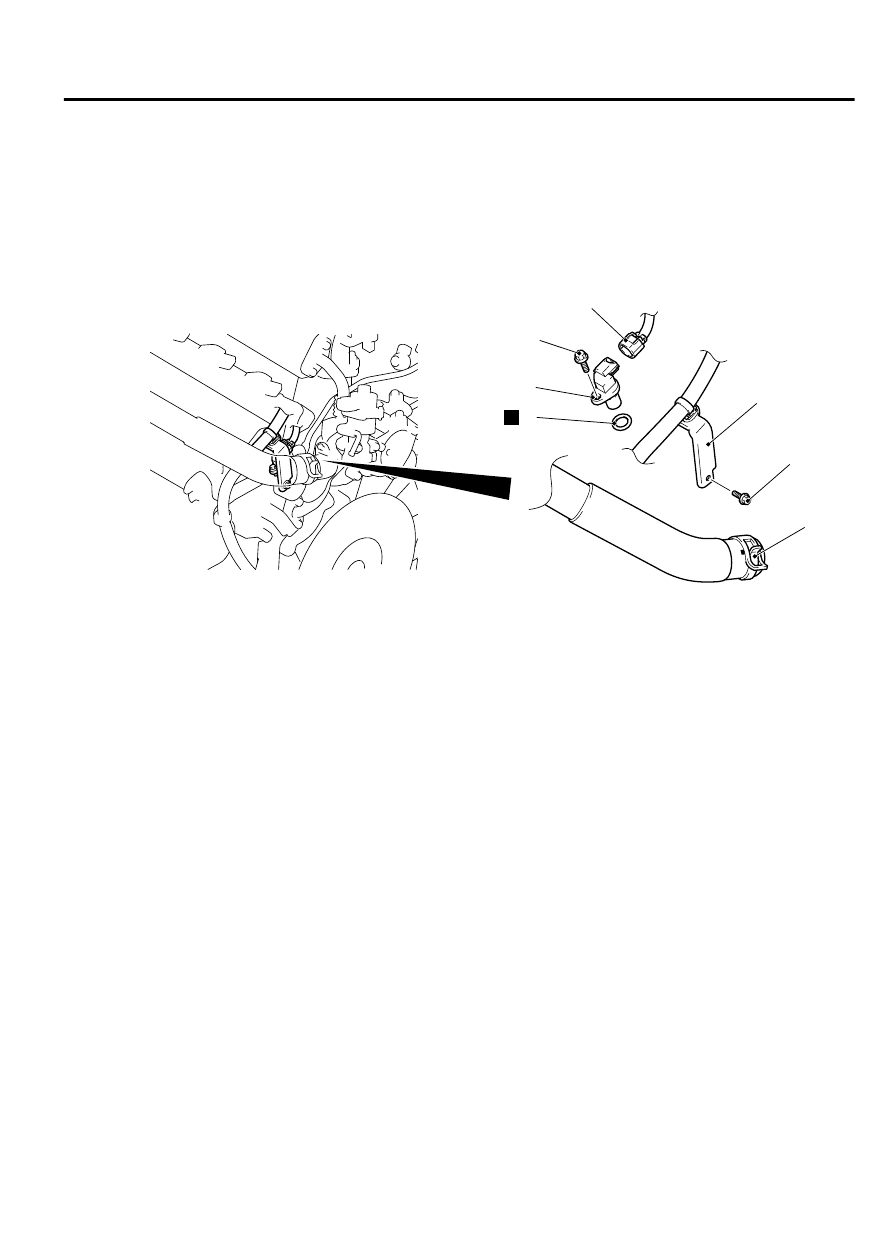

CAMSHAFT POSITION SENSOR

REMOVAL AND INSTALLATION

M11603000034USA0000010000

Pre-removal and Post-installation Operation

｠

Engine Coolant Draining and Refilling (Refer to GROUP 14, On-vehicle Service - Engine Coolant Replacement P.14-15).

｠

Battery and Battery Tray Removal and Installation.

ZC601896

1

2

3

4

5

9.5 ± 2.5 N·m
84 ± 22 in-lb

11 ± 1 N·m
98 ± 8 in-lb

N

AA00

Removal steps

1.

Radiator upper hose connection

2.

Harness bracket

3.

Camshaft position sensor connector

Removal steps

4.

Camshaft position sensor

5.

O-ring

IGNITION SYSTEM

16c-7

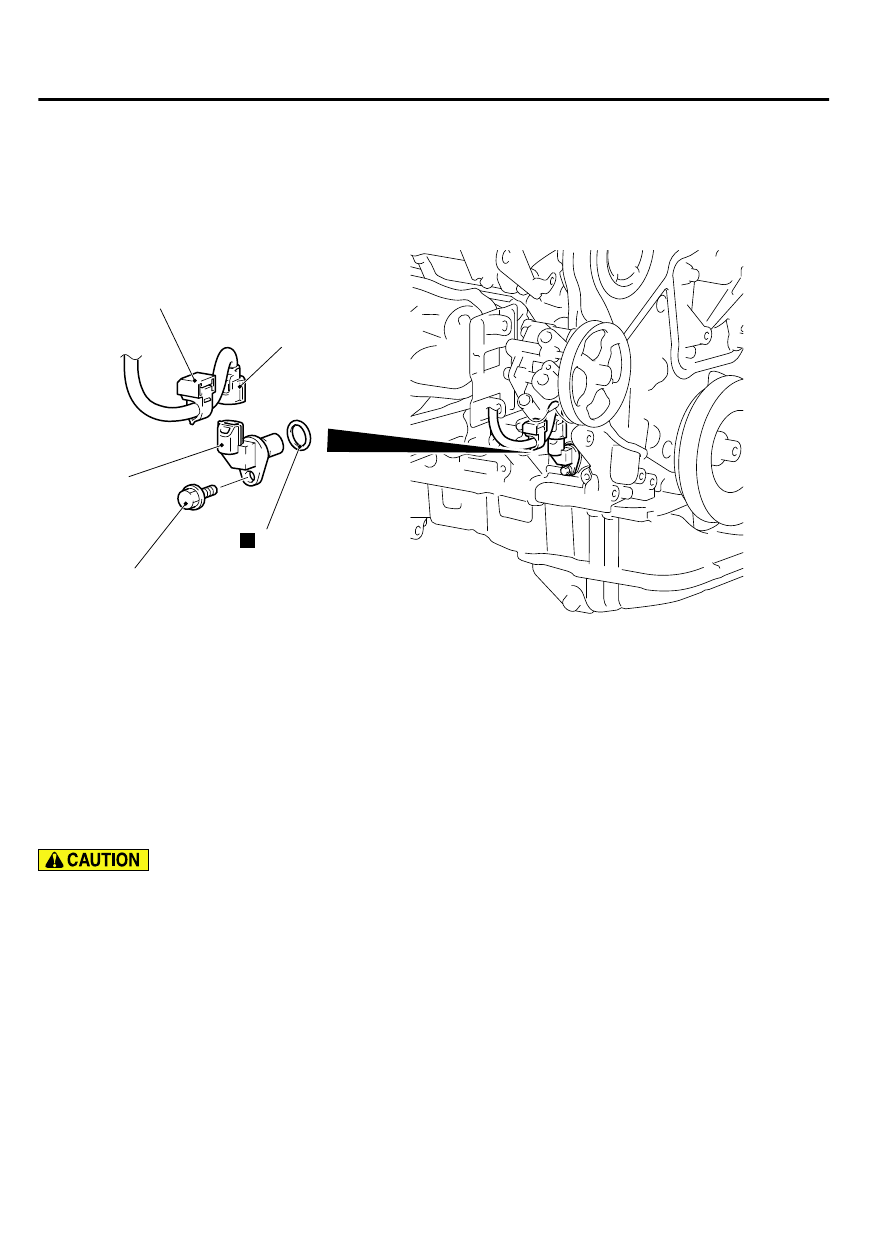

CRANKSHAFT POSITION SENSOR

CRANKSHAFT POSITION SENSOR

REMOVAL AND INSTALLATION

M11603000048USA0000010000

ZC601895

9.5 ± 2.5 N·m
84 ± 22 in-lb

4

N

1

2

3

AA00

Removal steps

1.

Harness clamp

2.

Crankshaft position sensor connector

3.

Crankshaft position sensor

Removal steps

4.

O-ring

KNOCK SENSOR

REMOVAL AND INSTALLATION

M11603000028USA0000010000

｠

When  the  knock  sensor  replacement  is
performed, use scan tool MB991958 to initialize
the  learning  value  (Refer  to  GROUP  00,
Precautions  Before  Service  -  Initialization

Procedure for Learning Value in MFI Engine P.
00-30).

｠

Do  not  drop  or  hit  the  knock  sensor  against
other components. Internal damage may result,
and the knock sensor will need to be replaced.

Pre-removal and Post-installation Operation
Intake Manifold Removal and Installation (Refer to GROUP 15, Intake Manifold P.15-8).

16c-8

IGNITION SYSTEM

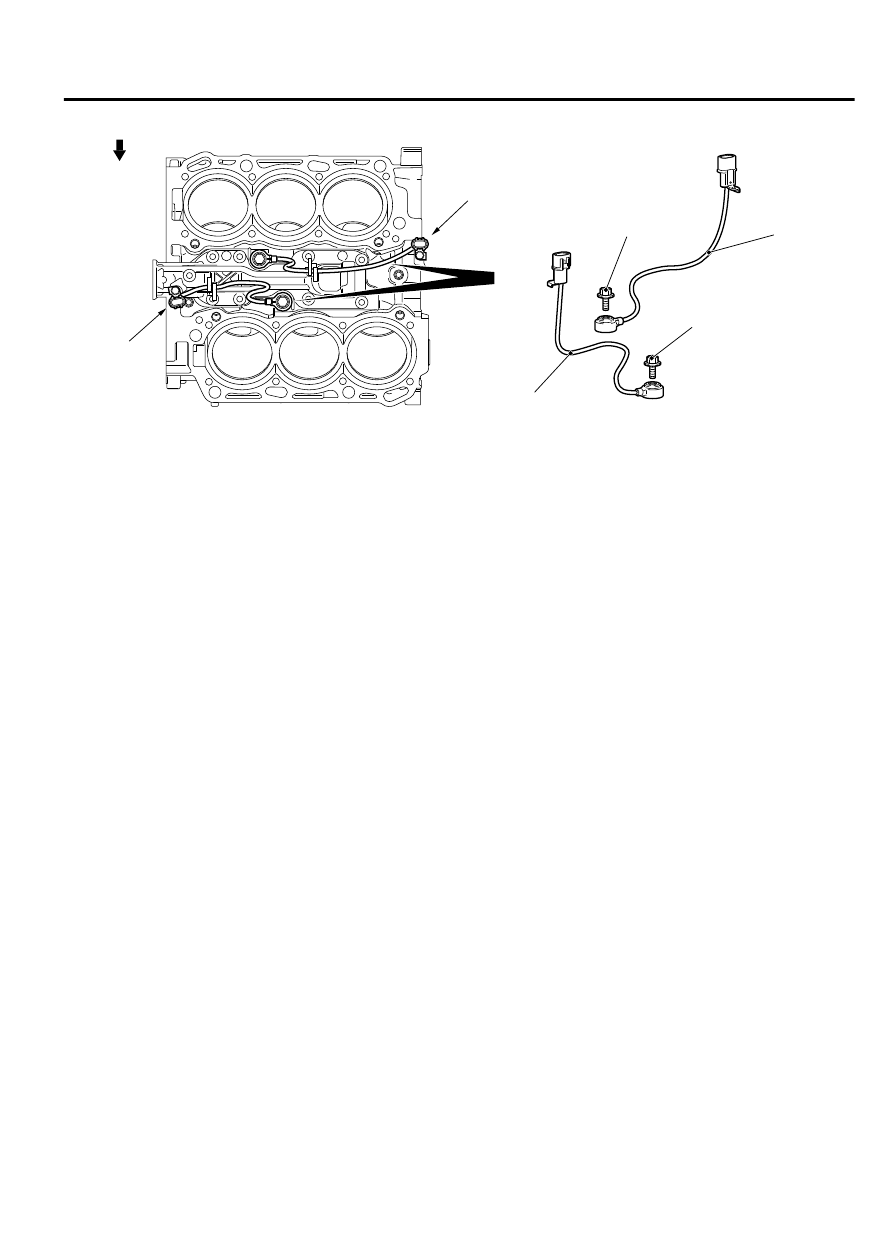

KNOCK SENSOR

ZC601878

1

2

20 ± 2 N·m
15 ± 1 ft-lb

20 ± 2 N·m
15 ± 1 ft-lb

AA00

Front

Right bank side

Left bank side

Removal steps

1.

Right bank knock sensor

Removal steps

2.

Left bank knock sensor

IGNITION SYSTEM

16c-9

KNOCK SENSOR
