WATER HOSE AND WATER PIPE

REMOVAL AND INSTALLATION

M11401000033USA0000010000

Pre-removal and Post-installation Operation

｠

Thermostat Removal and Installation (Refer to P.14-19).

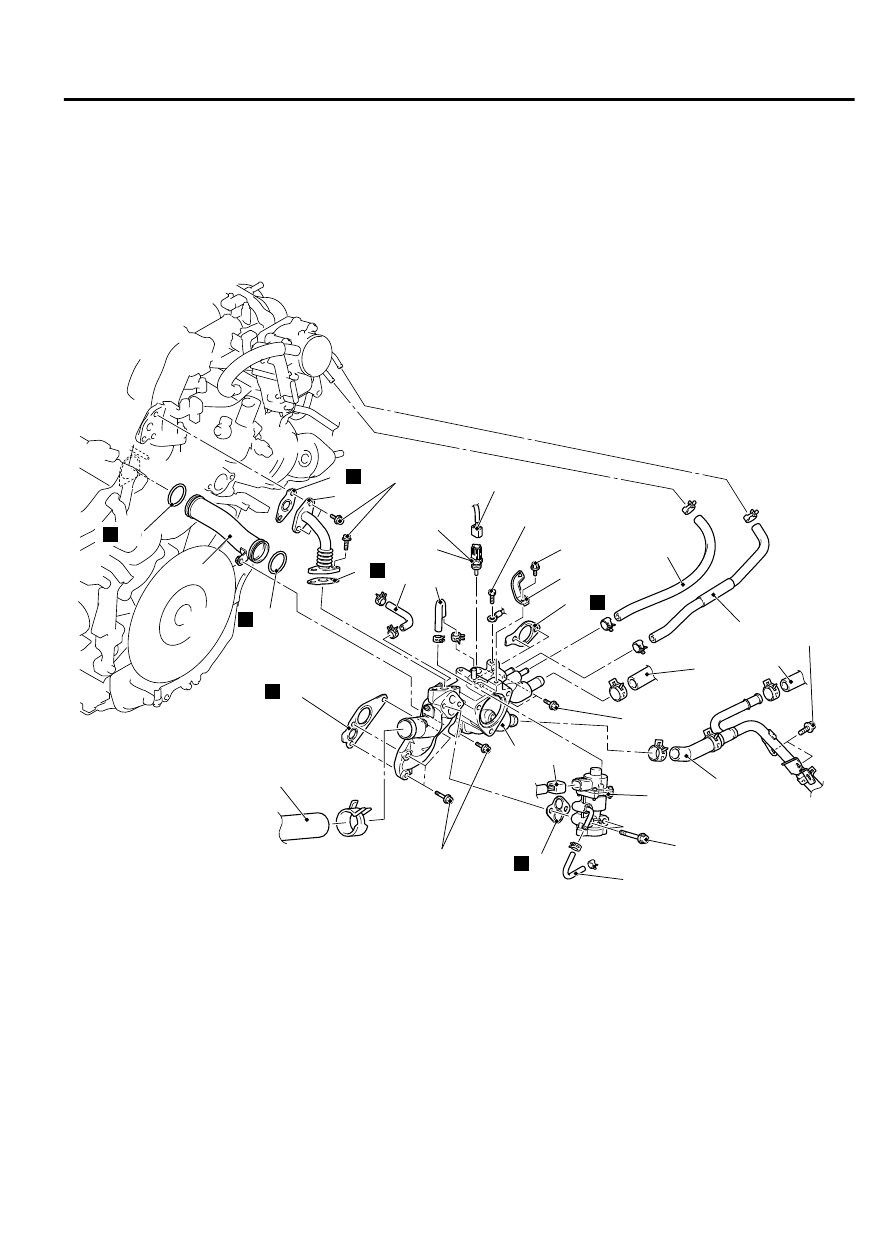

ZC600577

23 ± 6 N·m
17 ± 4 ft-lb

23 ± 6 N·m
17 ± 4 ft-lb

23 ± 6 N·m
17 ± 4 ft-lb

30 ± 9 N·m
22 ± 7 ft-lb

20 ± 5 N·m
15 ± 3 ft-lb

11 ± 1 N·m
98 ± 8 in-lb

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

22

N

N

N

N

N

N

N

5.0 ± 1.0 N·m
44 ± 9 in-lb

14

23 ± 3 N·m
17 ± 2 ft-lb

AA00

Removal steps

<<A>>

>>D<<

1.

Radiator upper hose connection

2.

EGR valve connector

3.

Water hose

4.

Water hose

5.

EGR valve

6.

EGR valve gasket

7.

EGR pipe

8.

EGR pipe gasket

9.

EGR pipe gasket

Removal steps

10. Engine  coolant  temperature  sensor

connector

<<B>>

>>C<<

11. Engine coolant temperature sensor
12. Water hose
13. Water hose
14. Heater hose connection
15. Water return hose and pipe assembly

connection

16. Harness bracket

ENGINE COOLING

14-23

WATER HOSE AND WATER PIPE

Removal steps

·

Oil pipe clamp bolt (Refer to GROUP
11A,  Cylinder  Head  Gasket  P.
11A-45).

17. Water hose

<<C>>

>>B<<

18. Thermostat housing

Removal steps

>>B<<

19. Gasket

>>B<<

20. Gasket
21. Water inlet pipe

>>A<<

22. O-ring



Required Special Tools:

｠

MB992042:  Engine  Coolant  Temperature  Sensor
Wrench

｠

MD998412: Guide

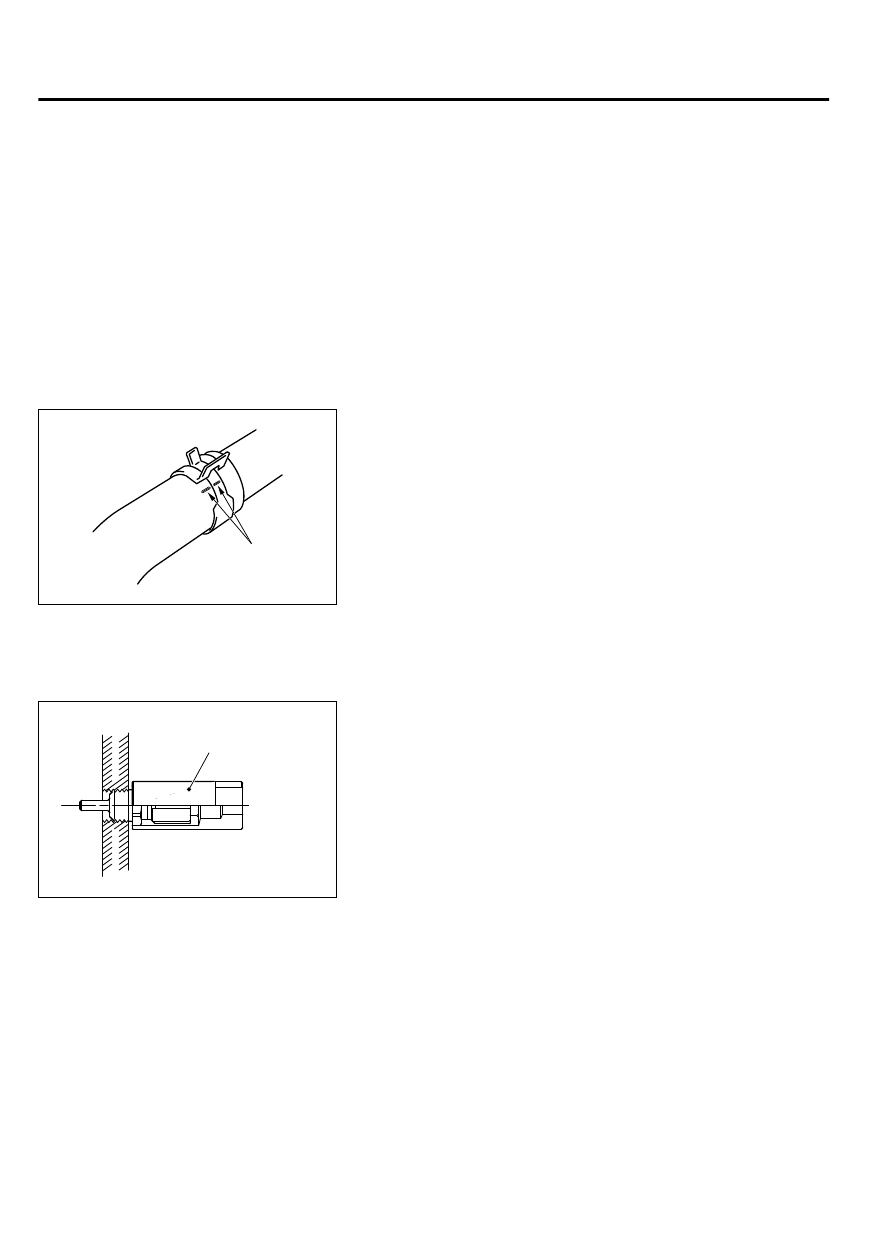

REMOVAL SERVICE POINTS

<<A>> RADIATOR UPPER HOSE DISCONNECTION

ZC6006480000

Mating marks

Make mating marks on the radiator hose and the hose clamp.
Disconnect the radiator hose.



<<B>> ENGINE COOLANT TEMPERATURE SENSOR
REMOVAL

ZC5017160000

MB992042

Use  special  tool  MB992042  to  remove  the  engine  coolant
temperature sensor.



14-24

ENGINE COOLING

WATER HOSE AND WATER PIPE

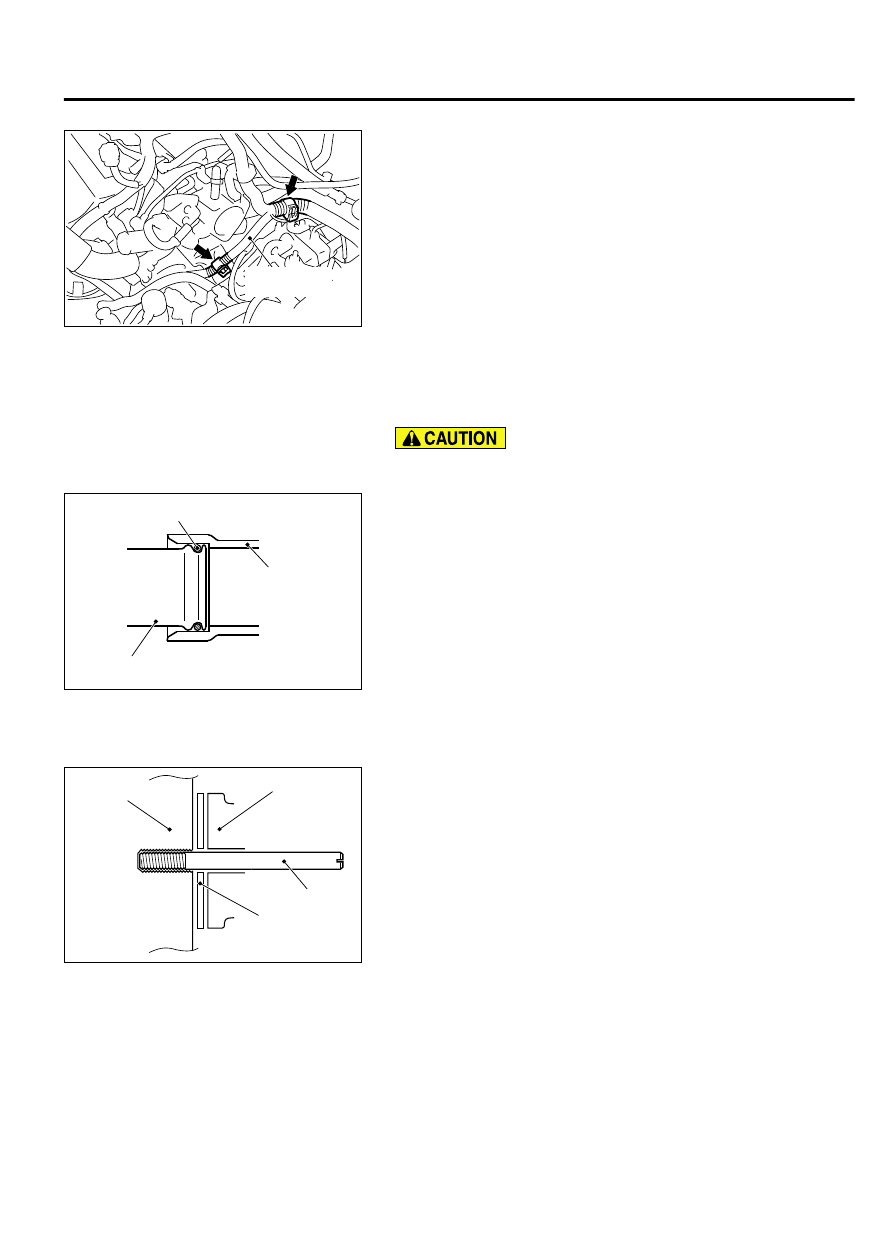

<<C>> THERMOSTAT HOUSING REMOVAL

ZC6020910000

Control wiring
harness

Remove the two control wiring harness clamps, and remove the
thermostat housing.

INSTALLATION SERVICE POINTS

>>A<< O-RING INSTALLATION

Do not allow engine oil or other grease to adhere to the O-
ring

ZC5002530000

Water inlet pipe

O-ring

Thermostat housing
or bank stiffener

Insert the O-ring to the water inlet pipe, and coat the outer portion
of the O-ring with water or engine coolant.



>>B<< GASKET/THERMOSTAT HOUSING INSTALLATION

ZC601879

Gasket

MD998412

Cylinder head

Thermostat housing

AA00

Using the special tool MD998412, install the thermostat housing
while supporting the gasket.



ENGINE COOLING

14-25

WATER HOSE AND WATER PIPE

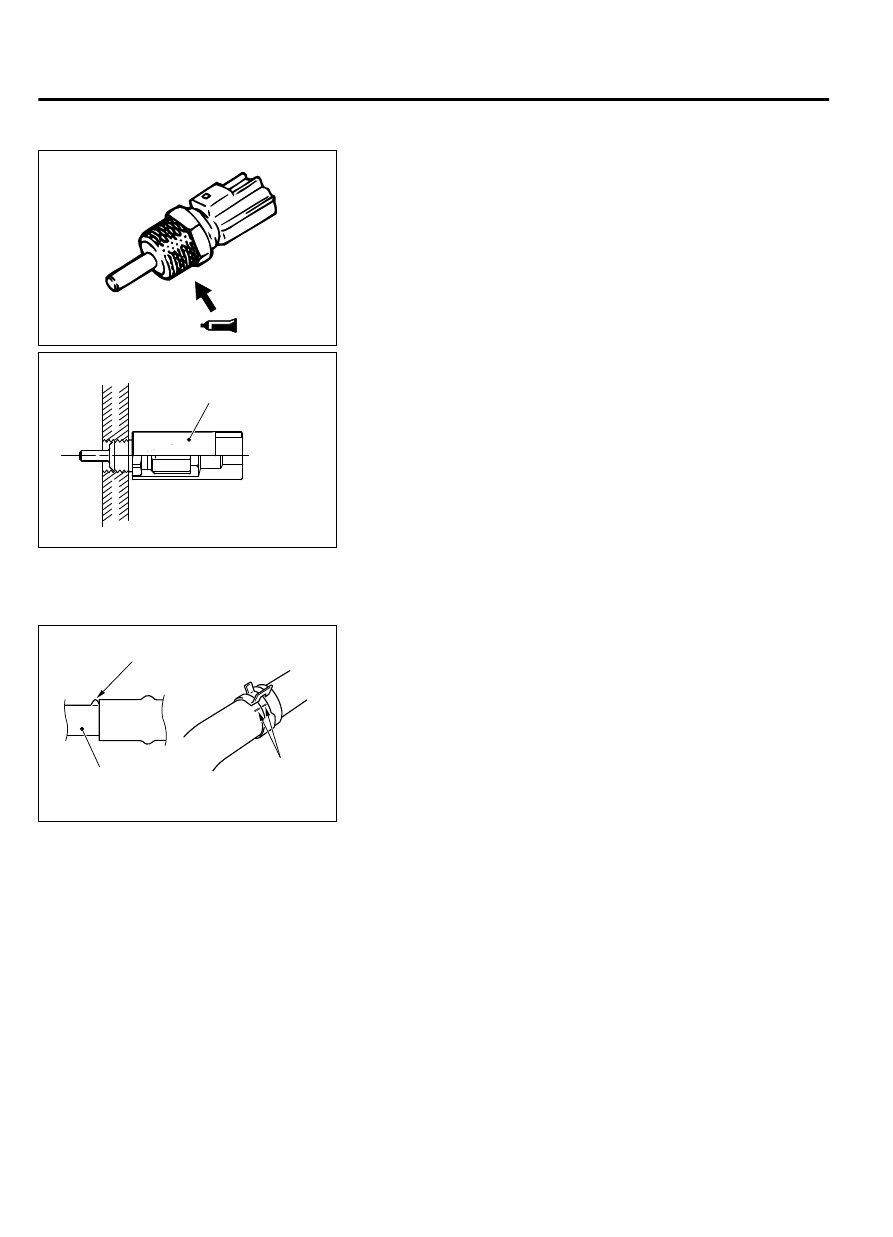

>>C<< ENGINE COOLANT TEMPERATURE SENSOR
INSTALLATION

AC103399

ZC500254AA00

1.

Apply the specified sealant to the thread of the engine coolant
temperature sensor.

Specified  Sealant:  3M™  AAD  Part  No.  8731  or
equivalent

ZC5017160000

MB992042

2.

Use  special  tool  MB992042  to  install  the  engine  coolant
temperature sensor.



>>D<< RADIATOR UPPER HOSE INSTALLATION

ZC6006490002

Mating marks

Projection

Thermostat housing

1.

Insert  each  hose  as  far  as  the  projection  of  the  thermostat
housing.

2.

Align the mating marks on the radiator hose and hose clamp,
and then connect the radiator hose.

INSPECTION

M11401000034USA0000010000

Water Pipe and Hose Check
Check the water pipe and hose for cracks, damage and clogs.
Replace them if necessary.

14-26

ENGINE COOLING

WATER HOSE AND WATER PIPE
