DTC SET CONDITIONS

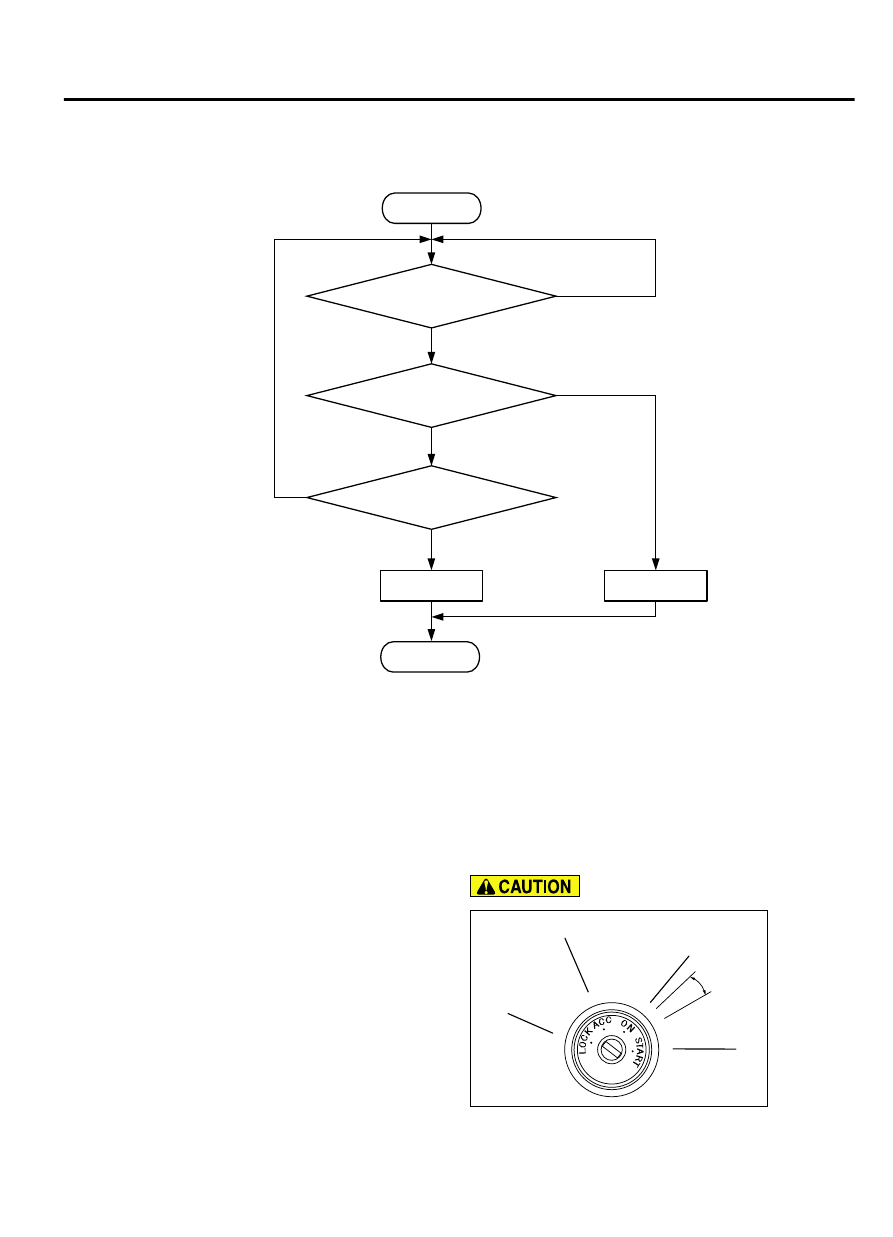

Logic Flow Chart

Start

End

Yes

Malfunction

Continuous Failure

for specified time

Monitoring
Conditions

ZK604051AA00

Communication status

Fails

Good

Check Conditions

｠

After 4 seconds have passed since the ignition
switch was turned to "ON" position.

｠

Battery positive voltage is between 10 and 16.5
volts.

Judgement Criterion

｠

Unable to receive ETACS-ECU signals through the
CAN bus line for 4 seconds.

COMMENT

Current Trouble

｠

Some of the possible causes are a harness or
connector damage between the ECM and the
ETACS-ECU on the CAN bus line, a failure in the
ETACS-ECU power supply system, a failure in the
ETACS-ECU, or a failure in the ECM.

Past Trouble

｠

Proceed  to  troubleshoot  based  on  a  harness  or
connector  damage  on  the  CAN  bus  line  between
the  ECM  and  ETACS-ECU,  and  a  failure  in  the
ETACS  power  supply  system.  Refer  to  "How  to
cope with past trouble" (Refer to GROUP 00, How
to Use Troubleshooting/Inspection Service Points -
How  to  Cope  with  Intermittent  Malfunctions  P.
00-15).

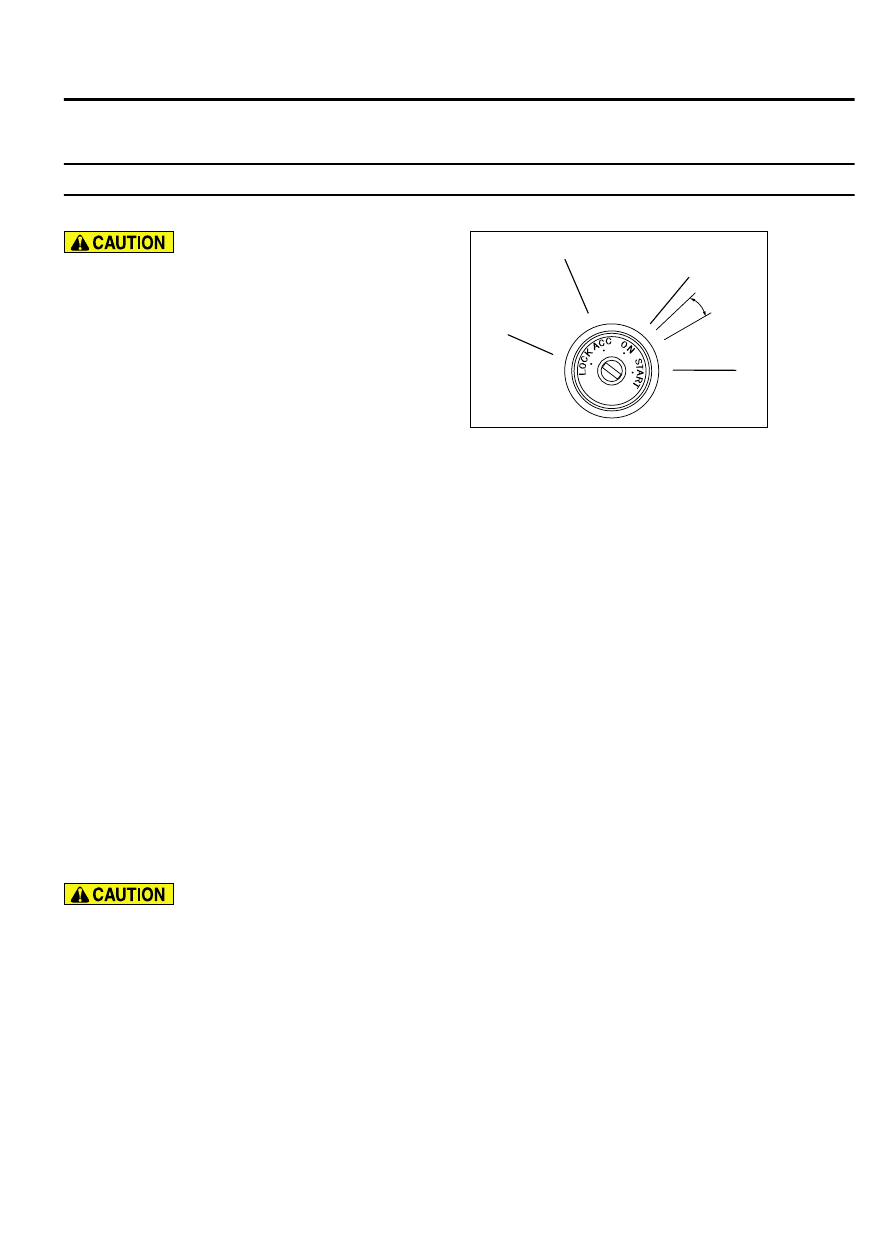

ZK604060 AA00

ACC POSITION

LOCK (OFF)
POSITION

ON POSITION

START
POSITION

RANGE
"A"

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

13Ab-747

DIAGNOSTIC TROUBLE CODE PROCEDURES

When the ignition key is maintained within the
range "A" (i.e., the ignition switch IG2 is in OFF
position but the cranking does not start) for more
than 1 second, ECM stores DTC U0141 (the past
trouble).

NOTE:

If a malfunction occurred in the past, a

to narrow down the areas of the possible failures
from the DTCs that are output by the ECUs, which
are communicating on the CAN bus (Refer to GROUP
54D, CAN bus line Diagnostics Flow P.54D-10).

OBD-II DRIVE CYCLE PATTERN
None.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are:)

｠

CAN line harness damage or connector damage.

DIAGNOSIS

Required Special Tools:

｠

MB991958: Scan tool (M.U.T.-III Sub Assembly)

｠

MB991824: V.C.I.

｠

MB991827: USB Cable

｠

MB991910: Main Harness A

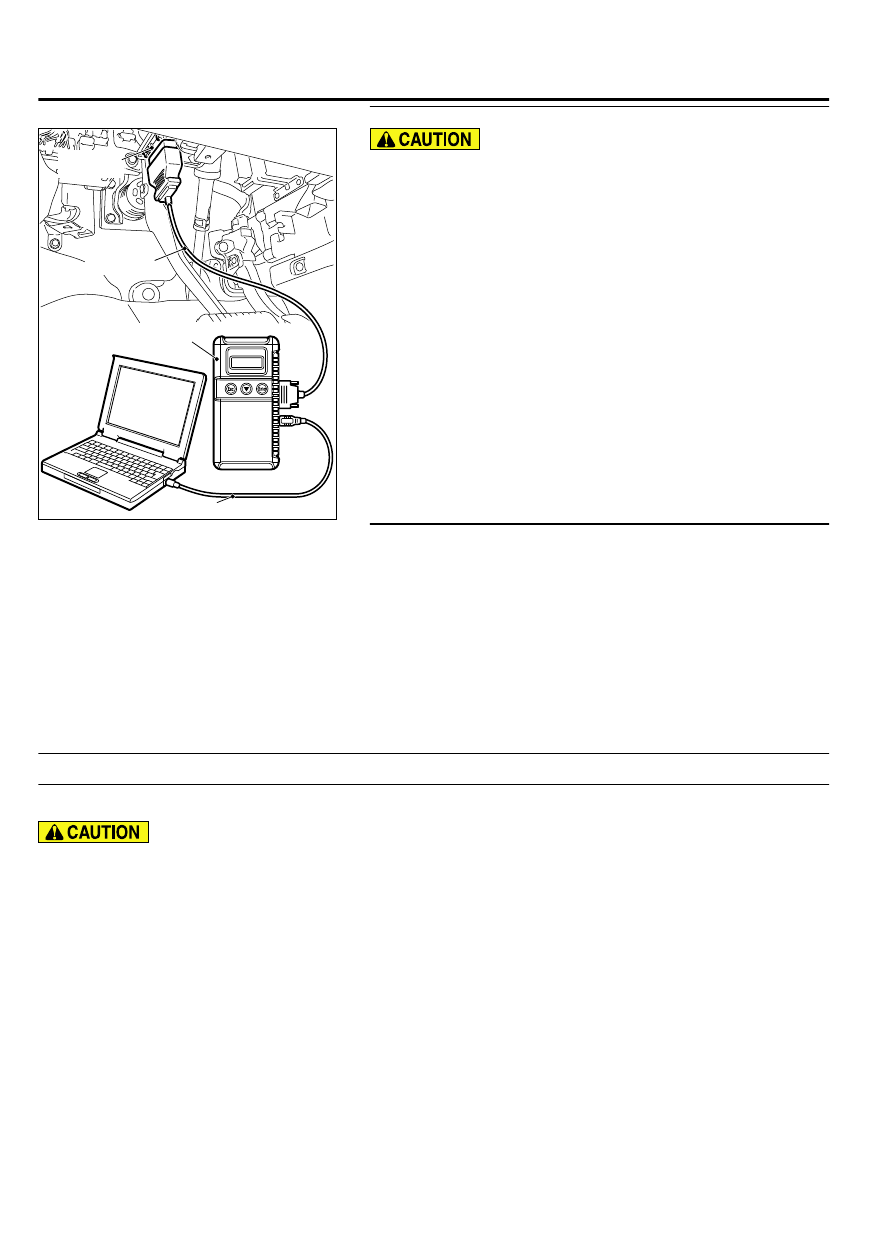

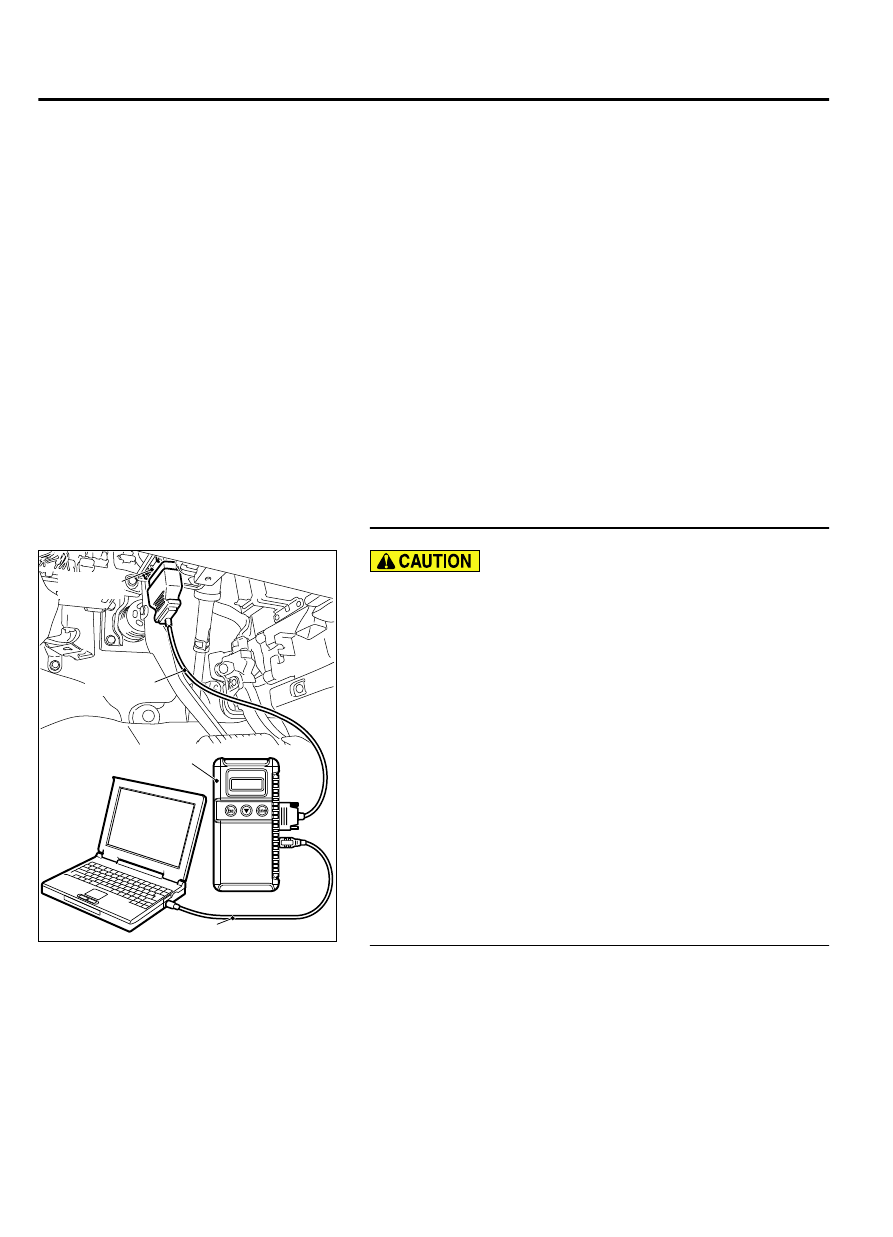

STEP 1. Using scan tool MB991958, diagnose CAN bus line.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before
connecting or disconnecting scan tool MB991958.

(1)

Connect scan tool MB991958 to the data link connector.

(2)

Turn the ignition switch to the "ON" position.

(3)

Diagnose CAN bus line.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the CAN bus line normal?

YES:

It can be assumed that this malfunction is

intermittent. Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points - How to Cope
with Intermittent Malfunctions P.00-15.

NO:

Repair the CAN bus line. Refer to GROUP 54D, Can bus

Diagnostics Table P.54D-10. Then go to Step 2.

STEP 2. Using scan tool MB991958, read the diagnostic
trouble code (DTC).

(1)

Erase the DTC.

(2)

Turn the ignition switch to the "ON" position.

(3)

Check if DTC is set.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is DTC U0141 set?

YES:

Retry the troubleshooting.

13Ab-748

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

DIAGNOSTIC TROUBLE CODE PROCEDURES

NO:

The inspection is complete.

DTC U0167: KOS-ECU/WCM Communication Error

M11310100402USA0000010000

｠

If the ECM output the DTC U0167, make sure to
diagnose the CAN bus line.

｠

Before replacing the ECU, make sure that the
communication circuit is operating normally.

DTC SET CONDITIONS

Check Conditions

｠

After 2 seconds have passed since the ignition
switch was turned to "ON" position.

｠

Battery positive voltage is 8 volts or higher.

Judgement Criterion

｠

Unable to receive KOS-ECU/WCM (immobilizer-
ECU) signals through the CAN bus line.

COMMENT

Current Trouble

｠

Some of the possible causes are a harness or
connector damage between the ECM and the KOS-
ECU/WCM on the CAN bus line, a failure in the
KOS-ECU/WCM power supply system, a failure in
the KOS-ECU/WCM, or a failure in the ECM.

Past Trouble

｠

Proceed  to  troubleshoot  based  on  a  harness  or
connector  damage  on  the  CAN  bus  line  between
the ECM and KOS-ECU/WCM, and a failure in the
KOS-ECU/WCM  power  supply  system.  Refer  to
"How to cope with past trouble" (Refer to GROUP
00, How to Use Troubleshooting/Inspection Service
Points  -  How  to  Cope  with  Intermittent
Malfunctions P.00-15).

ZK604060 AA00

ACC POSITION

LOCK (OFF)
POSITION

ON POSITION

START
POSITION

RANGE
"A"

When the ignition key is maintained within the
range "A" (i.e., the ignition switch IG2 is in OFF
position but the cranking does not start) for more
than 1 second, ECM stores DTC U0167 (the past
trouble).

NOTE:

If a malfunction occurred in the past, a

failure cannot be discovered through the MB991958
CAN bus diagnosis even if there might be a problem
with the CAN bus. In this case, refer to GROUP
00,How to Use Troubleshooting/Inspection Service
Points - How to Cope with Intermittent
Malfunctions P.00-15. Furthermore, it is possible
to narrow down the areas of the possible failures
from the DTCs that are output by the ECUs, which
are communicating on the CAN bus (Refer to GROUP
54D, CAN bus line Diagnostics Flow P.54D-10).

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are:)

｠

CAN line harness damage or connector damage.

DIAGNOSIS

Required Special Tools:

｠

MB991958: Scan tool (M.U.T.-III Sub Assembly)

｠

MB991824: V.C.I.

｠

MB991827: USB Cable

｠

MB991910: Main Harness A

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

13Ab-749

DIAGNOSTIC TROUBLE CODE PROCEDURES

STEP 1. Using scan tool MB991958, diagnose CAN bus line.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before
connecting or disconnecting scan tool MB991958.

(1)

Connect scan tool MB991958 to the data link connector.

(2)

Turn the ignition switch to the "ON" position.

(3)

Diagnose CAN bus line.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the CAN bus line normal?

YES:

It can be assumed that this malfunction is

intermittent. Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points - How to Cope
with Intermittent Malfunctions P.00-15.

NO:

Repair the CAN bus line. Refer to GROUP 54D, Can bus

Diagnostics Table P.54D-10. Then go to Step 2.

STEP 2. Recheck for diagnostic trouble code.
Check again if the DTC is set.

(1)

Erase the DTC.

(2)

Turn the ignition switch to the "ON" position.

(3)

Check if DTC is set.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is DTC U0167 set?

YES:

Retry the troubleshooting.

NO:

The inspection is complete.

DTC U1180: Combination Meter Time-Out

M11310100403USA0000010000

｠

If the ECM output the DTC U1180, make sure to
diagnose the CAN bus line.

｠

Before replacing the ECU, make sure that the
communication circuit is operating normally.

DESCRIPTIONS OF MONITOR METHODS
There is no data from combination meter for the
specified time. (combination meter also detect
communication error with ECM.)

MONITOR EXECUTION

Continuous

MONITOR EXECUTION CONDITIONS (Other
monitor and Sensor)

Other Monitor (There is no temporary DTC stored in
memory for the item monitored below)

｠

Not applicable

Sensor (The sensor below is determined to be
normal)

｠

Not applicable

13Ab-750

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

DIAGNOSTIC TROUBLE CODE PROCEDURES
