MB991910: Main Harness A

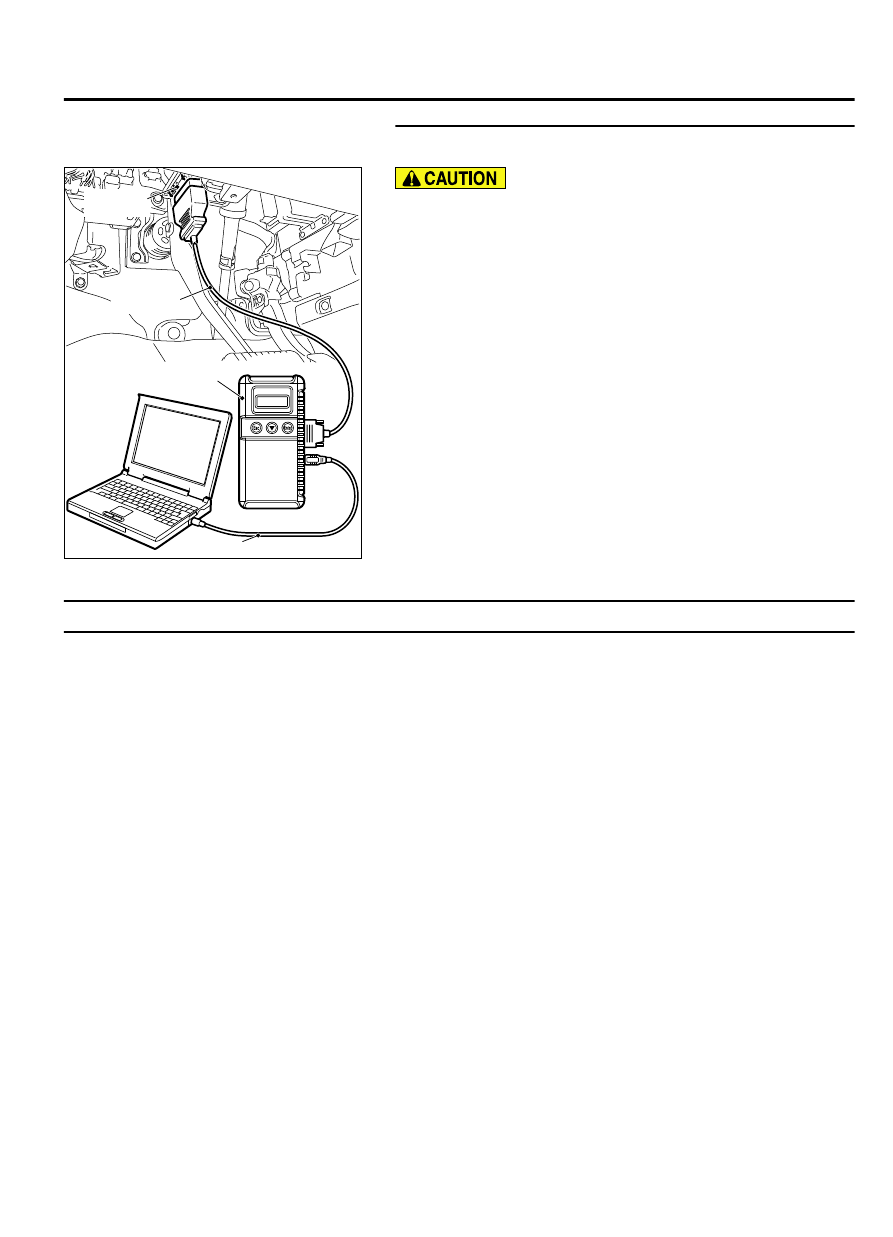

STEP 1. Using scan tool MB991958, read the diagnostic
trouble code (DTC).

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"(OFF)  position  before
connecting or disconnecting scan tool MB991958.

(1)

Connect scan tool MB991958 to the data link connector.

(2)

Turn the ignition switch to the "ON" position.

(3)

After the DTC has been deleted, read the DTC again.

(4)

Turn the ignition switch to the "LOCK"(OFF) position.

Q:Is DTC P0603 set?

YES:

 Replace the ECM. When the ECM is replaced, register

the ID code. Refer to GROUP 42B, ID Code Registration
Judgment Table <Vehicles with KOS> P.42B-12or GROUP
42C, ID Code Registration Judgment Table <Vehicles with
WCM> P.42C-8.

NO:

 It can be assumed that this malfunction is

intermittent. Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points - How to Cope
with Intermittent Malfunctions P.00-15.

DTC P0606: Engine Control Module Main Processor Malfunction

M11310100244USA0000010000

TECHNICAL DESCRIPTION

｠

Throttle actuator control module processor checks
the ECM for abnormal conditions.

DESCRIPTIONS OF MONITOR METHODS

No watch dog pulse is detected.

MONITOR EXECUTION

Continuous

MONITOR EXECUTION CONDITIONS (Other
monitor and Sensor)

Other Monitor (There is no temporary DTC stored in
memory for the item monitored below)

｠

Not applicable

Sensor (The sensor below is determined to be
normal)

｠

Not applicable

DTC SET CONDITIONS

Check Condition

｠

Ignition switch is "ON" position.

Judgement Criterion

｠

No surveillance pulse signals should be input for 0.5
second.

OBD-II DRIVE CYCLE PATTERN

None.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are:)

｠

ECM failed.



MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

13Ab-587

DIAGNOSTIC TROUBLE CODE PROCEDURES

DIAGNOSIS

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: V.C.I.

｠

MB991827: USB Cable

｠

MB991910: Main Harness A

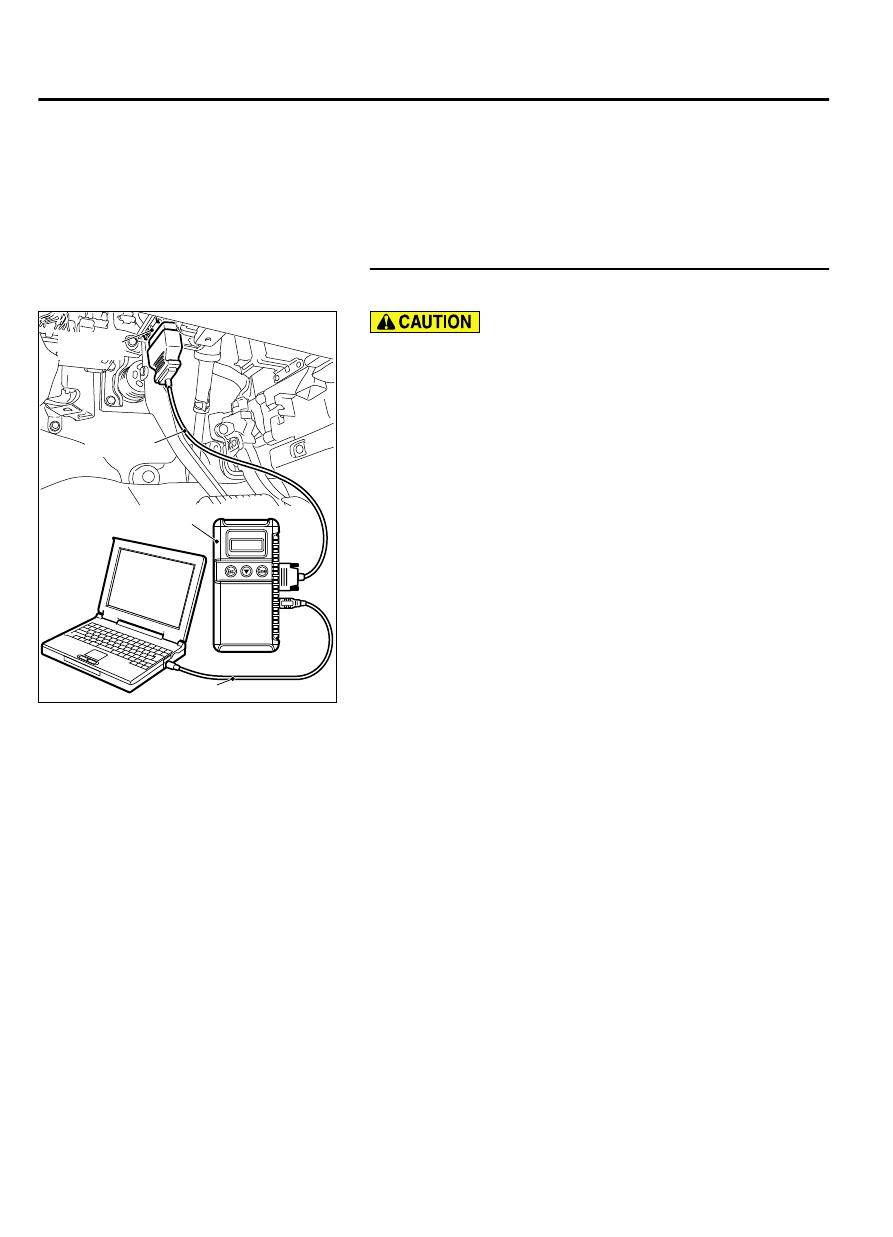

STEP 1. Using scan tool MB991958, read the diagnostic
trouble code (DTC)

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"(OFF)  position  before
connecting or disconnecting scan tool MB991958.

(1)

Connect scan tool MB991958 to the data link connector.

(2)

Turn the ignition switch to the "ON" position.

(3)

After the DTC has been deleted, read the DTC again.

(4)

Turn the ignition switch to the "LOCK"(OFF) position.

Q:Is DTC P0606 set?

YES:

 Replace the ECM. When the ECM is replaced, register

the ID code. Refer to GROUP 42B, ID Code Registration
Judgment Table <Vehicles with KOS> P.42B-12or GROUP
42C, ID Code Registration Judgment Table <Vehicles with
WCM> P.42C-8.

NO:

 It can be assumed that this malfunction is

intermittent. Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points - How to Cope
with Intermittent Malfunctions P.00-15.

13Ab-588

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

DIAGNOSTIC TROUBLE CODE PROCEDURES

DTC P0622: Generator FR Terminal Circuit Malfunction

M11310100245USA0000010000

ZK602855

1

2

3 4 5 6 7 8 9 10 11 12 13 14 15 16

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

3 4

2

1

AA00

ENGINE
CONTROL
MODULE

GENERATOR

RED-GREEN

IC VOLTAGE
REGULATOR

61

4

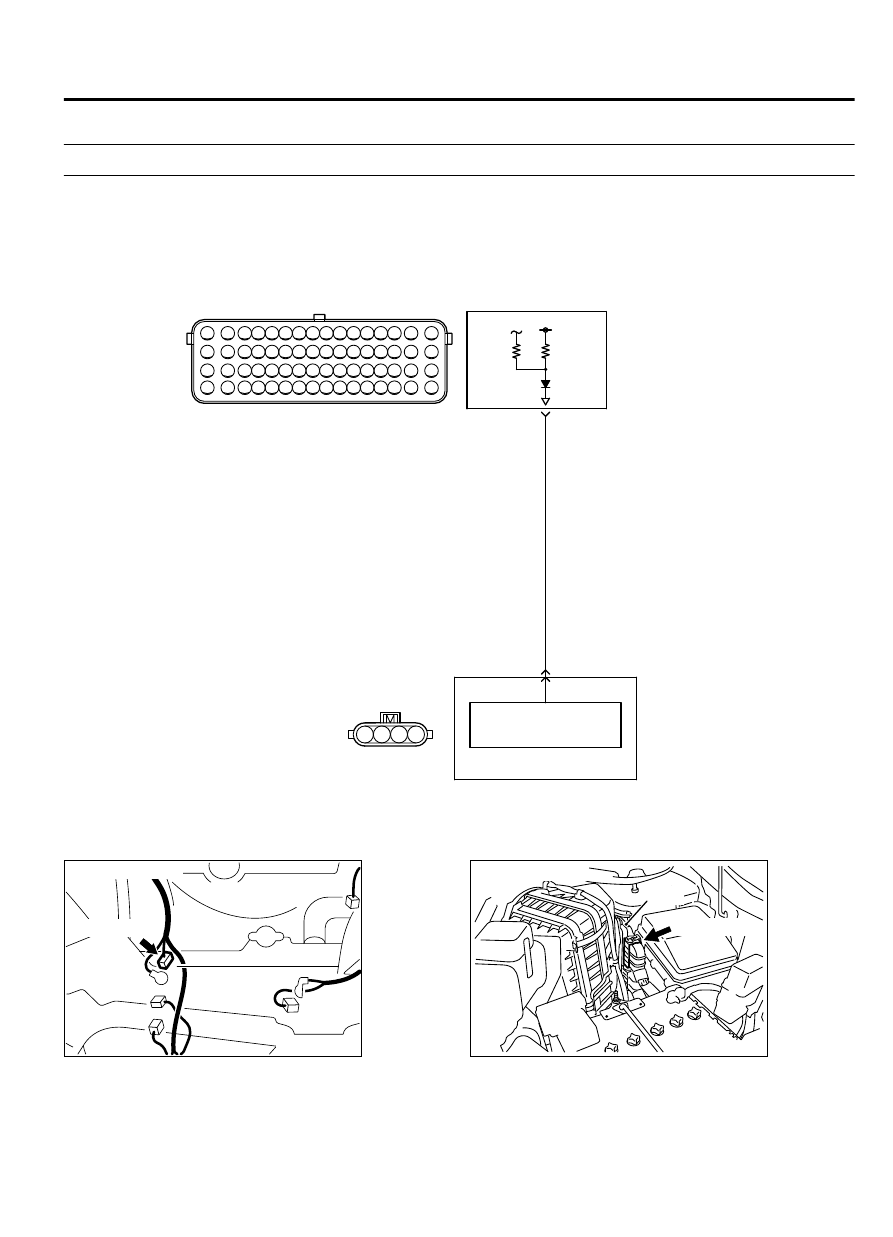

GENERATOR CIRCUIT

      B-118
(MU802066)

B-10

ZK603627AA00

Connector: B-118

B-118 (GR)

ZK603591

ECM

B-10 (GR)

Connector: B-10

AA00



MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

13Ab-589

DIAGNOSTIC TROUBLE CODE PROCEDURES

CIRCUIT OPERATION

｠

The ECM (terminal No. 61) apply a battery positive
voltage  into  the  generator  FR  terminal  No.  4  via
resistance inside the unit.

TECHNICAL DESCRIPTION

｠

When  the  generator  field  coils  are  controlled,  the
generator FR terminal inputs signal to the ECM.

｠

The  ECM  detects  the  generator  output  with  the
input signal, and controls the idle air control motor
according to the generator output.

DTC SET CONDITIONS

Check Condition

｠

Engine speed is higher than 50 r/min.

Judgement Criterion

｠

Input  voltage  from  the  generator  FR  terminal  has
continued  to  be  approximately  battery  positive
voltage for 20 seconds.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set area: )

｠

Generator failed.

｠

Connector damage.

｠

Harness damage.

｠

ECM failed.



DIAGNOSIS

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: V.C.I.

｠

MB991827: USB Cable

｠

MB991910: Main Harness A

｠

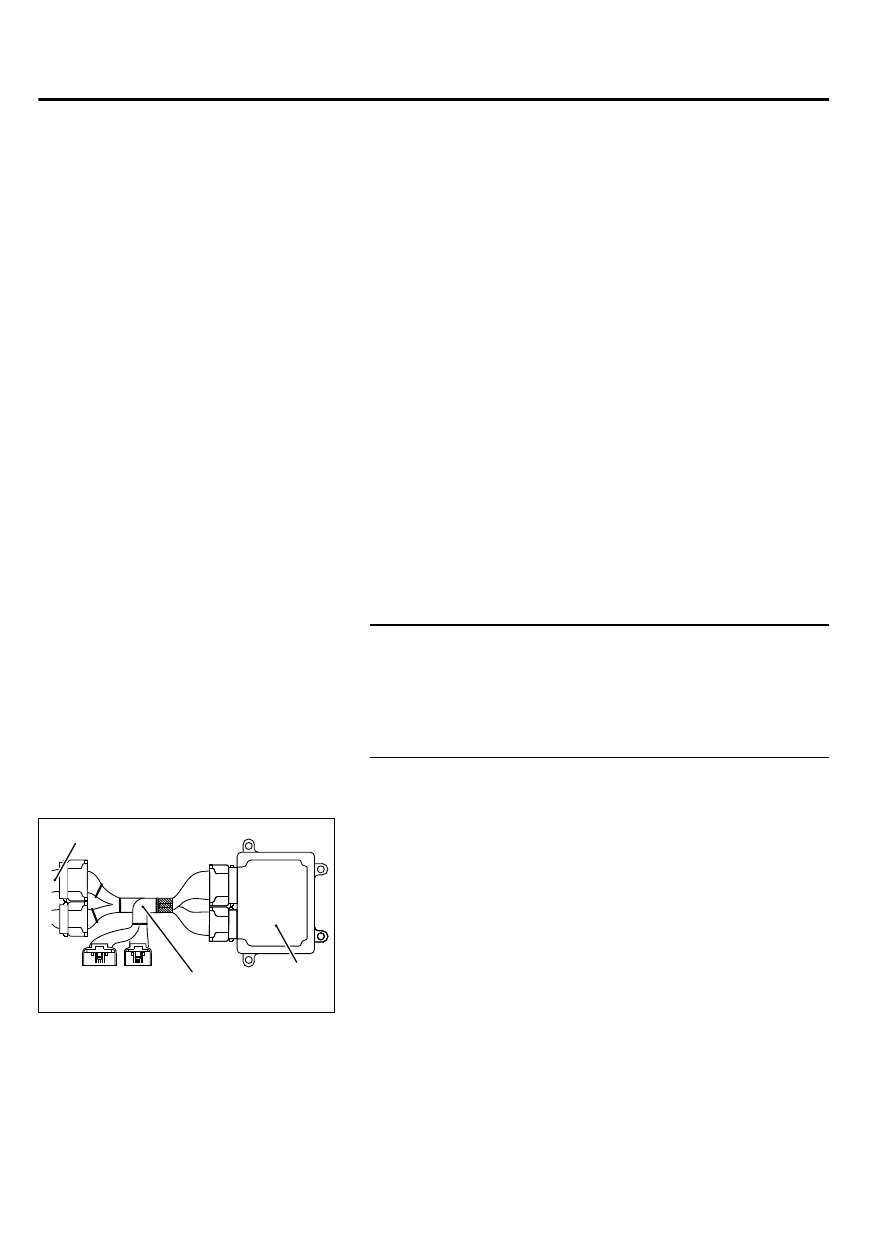

MB992110: Power Plant ECU Check Harness

STEP 1. Check harness connector B-10 at ECM connector
for damage.

Q:Is the harness connector in good condition?

YES:

 Go to Step 2.

NO:

 Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection P.00E-2. Then go to Step 8.

STEP 2. Measure the voltage at ECM connector B-10 by
using power plant ECU check harness special tool
MB992110.

ECM

ZK603234AA00

Body side harness

MB992110

(1)

Disconnect  all  ECM  connectors.  Connect  the  power  plant
ECU  check  harness  special  tool  MB992110  between  the
separated connectors.

(2)

Start the engine and run at idle.

13Ab-590

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

DIAGNOSTIC TROUBLE CODE PROCEDURES
