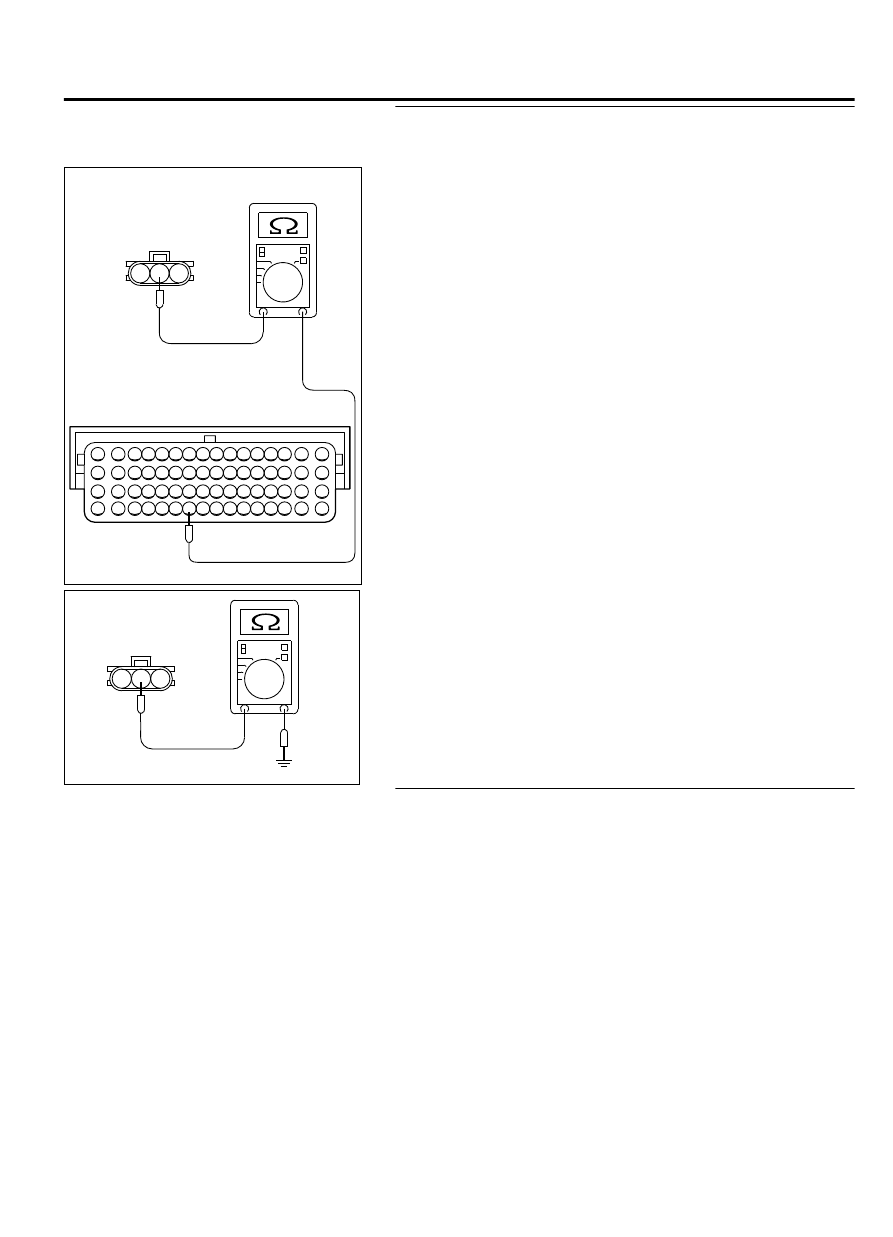

STEP 6. Check for open circuit and short circuit to ground
and harness damage between power steering pressure
sensor connector B-102 and ECM connector B-10.

ZK603231

3 2 1

16 15 14 13 12 11 10 9 8 7 6 5 4 3

2

1

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17

48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33

64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49

B-102 harness
connector:
component side

AA00

B-10 harness
connector:
component side

(1)

Disconnect the connector B-102 and B-10 measure at the
harness side.

(2)

Measure the resistance between connector B-102 (terminal
No. 2) and connector B-10 (terminal No. 58).

｠

Should be less than 2 ohms.

3 2 1

ZK603232

B-102 harness
connector:
component side

AA00

(3)

Check for the continuity between connector B-102 (terminal
No. 2) and ground.

｠

Not continuity.

Q:Is the harness wire in good condition?

YES:

 Then go to Step 8.

NO:

 Repair it. Then go to Step 8.

STEP 7. Replace the power steering pressure sensor.

(1)

Replace the power steering pressure sensor.

(2)

Carry out a test drive with the drive cycle pattern. Refer to
Diagnostic  Function.  OBD-II  Drive  Cycle.  Pattern  24  P.
13Ab-8.

(3)

Check the diagnostic trouble code (DTC).

Q:Is DTC P0552 set?

YES:

 Replace the ECM. When the ECM is replaced, register

the ID code. Refer to GROUP 42B, ID Code Registration
Judgment Table <Vehicles with KOS> P.42B-12or GROUP
42C, ID Code Registration Judgment Table <Vehicles with
WCM> P.42C-8. Then go to Step 8.

NO:

 The inspection is complete.

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

13Ab-579

DIAGNOSTIC TROUBLE CODE PROCEDURES

STEP 8. Test the OBD-II drive cycle.

(1)

Carry out a test drive with the drive cycle pattern. Refer to
Diagnostic  Function  -  OBD-II  Drive  Cycle  -  Pattern  24  P.
13Ab-8.

(2)

Check the diagnostic trouble code (DTC).

Q:Is DTC P0552 set?

YES:

 Retry the troubleshooting.

NO:

 The inspection is complete.

DTC P0553: Power Steering Pressure Circuit High Input

M11310100376USA0000010000

ZK602854

1

2

3 4 5 6 7 8 9 10 11 12 13 14 15 16

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

3

2

1

AA00

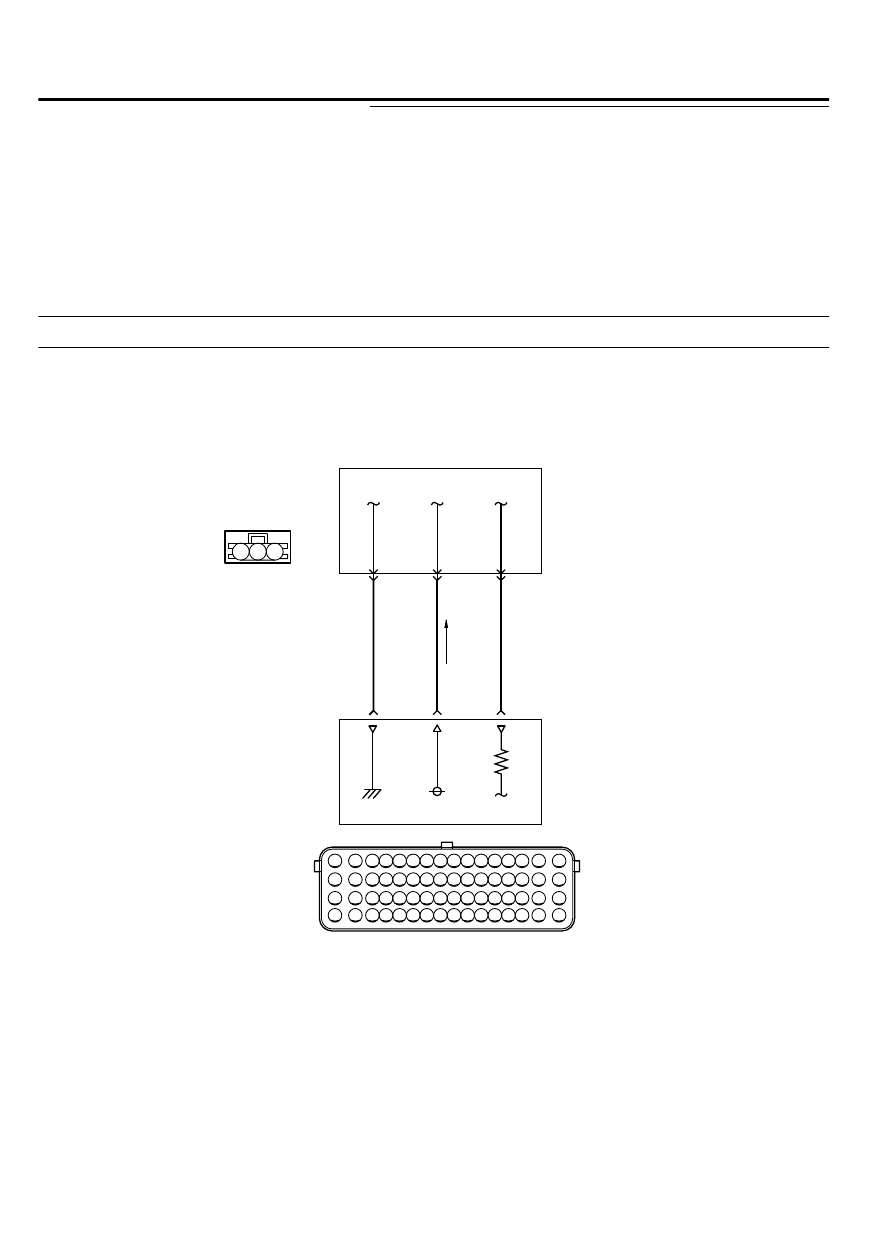

POWER STEERING PRESSURE SENSOR CIRCUIT

ENGINE
CONTROL
MODULE

2

3

1

GRA

Y

BR

O

WN

LIGHT GREEN

58

43

5V

59

POWER STEERING
PRESSURE SENSOR

B-102

(MU802509)

B-10

13Ab-580

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

DIAGNOSTIC TROUBLE CODE PROCEDURES

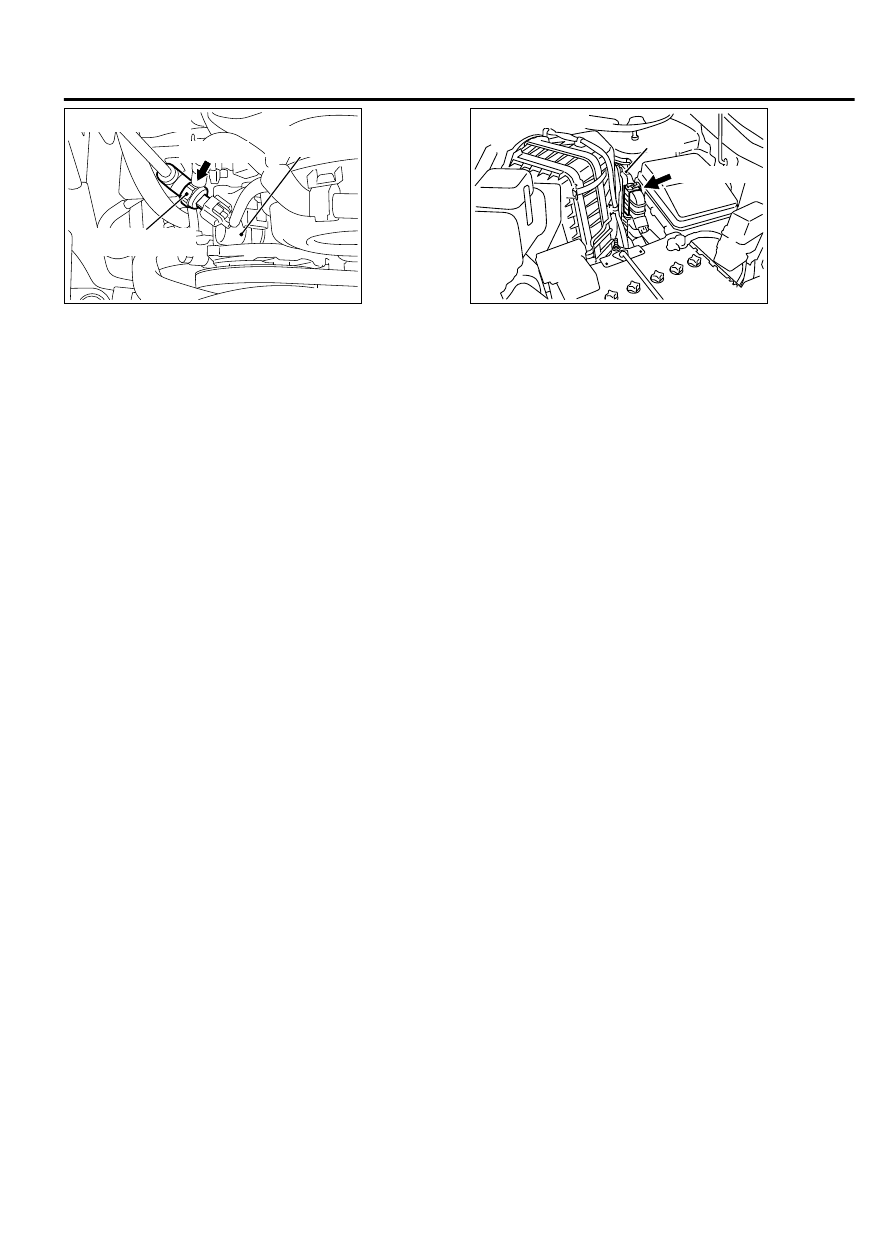

ZK603626 AA00

Power steering
oil pump

Power steering
pressure sensor

A-102 (B)

Connector: B-102

ZK603591

ECM

B-10 (GR)

Connector: B-10

AA00



CIRCUIT OPERATION

｠

A 5-volt voltage is supplied to the power steering
pressure  sensor  power  terminal  (terminal  No.  3)
from the ECM (terminal No. 43).

｠

The ground terminal (terminal No. 1) is grounded
with the ECM (terminal No. 59).

｠

A voltage that is proportional to the power steering
pressure is sent to the ECM (terminal No. 58) from
the power steering pressure sensor output terminal
(terminal No. 2).

TECHNICAL DESCRIPTION

｠

The  power  steering  pressure  sensor  outputs  a
voltage  which  corresponds  to  the  power  steering
pressure.

｠

The  ECM  checks  whether  this  voltage  is  within  a
specified range.

DESCRIPTIONS OF MONITOR METHODS
Power steering pressure sensor output voltage is out
of specified range.

MONITOR EXECUTION

Continuous

MONITOR EXECUTION CONDITIONS (Other
monitor and Sensor)

Other Monitor (There is no temporary DTC stored in
memory for the item monitored below)

｠

Not applicable

Sensor (The sensor below is determined to be
normal)

｠

Engine coolant temperature sensor

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

13Ab-581

DIAGNOSTIC TROUBLE CODE PROCEDURES

DTC SET CONDITIONS

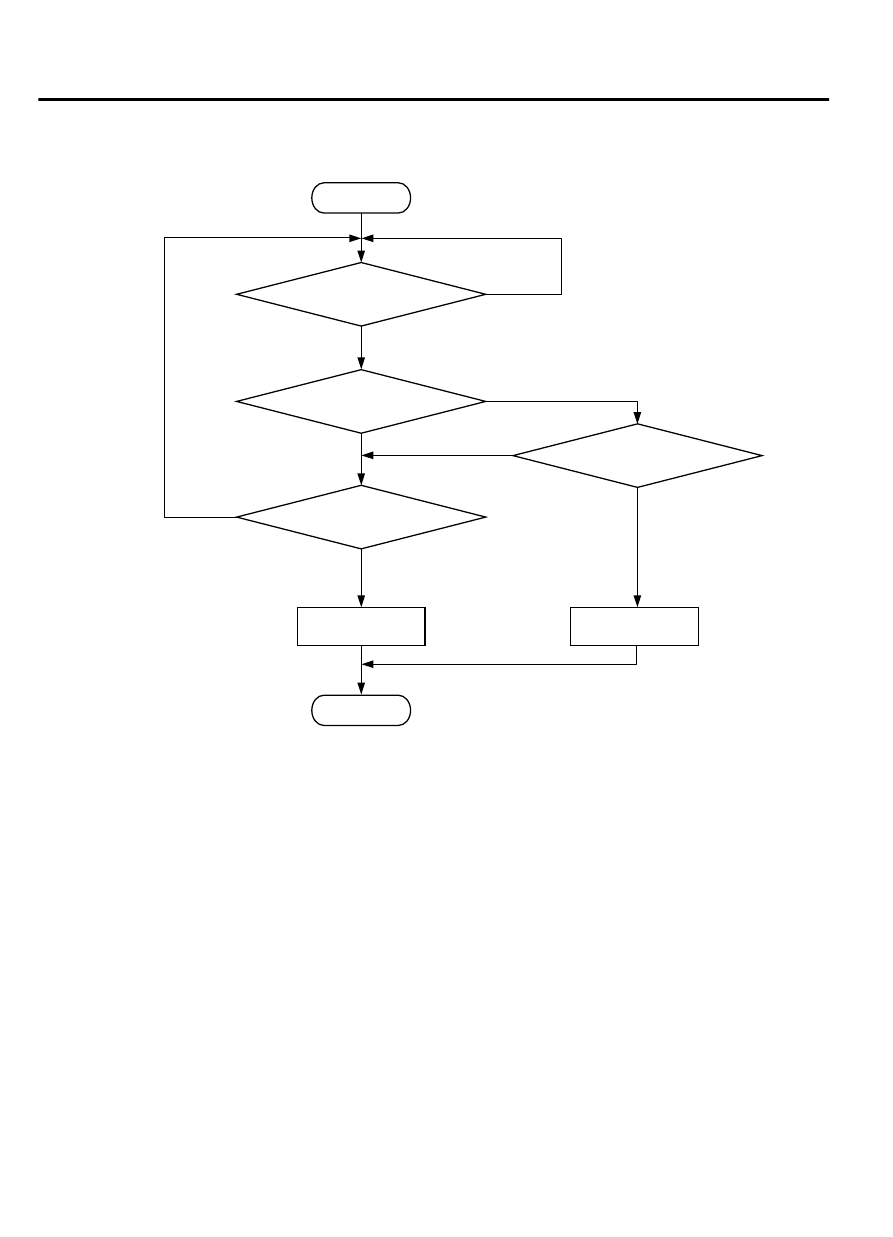

Logic Flow Chart

ZK603784AA00

Good

Malfunction

Start

End

No

No

No

Yes

Yes

Yes

Yes

No

Monitoring

conditions

Continuous failure

for 5secs

Output voltage

< 0.2V

Output voltage

> 4.8V

Check Condition

｠

More than 2 seconds have passed since the engine
starting sequence was completed.

Judgement Criterion

｠

Power steering pressure sensor output voltage has
continued to be 4.8 volts or higher for 5 seconds.

OBD-II DRIVE CYCLE PATTERN
Refer to Diagnostic Function - OBD-II Drive Cycle -
Pattern 24 P.13Ab-8.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are:)

｠

Connector damage.

｠

Harness damage.

｠

Power steering pressure sensor failed.

｠

ECM failed.
