DTC P0153: Heated Oxygen Sensor Circuit Slow Response (bank 2, sensor 1)

M11310100196USA0000010000

ZK602840

1

2

3 4 5 6 7 8 9 10 11 12 13 14 15 16

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

0.5 V

2

1

4

3

AA00

ENGINE
CONTROL
MODULE

LEFT BANK HEATED
OXYGEN SENSOR (FRONT)

FROM MFI RELAY

TO ECM

1

2

3

4

39

RED

SKY BLUE

38

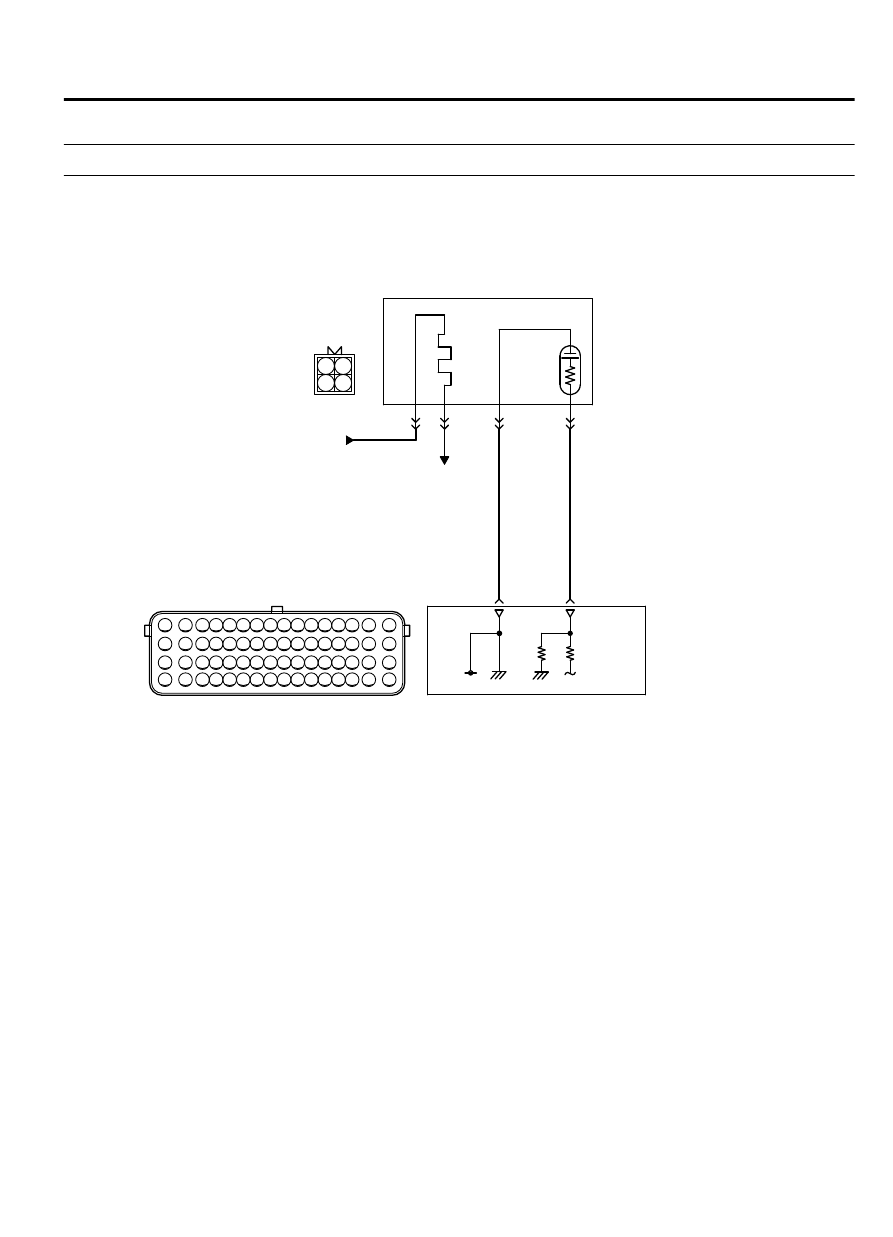

LEFT BANK HEATED OXYGEN SENSOR (FRONT) CIRCUIT

B-10

B-14

MU802605

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

13Ab-263

DIAGNOSTIC TROUBLE CODE PROCEDURES

ZK603594

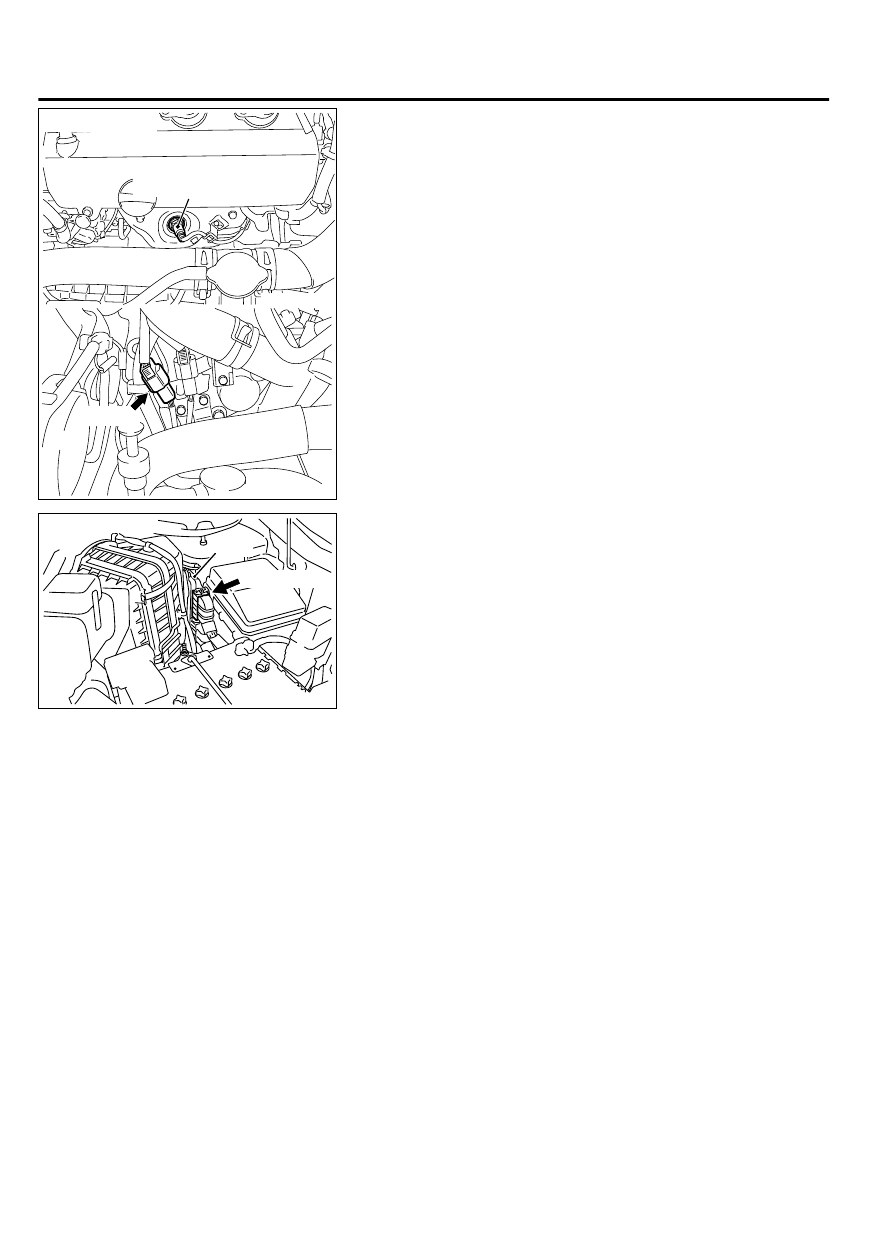

Left bank heated oxygen
sensor (front)

AA00

B-14 (B)

Connector: B-14

ZK603591

ECM

B-10 (GR)

Connector: B-10

AA00



CIRCUIT OPERATION

A  voltage  corresponding  to  the  oxygen
concentration in the exhaust gas is sent to the ECM
(terminal No. 38) from the output terminal (terminal
No. 4) of the left bank heated oxygen sensor (front).

Terminal  No.  2  of  the  left  bank  heated  oxygen
sensor (front) is grounded with ECM (terminal No.
39).

The  ECM  applies  an  offset  voltage  of  0.5  volt  to
terminal No. 2 of the left bank heated oxygen sensor
(front).

TECHNICAL DESCRIPTION

The left bank heated oxygen sensor (front) detects
the concentration of oxygen in the exhaust gas; it
converts  those  data  to  voltage,  and  inputs  the
resulting signals to the ECM.

When  the  left  bank  heated  oxygen  sensor  (front)
begins to deteriorate, the left bank heated oxygen
sensor signal response becomes poor.

The  ECM  also  checks  for  the  left  bank  heated
oxygen sensor (front) rich/lean switch frequency.

DESCRIPTIONS OF MONITOR METHODS

Left  bank  heated  oxygen  sensor  (front)  output
voltage is over specified range.

MONITOR EXECUTION

Continuous

13Ab-264

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

DIAGNOSTIC TROUBLE CODE PROCEDURES

MONITOR EXECUTION CONDITIONS (Other
monitor and Sensor)

Other Monitor (There is no temporary DTC stored in
memory for the item monitored below)

Heated oxygen sensor heater (front) monitor

Misfire monitor

Fuel system monitor

Sensor (The sensor below is determined to be
normal)

Mass airflow sensor

Engine coolant temperature sensor

Intake air temperature sensor

Barometric pressure sensor

Throttle position sensor

Accelerator pedal position sensor

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

13Ab-265

DIAGNOSTIC TROUBLE CODE PROCEDURES

DTC SET CONDITION

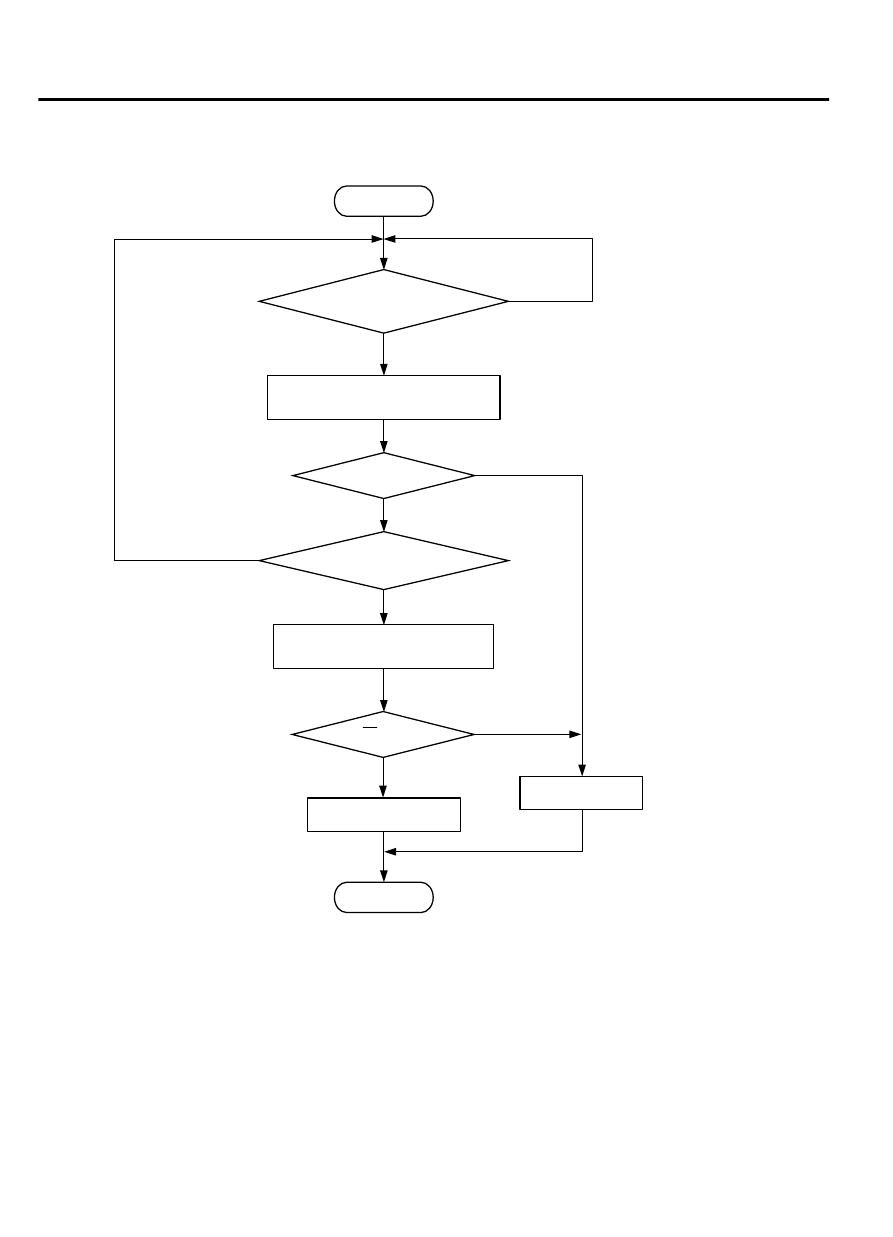

Logic Flow Chart

Start

Monitoring

conditions

Specified times monitored?

Malfunction

Good

End

No

No

No

No

Yes

Yes

Yes

Yes

Ff > F1

Calculate switching frequency of

front oxygen sensor output signal (Ff)

ZK603714 AA00

Calculate average switching

frequency (Ff) over specified times

Ff < F0

Check Conditions

Engine  coolant  temperature  is  higher  than  50°C
(122°F).

Engine speed is between 1,250 and 3,500 r/min.

Volumetric efficiency is between 25 and 65 percent.

Under the closed loop air/fuel control.

The accelerator pedal open.

Short-term  fuel  trim  is  at  between  -25  and  +25
percent.

More than 2 seconds have elapsed after the above
mentioned conditions have been met.

The ECM monitors for this condition for 5 cycles of
12 seconds each during the drive cycle.
