13Ab-132, DTC P0108 - Manifold Absolute Pressure Circuit
High Input P.13Ab-138.

STEP 3. Using scan tool MB991958, read the diagnostic
trouble code (DTC).

(1)

Turn the ignition switch to the "ON" position.

(2)

Erase the DTC.

(3)

Start the engine.

(4)

Turn the ignition switch to "LOCK" (OFF) position and then
wait 2 seconds.

(5)

Turn the ignition switch to the "ON" position.

(6)

Set scan tool MB991958, read the DTC.

(7)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is DTC P0069 set?

YES:

 Replace the ECM. When the ECM is replaced, register

the ID code. Refer to GROUP 42B, ID Code Registration
Judgment Table <Vehicles with KOS> P.42B-12or GROUP
42C, ID Code Registration Judgment Table <Vehicles with
WCM> P.42C-8. Then go to Step 4.

NO:

 It can be assumed that this malfunction is

intermittent. Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points - How to Cope
with Intermittent Malfunctions P.00-15.

STEP 4. Using scan tool MB991958, read the diagnostic
trouble code (DTC).

(1)

Turn the ignition switch to the "ON" position.

(2)

Erase the DTC.

(3)

Start the engine.

(4)

Turn the ignition switch to "LOCK" (OFF) position and then
wait 2 seconds.

(5)

Turn the ignition switch to the "ON" position.

(6)

Set scan tool MB991958, read the DTC.

(7)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is DTC P0069 set?

YES:

 Retry the troubleshooting.

NO:

 The inspection is complete.

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

13Ab-107

DIAGNOSTIC TROUBLE CODE PROCEDURES

DTC P0101: Mass Airflow Circuit Range/Performance Problem

M11310100170USA0000010000

ZK602833

71 72 73 74 75 76 77 78 79 80 81 82

83 84 85 86 87 88 89 90 91 92 93 94

95 96 97 98 99

100 101 102 103 104

112 113 114

109

108

107

110 111

115 116

106

105

118

117

1

3

2

4

3 4

2

1

AA00

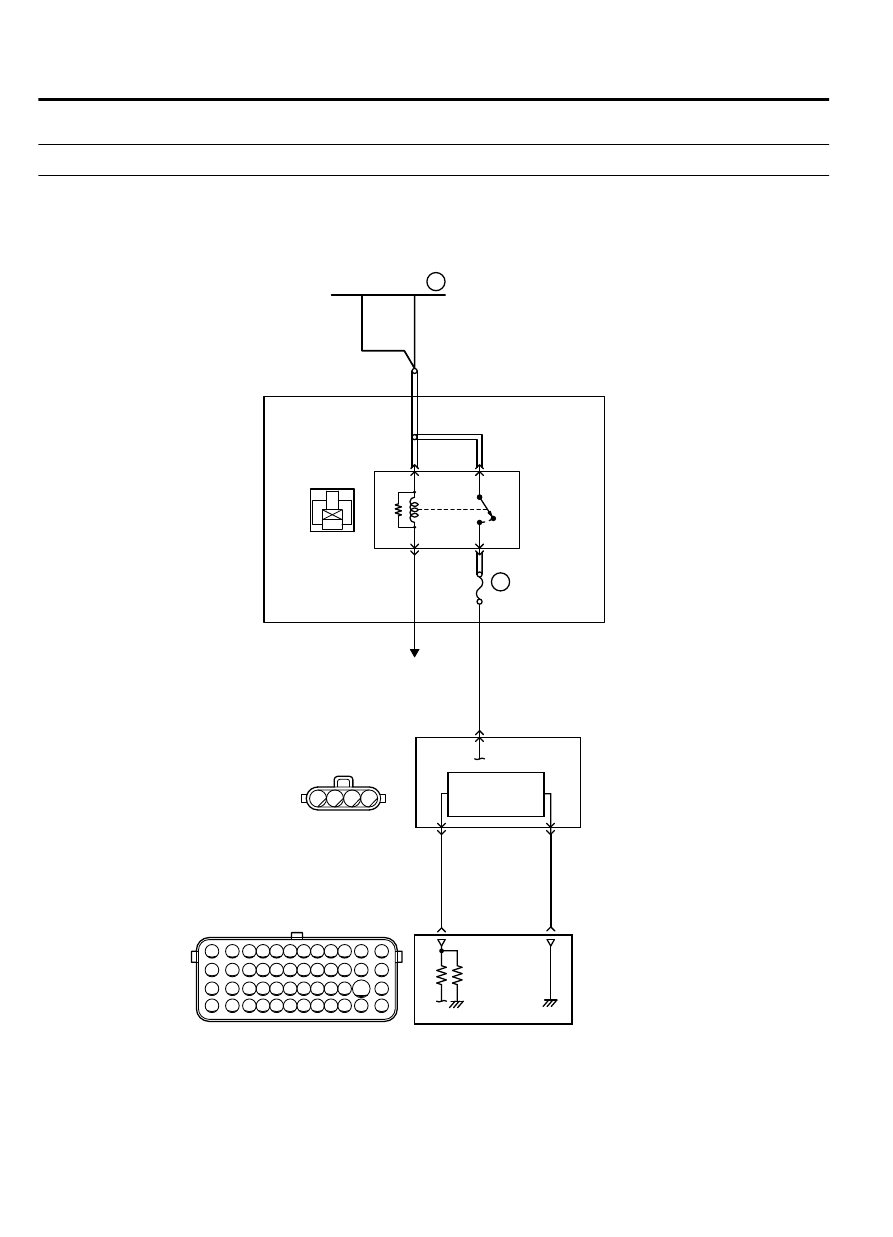

MASS AIRFLOW SENSOR CIRCUIT

87

88

ENGINE
CONTROL
MODULE

MASS AIRFLOW SENSOR

3

2

HEAT
SENSITIZING
RESISTANCE

BLUE

A-07

(MU805110)

BLA

CK-WHITE

4

20A

WHITE

WHITE

WHITE

A-33X

MFI
RELAY

RELAY BOX
(ENGINE COMPARTMENT)

4

3

1

2

22

TO ECM

B-11

36

FUSIBLE LINK

OFF

ON

13Ab-108

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

DIAGNOSTIC TROUBLE CODE PROCEDURES

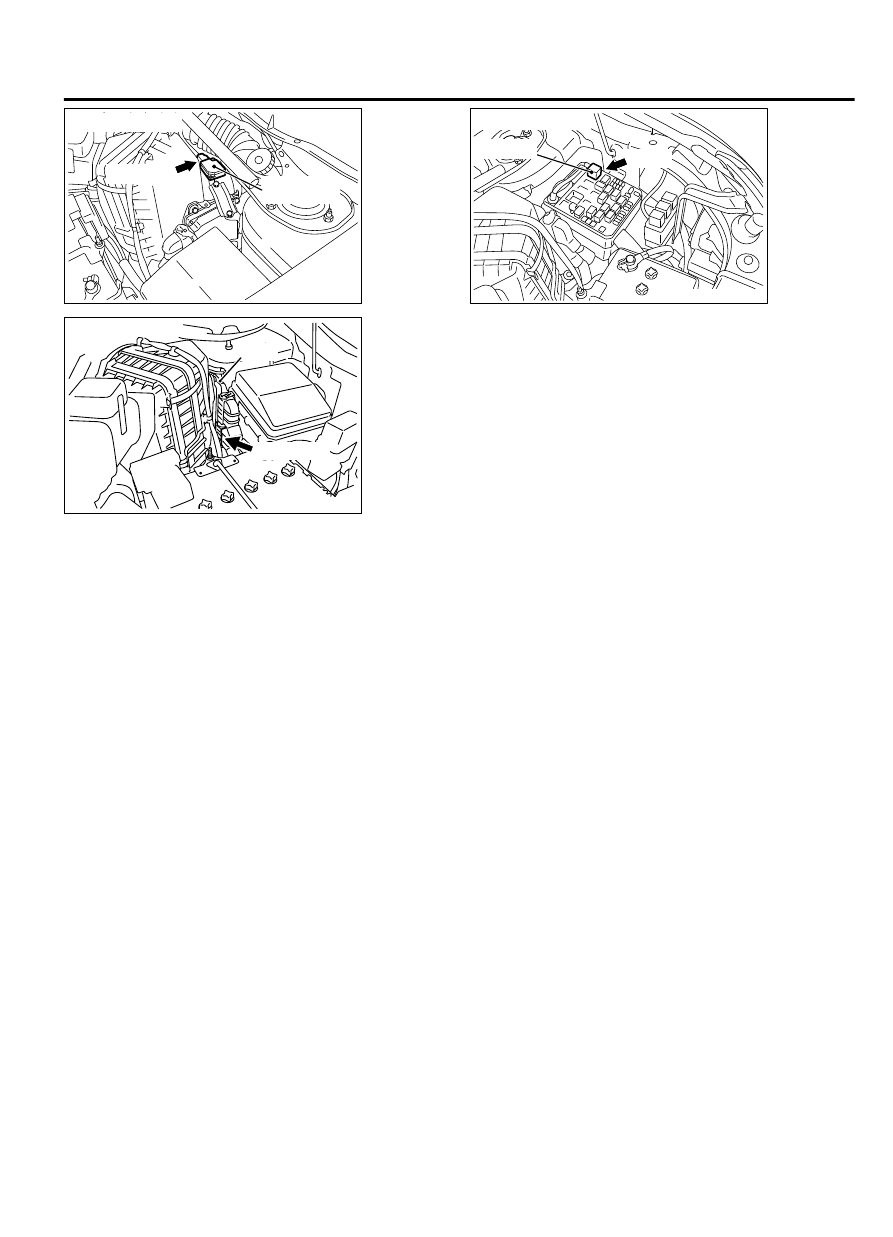

ZK603596

Mass airflow

sensor

AA00

A-07 (GR)

Connector: A-07

ZK603592

ECM

B-11 (GR)

Connector: B-11

AA00

ZK603589

MFI relay

A-33X

Connector: A-33X

AA00



CIRCUIT OPERATION

The mass airflow sensor power is supplied from the
MFI  relay  (terminal  No.  4),  and  the  ground  is
provided on the ECM (terminal No. 88).

A voltage that is according to the mass airflow rate
is sent to the ECM (terminal No. 87) from the mass
airflow sensor output terminal (terminal No. 3).

TECHNICAL DESCRIPTION

While the engine is running, the mass airflow sensor
outputs  voltage  which  corresponds  to  the  mass
airflow rate.

The ECM checks whether the voltage output by the
mass airflow sensor while the engine is running is
within a specified range.

DESCRIPTIONS OF MONITOR METHODS

Compare  load  value  with  mass  airflow  sensor
output voltage.

MONITOR EXECUTION

Continuous

MONITOR EXECUTION CONDITIONS (Other
monitor and Sensor)

Other Monitor (There is no temporary DTC stored in
memory for the item monitored below)

Not applicable

Sensor (The sensor below is determined to be
normal)

Throttle position sensor

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

13Ab-109

DIAGNOSTIC TROUBLE CODE PROCEDURES

DTC SET CONDITIONS <Range/Performance problem - low input>

Logic Flow Chart

Start

End

No

Yes

Yes

Yes

No

No

Malfunction

Good

Continuous

failure for 2secs

Output voltage

< =1.8V

Monitoring

conditions

ZK603673 AA00

Check Conditions

Throttle position sensor output voltage is 1.5 volt or
higher.

Mass  airflow  sensor  output  voltage  is  0.2  volt  or
higher.

Judgement Criterion

Mass airflow sensor output voltage has continued
to be 1.8 volts or lower for 2 seconds.

13Ab-110

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

DIAGNOSTIC TROUBLE CODE PROCEDURES
