DIAGNOSIS

Required Special Tool:

｠

MB991316: Test Harness

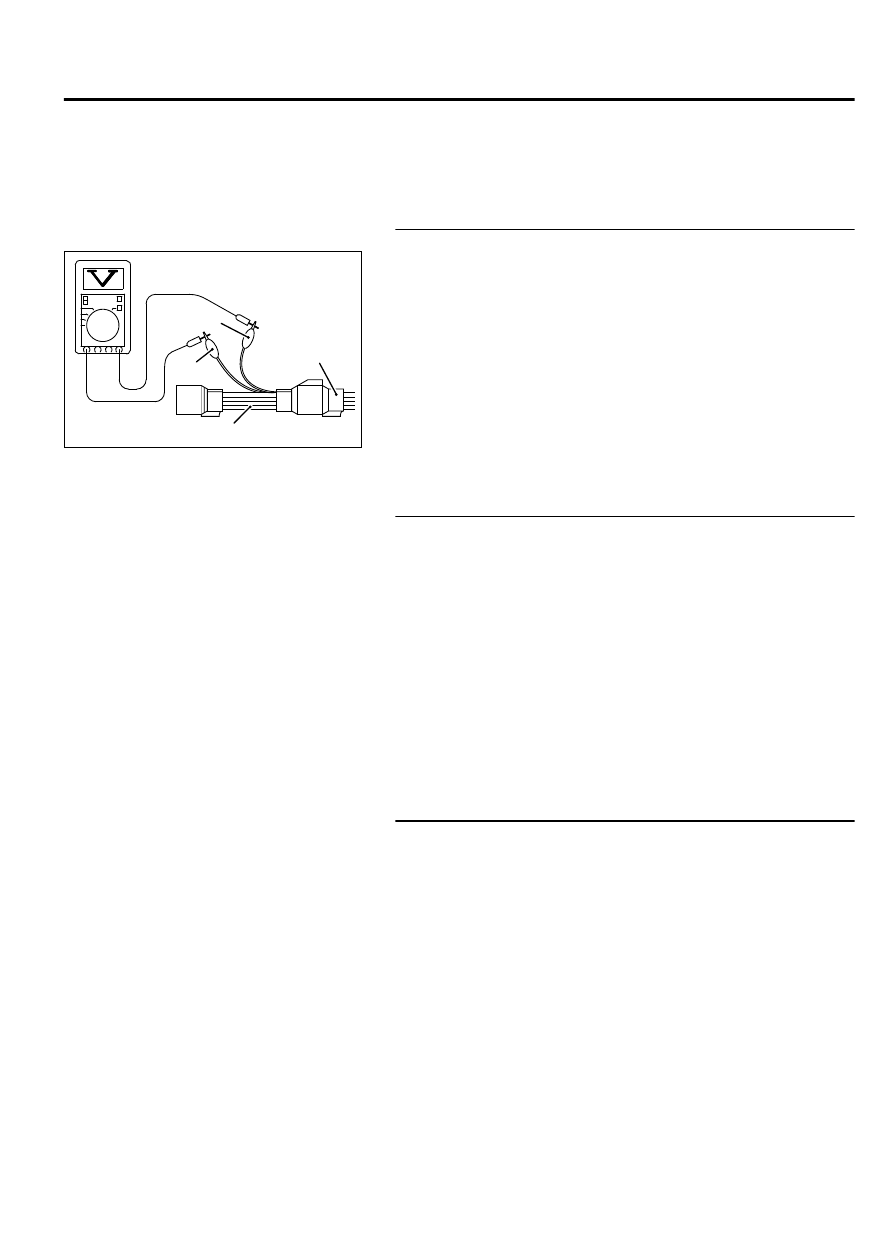

STEP 1. Check the left bank heated oxygen sensor (rear).

Heated
oxygen
sensor
component
side
connector

MB991316

Red

Blue

ZK603150AA00

(1)

Disconnect left bank heated oxygen sensor (rear) connector
B-13 and connect test harness special tool, MB991316, to
the connector on the left bank heated oxygen (rear) sensor
side.

(2)

Measure  the  resistance  between  heated  oxygen  sensor
connector terminal No. 1 (red clip) and terminal No. 3 (blue
clip).

Standard value: 11 - 18 Ω [at 20°C (68°F)]

Q:Is the measured resistance between 11 and 18 ohms [at

20°C (68°F)]?

YES:

 Go to Step 2.

NO:

 Replace the left bank heated oxygen sensor (rear).

Then go to Step 3.

STEP 2. Check the trouble symptoms.

(1)

Carry out a test drive with the drive cycle pattern. Refer to
Diagnostic  Function  -  OBD-II  Drive  Cycle  -  Pattern  2  P.
13Ab-8.

(2)

Check the diagnostic trouble code (DTC).

Q:Is DTC P0058 set?

YES:

 Replace the ECM. When the ECM is replaced, register

the ID code. Refer to GROUP 42B, ID Code Registration
Judgment Table <Vehicles with KOS> P.42B-12or GROUP
42C, ID Code Registration Judgment Table <Vehicles with
WCM> P.42C-8. Then go to Step 3.

NO:

 It can be assumed that this malfunction is

intermittent. Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points - How to Cope
with Intermittent Malfunctions P.00-15.

STEP 3. Test the OBD-II drive cycle.

(1)

Carry out a test drive with the drive cycle pattern. Refer to
Diagnostic  Function  -  OBD-II  Drive  Cycle  -  Pattern  2  P.
13Ab-8.

(2)

Check the diagnostic trouble code (DTC).

Q:Is DTC P0058 set?

YES:

 Retry the troubleshooting.

NO:

 he inspection is complete.

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

13Ab-103

DIAGNOSTIC TROUBLE CODE PROCEDURES

DTC P0069: Abnormal Correlation Between Manifold Absolute Pressure Sensor And
Barometric Pressure Sensor

M11310100169USA0000010000

TECHNICAL DESCRIPTION

｠

The  ECM  detects  abnormality  in  the  sensor  by
comparing the manifold absolute pressure sensor
output with the barometric pressure sensor output.

DESCRIPTIONS OF MONITOR METHODS

The ECM compares the manifold absolute pressure
sensor output with the barometric pressure sensor
output  while  the  engine  control  relay  is  in  "ON"
position after the ignition switch is in "LOCK" (OFF)
position. When the difference exceeds the specified
value between them, the ECM determines whether
the  manifold  absolute  pressure  sensor  /  the
barometric pressure sensor has malfunction or not.

MONITOR EXECUTION

Continuous

MONITOR EXECUTION CONDITIONS (Other
monitor and Sensor)

Other Monitor (There is no temporary DTC stored in
memory for the item monitored below)

｠

Manifold absolute pressure sensor monitor

｠

Barometric pressure sensor monitor

｠

Engine coolant temperature sensor monitor

Sensor (The sensor below is determined to be
normal)

｠

Not applicable

13Ab-104

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

DIAGNOSTIC TROUBLE CODE PROCEDURES

DTC SET CONDITION

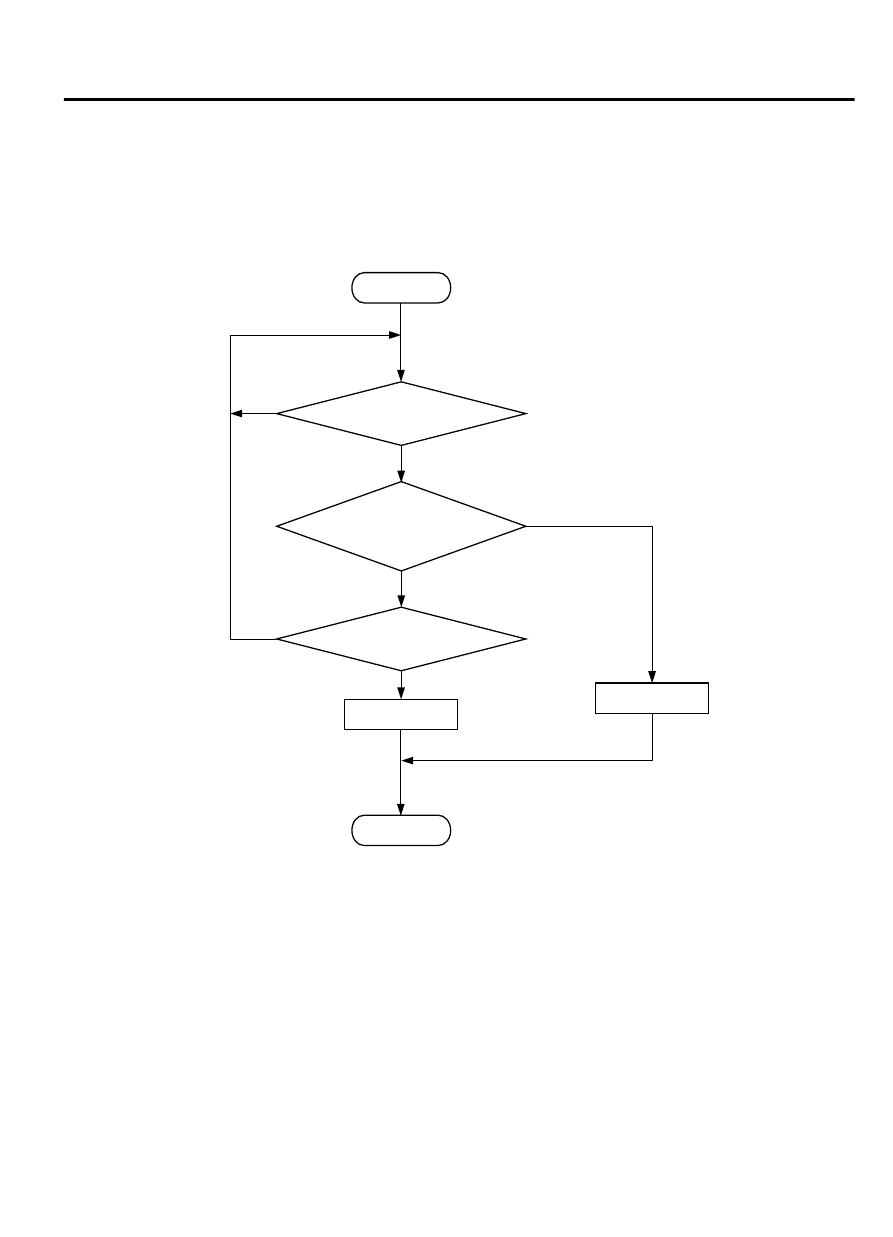

Logic Flow Chart

Start

Yes

Yes

Yes

No

No

No

|Baromet ric pressure

－

mani fold pressure| > 9k Pa

Continuous

failure for 2secs

Malfunction

End

Good

Monitoring

conditions

ZK603672 AA00

Check Conditions

｠

Ignition switch is in "LOCK" (OFF) position.

｠

After  two  seconds  pass  from  the  time  when  the
engine is stopped.

｠

Engine coolant temperature is higher than 0°C (32°
F).

Judgement Criterion

｠

Difference  between  manifold  absolute  pressure
sensor  output  and  barometric  pressure  sensor
output is more than 9 kPa (2.7 in.Hg) for 2 seconds.

OBD-II DRIVE CYCLE PATTERN

None.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are: )

｠

Manifold absolute pressure sensor failed.

｠

Barometric pressure sensor failed.

｠

ECM failed.



MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

13Ab-105

DIAGNOSTIC TROUBLE CODE PROCEDURES

DIAGNOSIS

Required Special Tools:

｠

MB991958: Scan tool (M.U.T.-III Sub Assembly)

｠

MB991824: V.C.I.

｠

MB991827: USB Cable

｠

MB991910: Main Harness A

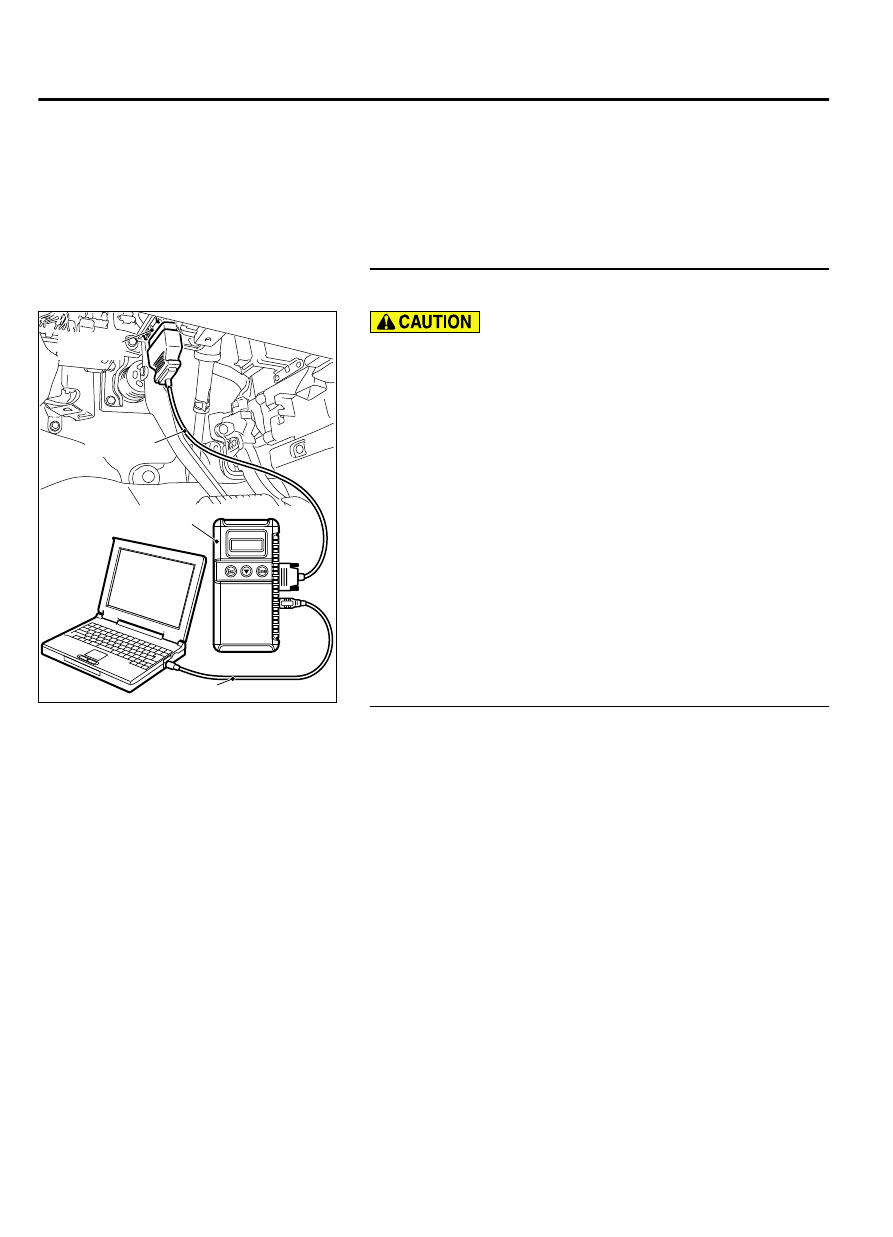

STEP 1. Using scan tool MB991958, read the diagnostic
trouble code (DTC).

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

(1)

Connect scan tool MB991958 to the data link connector.

(2)

Turn the ignition switch to the "ON" position.

(3)

Set scan tool MB991958, read the DTC.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the diagnostic trouble code other than P0069 set?

YES:

 Refer to, Diagnostic Trouble Code Chart P.13Ab-44.

NO:

 Go to Step 2.

STEP 2. Using scan tool MB991958, check data list item 8:
Manifold Absolute Pressure Sensor.

(1)

Turn the ignition switch to the "ON" position.

(2)

Set scan tool MB991958 to the data reading mode for item
8, Manifold Absolute Pressure Sensor.

｠

When altitude is 0 m (0 foot), 101 kPa (29.8 in.Hg).

｠

When altitude is 600 m (1,969 feet), 95 kPa (28.1 in.Hg).

｠

When altitude is 1,200 m (3,937 feet), 88 kPa (26.0 in.Hg).

｠

When altitude is 1,800 m (5,906 feet), 81 kPa (23.9 in.Hg).

(3)

Start the engine.

｠

When the engine is idling, 16 - 36 kPa (4.7 - 10.6 in.Hg).

｠

When  the  engine  is  suddenly  revved,  manifold  absolute
pressure varies.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the sensor operating properly?

YES:

 Go to Step 3.

NO:

 Refer to, DTC P0106 - Manifold Absolute Pressure

Circuit Range/Performance Problem P.13Ab-126, DTC P0107
- Manifold Absolute Pressure Circuit Low Input P.

13Ab-106

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

DIAGNOSTIC TROUBLE CODE PROCEDURES
