STEP 6. Test the OBD-II drive cycle.

(1)

Carry out a test drive with the drive cycle pattern. Refer to
Diagnostic  Function  -  OBD-II  Drive  Cycle  -  Pattern  2  P.
13Ab-8.

(2)

Check the diagnostic trouble code (DTC).

Q:Is DTC P0057 set?

YES:

 Retry the troubleshooting.

NO:

 The inspection is complete.

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

13Ab-99

DIAGNOSTIC TROUBLE CODE PROCEDURES

DTC P0058: Heated Oxygen Sensor Heater Control Circuit High (bank 2, sensor 2)

M11310100168USA0000010000

ZK602832

1

3

2

4

1

2

3 4 5 6 7 8 9 10 11 12 13 14 15 16

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

1

10 111213 14 1516 17 1819 20

2 3 4

5 6 7 8 9

2

1

4

3

AA00

20A

WHITE

BR

O

WN

WHITE

WHITE

WHITE

A-33X

MFI
RELAY

RELAY BOX
(ENGINE COMPARTMENT)

4

3

1

2

22

TO ECM

LEFT BANK HEATED
OXYGEN SENSOR (REAR)

1

2

3

4

TO ECM TO ECM

ENGINE
CONTROL
MODULE

35

4

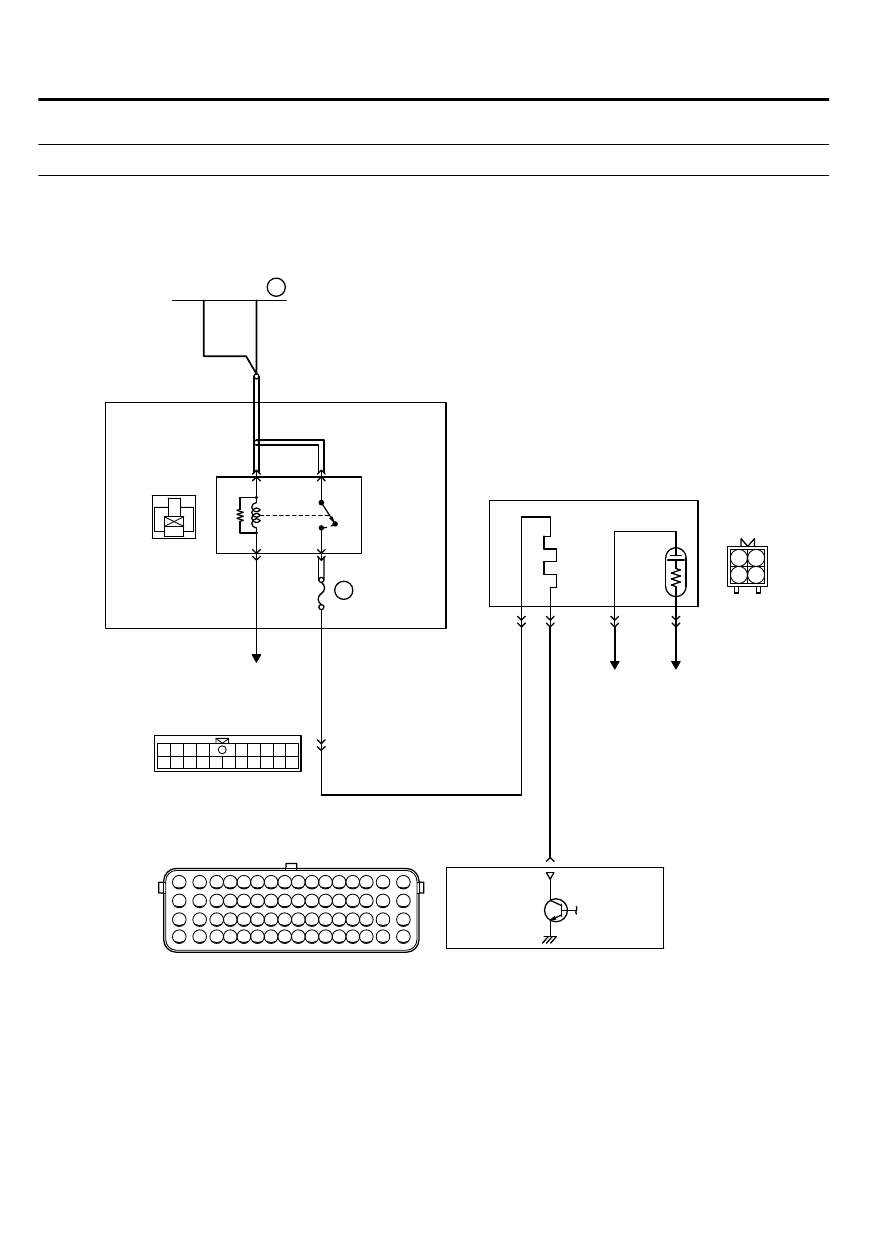

LEFT BANK HEATED OXYGEN SENSOR (REAR) HEATER CIRCUIT

B-13

MU802665

B-10

A-13

OFF

ON

36

FUSIBLE LINK

13Ab-100

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

DIAGNOSTIC TROUBLE CODE PROCEDURES

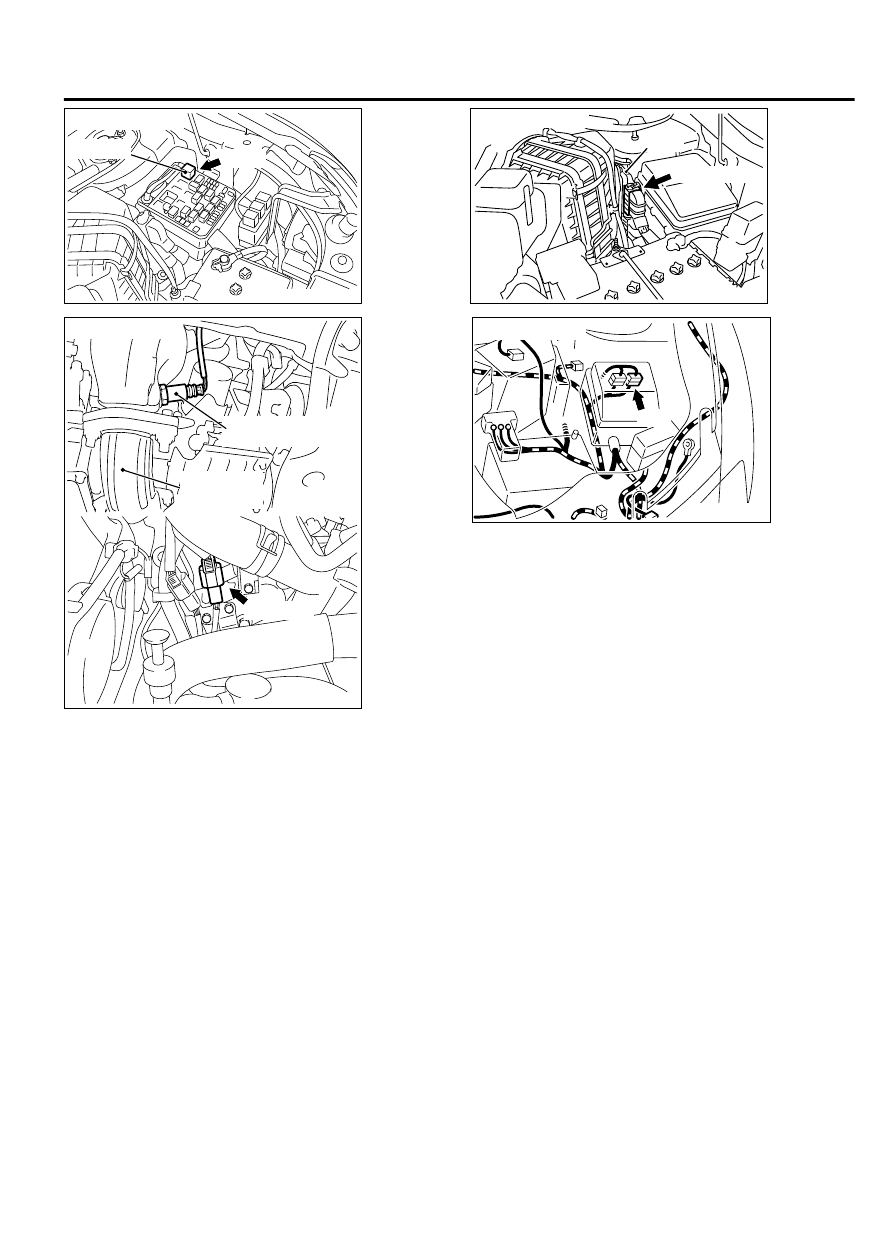

ZK603589

MFI relay

A-33X

Connector: A-33X

AA00

ZK603595AA00

Left bank heated
oxygen sensor (rear)

Front
exhaust pipe

B-13 (GR)

Connector: B-13

ZK603591

ECM

B-10 (GR)

Connector: B-10

AA00

ZK603650AA00

A-13

Connector: A-13



CIRCUIT OPERATION

｠

Power is supplied from the MFI relay (terminal No.
4)  to  the  left  bank  heated  oxygen  sensor  (rear)
heater.

｠

The ECM (terminal No. 49) controls continuity to the
left  bank  heated  oxygen  sensor  (rear)  heater  by
turning the power transistor in the ECM "ON" and
"OFF".

BACKGROUND

｠

The  ECM  checks  whether  the  heater  current  is
within  a  specified  range  when  the  heater  is
energized.

DESCRIPTIONS OF MONITOR METHODS

Left  bank  heated  oxygen  sensor  heater  (rear)
current is out of specified range.

MONITOR EXECUTION

Continuous

MONITOR EXECUTION CONDITIONS (Other
monitor and Sensor)

Other Monitor (There is no temporary DTC stored in
memory for the item monitored below)

｠

Not applicable

Sensor (The sensor below is determined to be
normal)

｠

Not applicable

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

13Ab-101

DIAGNOSTIC TROUBLE CODE PROCEDURES

DTC SET CONDITION

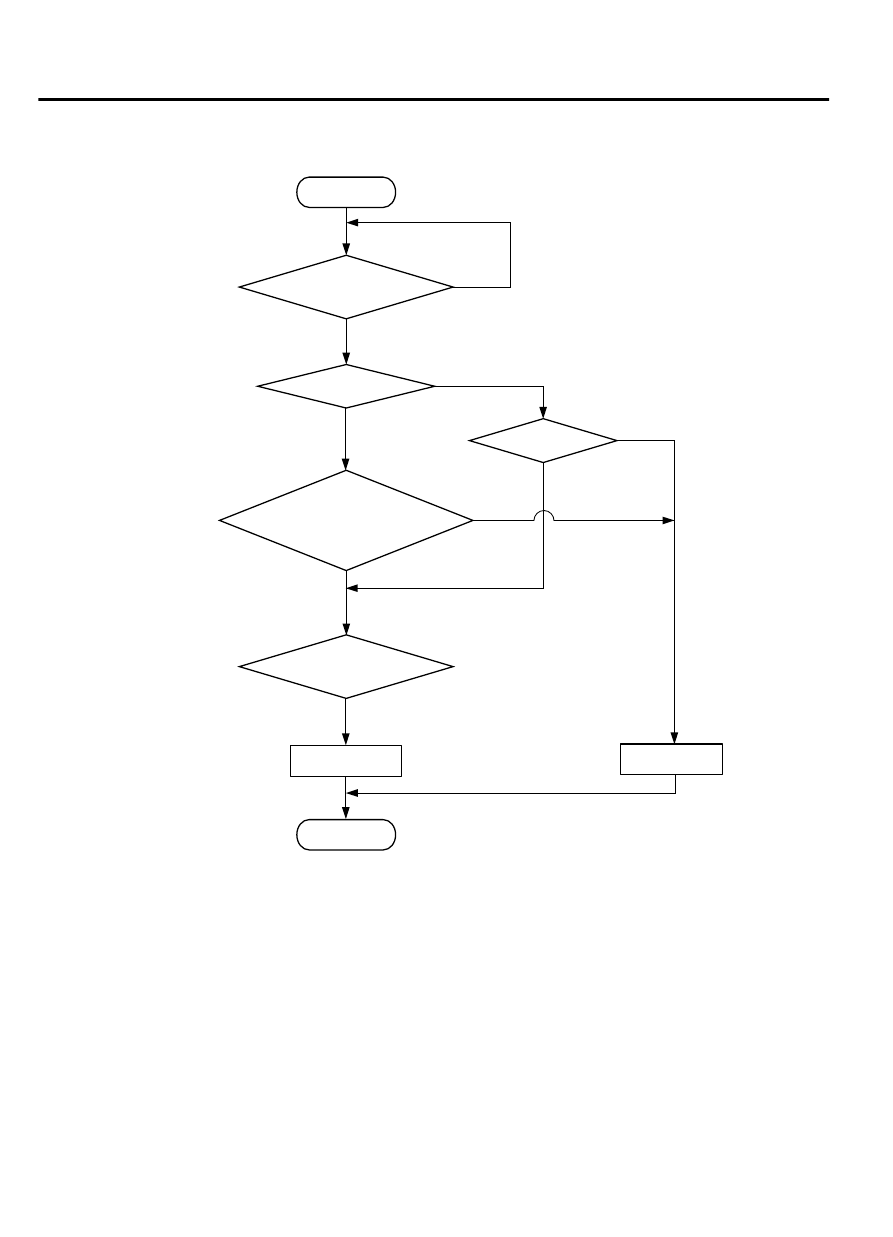

Logic Flow Chart

Start

End

Yes

Yes

Yes

No

No

No

Malfunction

Good

Continuous

failure for 2secs

Monitoring

conditions

Current < 0.17A

or

Current > 10.5A

Voltage < 2.0V

ZK603657 AA00

Heater ON

Yes

Yes

No

Check Conditions

｠

More than 2 seconds have passed since the engine
starting sequence was completed.

｠

While  the  left  bank  heated  oxygen  sensor  (rear)
heater is on.

｠

Battery  positive  voltage  is  between  11  and  16.5
volts.

Judgement Criterion

｠

The left bank heated oxygen sensor (rear) heater
current  has  continued  to  be  higher  than  10.5
ampere for 2 seconds.

OBD-II DRIVE CYCLE PATTERN

Refer to Diagnostic Function - OBD-II Drive Cycle -
Pattern 2 P.13Ab-8.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are: )

｠

Left bank heated oxygen sensor (rear) heater failed.

｠

Left bank heated oxygen sensor (rear) failed.

｠

ECM failed.
