A/C Compressor Clutch Relay Control

｠

Turns  the  compressor  clutch  of  the  A/C  ON  and
OFF.

Generator Output Current Control

｠

Prevent  generator  output  current  from  increasing
suddenly  and  idle  speed  from  dropping  at  times
such as when the headlights are turned on.

Evaporative Emission Purge Control

｠

(Refer  to  GROUP  17,  Emission  Control  System  -
Evaporative

 Emission

 System

 -

 General

Description P.17c-3.)

EGR Control

｠

(Refer  to  GROUP  17,  Emission  Control  System  -
Exhaust Gas Recirculation (EGR) System - General
Description P.17c-13.)

MULTIPORT FUEL INJECTION (MFI)

13Aa-3

GENERAL INFORMATION

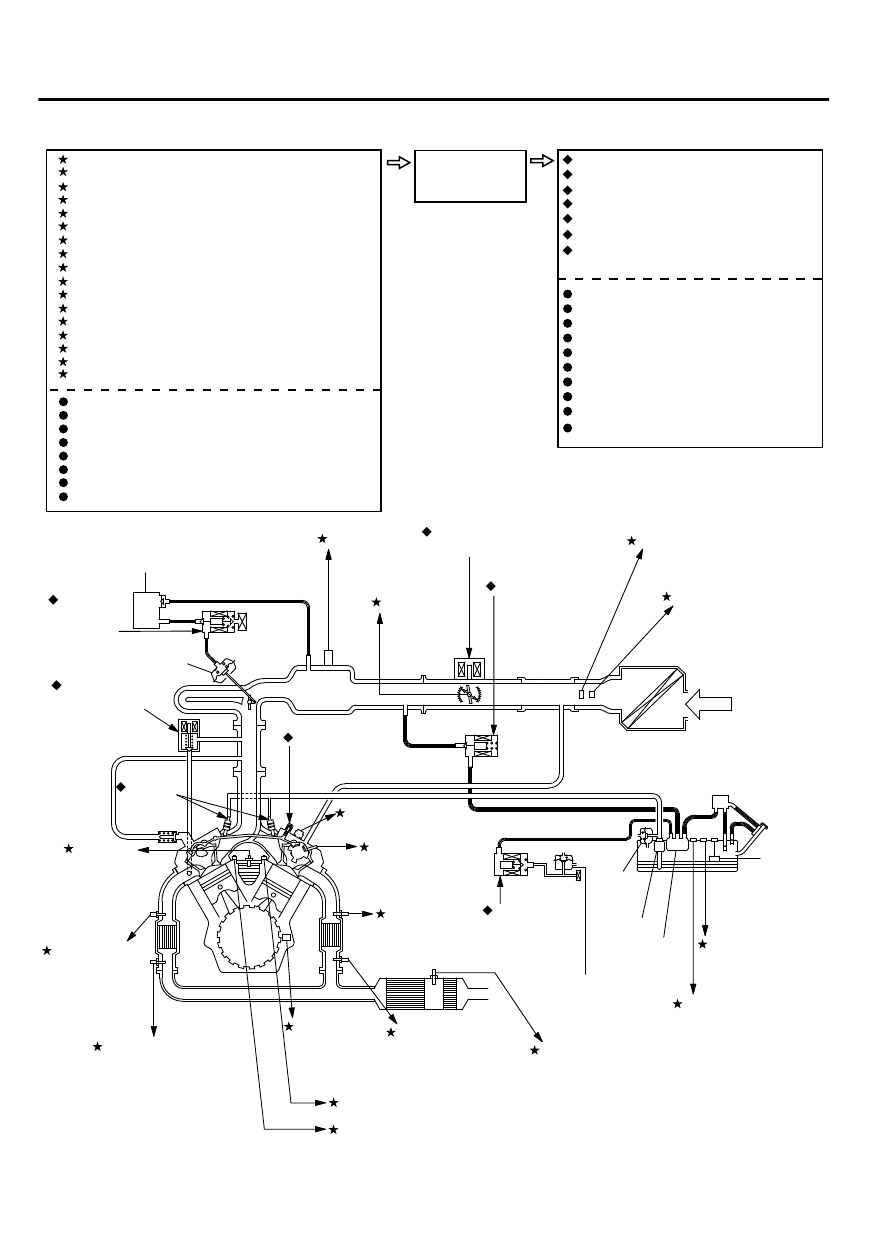

MULTIPORT FUEL INJECTION (MFI) SYSTEM DIAGRAM
<Except for California>

ZK602755

Manifold
absolute
pressure
sensor

4

Crankshaft
position
sensor

1   Mass airflow sensor
2   Intake air temperature sensor
3   Throttle position sensor (main/sub)
4   Manifold absolute pressure sensor
5   Engine coolant temperature sensor
6   Engine oil pressure switch (for MIVEC)
7   Camshaft position sensor
8   Crankshaft position sensor
9   Right bank knock sensor
10 Left bank knock sensor
11 Right bank heated oxygen sensor (front)
12 Right bank heated oxygen sensor (rear)
13 Left bank heated oxygen sensor (front)
14 Left bank heated oxygen sensor (rear)
15 Fuel tank differential pressure sensor
16 Fuel tank temperature sensor

     Accelerator pedal position sensor (main/sub)
     Power steering pressure sensor
     Generator FR terminal
     Generator L terminal
     Ignition switch-IG
     Ignition switch-ST
     Power supply
     CAN communication (input signal)

1   Engine oil control valve
2   Intake manifold tuning solenoid
3   Throttle actuator control motor
4   EGR valve (stepper motor)
5   Injector
6   Evaporative emission purge solenoid
7   Evaporative emission ventilation
     solenoid

     Ignition coil, ignition power transistor
     Multiport fuel injection (MFI) relay
     Fuel pump relay
     Starter relay
     Throttle actuator control motor relay
     Generator G terminal
     Heated oxygen sensor heater
     A/C compressor relay
     Diagnostic output
     CAN communication (out put signal)

Sense

Act

AA00

Left bank
heated
oxygen
sensor (rear)

14

Fuel tank
differentical
pressure
sensor

15

Fuel tank
temperature
sensor

16

Fuel tank

Fuel level
sensor

Fuel pump

Fuel
pressure
regurator

Air inlet

Throttle actuator
control motor

Mass airflow
sensor

Intake air
temperature
sensor

Vacuum actuator

Vacuum tank

EGR valve
(stepper motor)

Right bank
heated oxygen
sensor (rear)

12

Left bank
heated
oxygen
sensor (front)

13

8

6

4

3

Evaporative
emission
ventilation
solenoid

Evaporative
emission
purge
solenoid

Evaporative
emission
ventilation
valve

Evaporative
emission
canister

7

9

Right bank
heated
oxygen
sensor (front)

11

Left bank knock sensor

10

Right bank knock sensor

Engine
coolant
temperature
sensor

Camshaft
position
sensor

7

Engine oil pressure
switch (for MIVEC)

6

Throttle
position
sensor
(main/sub)

3

Intake
manifold
tuning
solenoid

2

Injector

5

5

Engine oil
control valve

1

2

1

Decide

ECM
(with barometric
pressure sensor)

13Aa-4

MULTIPORT FUEL INJECTION (MFI)

GENERAL INFORMATION

NOTE:

For the vacuum routing, refer to GROUP 17,

Emission Control - Vacuum Hoses - Vacuum Hose
Routing P.17c-5

MULTIPORT FUEL INJECTION (MFI)

13Aa-5

GENERAL INFORMATION

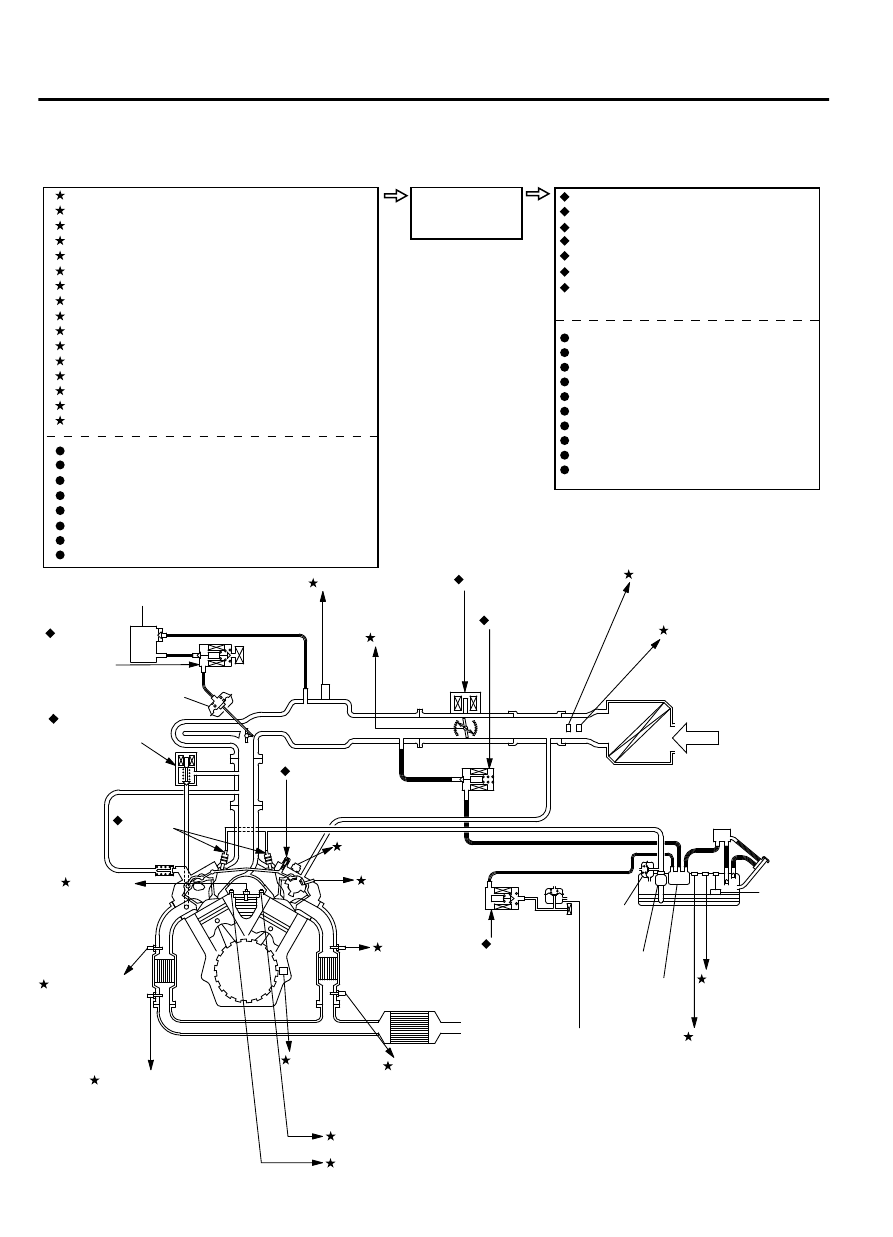

<California>

ZK602756

1   Mass airflow sensor
2   Intake air temperature sensor
3   Throttle position sensor (main/sub)
4   Manifold absolute pressure sensor
5   Engine coolant temperature sensor
6   Engine oil pressure switch (for MIVEC)
7   Camshaft position sensor
8   Crankshaft position sensor
9   Right bank knock sensor
10 Left bank knock sensor
11 Right bank heated oxygen sensor (front)
12 Right bank heated oxygen sensor (rear)
13 Left bank heated oxygen sensor (front)
14 Left bank heated oxygen sensor (rear)
15 Center exhaust pipe heated oxygen sensor
16 Fuel tank differential pressure sensor
17 Fuel tank temperature sensor

     Accelerator pedal position sensor (main/sub)
     Power steering pressure sensor
     Generator FR terminal
     Generator L terminal
     Ignition switch-IG
     Ignition switch-ST
     Power supply
     CAN communication (input signal)

1   Engine oil control valve
2   Intake manifold tuning solenoid
3   Throttle actuator control motor
4   EGR valve (stepper motor)
5   Injector
6   Evaporative emission purge solenoid
7   Evaporative emission ventilation
     solenoid

     Ignition coil, ignition power transistor
     Multiport fuel injection (MFI) relay
     Fuel pump relay
     Starter relay
     Throttle actuator control motor relay
     Generator G terminal
     Heated oxygen sensor heater
     A/C compressor relay
     Diagnostic output
     CAN communication (out put signal)

Sense

Act

AA00

Left bank
heated
oxygen
sensor (rear)

14

Fuel tank
differential
pressure
sensor

16

Fuel tank
temperature
sensor

17

Fuel tank

Fuel level
sensor

Fuel pump

Fuel
pressure
regurator

Air inlet

Throttle actuator
control motor

Mass airflow
sensor

Intake air
temperature
sensor

Vacuum actuator

Vacuum tank

EGR valve
(stepper motor)

Right bank
heated oxygen
sensor (rear)

12

Left bank
heated
oxygen
sensor (front)

13

8

15

6

4

3

Evaporative
emission
ventilation
solenoid

Evaporative
emission
purge
solenoid

Evaporative
emission
ventilation
valve

Center exhaust pipe
heated oxygen sensor

Evaporative
emission
canister

7

Manifold
absolute
pressure
sensor

9

Right bank
heated
oxygen
sensor (front)

11

Left bank knock sensor

10

Right bank knock sensor

Engine
coolant
temperature
sensor

Camshaft
position
sensor

7

Engine oil pressure
switch (for MIVEC)

6

Throttle
position
sensor
(main/sub)

3

Intake
manifold
tuning
solenoid

2

Injector

5

5

Engine oil
control valve

1

4

2

1

Decide

Crankshaft
position
sensor

ECM
(with barometric
pressure sensor)

13Aa-6

MULTIPORT FUEL INJECTION (MFI)

GENERAL INFORMATION
