Prolonged and repeated contact with mineral oil
will result in the removal of natural fats from the
skin, leading to dryness, irritation and dermatitis.

In  addition,  used  engine  oil  contains  potentially
harmful  contaminants  which  may  cause  skin
cancer.  Adequate  means  of  skin  protection  and
washing facilities must be provided.

Recommended Precautions
The most effective precaution is to prevent, as far as
practical, the risk of skin contact with mineral oils i.e.
use enclosed systems for handling used engine oil
and degrease components, where practical, before
handling them.

Other precautions:

｠

Avoid prolonged and repeated contact with oil,
particularly used engine oil.

｠

Wear protective clothing, including impervious
gloves where practical.

｠

Avoid contaminating clothes with oil.

｠

Do not put oily rags in pockets.

｠

Do not wear heavily soiled clothing and oil-soaked
foot-wear. Overalls must be cleaned regularly and
kept separate from personal clothing.

｠

Where there is a risk of eye contact, eye protection
should be worn i.e. chemical goggles or face
shields. In addition, an eye wash facility should be
provided.

｠

Obtain first aid treatment immediately for open cuts
and wounds.

｠

Wash regularly with soap and water to ensure all oil
is removed (skin cleansers and nail brushes will
help). After cleaning, apply lotion, etc., containing
lanolin to replace natural skin oils is advised.

｠

Do not use gasoline, kerosene, diesel fuel, gas oil,
thinners or solvents for cleaning skin.

｠

Apply barrier creams before each work period.

｠

If skin disorders develop, obtain medical advice
immediately.

SERVICE SPECIFICATIONS

M11201000003USA0000010000

ITEM

STANDARD VALUE

Engine oil pressure kPa (psi)

at idle

29 (4.2) or more

at 3,500 r/min

294 - 686 (43 - 100)

LUBRICANTS

M11201000004USA0000010000

Item

Engine oil

Quantity dm3(qt)

Oil filter

Engine oils displaying ILSAC certification symbol
("Starburst" symbol) or conforming to the API
classification SM or higher

0.3 (0.32)

Total quantity

4.3 (4.5)

12-2

ENGINE LUBRICATION

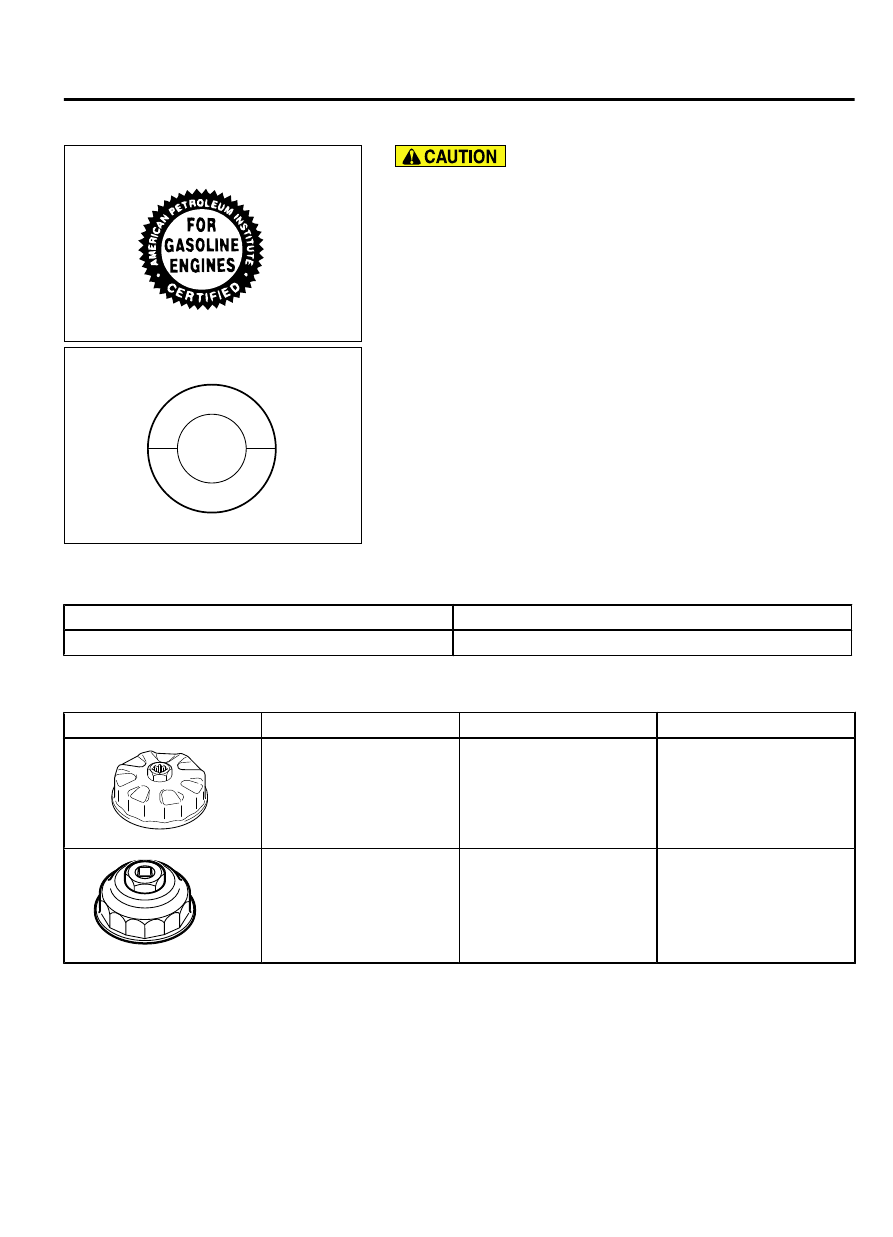

GENERAL INFORMATION

ENGINE OIL

ZC6011140000

ILSAC certification symbol
("Starburst" symbol)

Never use nondetergent or straight mineral oil.
Use only engine oils displaying the ILSAC certification symbol
("Starburst" symbol) on the container.

RVICE

SAE

5W-20

ZC604408

API service symbol

AA00

If these oils are not available, an API classification SM or higher
can be used.

SEALANT

M11201000005USA0000010000

ITEM

SPECIFIED SEALANT

Engine oil pressure switch

3M™ AAD Part No. 8672 or equivalent

SPECIAL TOOLS

M11201000006USA0000010000

Tool

Tool number and name Supersession

Application

B991396

MB991396
Oil filter wrench

Oil filter wrench

Removal and installation
of engine oil filter (when
using oil filter MD360935)

MB991828

MB991828
Oil filter wrench

Oil filter wrench

Removal  and  installation
of  engine  oil  filter  (when
using  oil  filter  MD332687
or MD365876)

ENGINE LUBRICATION

12-3

SEALANT

ON-VEHICLE SERVICE

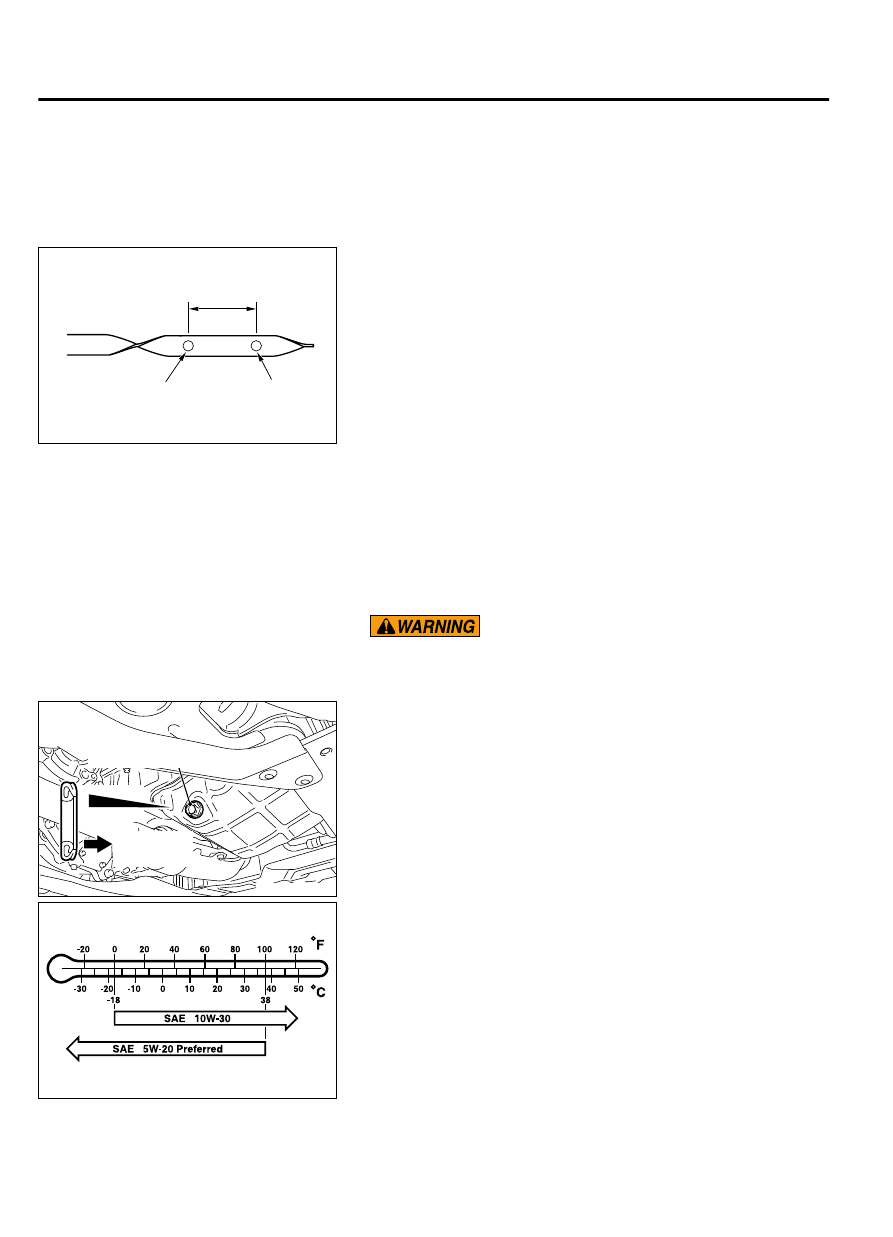

ENGINE OIL CHECK

M11201000009USA0000010000

ZC604409

Maximum

Minimum

AA00

Good

Oil dipstick (engine cover side)

Pull out the oil dipstick, clean off the engine oil on the oil
dipstick, and then reinsert the oil dipstick.

Pull out the oil dipstick, and check the engine oil level is within
the marks on one side of the oil dipstick (engine cover side).

NOTE:

｠

Checking the oil might be difficult shortly after stopping the
engine or engine oil replacement.

｠

If difficult, take some time (approx. 30 sec.) and try again.

｠

Refer to the information label indicating the engine oil check
process on the rocker cover.

Check that the engine oil is not excessively dirty, that there is
no coolant or gasoline mixed in, and that it is sufficiently thick
and slippery.

ENGINE OIL REPLACEMENT

M11201000010USA0000010000

Start the engine and allow it to warm up until the temperature
of the coolant reaches 80 - 90°C (176 - 194°F).

Use care as oil could be hot.

Remove the engine oil filler cap.

Remove the drain plug to drain oil.

ZC601065AA00

Drain plug gasket

Engine
oil pan side

Install a new drain plug gasket so that it faces in the direction
shown in the illustration, and then tighten the drain plug to the
specified torque.

Tightening torque: 39 ± 5 N·m (29 ± 3 ft-lb)

ZC601066 AA00

Refill the specified quantity of oil.

Specified Engine Oil: Engine oils displaying ILSAC
certification symbol ("Starburst" symbol) or
conforming to the API classification SM or higher
Total quantity: 4.3 dm3(4.5 quarts)

NOTE:

SAE 5W-20 engine oil is strongly recommended for

optimum fuel economy and cold starting. If the ambient
temperature is not within the usable temperature range of
SAE 5W-20 shown in the above illustration, use SAE 10W-30
engine oil.

12-4

ENGINE LUBRICATION

ON-VEHICLE SERVICE
