Mitsubishi Outlander XL. Manual - part 1318

Item

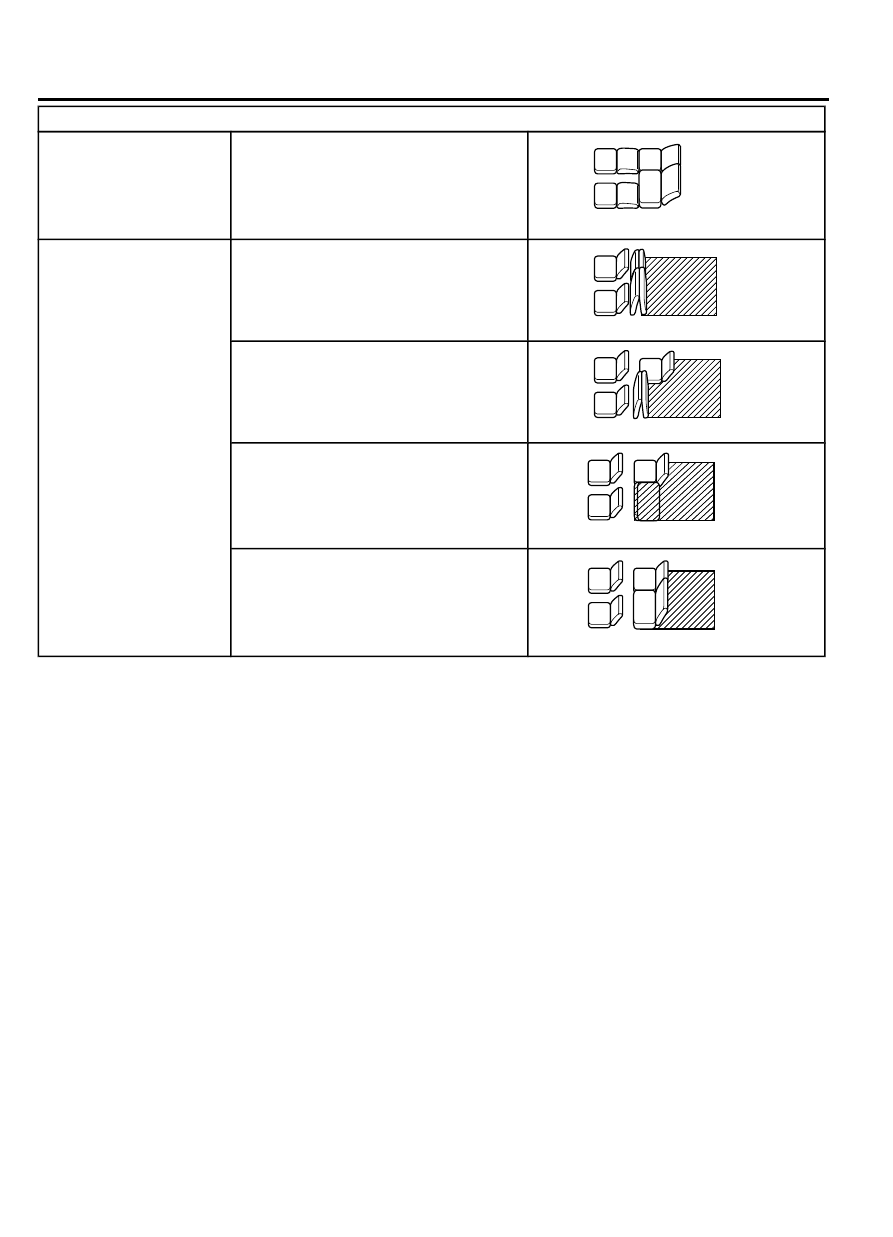

Flat arrangement

Front and rear seat

ZC600244

Luggage

 room

arrangement

Two

 passengers

 ride/maximum

luggage space

ZC600245

Three  passengers  ride/longer  luggage
space

ZC600246

Three  passengers  ride/longer  luggage
space (Rear seatback folded forward)

ZC600247

Five passengers ride/luggage space

ZC600248

52A-8

INTERIOR

SEAT

SEAT BELT

M25200000100USA0000010000

ZC604428

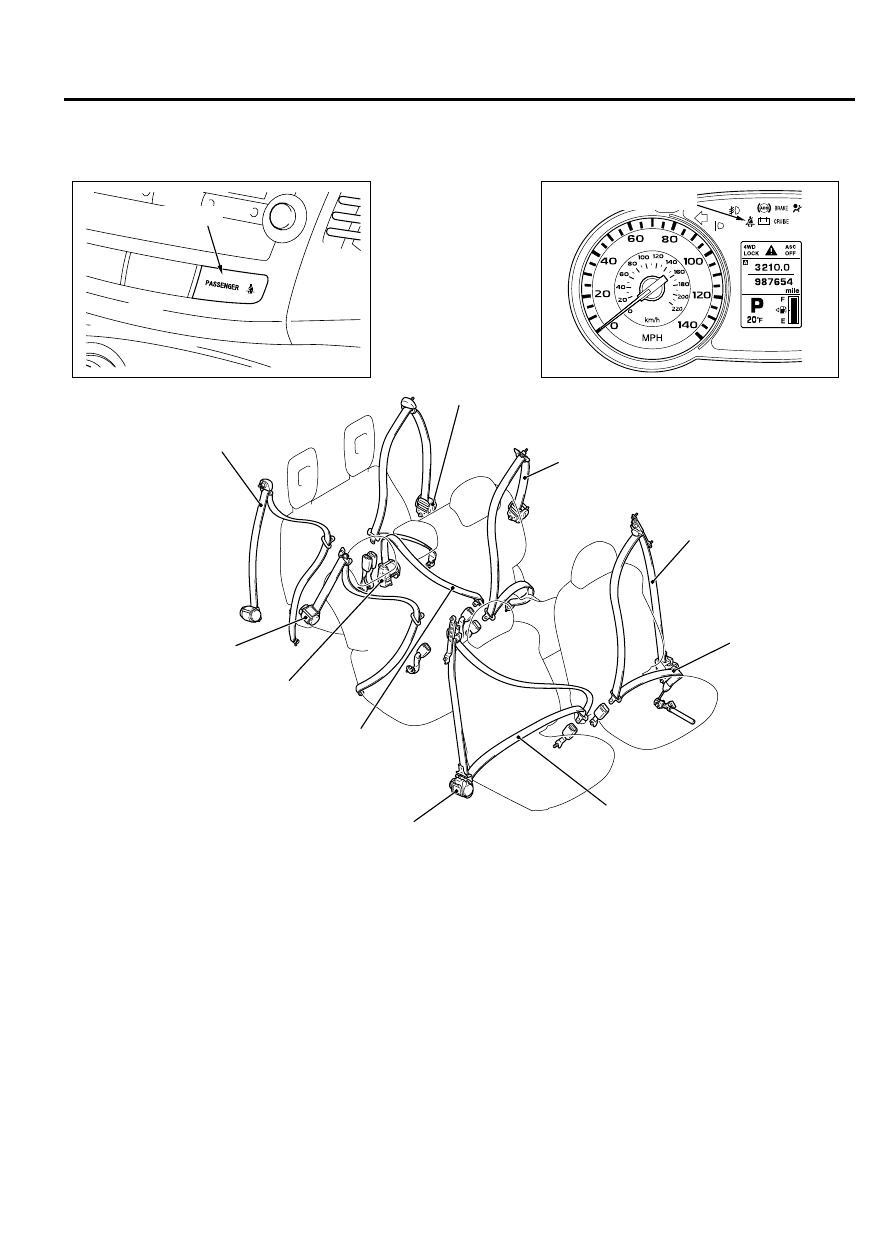

ELR 3-point seat belt

ELR/ALR 3-point seat belt (RH/LH)

ELR/ALR 3-point seat belt

0000

ELR/ALR 3-point seat belt
incorporated in seat

Seat belt retractor
(RH/Center/LH)

Seat belt retractor

Seat belt retractor
with a double pre-tensioner
and variable force limiter

Seat belt retractor
with a pre-tensioner
and variable force limiter

Seat belt retractor
(7-seater)

Three-point seat belt with ELR/ALR
(7-seater)

Seat belt warning lamp

Seat belt warning lamp

The seat belts offer the following features:

Front seat belt

｠

For  improved  protection,  the  three-point  seat  belt
with ELR has been adopted together with a double
pre-tensioner  (driver's  side),  three-point  seat  belt
with ELR/ALR has been adopted together with a the
pre-tensioner (front passenger's side), and variable
force limiter.

｠

A seat belt warning light has been included on the
combination meter to encourage the driver to fasten
the seat belt when the belt is not connected.

｠

A seat belt warning light has been included on the
center panel to encourage the passenger to fasten
the seat belt when the belt is not connected.

Rear seat belt

｠

Three-point  seat  belts  with  ELR/ALR  (child  seat
fixing mechanism) changeover have been adopted.

｠

With the seat-integrated three-point seat belt with
ELR/ALR changeover equipped to the center seat,
three-point seat belts have been adopted to all the
seats to improve safety.

INTERIOR

52A-9

SEAT BELT

Third seat belt

｠

Three-point  seat  belt  with  ELR/ALR  has  been
installed.



Seat belt with variable force limiter

ZC6002400000

Displacement

Load

Conventional force limiter

Variable force limiter

The passenger restraint characteristics have been improved and
the  energy  absorption  characteristics  have  been  optimized  to
improve the impact reduction performance.

TRIMS

INTERIOR TRIM

M25200000120USA0000010000

ZC6002370000

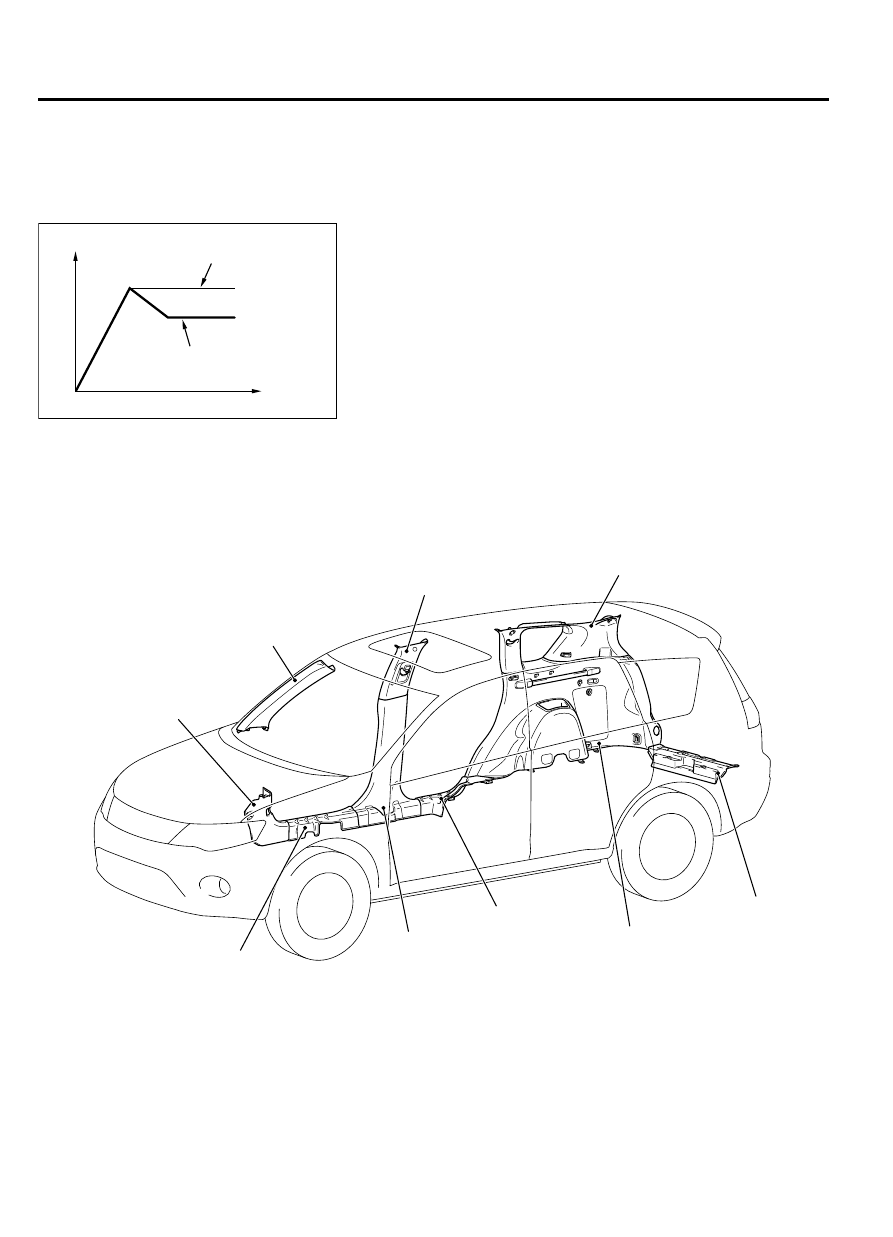

Cowl side trim

Front pillar trim

Upper center pillar trim

Upper quarter trim

Rear end trim

Lower quarter trim

Rear scuff plate

Lower center pillar trim

Front scuff plate

｠

The interior trim is a full trim to improve quality.

｠

The  collision  energy  absorbing  structure  that  is
integrated with a trim has been adopted to the pillar
trim. With the structure that reduces head injuries

upon the secondary impact against the cabin during
a collision, the safety has been improved.

｠

Material  codes  are  shown  on  trim  to  facilitate
recycling.

52A-10

INTERIOR

TRIMS

DOOR TRIM

M25200000123USA0000010000

ZC600236

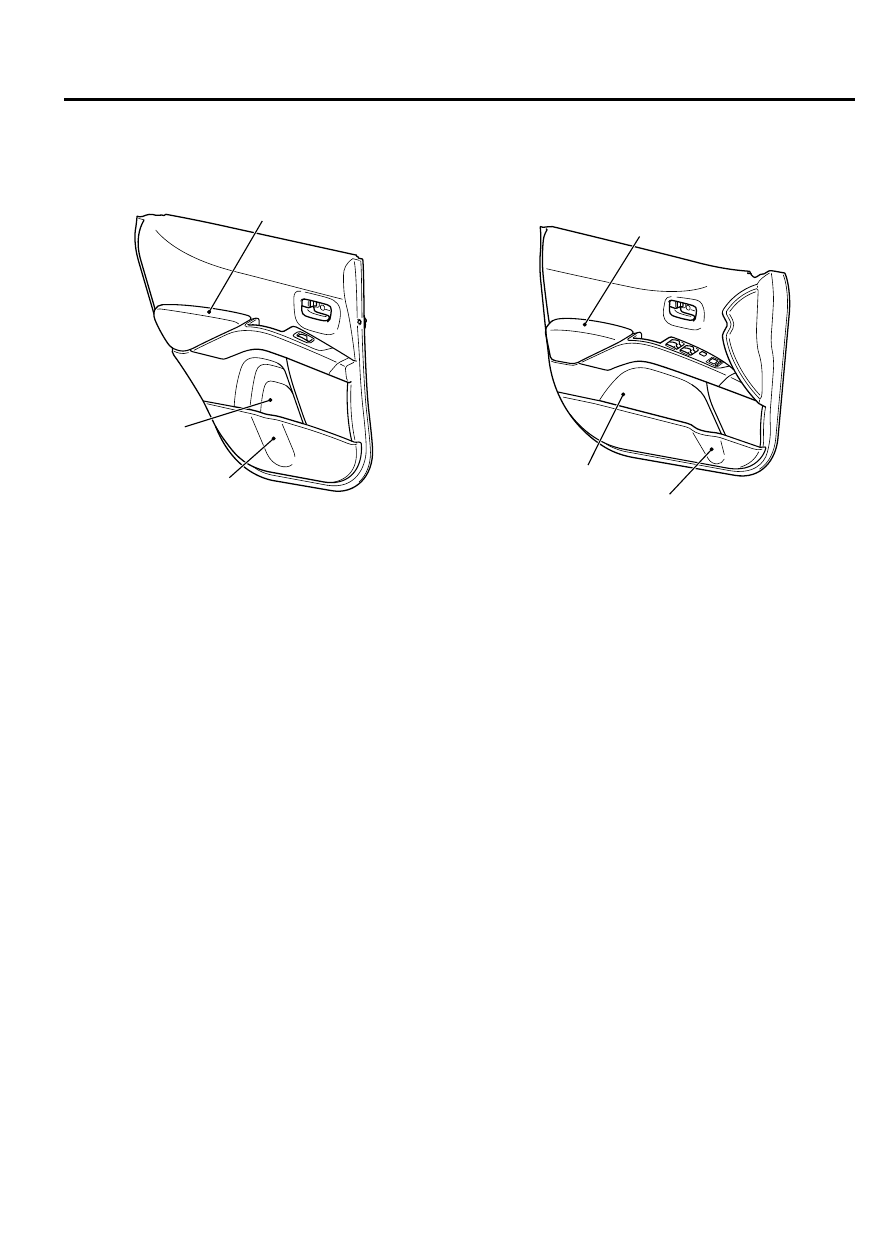

<Rear door trim>

<Front door trim>

0000

Armrest

Armrest

Door pocket

Bottle holder

Door pocket

Bottle holder

The door trims offer the following features.

｠

Break-proof resin material has been used for trim
panels, improving safety.

｠

Bottle  holders  which  can  store  a  500-ml  plastic
bottle have been installed to the front door trim and
rear  door  trim  to  improve  convenience.  Also,  the
bottle  holding  capability  has  been  improved  to
accommodate bottles with shapes that are difficult
to keep upright.

｠

Door pockets have been installed to the front and
rear door trim panels. The front door pockets have
a large capacity. The rear door pockets which are
also  used  as  bottle  holders  can  also  store  the
headset for the rear monitor.

｠

For  the  armrests,  the  energy  absorbing  structure
reduces  mid  section  injuries  to  passengers  in  a
collision. Also, the one-piece cloth has an additional
soft layer.

INTERIOR

52A-11

LUGGAGE ROOM
