AC POWER SUPPLY

CIRCUIT DIAGRAMS

90-185

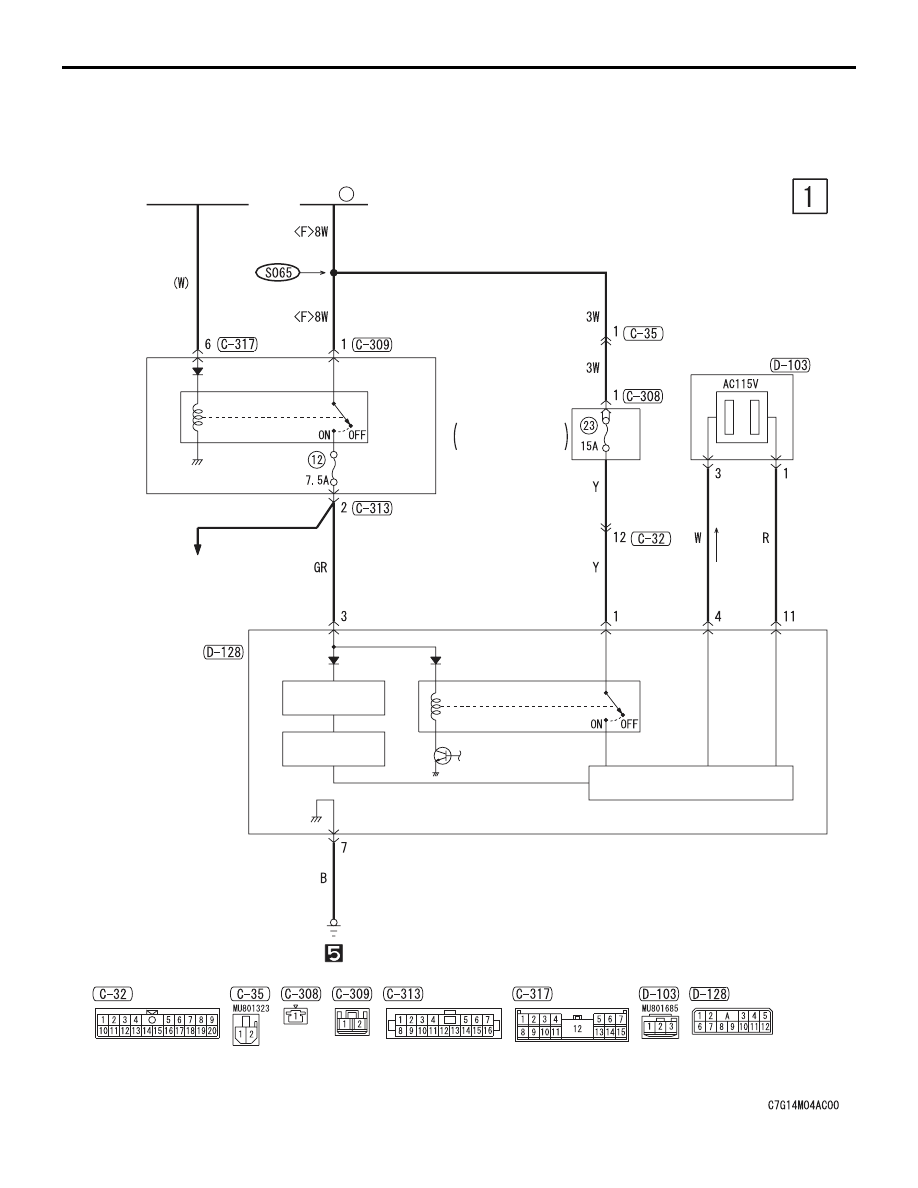

AC POWER SUPPLY

34

FUSIBLE
LINK

IGNITION
SWITCH (IG1)

ETACS-
ECU

RELAY BOX

PASSENGER
COMPARTMENT

AC OUTLET

IG1
RELAY

AC INVERTER

POWER
SUPPLY

CPU

INVERTER

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE

·ELECTRIC CONTROLLED
 AWD
·SUPPLEMENTAL RESTRAINT
 SYSTEM (SRS)

MITSUBISHI MULTI-COMMUNICATION SYSTEM (MMCS)

CIRCUIT DIAGRAMS

90-186

MITSUBISHI MULTI-COMMUNICATION SYSTEM (MMCS)

FUSIBLE
LINK

34

ETACS-
ECU

FUSIBLE
LINK

36

AUDIO AMPLIFIER

AUDIO VISUAL NAVIGATION UNIT

RELAY BOX

ENGINE
COMPARTMENT

<VEHICLES WITH
 AUDIO AMPLIFIER>

HANDS FREE
SYSTEM

THEFT-ALARM
SYSTEM

POWER
DISTRIBUTION
SYSTEM

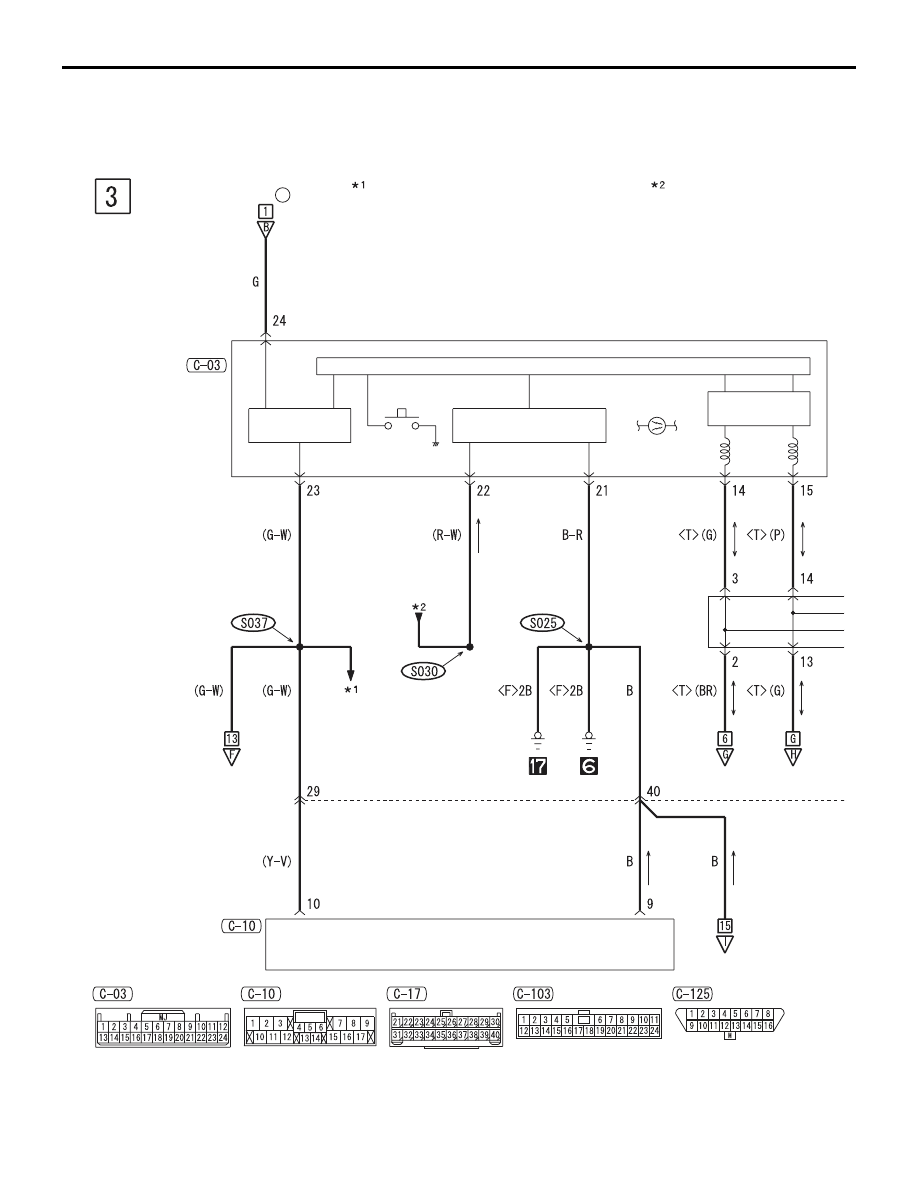

MITSUBISHI MULTI-COMMUNICATION SYSTEM (MMCS)

CIRCUIT DIAGRAMS

90-187

ACC
RELAY 2

FUSIBLE
LINK

37

ROOF ANTENNA

ANTENNA
AMPLIFIER

ANTENNA FEEDER CABLE

ANTENNA FEEDER CABLE

ETACS-
ECU

<VEHICLES WITH
 SATELLITE RADIO
 TUNER>

IGNITION
SWITCH (ACC)

SATELLITE
RADIO TUNER

·HEATED
 DOOR
 MIRROR
·REAR
 WINDOW
 DEFOGGER

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE

REMOTE
CONTROLLED
MIRROR

MITSUBISHI MULTI-COMMUNICATION SYSTEM (MMCS)

CIRCUIT DIAGRAMS

90-188

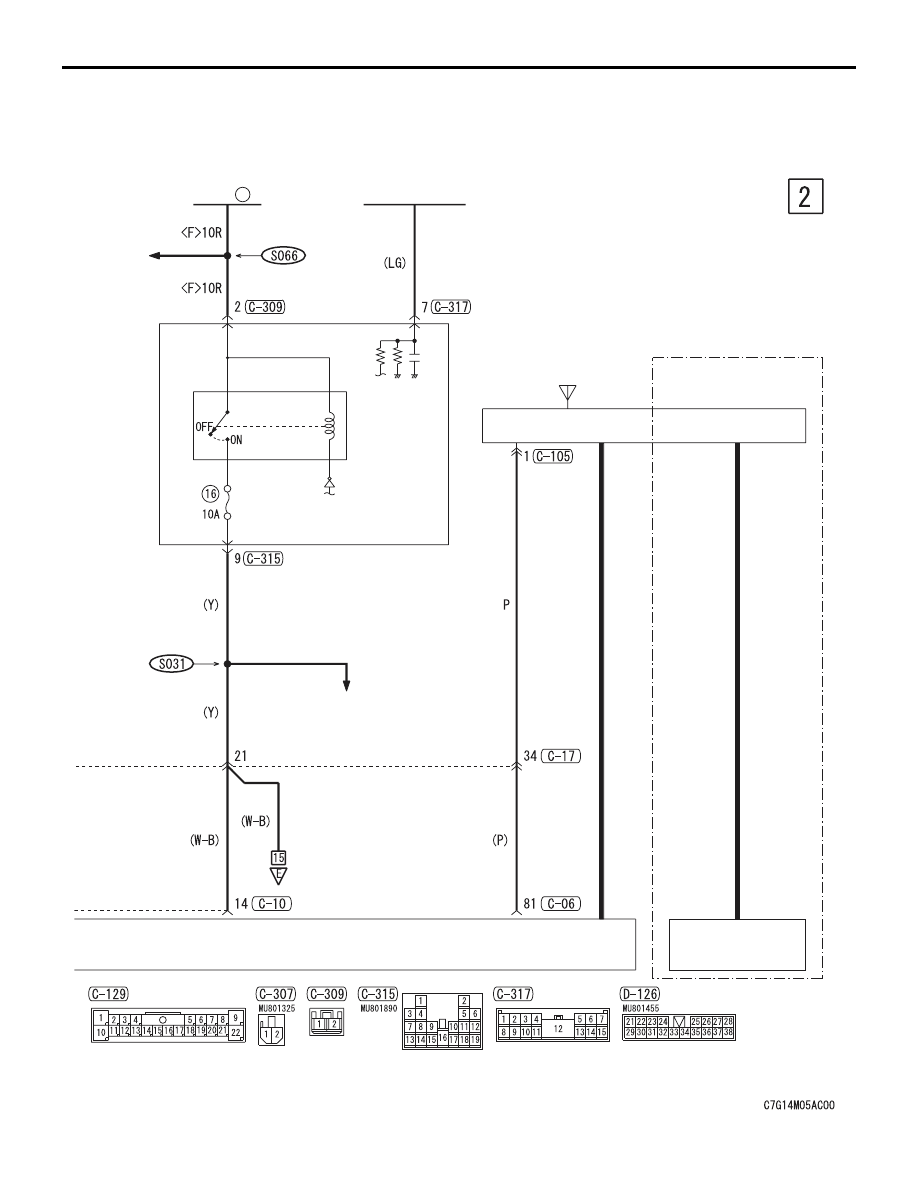

MITSUBISHI MULTI-COMMUNICATION SYSTEM (MMCS) (CONTINUED)

COMBINATION
METER

INTERFACE
CIRCUIT

CAN DRIVE
CIRCUIT

CPU

ETACS-ECU

(FUSE    )

9

RHEOSTAT

TONE
ALARM

INTERFACE
CIRCUIT

FRONT SIDE

AUDIO VISUAL NAVIGATION UNIT

:

·AIR CONDITIONING
 SYSTEM
·ANTI-LOCK BRAKING
 SYSTEM (ABS) AND
 ACTIVE SKID
 CONTROL SYSTEM
 (ASC)
·AUTO-CRUISE
 CONTROL SYSTEM
·CLOCK
·ELECTRIC
 CONTROLLED AWD
·HANDS FREE
 SYSTEM
·INVECS-II 6A/T

·AIR CONDITIONING
 SYSTEM
·ELECTRIC
 CONTROLLED 4WD
·INVECS-II 6A/T
·TURN-SIGNAL
 LIGHT AND
 HAZARD WARNING
 LIGHT

:

NOTE

·REAR SEAT
 ENTERTAINMENT
 SYSTEM
·SPARE CONNECTOR
 (FOR REAR DISPLAY)
·TURN-SIGNAL
 LIGHT AND
 HAZARD WARNING
 LIGHT
