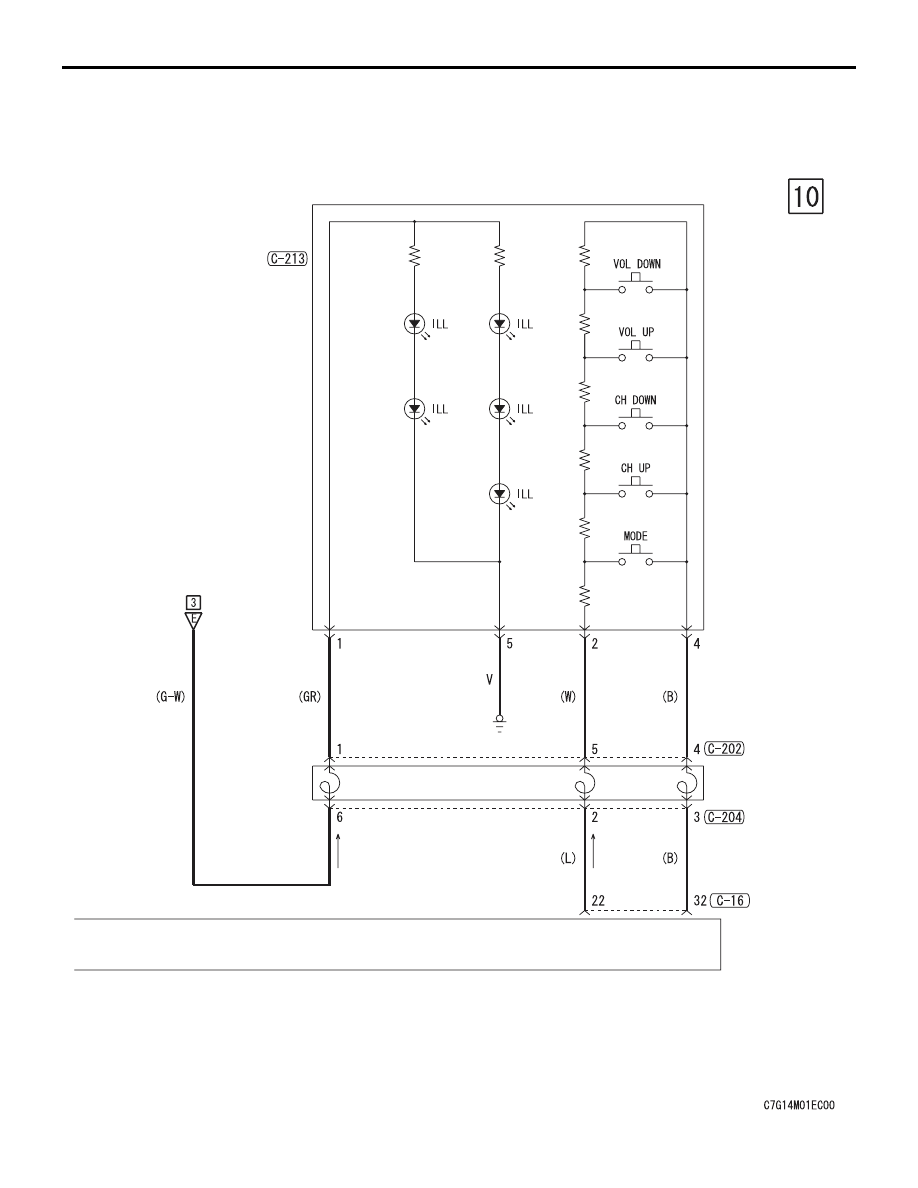

AUDIO SYSTEM <VEHICLES WITH AUDIO AMPLIFIER>

CIRCUIT DIAGRAMS

90-181

CLOCK
SPRING

STEERING
AUDIO
SWITCH

COMBINATION
METER

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE

CLOCK

CIRCUIT DIAGRAMS

90-182

CLOCK

ETACS-
ECU

ACC
RELAY 2

37

FUSIBLE
LINK

36

FUSIBLE
LINK

RELAY BOX

ENGINE
COMPARTMENT

IGNITION
SWITCH (ACC)

RADIO AND CD PLAYER OR CD CHANGER

COMBINATION
METER

INTERFACE
CIRCUIT

·HEATED DOOR
 MIRROR
·REAR WINDOW
 DEFOGGER

REMOTE
CONTROLLED
MIRROR

·AUDIO SYSTEM
·CONTROLLER
 AREA NETWORK (CAN)
·HANDS FREE SYSTEM
·MITSUBISHI
 MULTI-COMMUNICATION
 SYSTEM (MMCS)
·REAR SEAT
 ENTERTAINMENT SYSTEM
·SPARE CONNECTOR
 (FOR REAR DISPLAY)

·ANTI-LOCK BRAKING
 SYSTEM (ABS) AND
 ACTIVE SKID
 CONTROL SYSTEM (ASC)
·AUDIO SYSTEM
·AUTO-CRUISE
 CONTROL SYSTEM
·HANDS FREE SYSTEM
·INVECS-II 6A/T
·MITSUBISHI
 MULTI-COMMUNICATION
 SYSTEM (MMCS)
·REAR SEAT
 ENTERTAINMENT SYSTEM
·SPARE CONNECTOR
 (FOR REAR DISPLAY)

THEFT-ALARM
SYSTEM

CLOCK

CIRCUIT DIAGRAMS

90-183

POWER SUPPLY
CIRCUIT

INTERFACE CIRCUIT

INTERFACE CIRCUIT

INTERFACE CIRCUIT

INTERFACE
CIRCUIT

CPU

CENTER PANEL UNIT

LCD PANEL (CLOCK)

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE

A/C
CONTROL
PANEL

ELECTRIC
CONTROLLED
4WD

ACCESSORY SOCKET

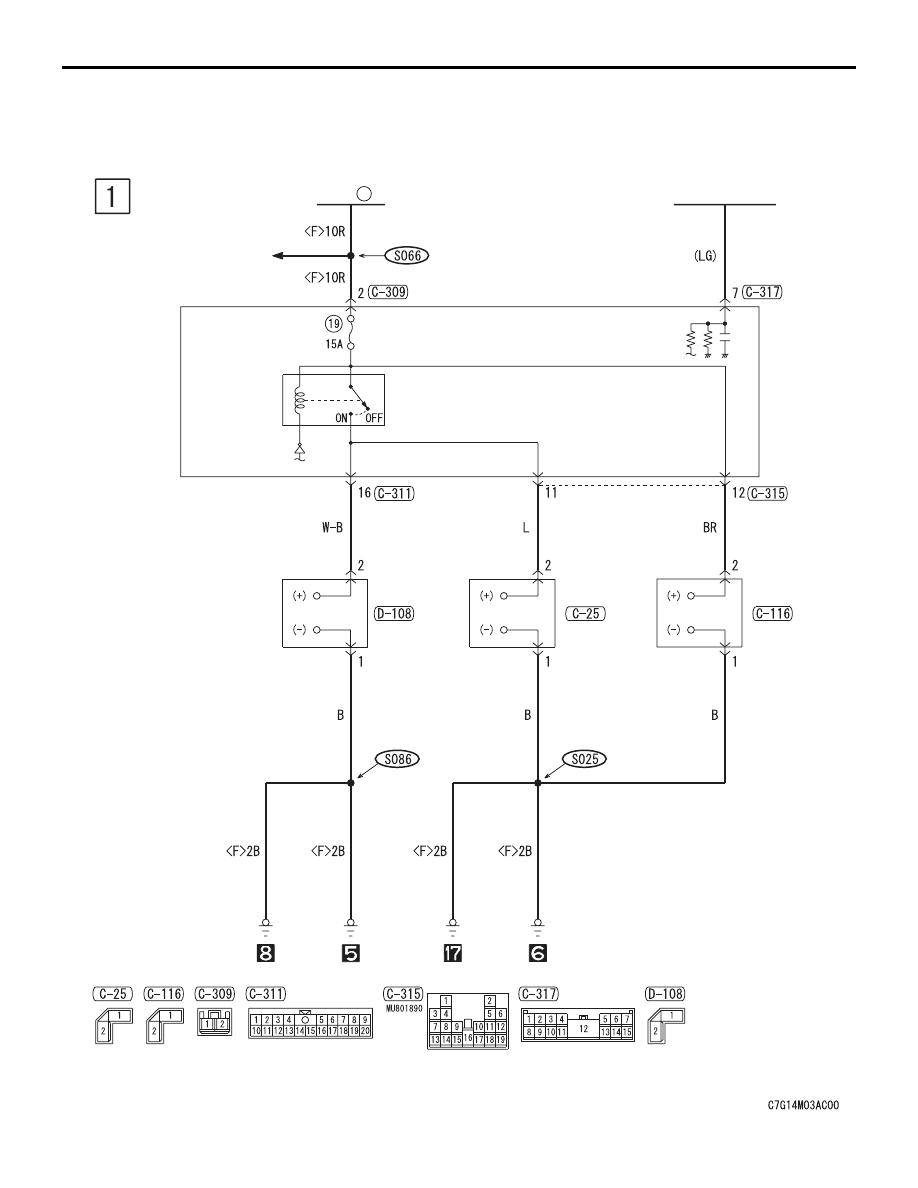

CIRCUIT DIAGRAMS

90-184

ACCESSORY SOCKET

ETACS-
ECU

IGNITION
SWITCH (ACC)

·HEATED DOOR
 MIRROR
·REAR WINDOW
 DEFOGGER

37

FUSIBLE
LINK

ACCESSORY
SOCKET
RELAY

ACCESSORY
SOCKET 1

ACCESSORY
SOCKET 2

ACCESSORY
SOCKET 3

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE
