Mitsubishi Outlander XL. Manual - part 120

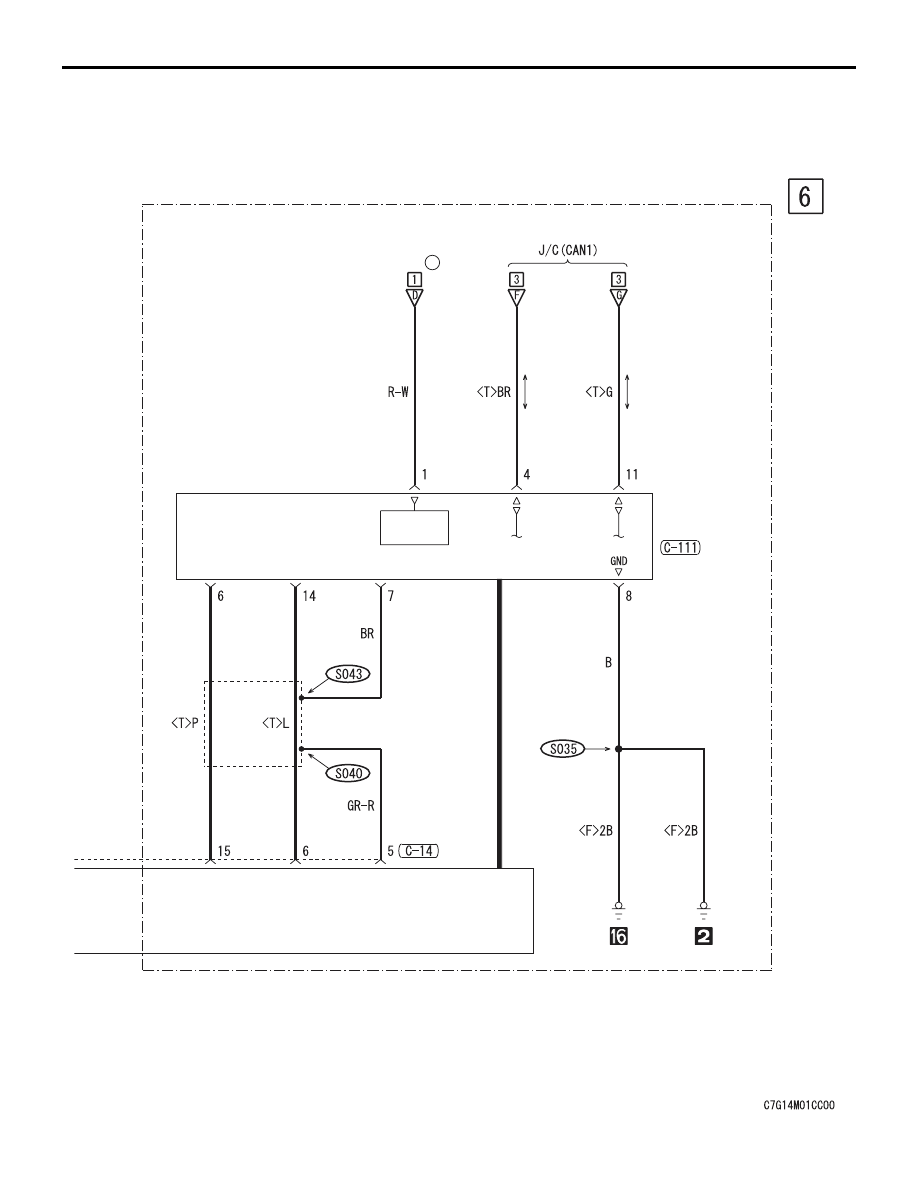

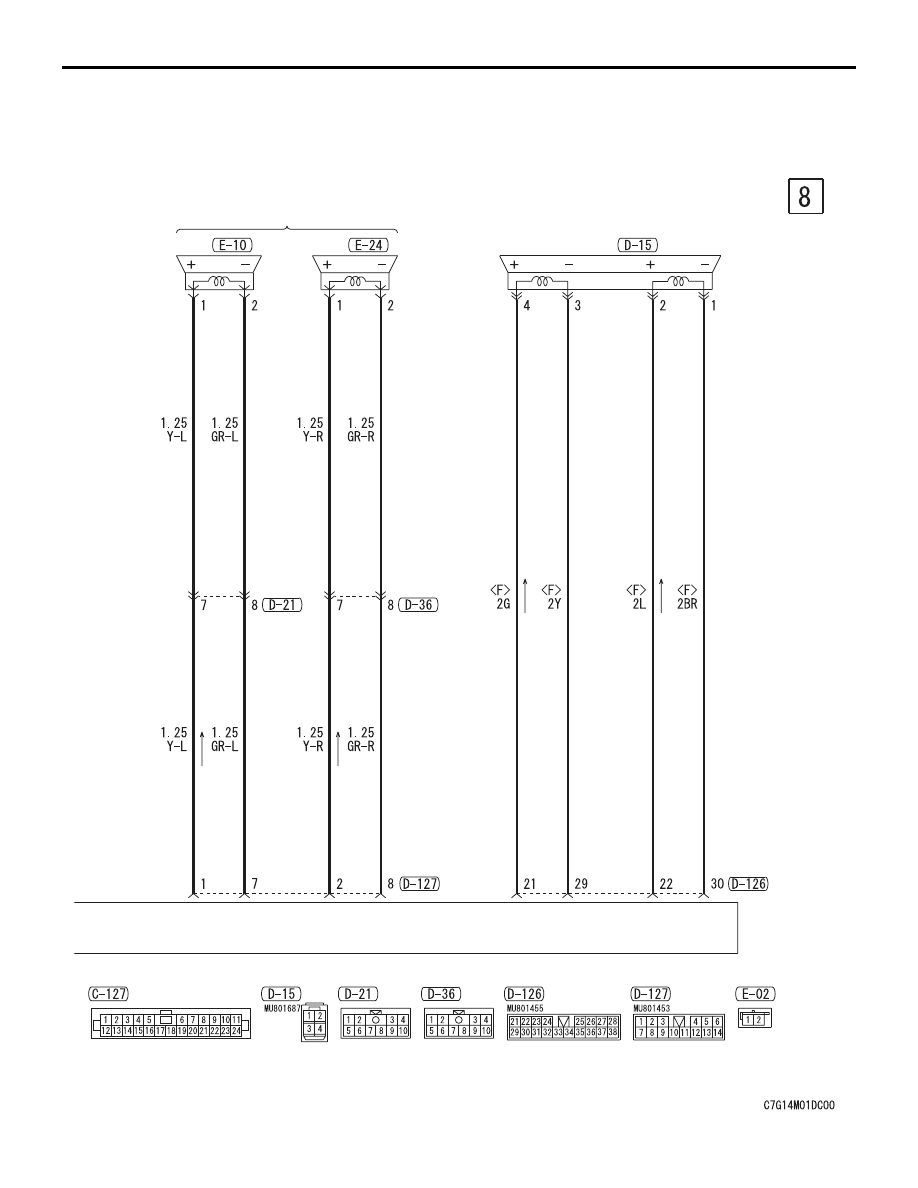

AUDIO SYSTEM <VEHICLES WITH AUDIO AMPLIFIER>

CIRCUIT DIAGRAMS

90-177

SATELLITE
RADIO
TUNER

<VEHICLES WITH SATELLITE RADIO TUNER>

(FUSE     )

7

ETACS-ECU

POWER
SUPPLY

DIN CABLE

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE

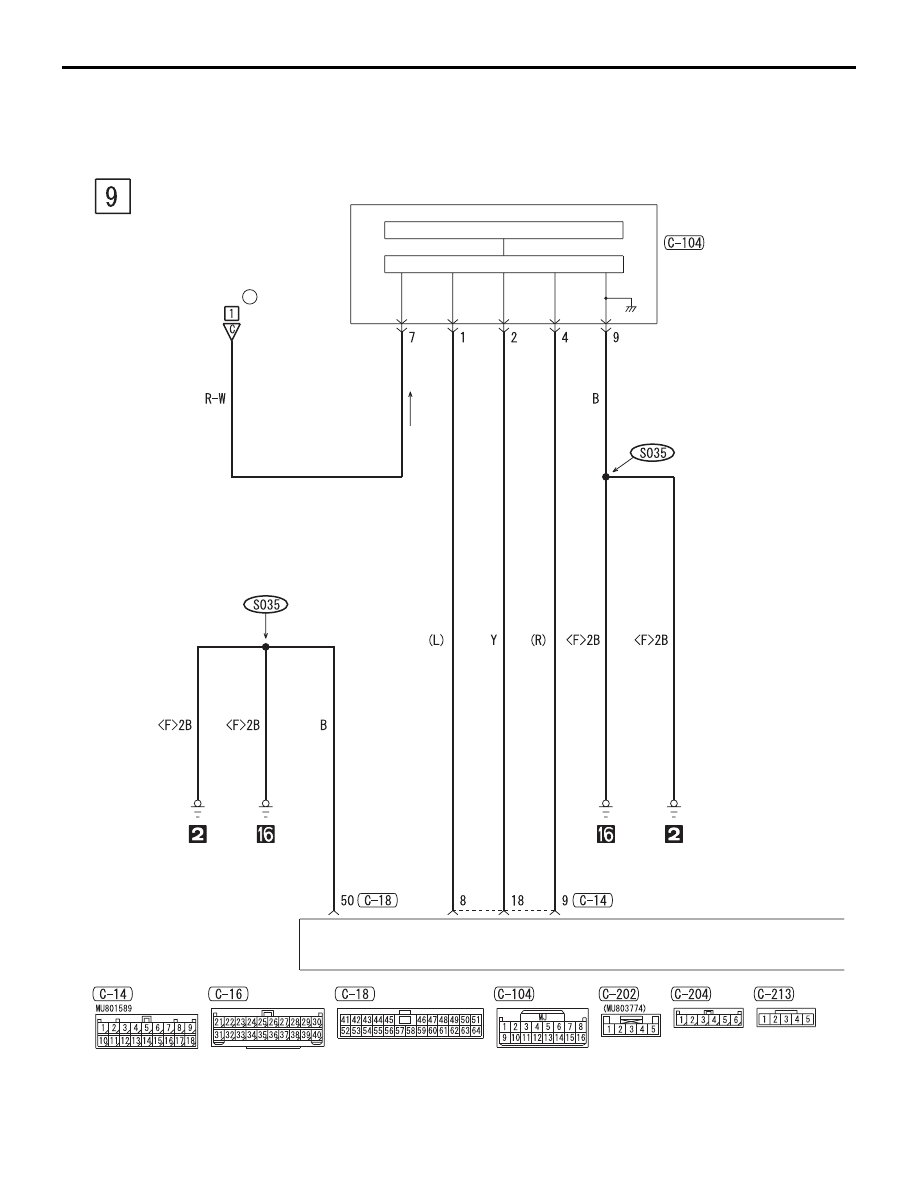

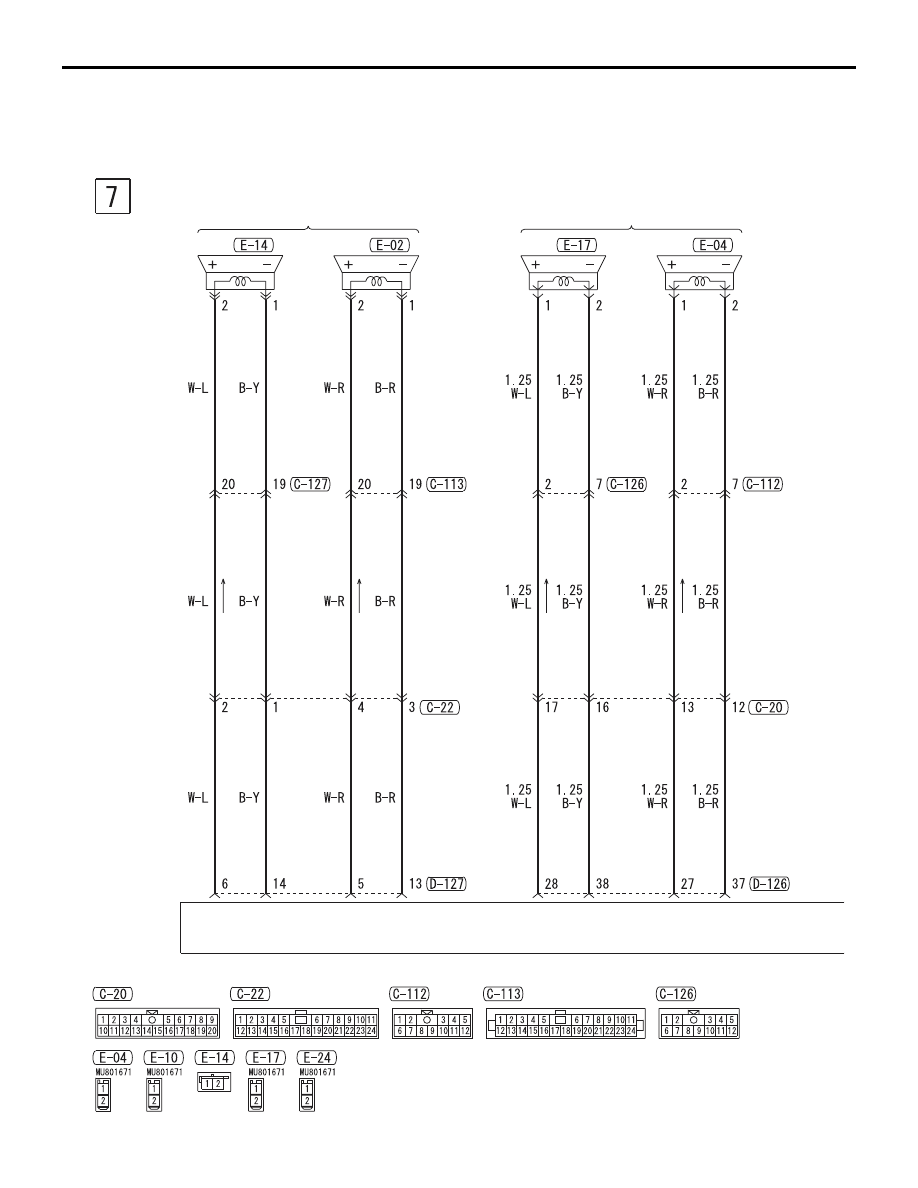

AUDIO SYSTEM <VEHICLES WITH AUDIO AMPLIFIER>

CIRCUIT DIAGRAMS

90-178

AUDIO SYSTEM <VEHICLES WITH AUDIO AMPLIFIER> (CONTINUED)

AUDIO AMPLIFIER

TWEETER

FRONT DOOR SPEAKER

(LH)

(LH)

(RH)

(RH)

AUDIO SYSTEM <VEHICLES WITH AUDIO AMPLIFIER>

CIRCUIT DIAGRAMS

90-179

REAR DOOR SPEAKER

SUB WOOFER

(LH)

(RH)

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE

AUDIO SYSTEM <VEHICLES WITH AUDIO AMPLIFIER>

CIRCUIT DIAGRAMS

90-180

AUDIO SYSTEM <VEHICLES WITH AUDIO AMPLIFIER> (CONTINUED)

RADIO AND CD CHANGER

(FUSE    )

ETACS-ECU

7

CENTER PANEL
UNIT

LCD PANEL (AUDIO)

AUDIO SWITCH PANEL
