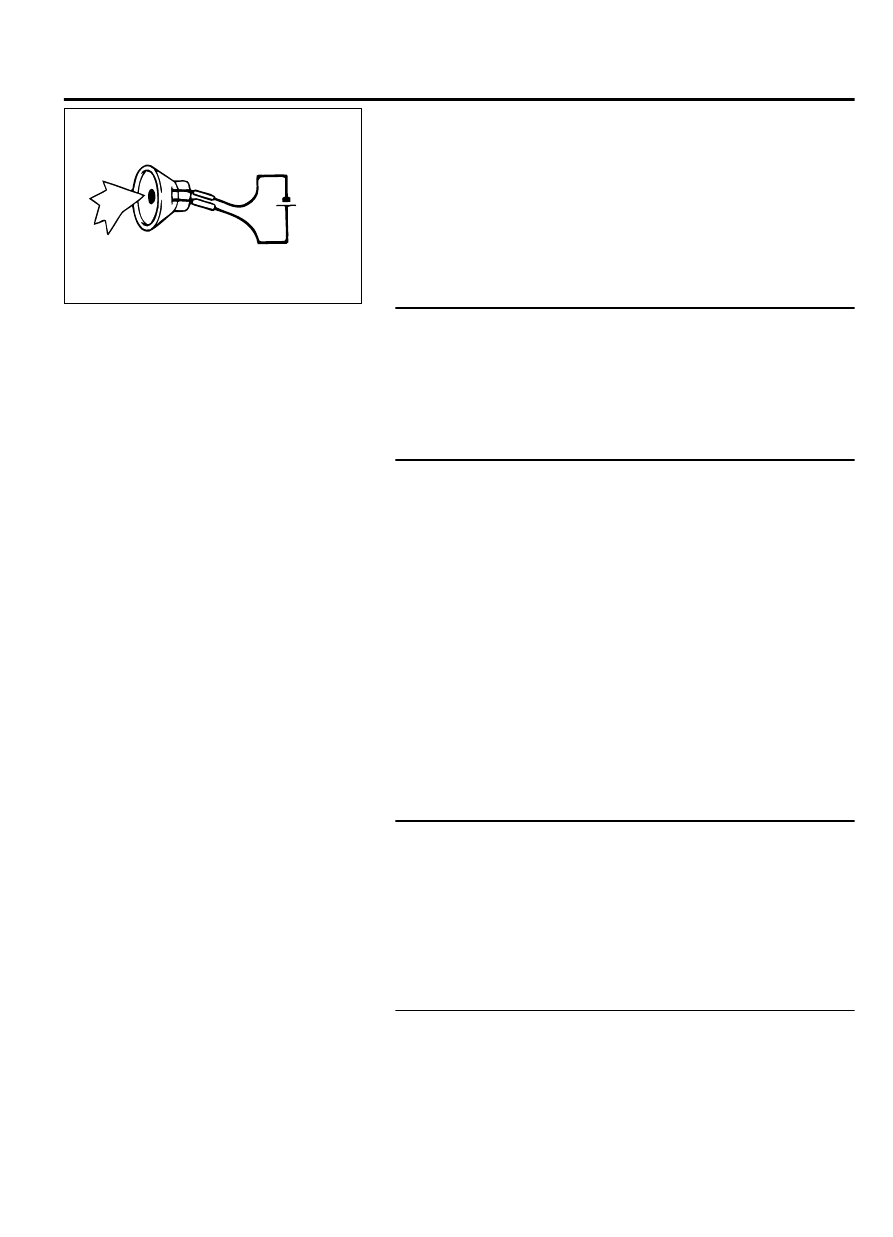

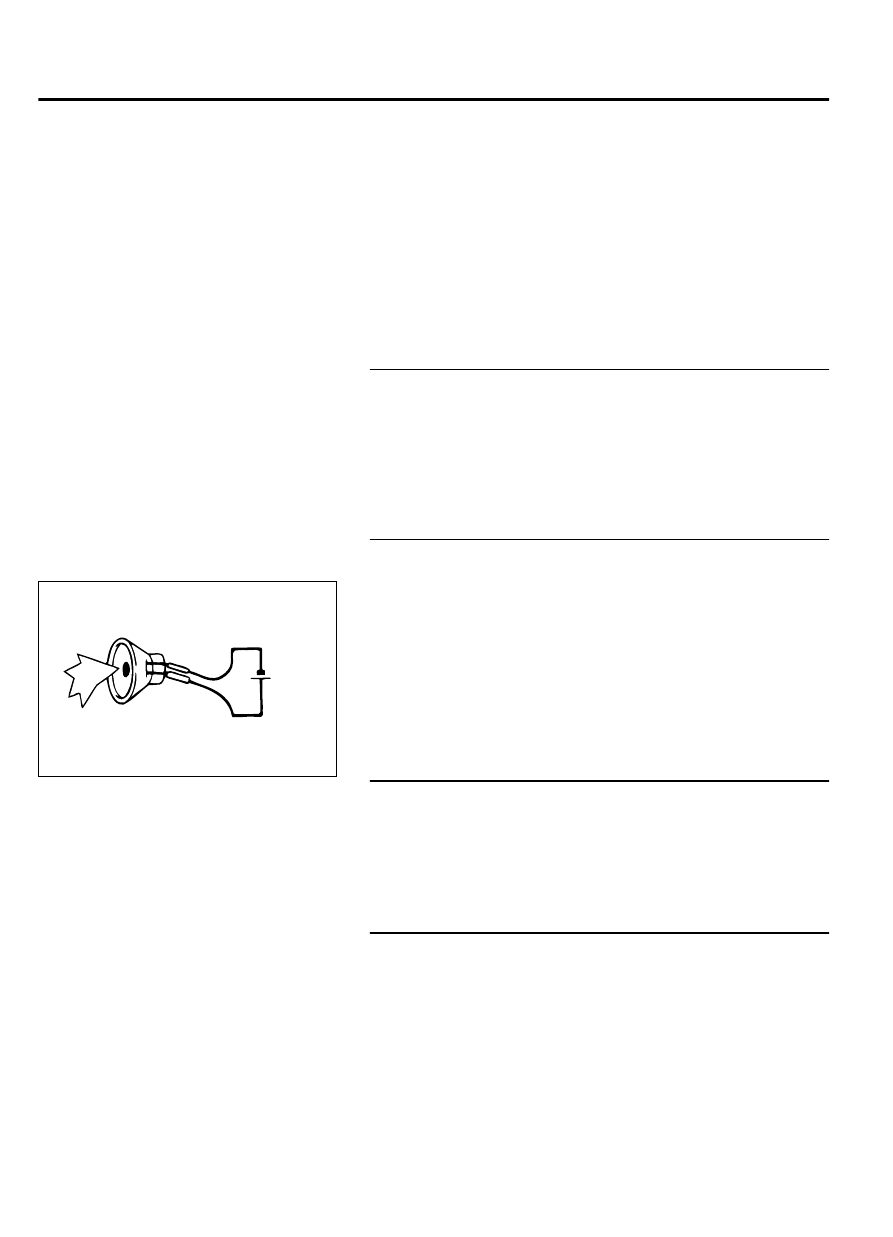

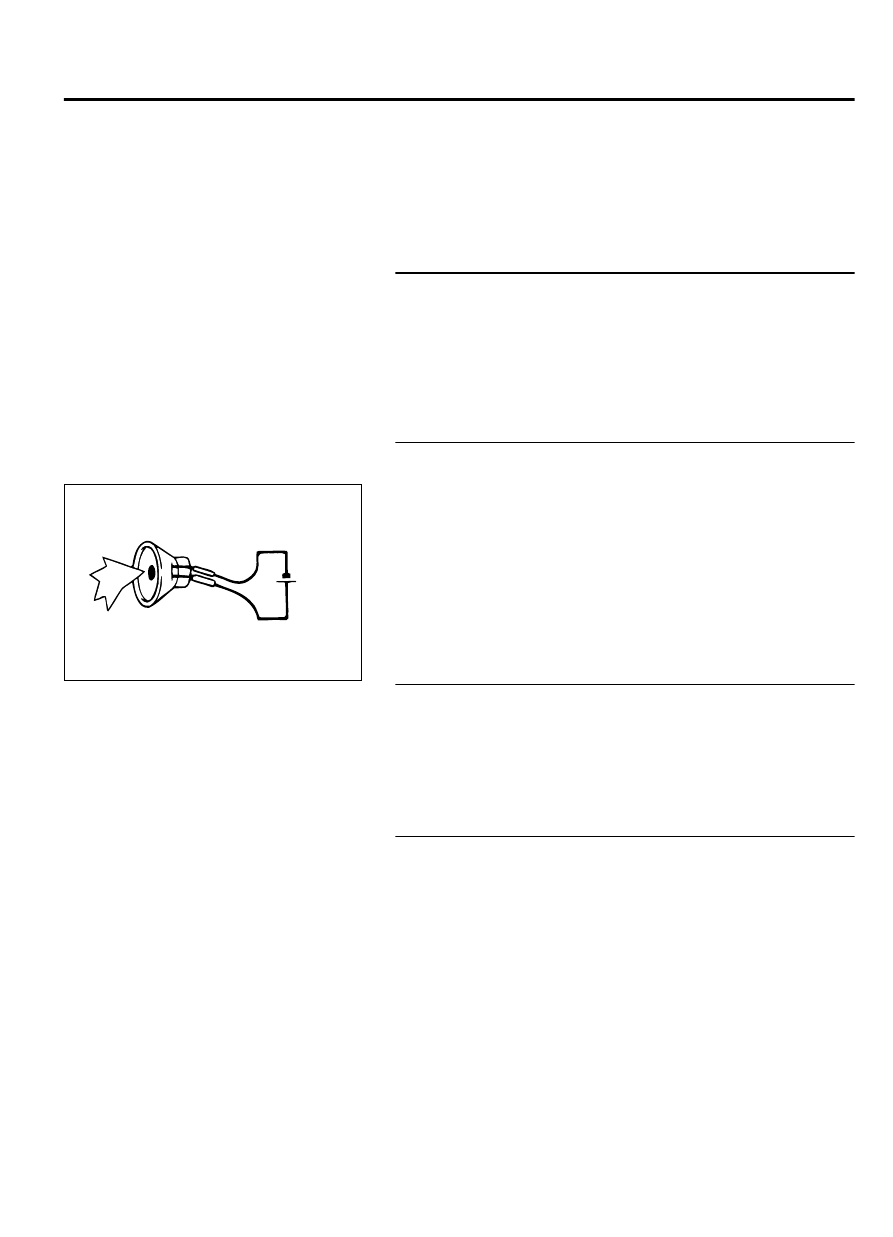

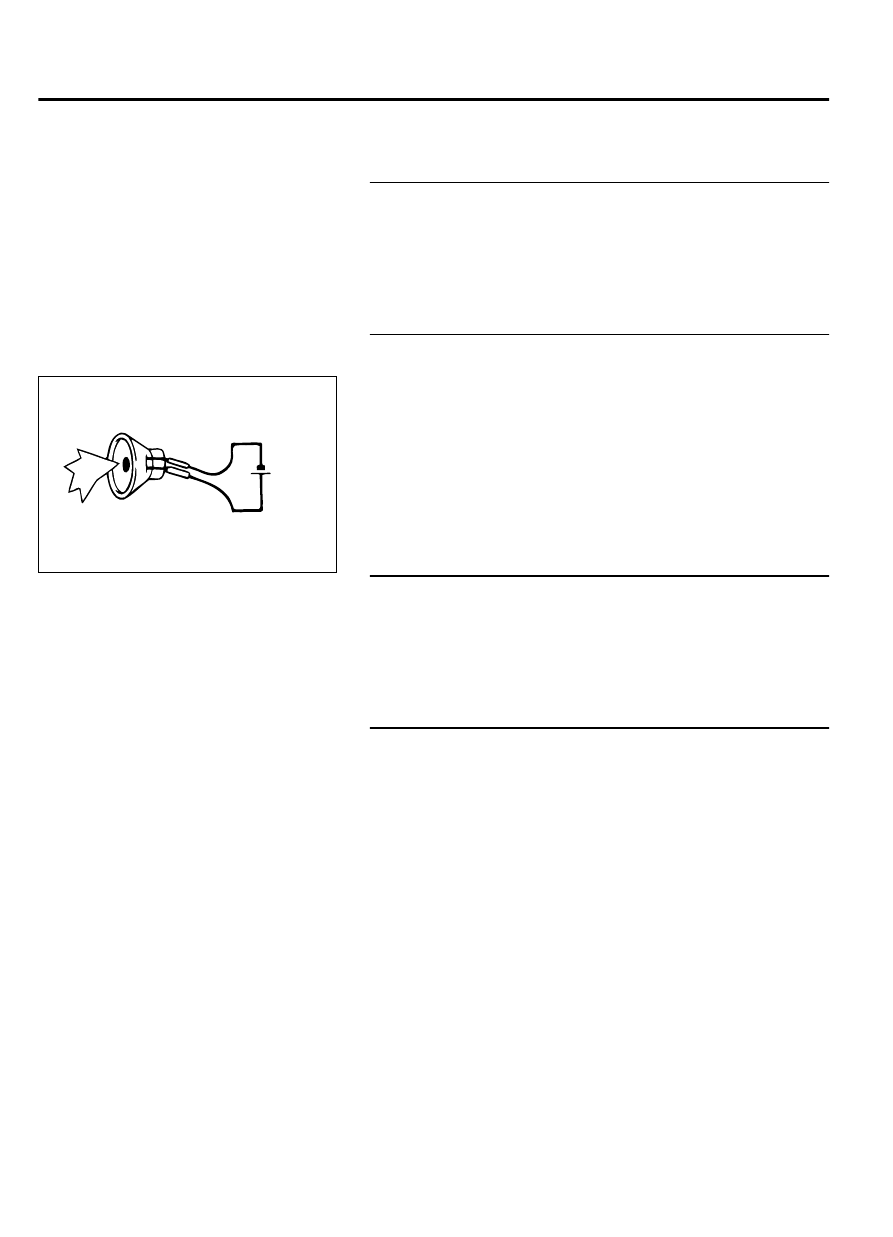

ZC3064660000

5 volts

(2)

Check  that  the  front  door  speaker  (LH)  outputs  the  noise
when  the  voltage  of  five  volts  is  applied  to  the  front  door
speaker (LH) connector terminal.

Q:Does the front door speaker (LH) output the noise?

YES:

 Go to Step 11.

NO:

 Replace the front door speaker (LH).

STEP 11. Check audio amplifier connector D-126 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Q:Is audio amplifier connector D-126 in good condition?

YES:

 Go to Step 12.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2.

STEP 12. Check the wiring harness between audio amplifier
connector D-126 (terminal 28, 38) and front door speaker
(LH) connector E-17 (terminal 1, 2).

NOTE:

Also check intermediate connectors C-20 and C-126 for

loose, corroded, or damaged terminals, or terminals pushed
back in the connector. If intermediate connectors C-20 and
C-126 is damaged, repair or replace the connector as
described in GROUP 00E, Harness Connector Inspection P.
00E-2.

｠

Check the communication lines for open circuit.

Q:Is the wiring harness between audio amplifier connector

D-126  (terminal  28,  38)  and  front  door  speaker  (LH)

connector E-17 (terminal 1, 2) in good condition?

YES:

 Go to Step 13.

NO:

 The wiring harness may be damaged or the connector

(s) may have loose, corroded or damaged terminals, or
terminals pushed back in the connector. Repair the wiring
harness as necessary.

STEP 13. Check radio and CD changer connector C-16 and
audio amplifier connector C-127 for loose, corroded or
damaged terminals, or terminals pushed back in the
connector.

Q:Is  radio  and  CD  changer  connector  C-16  and  audio

amplifier connector C-127 in good condition?

YES:

 Go to Step 14.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2.

STEP 14. Check the wiring harness between radio and CD
changer connector C-16 (terminal 28, 38) and audio
amplifier connector D-127 (terminal 4, 12)

｠

Check the communication lines for open circuit.

AUDIO AND NAVIGATION SYSTEM

54B-45

DIAGNOSIS

NOTE:

Also check intermediate connector C-22 for loose,

corroded, or damaged terminals, or terminals pushed back in
the connector. If intermediate connector C-22 is damaged,
repair or replace the connector as described in GROUP 00E,
Harness Connector Inspection P.00E-2.

Q:Is  the  wiring  harness  between  radio  and  CD  changer

connector  C-16  (terminal  28,  38)  and  audio  amplifier

connector D-127 (terminal 4, 12) in good condition?

YES:

 Check the trouble symptom, and go to Step 35.

NO:

 The wiring harness may be damaged or the connector

(s) may have loose, corroded or damaged terminals, or
terminals pushed back in the connector. Repair the wiring
harness as necessary.

STEP 15. Check rear door speaker (RH) connector E-24 for
loose, corroded or damaged terminals, or terminals pushed
back in the connector.

Q:Is  rear  door  speaker  (RH)  connector  E-24  in  good

condition?

YES:

 Go to Step 16.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2.

STEP 16. Check the rear door speaker (RH).

(1)

Remove the rear door speaker (RH). Refer to P.54B-170.

ZC3064660000

5 volts

(2)

Check  that  the  rear  door  speaker  (RH)  outputs  the  noise
when  the  voltage  of  five  volts  is  applied  to  the  rear  door
speaker (RH) connector terminal.

Q:Does the rear door speaker (RH) output the noise?

YES:

 Go to Step 17.

NO:

 Replace the rear door speaker (RH).

STEP 17. Check audio amplifier connector D-127 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Q:Is audio amplifier connector D-127 in good condition?

YES:

 Go to Step 18.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2.

STEP 18. Check the wiring harness between audio amplifier
connector D-127 (terminal 2, 8) and rear door speaker (RH)
connector E-24 (terminal 1, 2).

NOTE:

Also check intermediate connector D-36 for loose,

corroded, or damaged terminals, or terminals pushed back in
the connector. If intermediate connector D-36 is damaged,
repair or replace the connector as described in GROUP 00E,
Harness Connector Inspection P.00E-2.

｠

Check the communication lines for open circuit.

54B-46

AUDIO AND NAVIGATION SYSTEM

DIAGNOSIS

Q:Is the wiring harness between audio amplifier connector

D-127  (terminal  2,  8)  and  rear  door  speaker  (RH)

connector E-24 (terminal 1, 2) in good condition?

YES:

 Check the trouble symptom, and go to Step 35.

NO:

 The wiring harness may be damaged or the connector

(s) may have loose, corroded or damaged terminals, or
terminals pushed back in the connector. Repair the wiring
harness as necessary.

STEP 19. Check rear door speaker (LH) connector E-10 for
loose, corroded or damaged terminals, or terminals pushed
back in the connector.

Q:Is  rear  door  speaker  (LH)  connector  E-10  in  good

condition?

YES:

 Go to Step 20.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2.

STEP 20. Check the rear door speaker (LH).

(1)

Remove the rear door speaker (LH). Refer to P.54B-170.

ZC3064660000

5 volts

(2)

Check  that  the  rear  door  speaker  (LH)  outputs  the  noise
when  the  voltage  of  five  volts  is  applied  to  the  rear  door
speaker (LH) connector terminal.

Q:Does the rear door speaker (LH) output the noise?

YES:

 Go to Step 21.

NO:

 Replace the rear door speaker (LH).

STEP 21. Check audio amplifier connector D-127 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Q:Is audio amplifier connector D-127 in good condition?

YES:

 Go to Step 22.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2.

STEP 22. Check the wiring harness between audio amplifier
connector D-127 (terminal 1, 7) and rear door speaker (LH)
connector E-10 (terminal 1, 2).

NOTE:

Also check intermediate connector D-21 for loose,

corroded, or damaged terminals, or terminals pushed back in
the connector. If intermediate connector D-21 is damaged,
repair or replace the connector as described in GROUP 00E,
Harness Connector Inspection P.00E-2.

｠

Check the communication lines for open circuit.

Q:Is the wiring harness between audio amplifier connector

D-127  (terminal  1,  7)  and  rear  door  speaker  (LH)

connector E-10 (terminal 1, 2) in good condition?

YES:

 Check the trouble symptom, and go to Step 35.

AUDIO AND NAVIGATION SYSTEM

54B-47

DIAGNOSIS

NO:

 The wiring harness may be damaged or the connector

(s) may have loose, corroded or damaged terminals, or
terminals pushed back in the connector. Repair the wiring
harness as necessary.

STEP 23. Check tweeter (RH) connector E-02 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Q:Is tweeter (RH) connector E-02 in good condition?

YES:

 Go to Step 24.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2.

STEP 24. Check the tweeter (RH).

(1)

Remove the tweeter (RH). Refer to P.54B-170.

ZC3064660000

5 volts

(2)

Check  that  the  tweeter  (RH)  outputs  the  noise  when  the
voltage of five volts is applied to the tweeter (RH) connector
terminal.

Q:Does the tweeter (RH) output the noise?

YES:

 Go to Step 25.

NO:

 Replace the tweeter (RH).

STEP 25. Check audio amplifier connector D-127 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Q:Is audio amplifier connector D-127 in good condition?

YES:

 Go to Step 26.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2.

STEP 26. Check the wiring harness between audio amplifier
connector D-127 (terminal 5, 13) and tweeter (RH) connector
E-02 (terminal 2, 1).

NOTE:

Also check intermediate connectors C-22 and C-113 for

loose, corroded, or damaged terminals, or terminals pushed
back in the connector. If intermediate connector C-22 or
C-113 is damaged, repair or replace the connector as
described in GROUP 00E, Harness Connector Inspection P.
00E-2.

｠

Check the communication lines for open circuit.

Q:Is the wiring harness between audio amplifier connector

D-127  (terminal  5,  13)  and  tweeter  (RH)  connector  E-02

(terminal 2, 1) in good condition?

YES:

 Check the trouble symptom, and go to Step 35.

NO:

 The wiring harness may be damaged or the connector

(s) may have loose, corroded or damaged terminals, or
terminals pushed back in the connector. Repair the wiring
harness as necessary.

54B-48

AUDIO AND NAVIGATION SYSTEM

DIAGNOSIS
