Mitsubishi Outlander XL. Manual - part 1089





ZC3064660000

5 volts

(2)

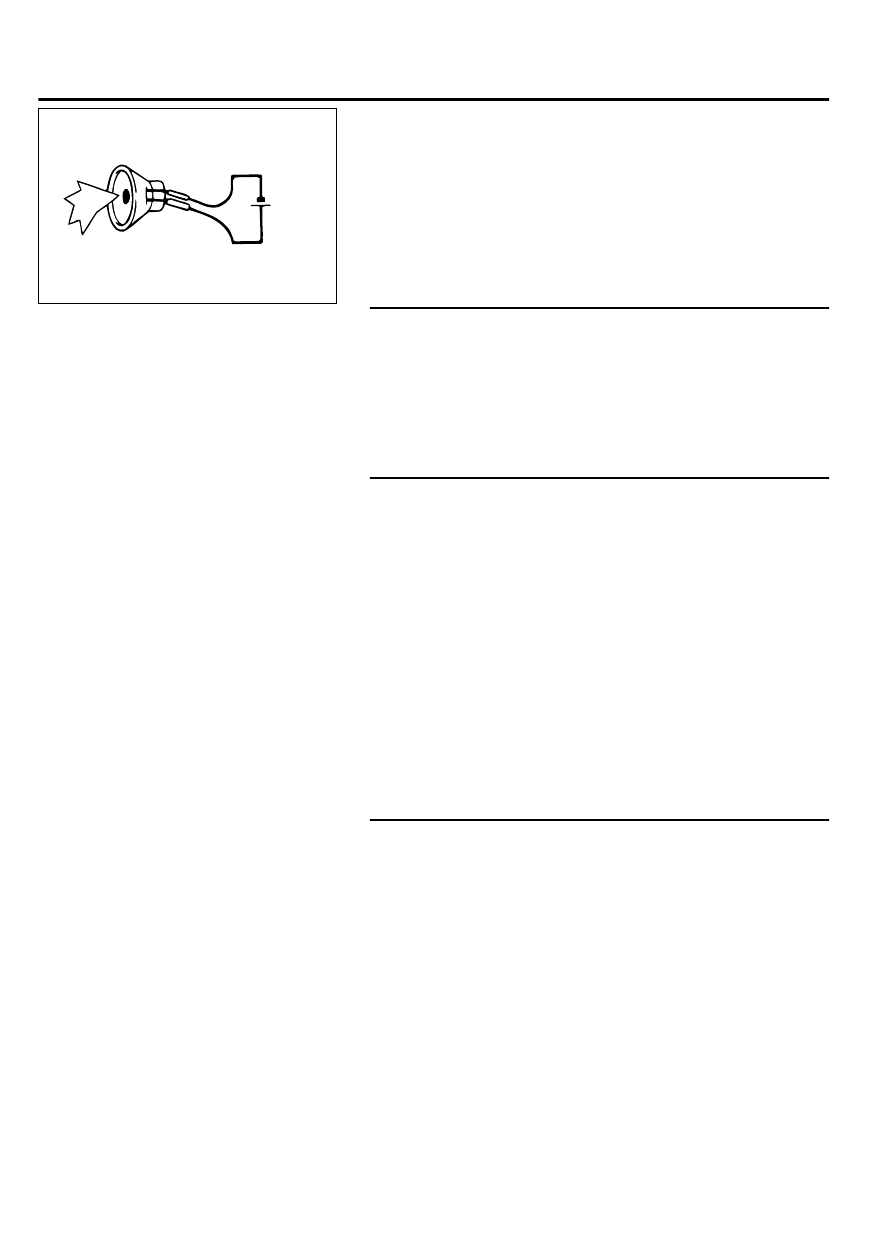

Check  that  the  tweeter  (RH)  outputs  the  noise  when  the
voltage of five volts is applied to the tweeter (RH) connector
terminal.

Q:Does the tweeter (RH) output the noise?

YES:

 Go to Step 21.

NO:

 Replace the tweeter (RH).

STEP 21. Check radio and CD player or CD changer
connector C-16 for loose, corroded or damaged terminals,
or terminals pushed back in the connector.

Q:Is radio and CD player or CD changer connector C-16 in

good condition?

YES:

 Go to Step 22.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2.

STEP 22. Check the wiring harness between radio and CD
player or CD changer connector C-16 (terminal 26, 36) and
tweeter (RH) connector E-02 (terminal 2, 1).

NOTE:

Also check intermediate connector C-113 for loose,

corroded, or damaged terminals, or terminals pushed back in
the connector. If intermediate connector C-113 is damaged,
repair or replace the connector as described in GROUP 00E,
Harness Connector Inspection P.00E-2.

Check the communication lines for open circuit.

Q:Is the wiring harness between radio and CD player or CD

changer  connector  C-16  (terminal  26,  36)  and  tweeter

(RH) connector E-02 (terminal 2, 1) in good condition?

YES:

 Check the trouble symptom. Go to Step 27.

NO:

 The wiring harness may be damaged or the connector

(s) may have loose, corroded or damaged terminals, or
terminals pushed back in the connector. Repair the wiring
harness as necessary.

STEP 23. Check tweeter (LH) connector E-14 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Q:Is tweeter (LH) connector E-14 in good condition?

YES:

 Go to Step 24.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2.

STEP 24. Tweeter (LH) check.

(1)

Remove the tweeter (LH). Refer to P.54B-163.

AUDIO AND NAVIGATION SYSTEM

54B-37

DIAGNOSIS

ZC3064660000

5 volts

(2)

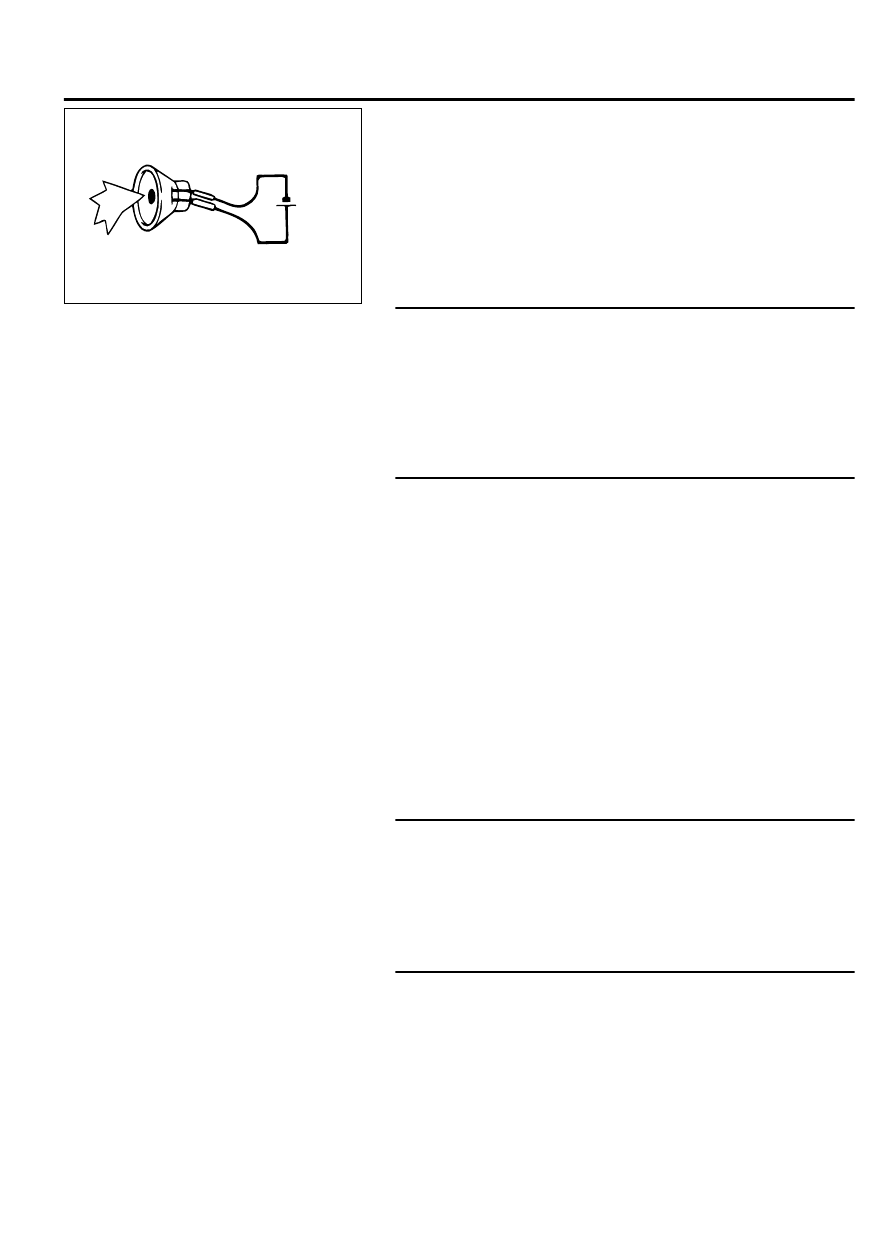

Check  that  the  tweeter  (LH)  outputs  the  noise  when  the
voltage of five volts is applied to the tweeter (LH) connector
terminal.

Q:Does the tweeter (LH) output the noise?

YES:

 Go to Step 25.

NO:

 Replace the tweeter (LH).

STEP 25. Check radio and CD player or CD changer
connector C-16 for loose, corroded or damaged terminals,
or terminals pushed back in the connector.

Q:Is radio and CD player or CD changer connector C-16 in

good condition?

YES:

 Go to Step 26.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2.

STEP 26. Check the wiring harness between radio and CD
player or CD changer connector C-16 (terminal 28, 38) and
tweeter (LH) connector E-14 (terminal 2, 1).

NOTE:

Also check intermediate connector C-127 for loose,

corroded, or damaged terminals, or terminals pushed back in
the connector. If intermediate connector C-127 is damaged,
repair or replace the connector as described in GROUP 00E,
Harness Connector Inspection P.00E-2.

Check the communication lines for open circuit.

Q:Is the wiring harness between radio and CD player or CD

changer connector C-16 (terminal 28, 38) and tweeter (LH)

connector E-14 (terminal 2, 1) in good condition?

YES:

 Check the trouble symptom. Go to Step 27.

NO:

 The wiring harness may be damaged or the connector

(s) may have loose, corroded or damaged terminals, or
terminals pushed back in the connector. Repair the wiring
harness as necessary.

STEP 27. Retest the system
Check if the sound is output from the speakers.

Q:Is the check result normal?

YES:

 The trouble can be an intermittent malfunction

(Refer to GROUP 00, How to use Troubleshooting/inspection
Service Points, How to Cope with Intermittent
Malfunction P.00-15).

NO:

 Replace the radio and CD player or CD changer.

54B-38

AUDIO AND NAVIGATION SYSTEM

DIAGNOSIS

Inspection Procedure 3: No sound is heard from one of the speakers. <Vehicles with
audio amplifier>

M15410800357USA0000010000

Before replacing the ECU, ensure that the power
supply  circuit,  the  ground  circuit  and  the
communication circuit are normal.

AUDIO AND NAVIGATION SYSTEM

54B-39

DIAGNOSIS

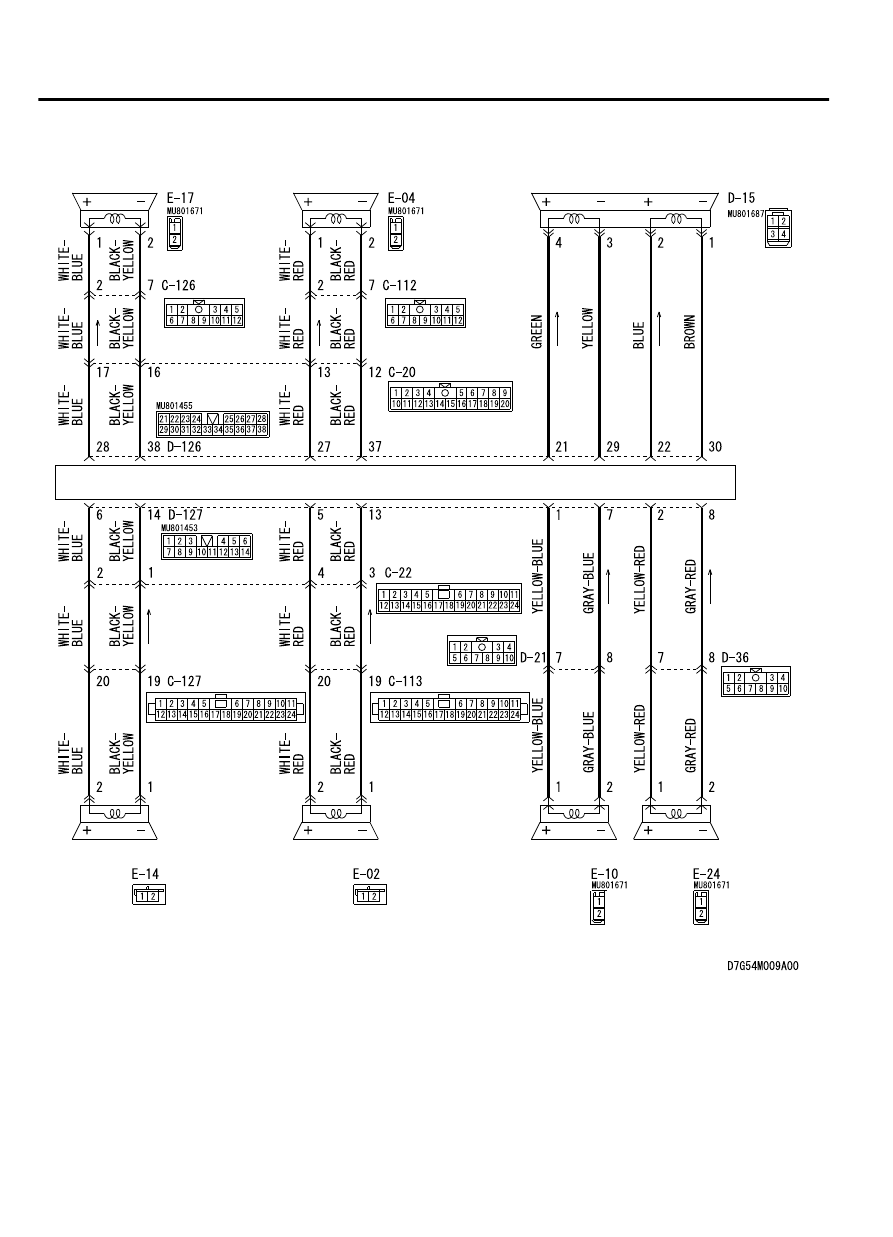

Speaker System Circuit

AUDIO AMPLIFIER

TWEETER
(LH)

TWEETER
(RH)

FRONT DOOR
SPEAKER (LH)

FRONT DOOR
SPEAKER (RH)

REAR DOOR
SPEAKER
(LH)

REAR DOOR
SPEAKER
(RH)

SUB WOOFER

54B-40

AUDIO AND NAVIGATION SYSTEM

DIAGNOSIS
