Mitsubishi Outlander XL. Manual - part 1088





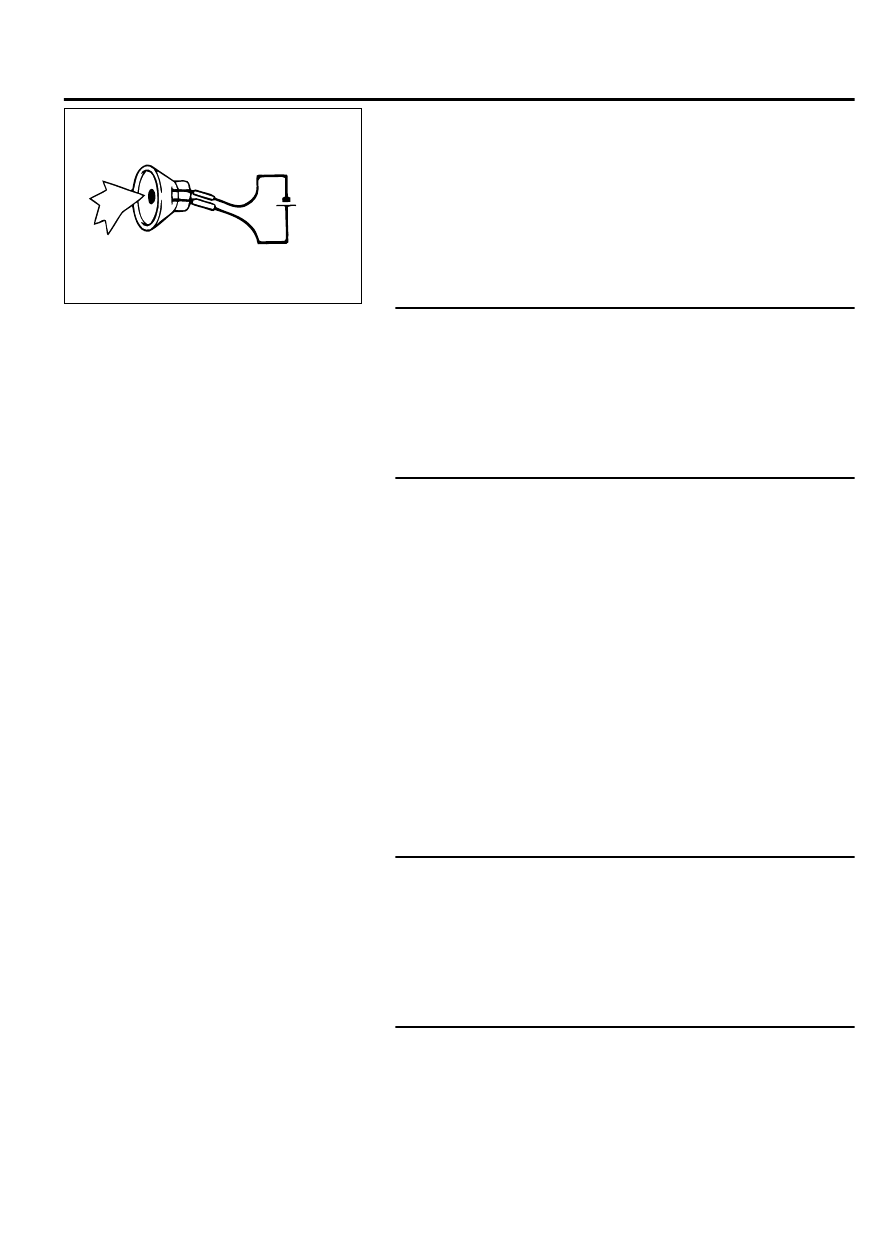

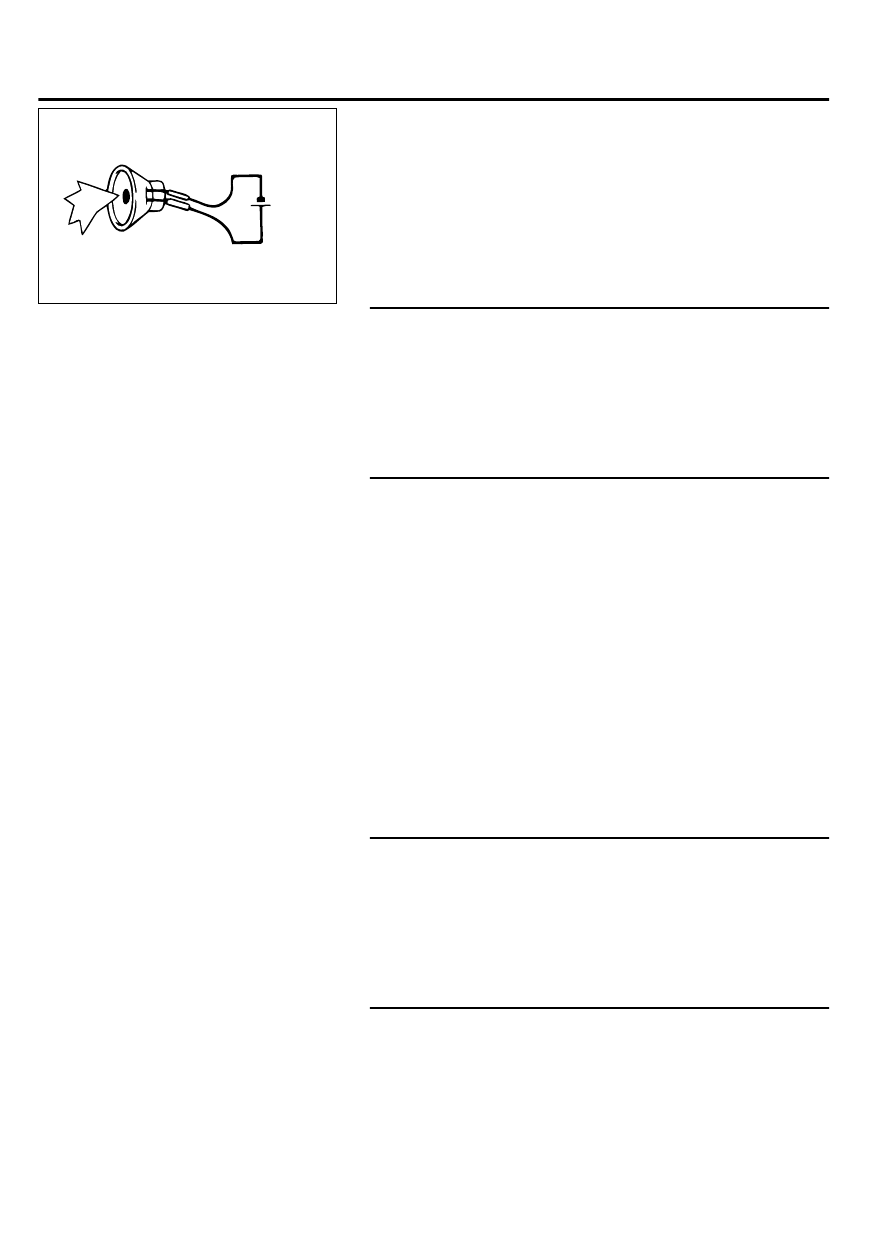

ZC3064660000

5 volts

(2)

Check  that  the  front  door  speaker  (RH)  outputs  the  noise
when  the  voltage  of  five  volts  is  applied  to  the  front  door
speaker (RH) connector terminal.

Q:Does the front door speaker (RH) output the noise?

YES:

 Go to Step 5.

NO:

 Replace the front door speaker (RH).

STEP 5. Check radio and CD player or CD changer
connector C-16 for loose, corroded or damaged terminals,
or terminals pushed back in the connector.

Q:Is radio and CD player or CD changer connector C-16 in

good condition?

YES:

 Go to Step 6.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2.

STEP 6. Check the wiring harness between radio and CD
player or CD changer connector C-16 (terminal 26, 36) and
front door speaker (RH) connector E-04 (terminal 1, 2).

NOTE:

Also check intermediate connector C-112 for loose,

corroded, or damaged terminals, or terminals pushed back in
the connector. If intermediate connector C-112 is damaged,
repair or replace the connector as described in GROUP 00E,
Harness Connector Inspection P.00E-2.

Check the communication lines for open circuit.

Q:Is the wiring harness between radio and CD player or CD

changer connector C-16 (terminal 26, 36) and front door

speaker  (RH)  connector  E-04  (terminal  1,  2)  in  good

condition?

YES:

 Check the trouble symptom. Go to Step 27.

NO:

 The wiring harness may be damaged or the connector

(s) may have loose, corroded or damaged terminals, or
terminals pushed back in the connector. Repair the wiring
harness as necessary.

STEP 7. Check front door speaker (LH) connector E-17 for
loose, corroded or damaged terminals, or terminals pushed
back in the connector.

Q:Is  front  door  speaker  (LH)  connector  E-17  in  good

condition?

YES:

 Go to Step 8.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2.

STEP 8. Front door speaker (LH) check.

(1)

Remove the front door speaker (LH). Refer to P.54B-163.

AUDIO AND NAVIGATION SYSTEM

54B-33

DIAGNOSIS

ZC3064660000

5 volts

(2)

Check  that  the  front  door  speaker  (LH)  outputs  the  noise
when  the  voltage  of  five  volts  is  applied  to  the  front  door
speaker (LH) connector terminal.

Q:Does the front door speaker (LH) output the noise?

YES:

 Go to Step 9.

NO:

 Replace the front door speaker (LH).

STEP 9. Check radio and CD player or CD changer
connector C-16 for loose, corroded or damaged terminals,
or terminals pushed back in the connector.

Q:Is radio and CD player or CD changer connector C-16 in

good condition?

YES:

 Go to Step 10.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2.

STEP 10. Check the wiring harness between radio and CD
player or CD changer connector C-16 (terminal 28, 38) and
front door speaker (LH) connector E-17 (terminal 1, 2).

NOTE:

Also check intermediate connector C-126 for loose,

corroded, or damaged terminals, or terminals pushed back in
the connector. If intermediate connector C-126 is damaged,
repair or replace the connector as described in GROUP 00E,
Harness Connector Inspection P.00E-2.

Check the communication lines for open circuit.

Q:Is the wiring harness between radio and CD player or CD

changer connector C-16 (terminal 28, 38) and front door

speaker  (LH)  connector  E-17  (terminal  1,  2)  in  good

condition?

YES:

 Check the trouble symptom. Go to Step 27.

NO:

 The wiring harness may be damaged or the connector

(s) may have loose, corroded or damaged terminals, or
terminals pushed back in the connector. Repair the wiring
harness as necessary.

STEP 11. Check rear door speaker (RH) connector E-24 for
loose, corroded or damaged terminals, or terminals pushed
back in the connector.

Q:Is  rear  door  speaker  (RH)  connector  E-24  in  good

condition?

YES:

 Go to Step 12.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2.

STEP 12. Rear door speaker (RH) check

(1)

Remove the rear door speaker (RH). Refer to P.54B-163.

54B-34

AUDIO AND NAVIGATION SYSTEM

DIAGNOSIS

ZC3064660000

5 volts

(2)

Check  that  the  rear  door  speaker  (RH)  outputs  the  noise
when  the  voltage  of  five  volts  is  applied  to  the  rear  door
speaker (RH) connector terminal.

Q:Does the rear door speaker (RH) output the noise?

YES:

 Go to Step 13.

NO:

 Replace the rear door speaker (RH).

STEP 13. Check radio and CD player or CD changer
connector C-16 for loose, corroded or damaged terminals,
or terminals pushed back in the connector.

Q:Is radio and CD player or CD changer connector C-16 in

good condition?

YES:

 Go to Step 14.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2.

STEP 14. Check the wiring harness between radio and CD
player or CD changer connector C-16 (terminal 25, 35) and
rear door speaker (RH) connector E-10 (terminal 1, 2).

NOTE:

Also check intermediate connectors C-20 and D-36 for

loose, corroded, or damaged terminals, or terminals pushed
back in the connector. If intermediate connector C-20 or
D-36 is damaged, repair or replace the connector as
described in GROUP 00E, Harness Connector Inspection P.
00E-2.

Check the communication lines for open circuit.

Q:Is the wiring harness between radio and CD player or CD

changer connector C-16 (terminal 25, 35) and rear door

speaker  (RH)  connector  E-10  (terminal  1,  2)  in  good

condition?

YES:

 Check the trouble symptom. Go to Step 27.

NO:

 The wiring harness may be damaged or the connector

(s) may have loose, corroded or damaged terminals, or
terminals pushed back in the connector. Repair the wiring
harness as necessary.

STEP 15. Check rear door speaker (LH) connector E-10 for
loose, corroded or damaged terminals, or terminals pushed
back in the connector.

Q:Is  rear  door  speaker  (LH)  connector  E-10  in  good

condition?

YES:

 Go to Step 16.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2.

STEP 16. Rear door speaker (LH) check.

(1)

Remove the rear door speaker (LH). Refer to P.54B-163.

AUDIO AND NAVIGATION SYSTEM

54B-35

DIAGNOSIS

ZC3064660000

5 volts

(2)

Check  that  the  rear  door  speaker  (LH)  outputs  the  noise
when  the  voltage  of  five  volts  is  applied  to  the  rear  door
speaker (LH) connector terminal.

Q:Does the rear door speaker (LH) output the noise?

YES:

 Go to Step 17.

NO:

 Replace the rear door speaker (LH).

STEP 17. Check radio and CD player or CD changer
connector C-16 for loose, corroded or damaged terminals,
or terminals pushed back in the connector.

Q:Is radio and CD player or CD changer connector C-16 in

good condition?

YES:

 Go to Step 18.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2.

STEP 18. Check the wiring harness between radio and CD
player or CD changer connector C-16 (terminal 27, 37) and
rear door speaker (LH) connector E-10 (terminal 1, 2).

NOTE:

Also check intermediate connectors C-32 and D-21 for

loose, corroded, or damaged terminals, or terminals pushed
back in the connector. If intermediate connector C-32 or
D-21 is damaged, repair or replace the connector as
described in GROUP 00E, Harness Connector Inspection P.
00E-2.

Check the communication lines for open circuit.

Q:Is the wiring harness between radio and CD player or CD

changer connector C-16 (terminal 27, 37) and rear door

speaker  (LH)  connector  E-10  (terminal  1,  2)  in  good

condition?

YES:

 Check the trouble symptom. Go to Step 27.

NO:

 The wiring harness may be damaged or the connector

(s) may have loose, corroded or damaged terminals, or
terminals pushed back in the connector. Repair the wiring
harness as necessary.

STEP 19. Check tweeter (RH) connector E-02 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Q:Is tweeter (RH) connector E-02 in good condition?

YES:

 Go to Step 20.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2.

STEP 20. Tweeter (RH) check.

(1)

Remove the tweeter (RH). Refer to P.54B-163.

54B-36

AUDIO AND NAVIGATION SYSTEM

DIAGNOSIS
