SPECIAL TOOLS

M15410200002USA0000010000

Tool

Tool  number  and
name

Supersession

Application

MB991910

MB991826

YB9919580000

MB991911

MB991914

MB991824

MB991827

MB991825

Do not use

Do not use

a

b

c

d

e

f

g

MB991958

a.

MB991824

b.

MB991827

c.

MB991910

d.

MB991911

e.

MB991914

f.

MB991825

g.

MB991826

M.U.T.-III

 sub

assembly

a.

Vehicle
communication
interface (V.C.I.)

b.

M.U.T.-III

 USB

cable

c.

M.U.T.-III

 main

harness

 A

(Vehicles

 with

CAN
communication
system)

d.

M.U.T.-III

 main

harness

 B

(Vehicles  without
CAN
communication
system)

e.

M.U.T.-III

 main

harness  C  (for
Daimler  Chrysler
models only)

f.

M.U.T.-III
measurement
adapter

g.

M.U.T.-III  trigger
harness

MB991824-KIT

NOTE:

G: MB991826

M.U.T.-III Trigger
Harness is not
necessary when
pushing V.C.I. ENTER
key.

M.U.T.-III  main  harness  A
(MB991910)  should  be  used.
M.U.T.-III main harness B and C
should  not  be  used  for  this
vehicle.
Diagnostic code, service data and
actuator test check.

COLUMN SWITCH

54Ah-3

SPECIAL TOOLS

Tool

Tool  number  and
name

Supersession

Application

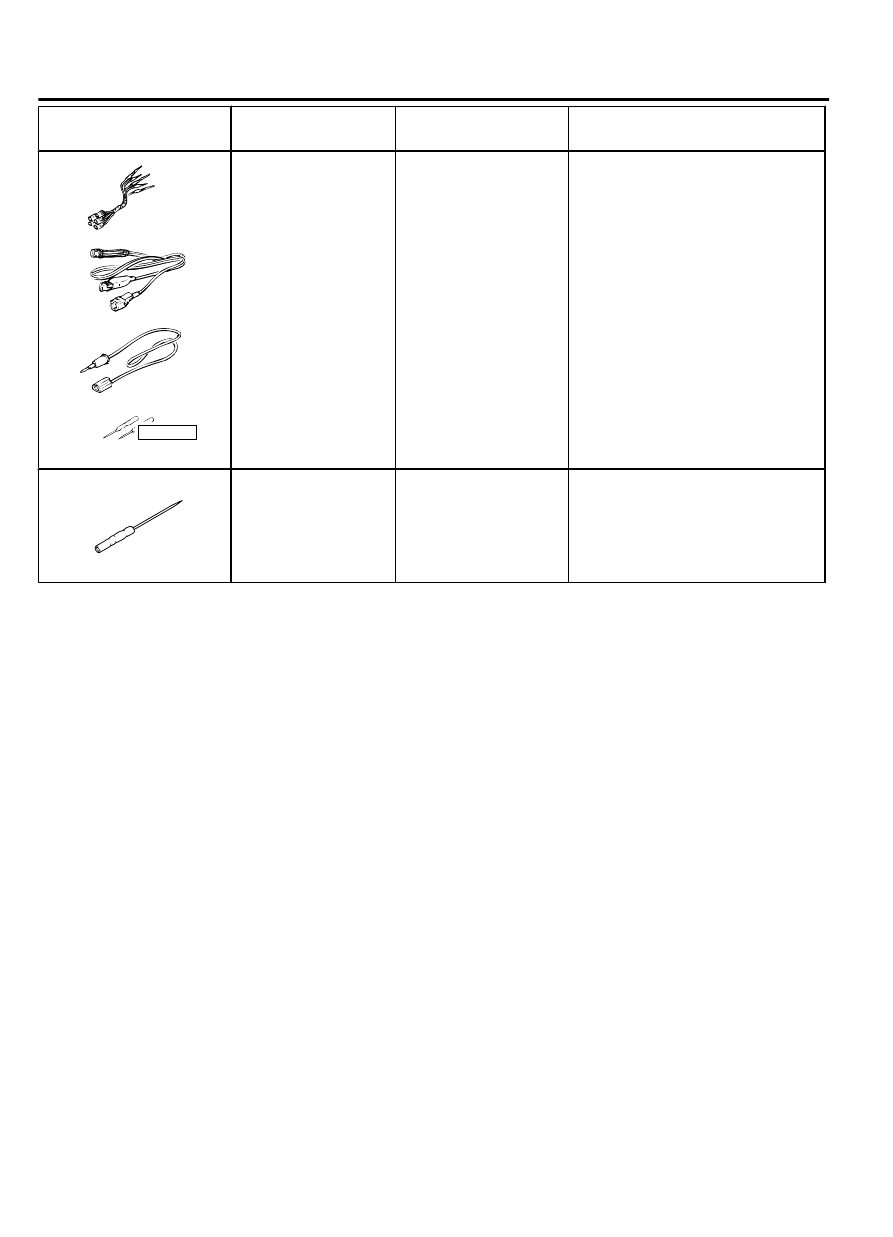

YB9912230000

Do not use

a

b

c

d

MB991223

a.

MB991219

b.

MB991220

c.

MB991221

d.

MB991222

Harness set

a.

Test harness

b.

LED harness

c.

LED

 harness

adaptor

d.

Probe

General service tools Continuity  check  and  voltage

measurement  at  harness  wire  or
connector

a.

Connector

 pin

 contact

pressure inspection

b.

Power circuit inspection

c.

Power circuit inspection

d.

Commercial tester connection

MB992006

MB992006
Extra fine probe

-

Continuity  check  and  voltage
measurement  at  harness  wire  or
connector.

DIAGNOSIS

STANDARD FLOW OF DIAGNOSTIC TROUBLESHOOTING

M15410200004USA0000010000

Refer to GROUP 00 - Contents of troubleshooting P.
00-6.

DIAGNOSTIC FUNCTION

M15410200005USA0000010000

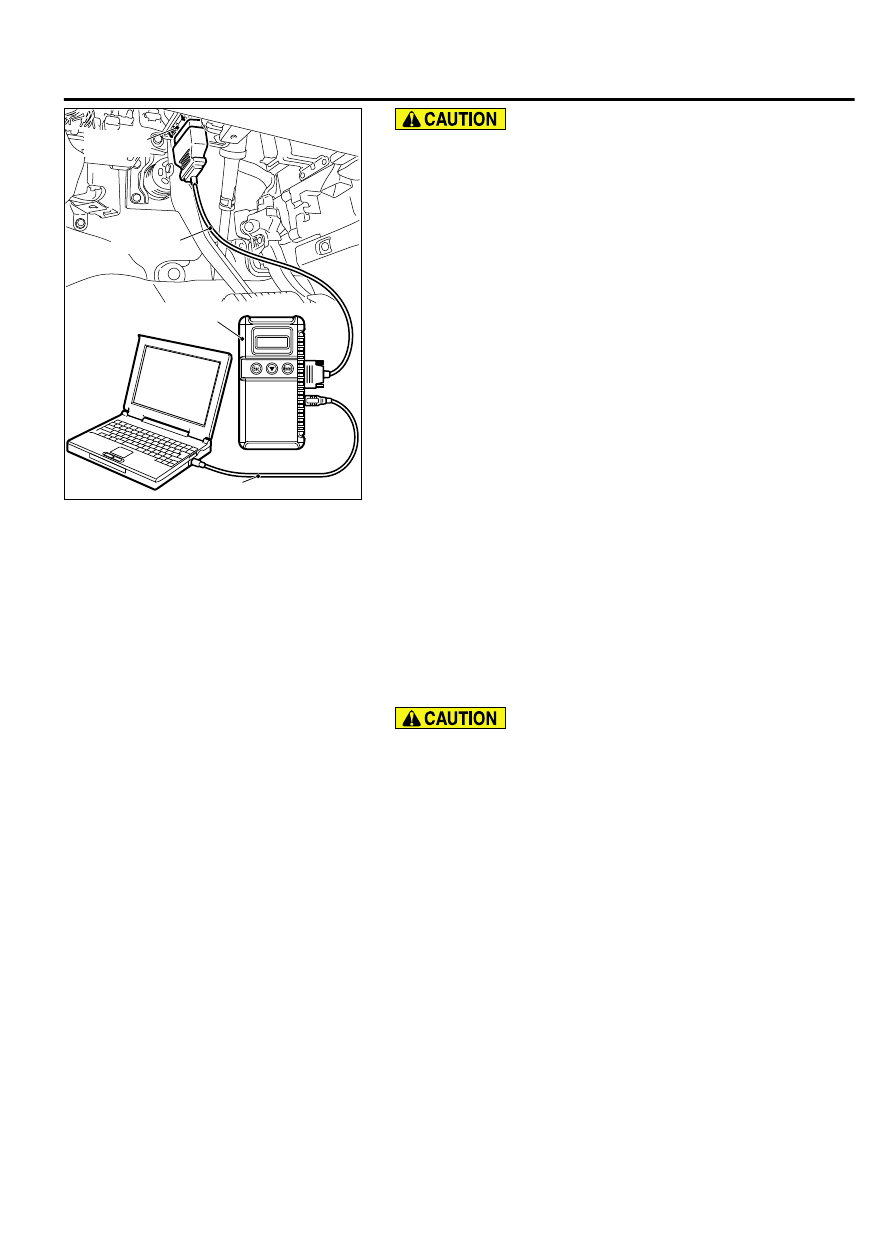

HOW TO CONNECT THE SCAN TOOL (M.U.T.-III)

Required Special Tools:

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

MB991824: Vehicle Communication Interface (V.C.I.)

MB991827: M.U.T.-III USB Cable

MB991910:  M.U.T.-III  Main  Harness  A  (Vehicles  with
CAN communication system)

54Ah-4

COLUMN SWITCH

DIAGNOSIS

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

1.

Ensure that the ignition switch is at the "LOCK" (OFF) position.

2.

Start up the personal computer.

3.

Connect special tool MB991827 to special tool MB991824 and
the personal computer.

4.

Connect special tool MB991910 to special tool MB991824.

5.

Connect special tool MB991910 to the data link connector.

6.

Turn the power switch of special tool MB991824 to the "ON"
position.

NOTE:

When special tool MB991824 is energized, special

tool MB991824 indicator light will be illuminated in a
green color.

7.

Start the M.U.T.-III system on the personal computer.

NOTE:

Disconnecting scan tool MB991958 is the reverse of

the connecting sequence, making sure that the ignition
switch is at the "LOCK" (OFF) position.

HOW TO READ AND ERASE DIAGNOSTIC

TROUBLE CODES

Required Special Tools:

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

MB991824: Vehicle Communication Interface (V.C.I.)

MB991827: M.U.T.-III USB Cable

MB991910:  M.U.T.-III  Main  Harness  A  (Vehicles  with
CAN communication system)

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

NOTE:

If the battery voltage is low, diagnostic trouble

codes will not be set. Check the battery if scan tool
MB991958 does not display.

1.

Connect scan tool MB991958 to the data link connector.

2.

Turn the ignition switch to the "ON" position.

3.

Select "System select" from the start-up screen.

4.

Select "From 2006 MY" of "Model Year." When the "Vehicle
Information" is displayed, check the contents.

5.

Select  "ETACS"  from  "System  List",  and  press  the  "OK"
button.

NOTE:

When the "Loading Option Setup" list is displayed,

check the applicable item.

6.

Select "Diagnostic Trouble Code."

7.

If a DTC is set, it is shown.

8.

Choose "Erase DTCs" to erase the DTC.

COLUMN SWITCH

54Ah-5

DIAGNOSIS

DIAGNOSTIC TROUBLE CODE TABLE

M15410200016USA0000010000

Diagnostic  trouble  code
No.

Diagnostic item

Reference page

B2350

Malfunction of lighting switch

 P.54Ah-6

B2351

Malfunction of wiper/washer switch

DIAGNOSTIC TROUBLE CODE PROCEDURES

DTC B2350: Malfunction of lighting switch,
DTC B2351: Malfunction of wiper/washer switch

M15410200008USA0000010000

TROUBLE JUDGMENT
The  ETACS-ECU  receives  the  signals  related  to
lighting and wiper/washer from the column switch. If
the fail information data is included in the signal from
column  switch,  DTC  B2350  (malfunction  of  lighting
switch) or B2351 (malfunction of wiper/washer switch)
is stored.

TECHNICAL DESCRIPTION (COMMENT)
The column switch or the ETACS-ECU may have a
problem.

TROUBLESHOOTING HINTS

Column switch may be defective

The ETACS-ECU may be defective

DIAGNOSIS

Required Special Tools:

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

MB991824: Vehicle Communication Interface (V.C.I.)

MB991827: M.U.T.-III USB Cable

MB991910:  M.U.T.-III  Main  Harness  A  (Vehicles  with
CAN communication system)

STEP 1. Using scan tool MB991958, Check whether the
diagnostic trouble code is reset.
Check again if the DTC is set to the ETACS-ECU.

54Ah-6

COLUMN SWITCH

DIAGNOSIS
